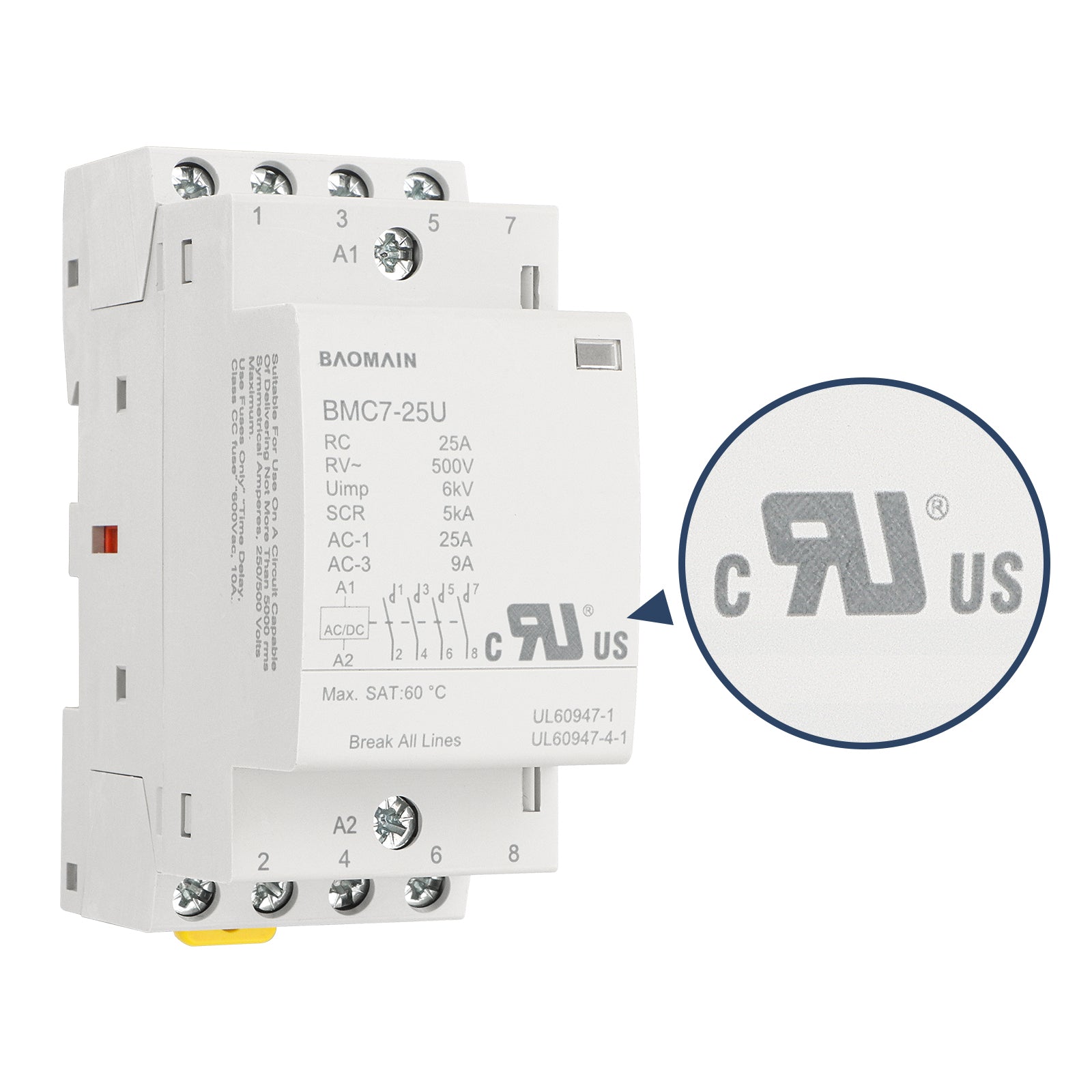

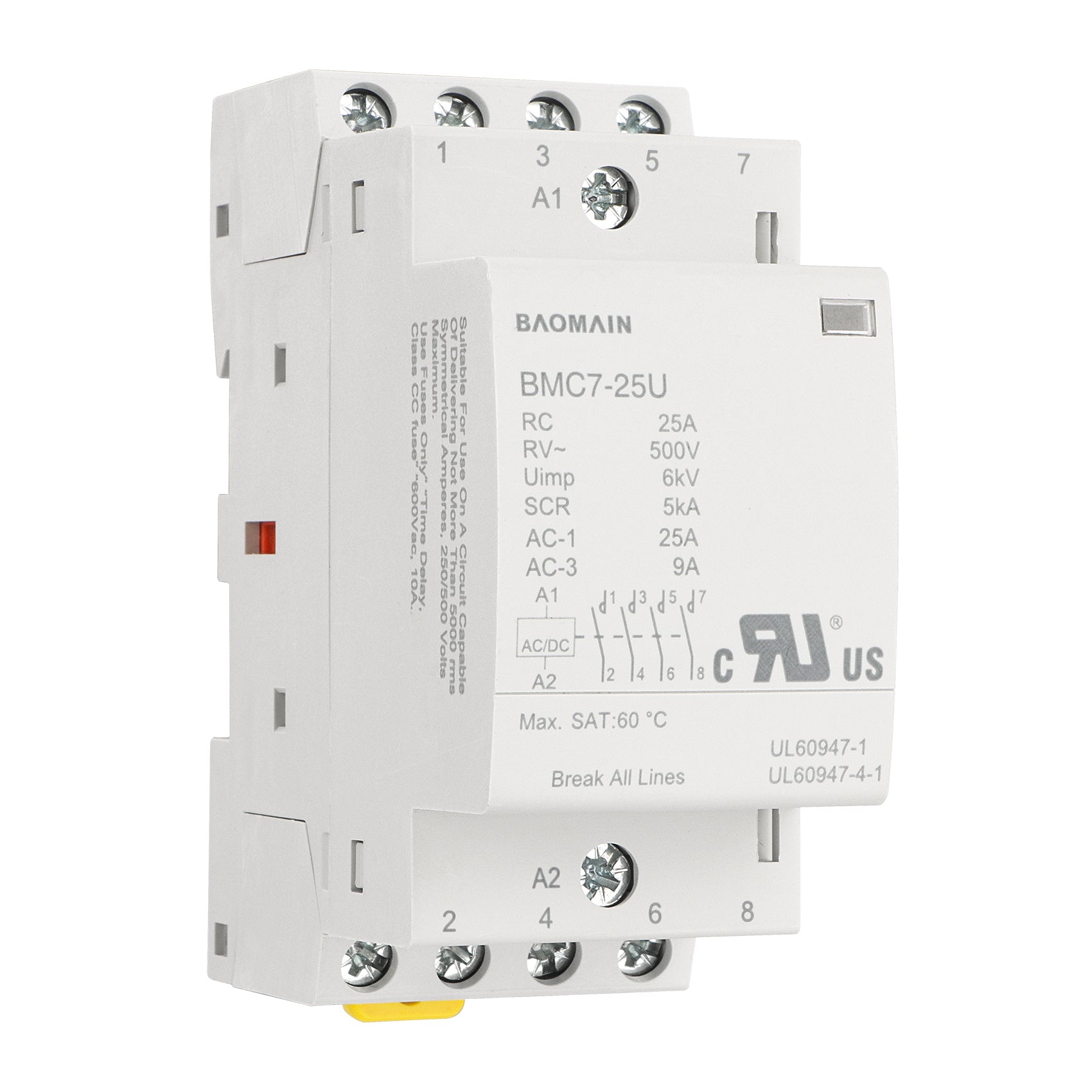

Baomain 4NO AC/DC Household Contactors, 25A 4P Modular Contactor, 4 Poles Normally Open, DIN Rail Mount, UL Listed (BMC7-25U)
200 Auf Lager
- Normaler Preis
- $23.89
- Verkaufspreis
- $23.89
- Normaler Preis
-
UL Listed BMC7 miniature automatic AC/DC contactor provides a comprehensive solution for controlling non-inductive or low-inductive loads in a variety of settings. It is a reliable choice for who is looking for a high-quality contactors for their electrical control.
Suitable For Use On A Circuit Capable Of Delivering Not More Than 5000rms Symmetrical Amperes,250/500 Volts Maxium.
Rate: |
RC:25A, RV~:500V , AC-1: 63A, AC-3:25A,SCR 5kA |
Uimp.: | 6kV |
Rated Current: | 25A |
Max. Power: | 2.0W |

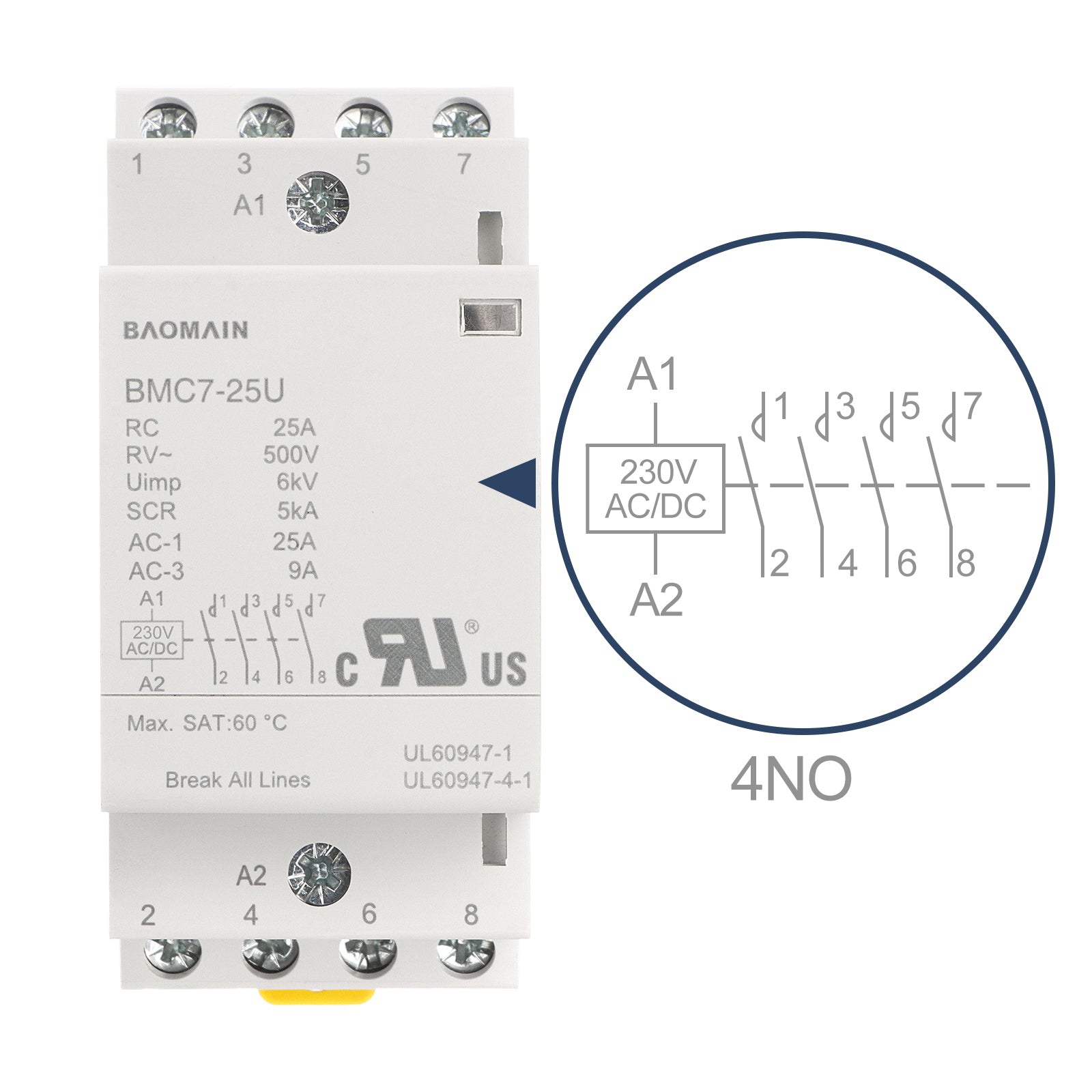

Contact: | 4 Pole-4NO |
Features: | Hum-free |
The frequency: | 50Hz/60Hz |
Operating Temperature: | -5℃~+60C |
Storage Temperature: | -40℃~+70℃ |

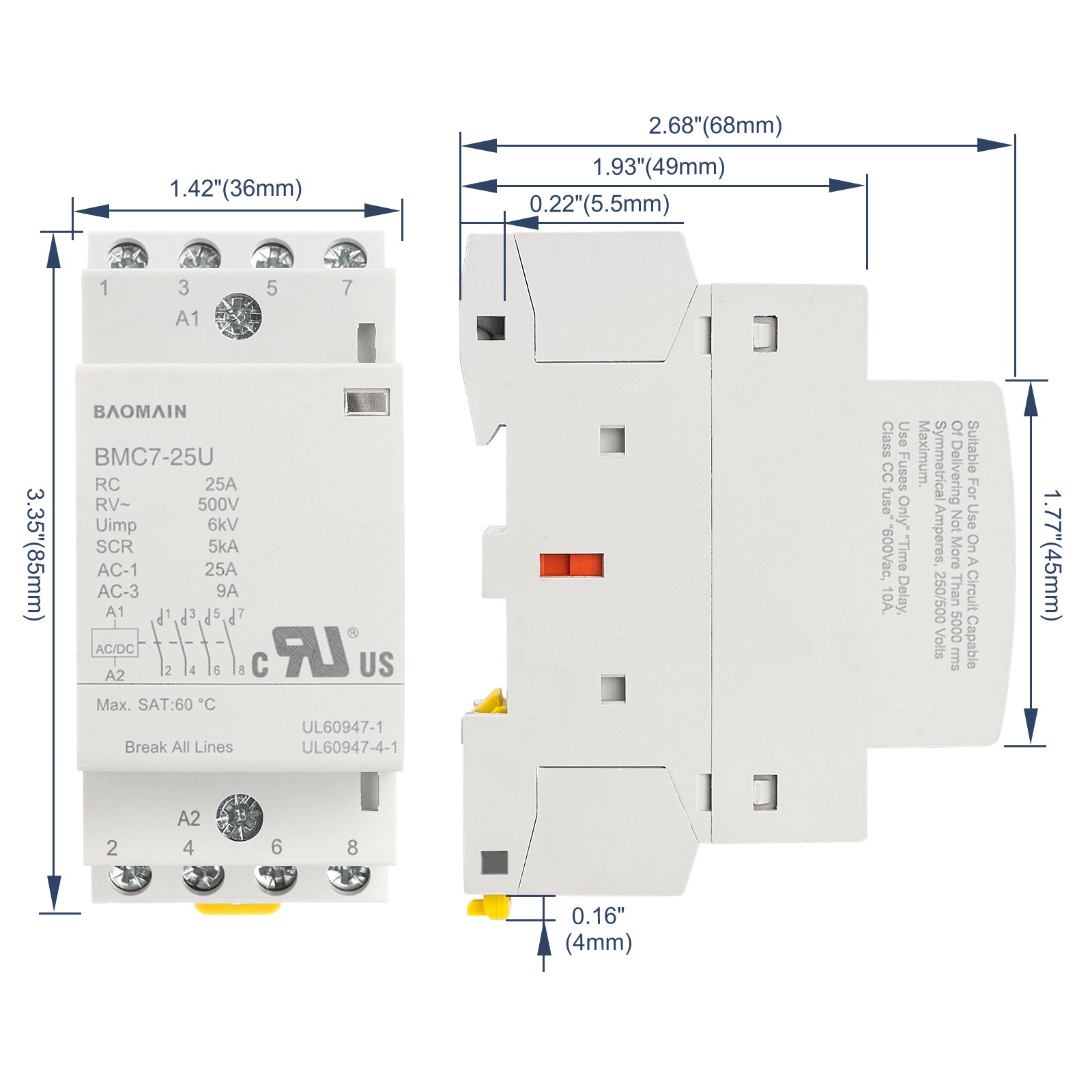

Size/Weight : : | 85 x 36 x 68mm (3.35"x1.42"x2.68")(L*W*T) /240g |
Material : | Plastic, Electronic Parts |
Mechanical life : | 1,000,000 cycles |
Maximum number of switching operation a day : | 100 |
Contactor body: | IP20 (Protection level) |
Installed in the distribution box: | IP40 (Protection level) |
Pollution degree: | 2 |
Certificate | UL |
