Baomain Household AC Contactor HC1-100(BCT-100) 2 Pole 50HZ DIN Rail Mount
Baomain Household AC Contactor HC1-100(BCT-100) 2 Pole 50HZ DIN Rail Mount
Baomain Household AC Contactor HC1-100(BCT-100) 2 Pole 50HZ DIN Rail Mount
Baomain Household AC Contactor HC1-100(BCT-100) 2 Pole 50HZ DIN Rail Mount

Baomain Household AC Contactor HC1-100(BCT-100) 2 Pole 50HZ DIN Rail Mount

zzgl. Versandkosten

This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

  • Rating: AC24V/110V/220V, 50Hz
  • Max. Power: 2.1W
  • Rated Current(Ith): 100A; Ui : 500V; Ue: 250V
  • Contact: 2 Pole;
  • Type: 2NO,2NC,1NO 1NC

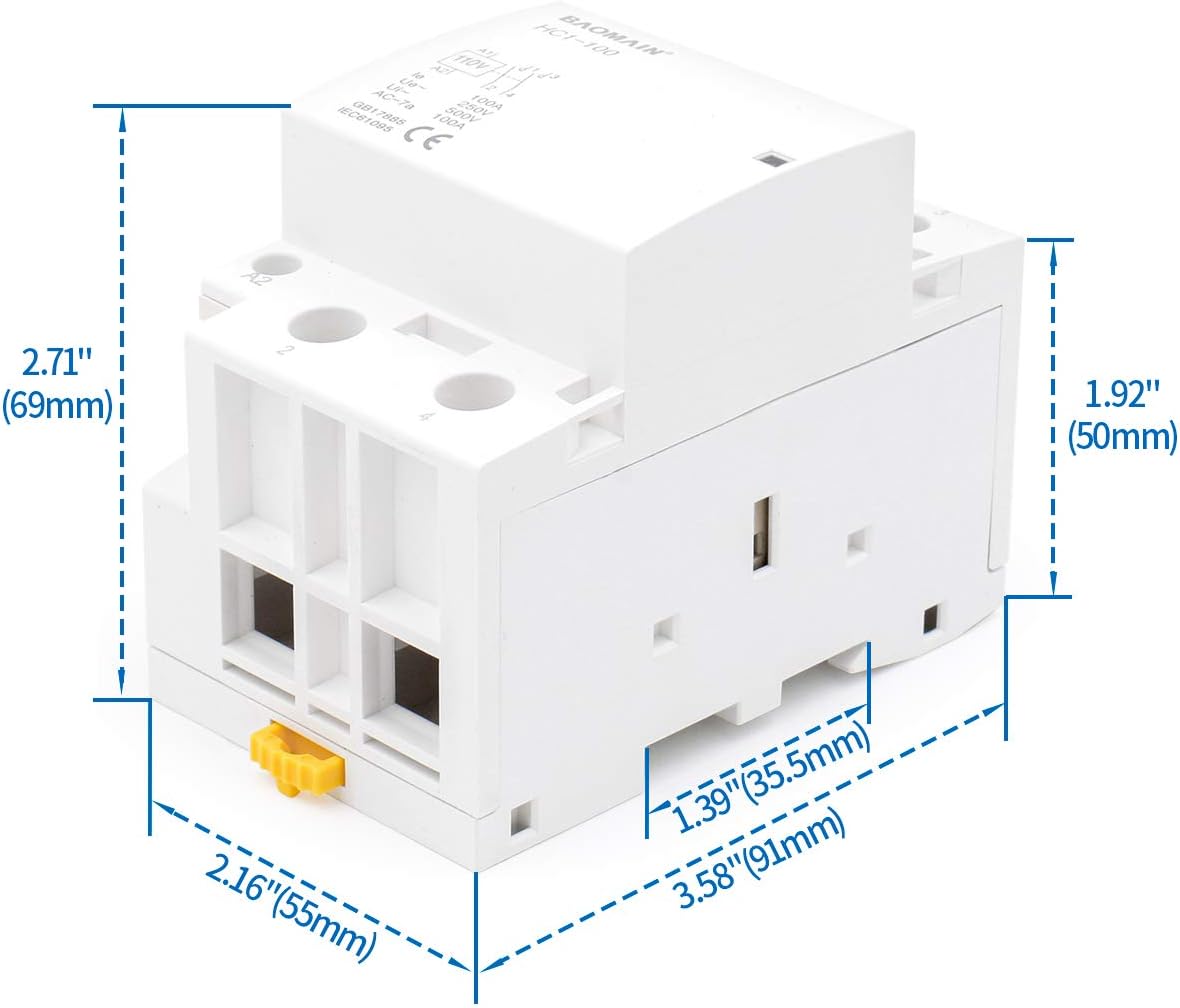

  • Size: 91 x 54 x 69mm / 3.58" x 2.16" x 2.7"(L*W*H)

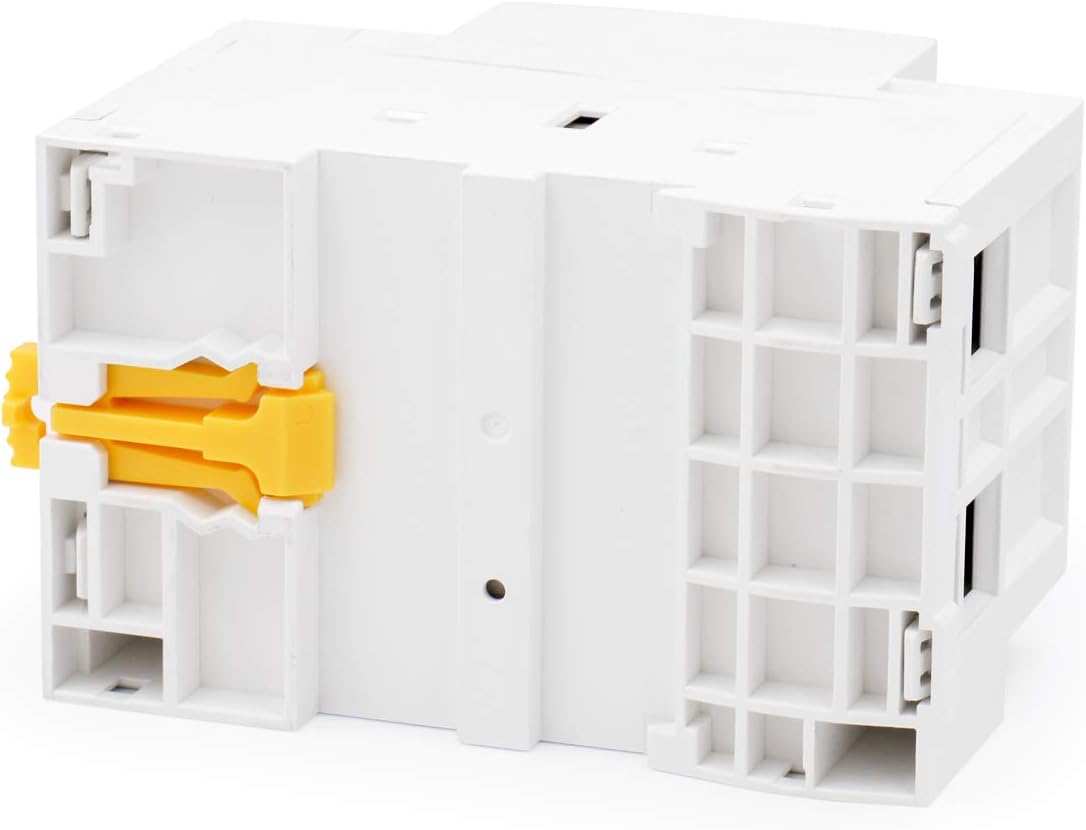

  • Mounting Type: 35mm DIN Rail Mount
  • Weight: 330g
  • Power Lug Terminal Capacity AWG # 2/0
