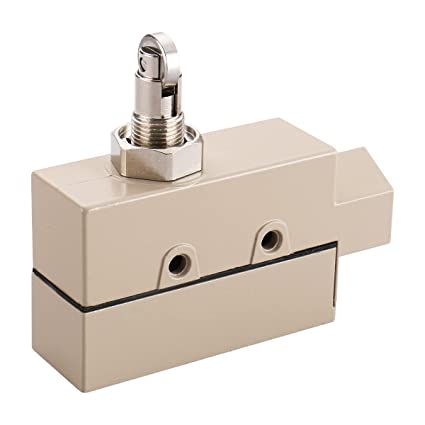

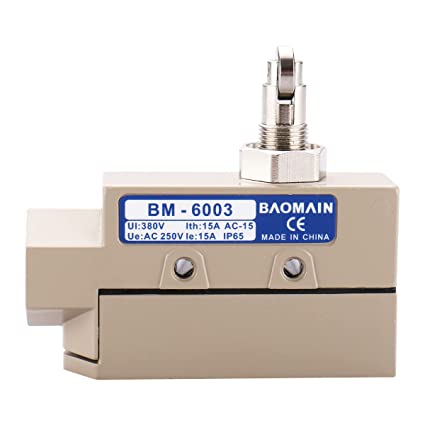

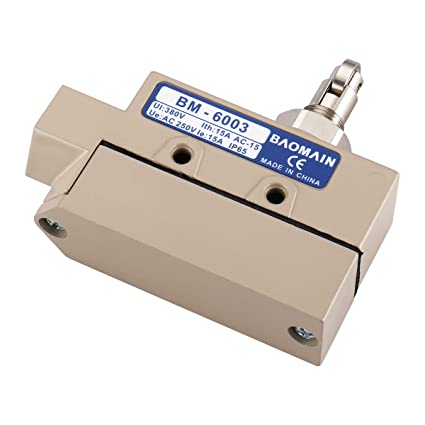

Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65
Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65
Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65
Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65
Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65
Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65

Baomain Sealed Limit Switch BM-6003 Cross Roller Plunger AC 250V 15A IP 65

zzgl. Versandkosten

Built-in BM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof. It is the same as BM micro switch in the rated value and characteristics. Various of actuators that are taken convenience for using. Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut.

  • Type of the head: Cross Roller Plunger
  • Power of starting: 350
  • Power of release: 115
  • Switching position (mm): 0.5mm
  • Rated current In(А): 15A active load. 5A inductive load
  • Insulation resistance: 100
  • Rated voltage: 230V
  • IP code: IP65
  • Section of the power supply conductor: up to 1.5mm2
  • Standards: GB14048.5
