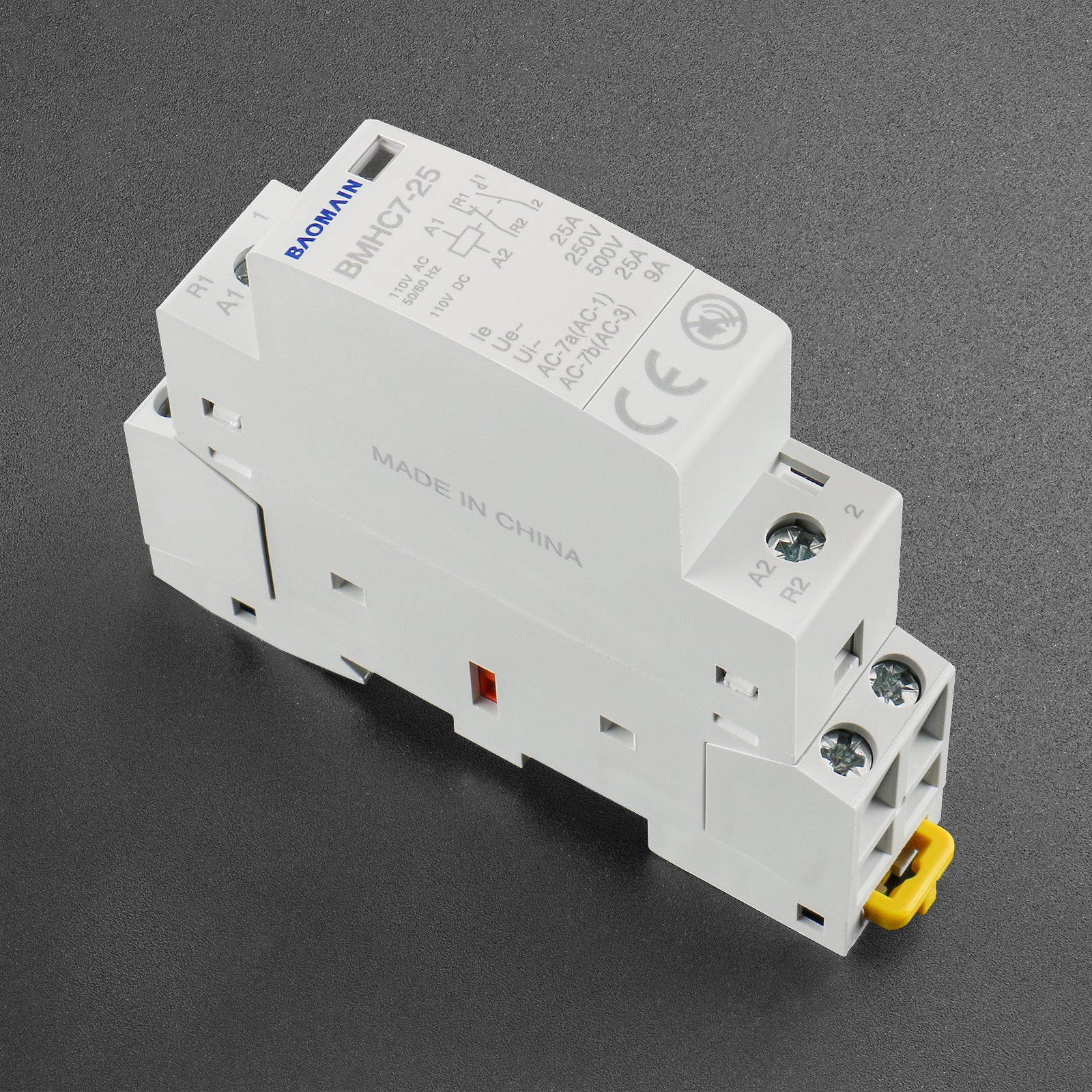

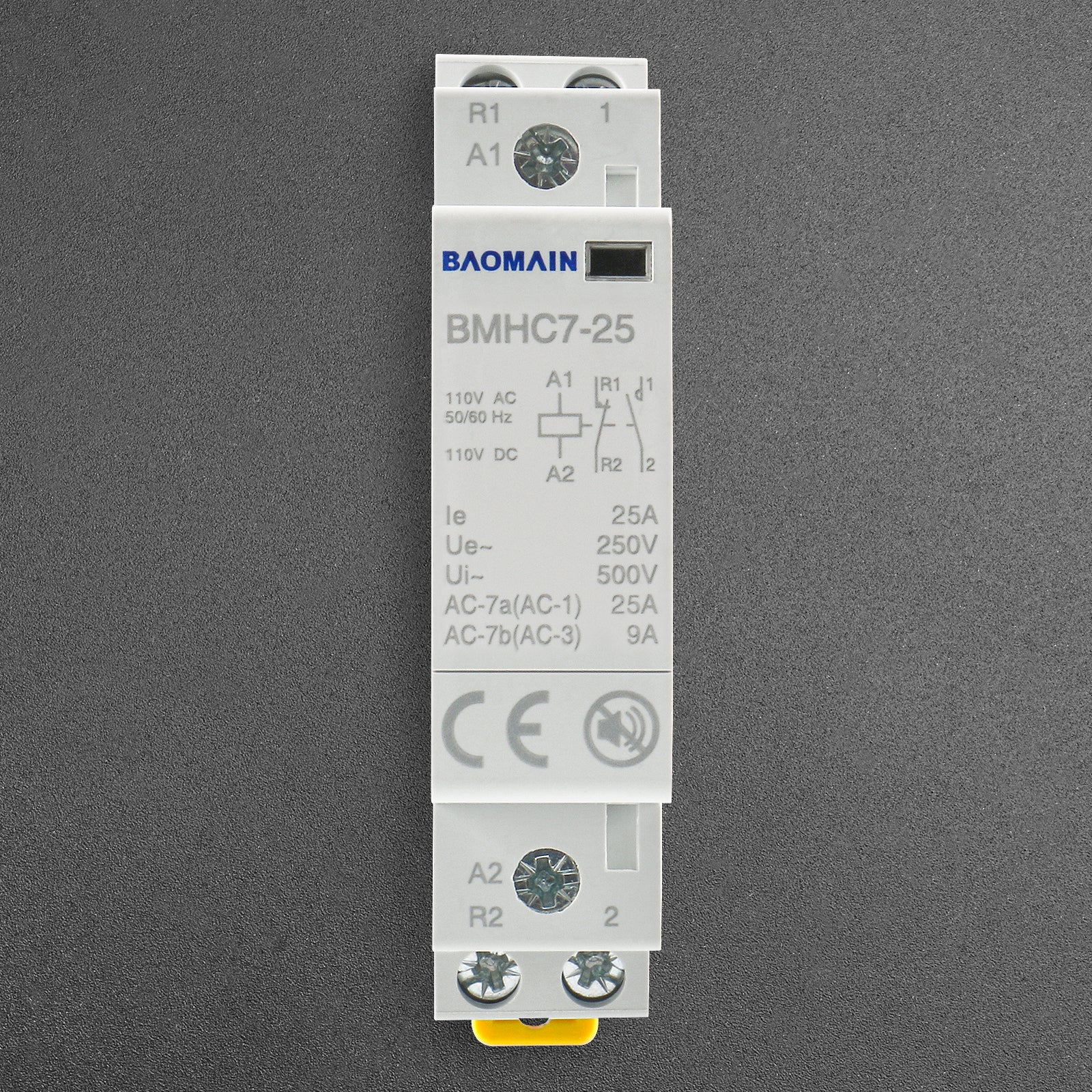

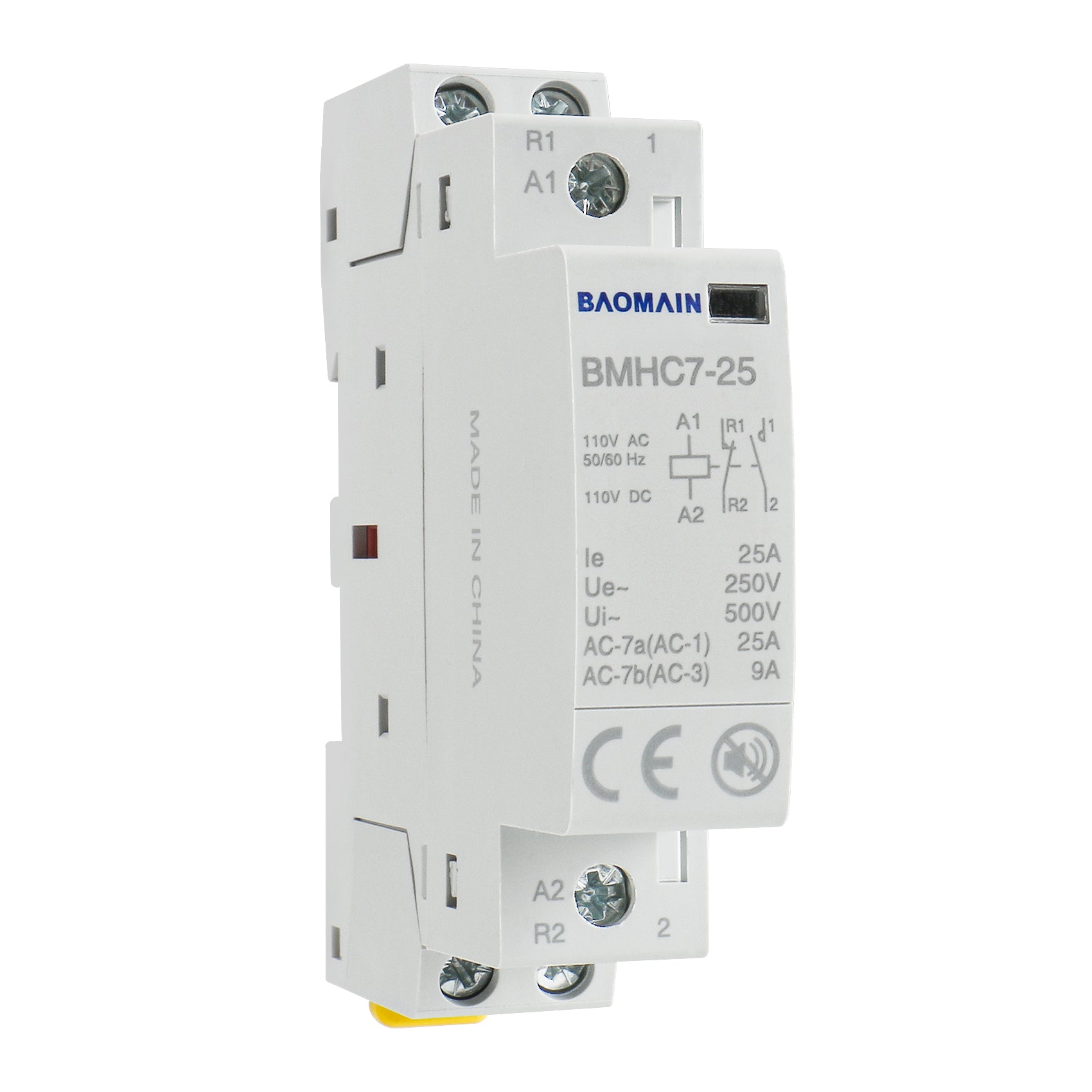

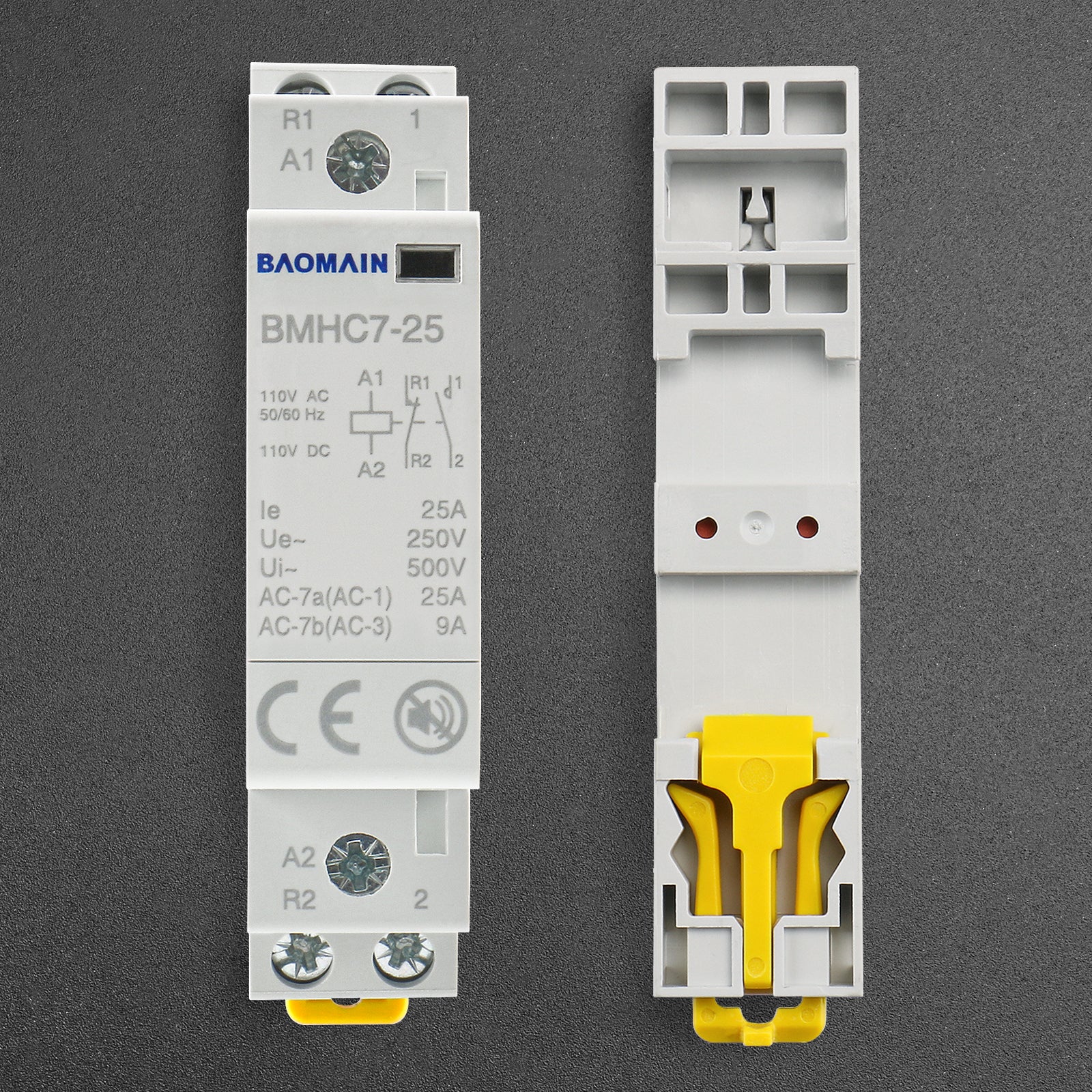

Baomain Hum-free DC/AC Modular Contactor 25A 2 Pole 12V/24V/110V/220V Circuit Control 35mm DIN Rail BMHC7-25
BMHC7 miniature automatic AC/DC contactor provides a comprehensive solution for controlling non-inductive or low-inductive loads in a variety of settings. It is a reliable and versatile choice for who looking for a high-quality contactor for their electrical control needs.
| Rate： |
Ui:500V , Ue:250V AC-7a: 25A, AC-7b:9A |
| Uimp.: | 2.5kV (4kV for 12/24/48VAC) |
| Rated Current: | 25A |
| Max. Power: | 2.0 W |
| Contact: | 2 Pole-2NO, 2NC, 1NO 1NC |
| Features: | Hum-free |
| The frequency： | 50Hz/60Hz |
| Operating Temperature: | -5℃~+60C |
| Storage Temperature: | -40℃~+70℃ |

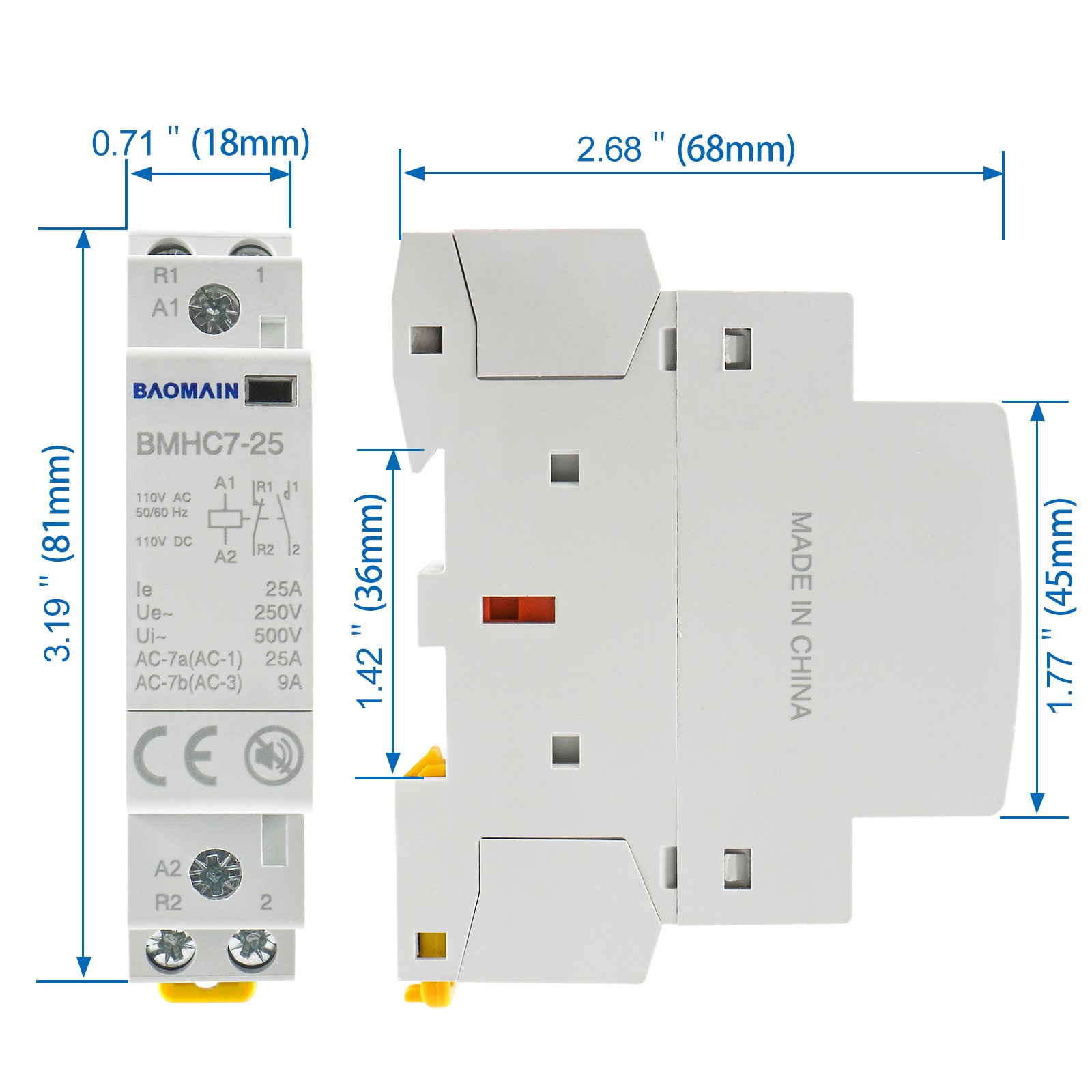

| Size : | 81 mm x 18mm x 68 mm (3.19" x 0.71" x 2.68")(L*W*T) |
| Material : | Plastic, Electronic Parts |
| Mechanical life : | 1,000.000 cycles |
| Maximum number of switching operationa day : | 100 |
| Contactor body: | IP20 (Protection level) |
| Installed in the distribution box: | IP40 (Protection level) |
| Pollution degree: | 2 |
| Weight : | 140g |
