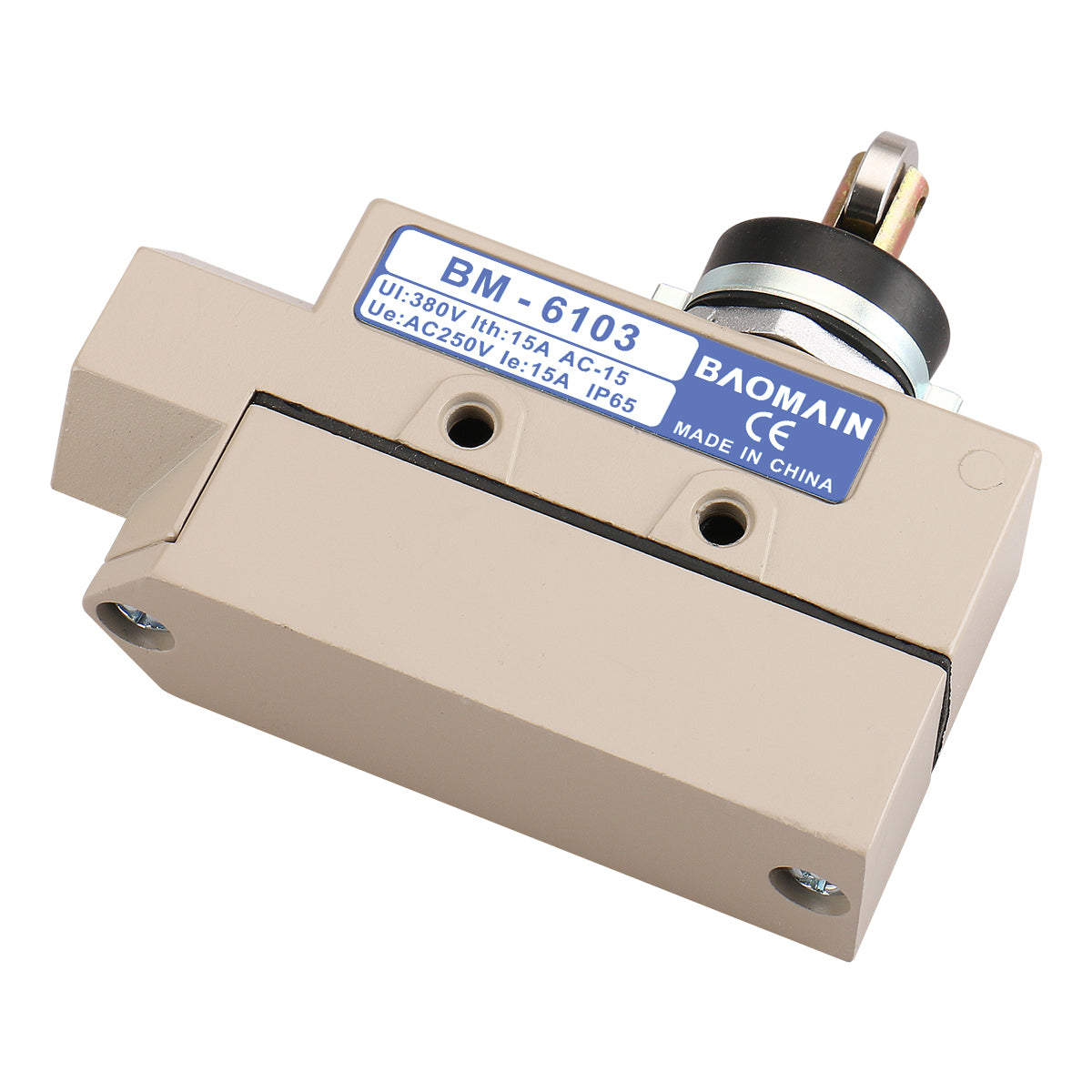

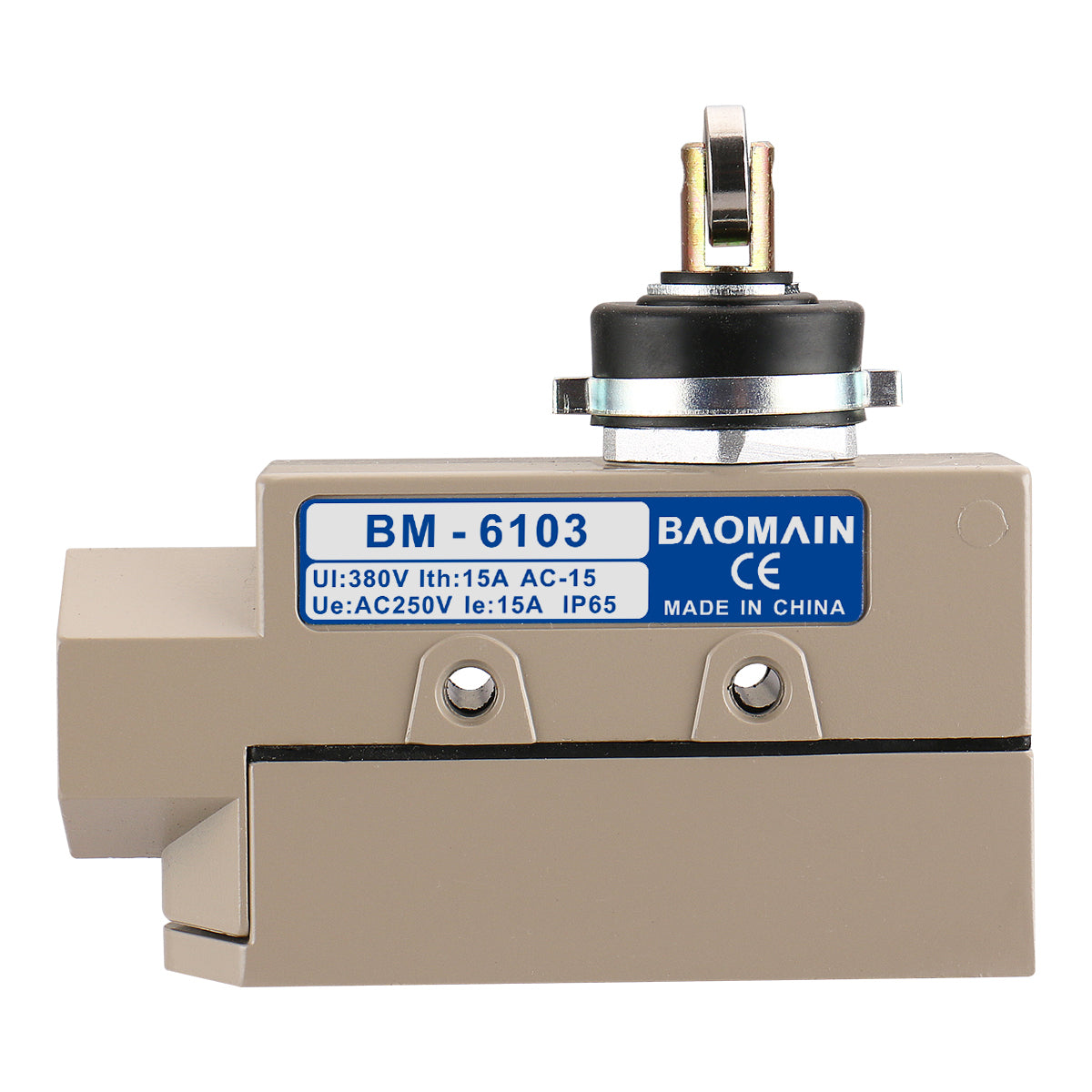

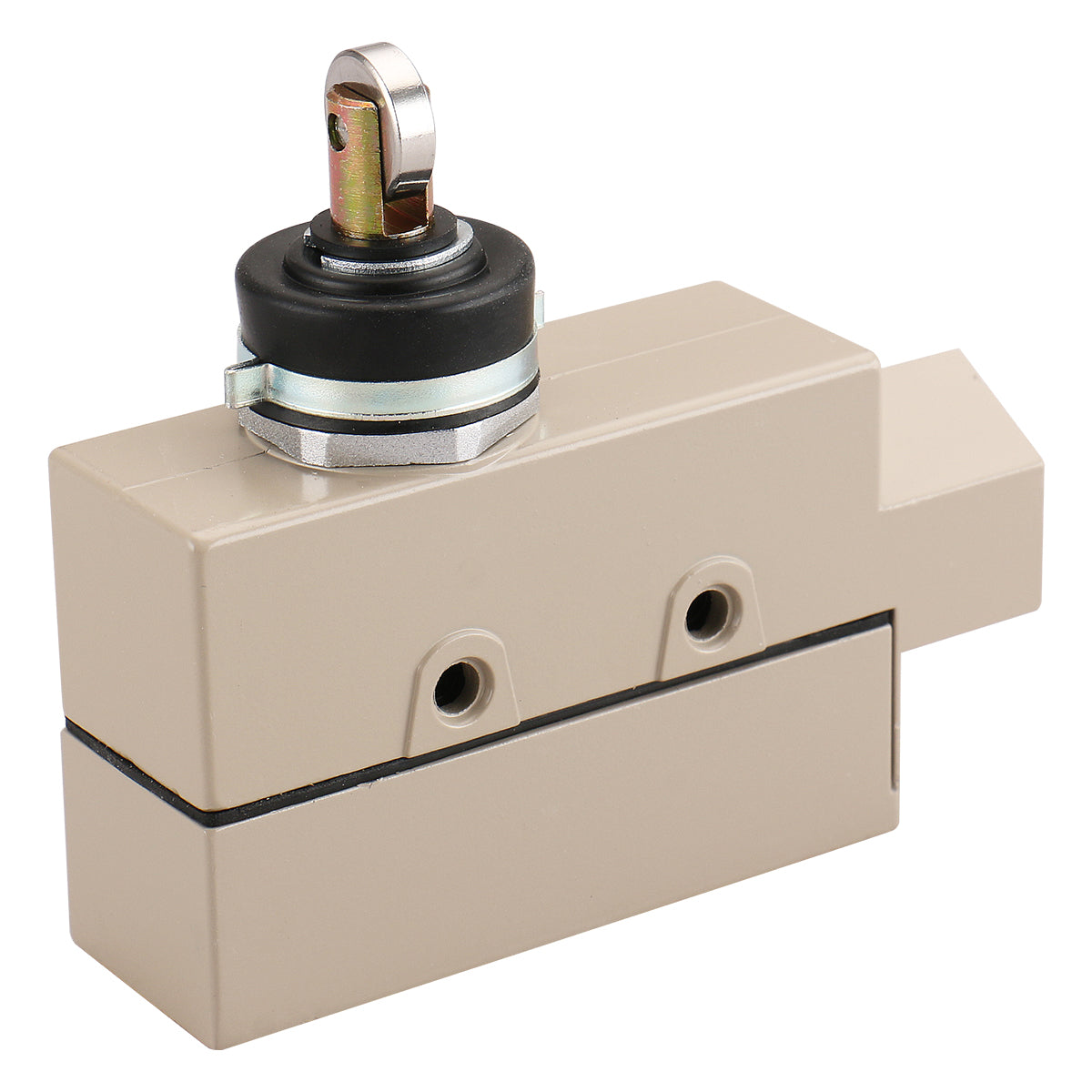

Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65
Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65
Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65
Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65
Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65
Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65

Roll over image to zoom in Baomain TZ-6 Sealed Limit Switch BM-6103 (TZ-6103) Cross Roller Plunger SPDT Momentary AC 250V 15A IP65

zzgl. Versandkosten

Built-in BM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof. It is the same as BM micro switch in the rated value and characteristics. Various of actuators that are taken convenience for using. Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut.

  • Contact Configuration: 1NO+1NC(SPDT);
  • Actuator Type :Cross roller Plunger
  • Action Type : Momentary;
  • Ith : 15A;AC-15 : 250VAC 15A;

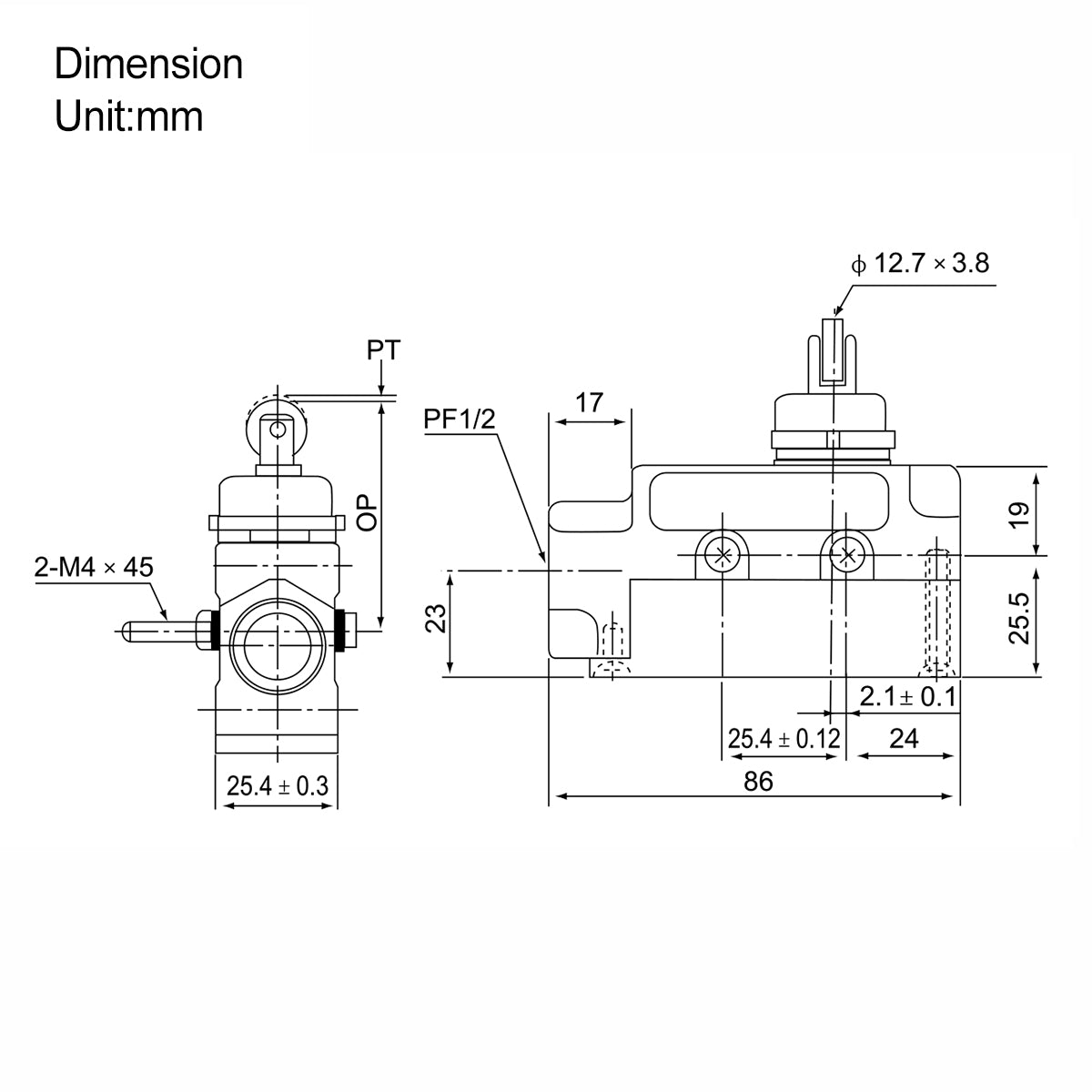

  • Roller Size : 12.7 x 3.8mm/0.5‘’ x 0.15‘’
  • Installing Hole Distance : 2.5cm/1‘’
  • Weight : 340g；
  • Waterproof Level: IP65;
  • Package Content: 1 x Limit Switch,Screws；
