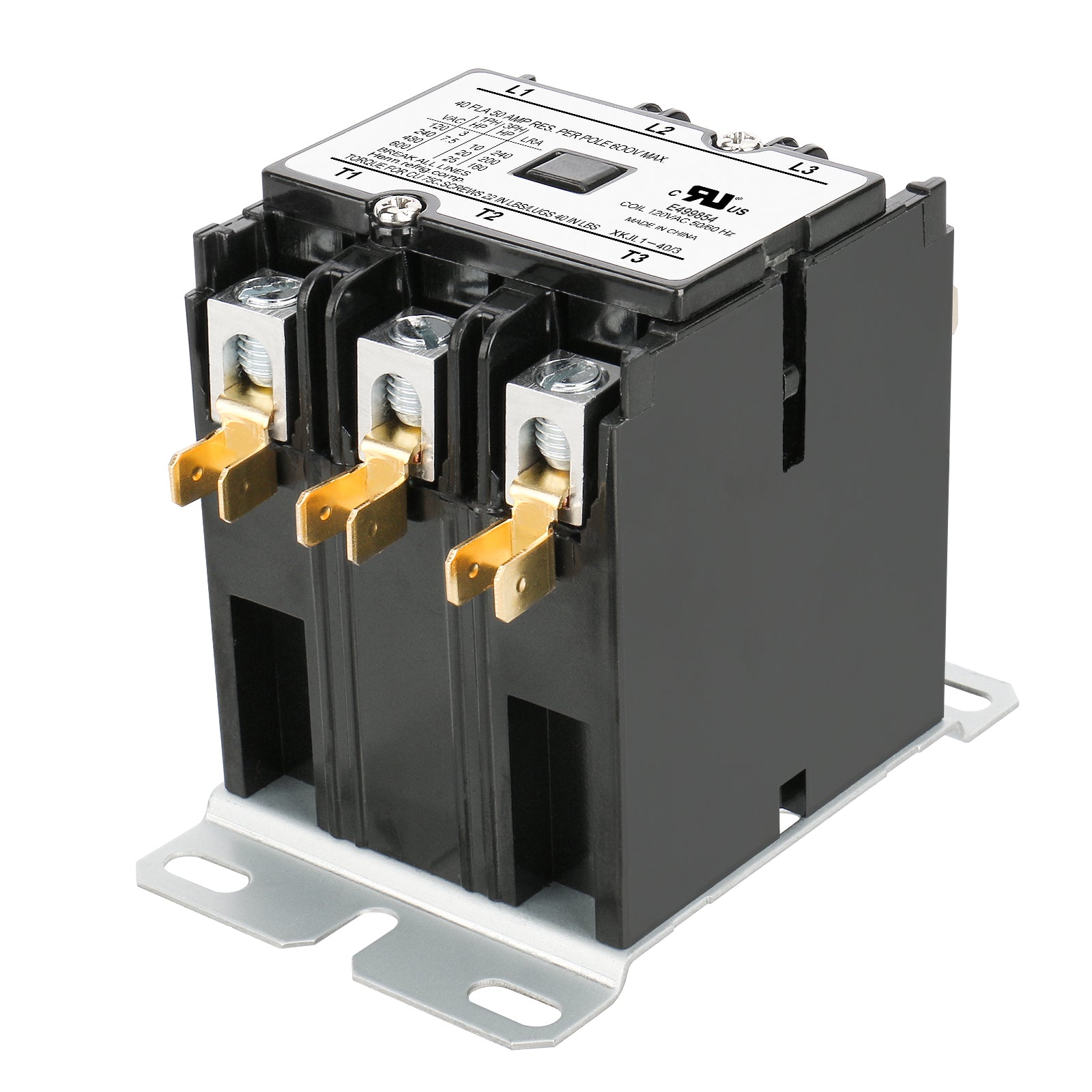

Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

Baomain HVAC AC Contactor, BMAC-40/3 AC 120V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

zzgl. Versandkosten
Product Type HVAC AC Contactor
Poles 3P
Rated Current (FLA) 40Amp
Resistive (RES) 50Amps
Locked Rotor Amps (LRA) 240/200/160

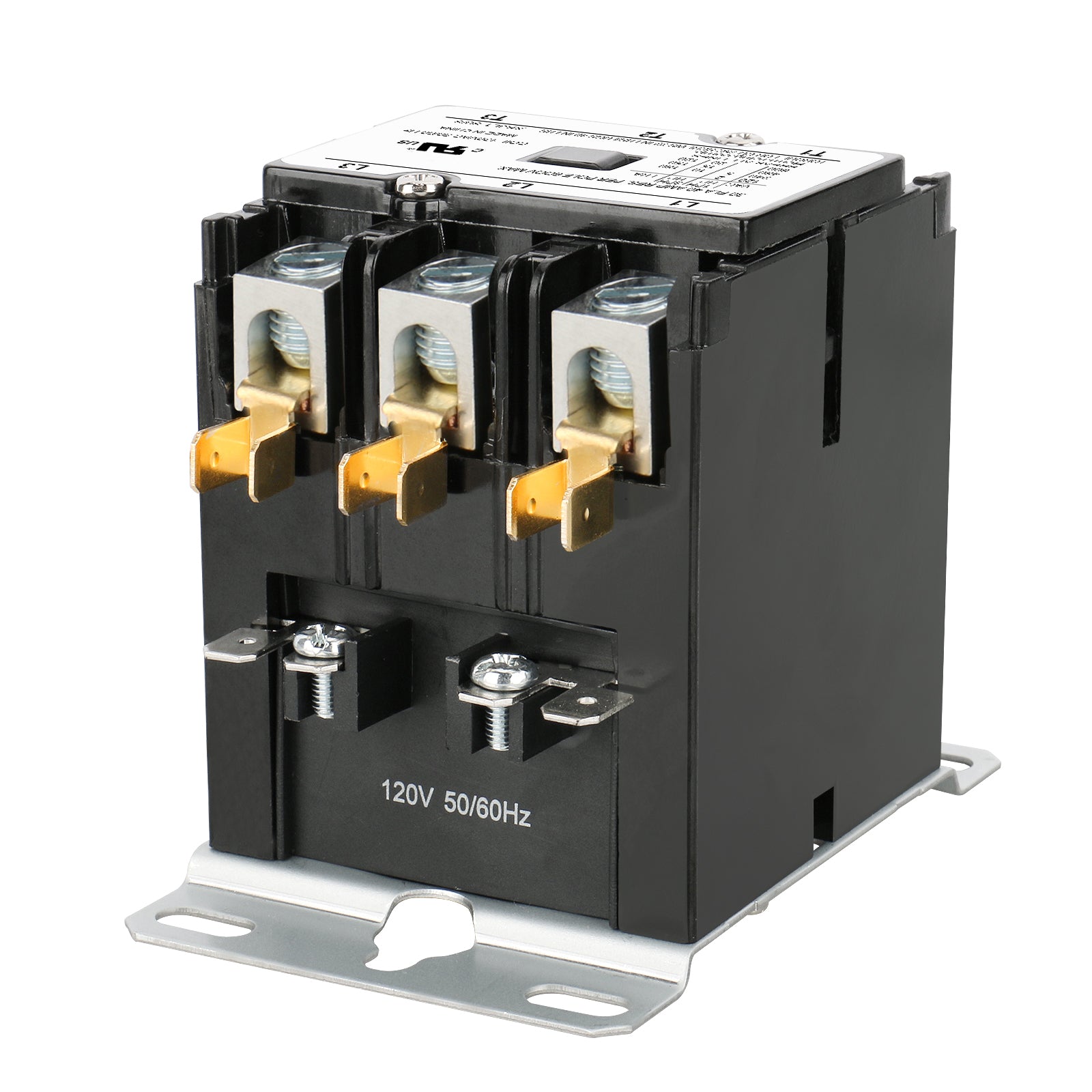

Coil Voltage 120VAC
AC Frequency 50/60 Hz
Max.Withstand Voltage 600 VAC
Terminal Size 1/4 Inch
Line & Load Terminals Box Lug #10-32
Recommended Wire Size Box Lug16-8*AWG
Recommended Tightening Torque Box Lug 22 In. lbs
Mechanical Life 1,000,000 Times
Electrical Life 250,000 Times
Temperature Range -40°F~150°F
Certification

 UL, CE



Size: 95 x 51 x 76 mm / 3.75'' x 2.0'' x 3.0'' (LxWxH)

Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
