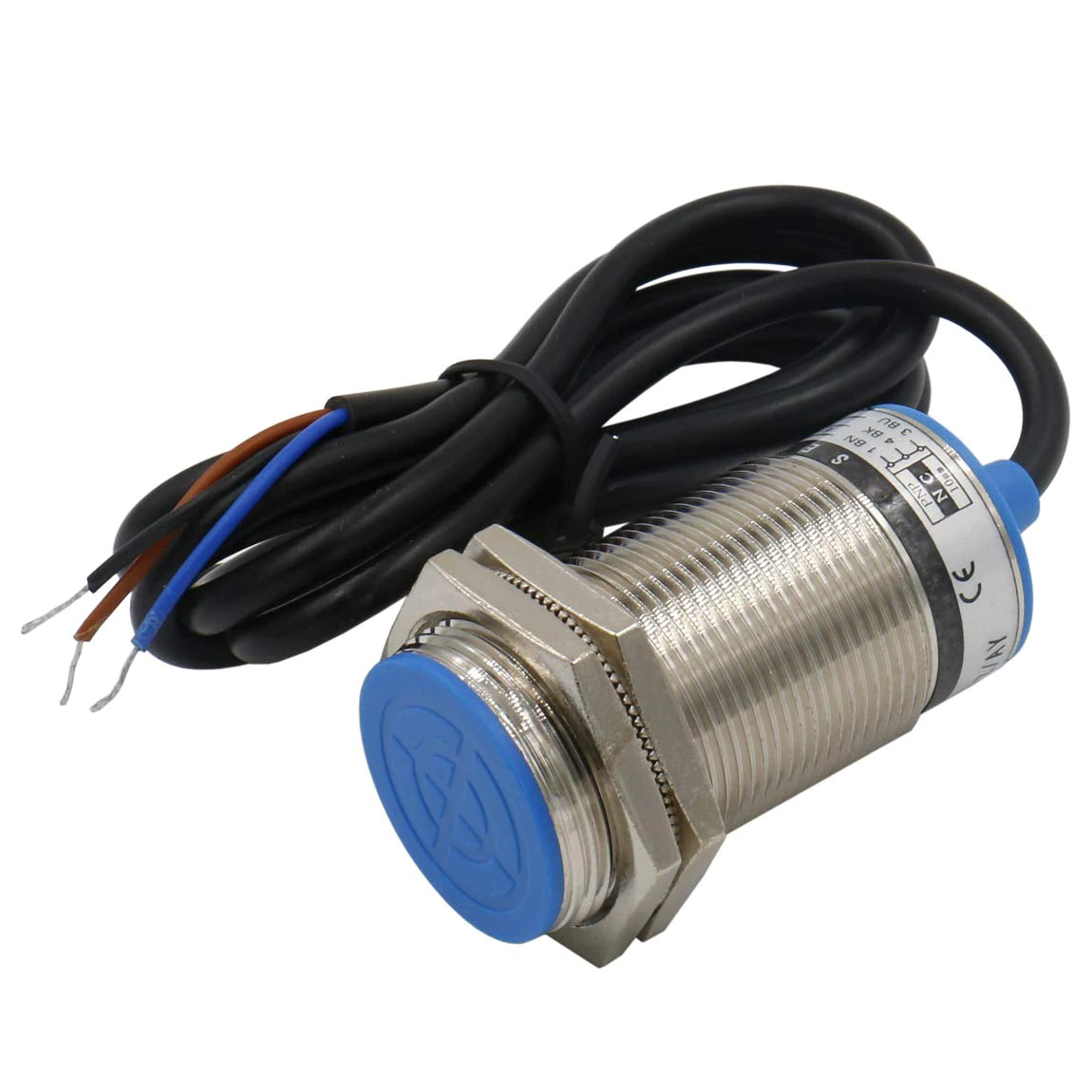

Baomain M30 Embedded Sensor Inductive Proximity Switch LJ30A3-10-Z/AX NPN NC DC 10-30V ,10mm Detecting Distance 3 wire

Baomain M30 Embedded Sensor Inductive Proximity Switch LJ30A3-10-Z/AX NPN NC DC 10-30V ,10mm Detecting Distance 3 wire

zzgl. Versandkosten
  • Product Name：Inductive Proximity Switch;
  • Output Type: NPN NC(Normally Closed);
  • Wire Type : DC 3 Wire Type (Black, Brown, Blue);
  • Mounting Way: Screen Shield Type;
  • Switch Appearance Type : Cylinder Type
  • Supply Voltage : DC 10-30V;
  • Current Output : 200mA;
  • Detect Object : Magnetic Metal;
  • Diameter of Column Sensor: 12mm;
  • Detecting Distance : 10mm;
  • Total Size: 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia);
  • Cable Length: 1.2m/47'';
  • External Material : Plastic, Alloy;
  • For large quantity, please contact us for quotation.
