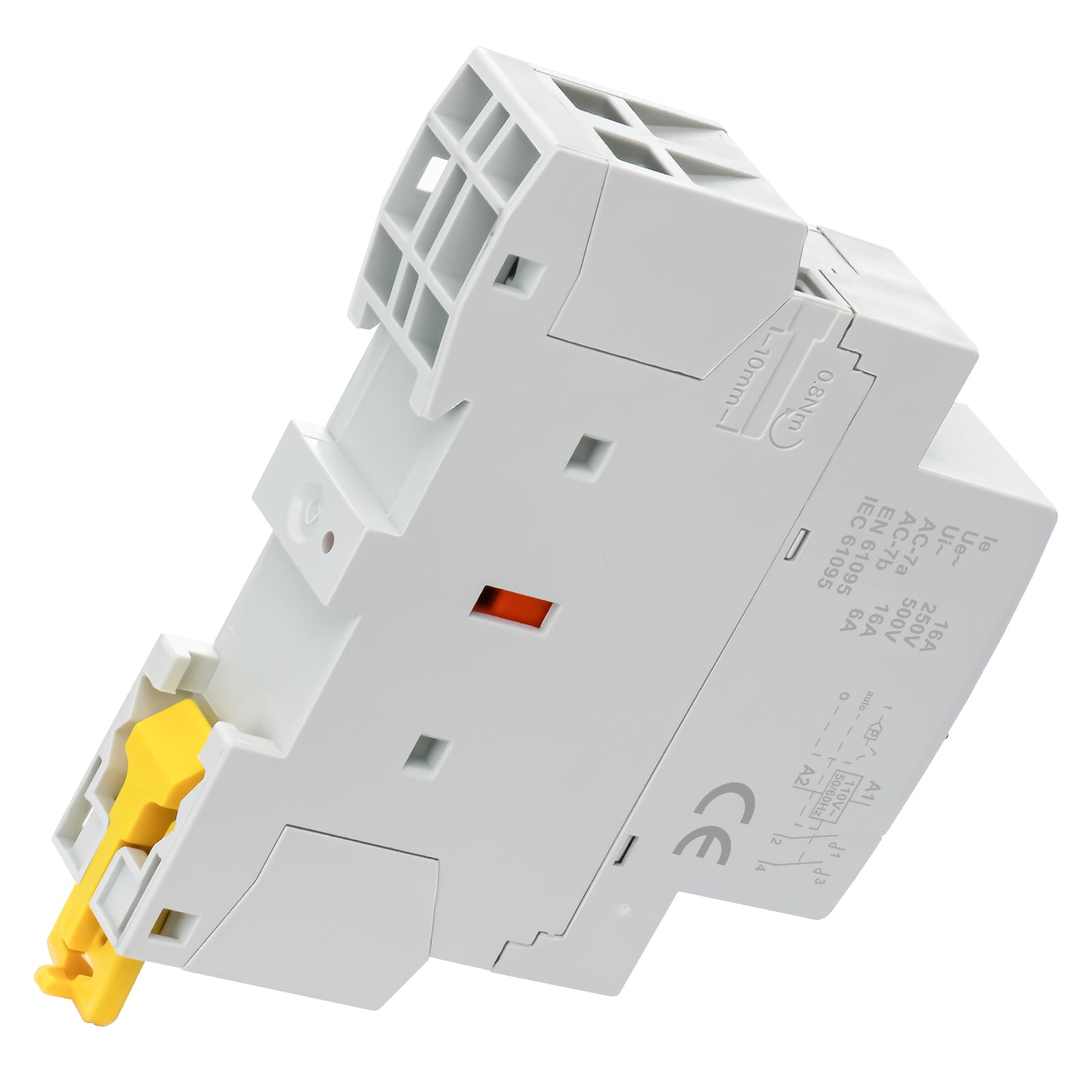

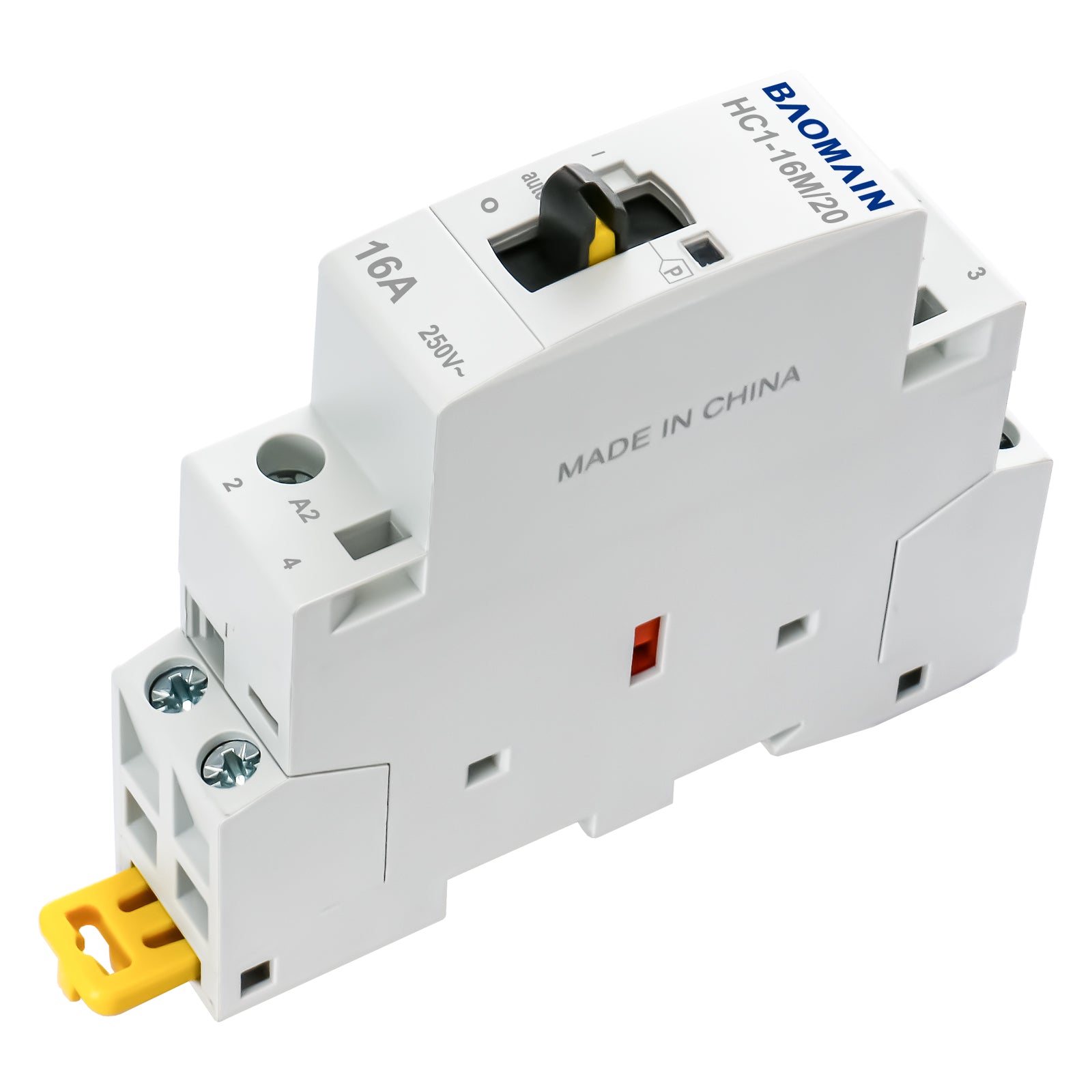

Baomain Manual Household AC Contactor HC1-16M 24V/110V/220VAC 16A 2 Pole 50/60Hz Modular Contactor Circuit Control 35mm DIN Rail

This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

• Rated Coil Voltage : AC 24V/110V/220V
• Operation method：Manual

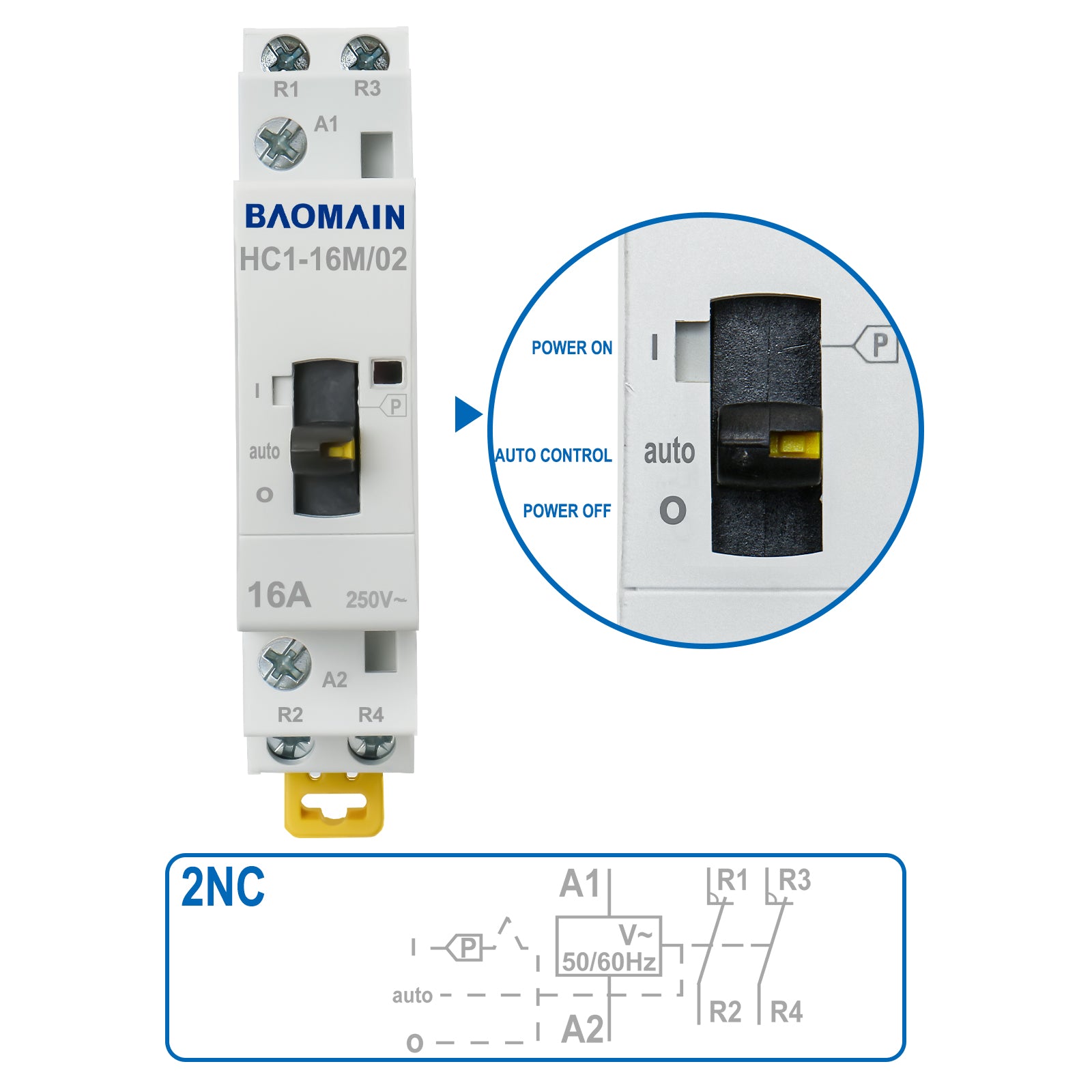

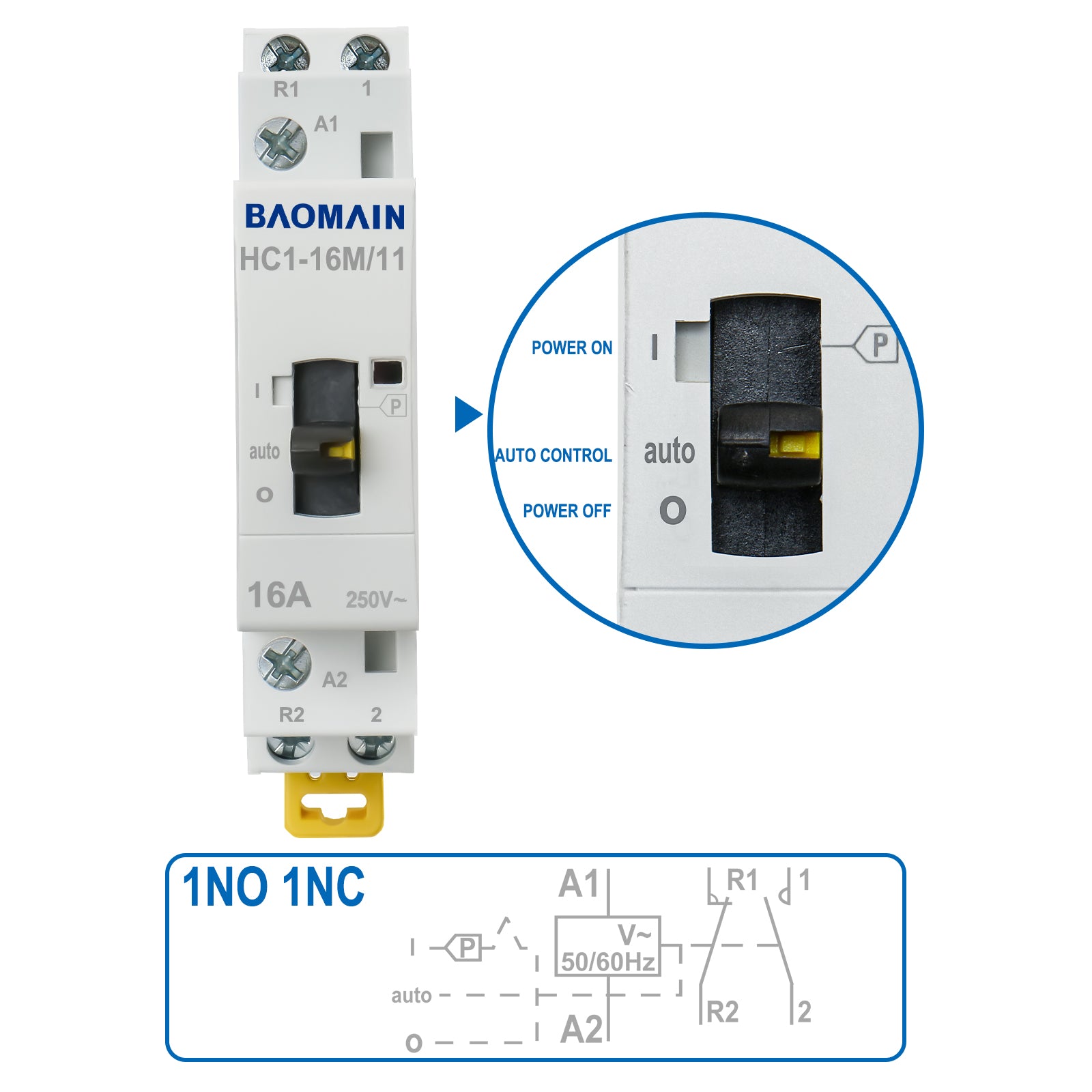

• Type: Normally Open, Normally Closed ( 2NO， 2NC，1NO 1NC，)
• Rated Current(le) : 16A
• Ui : 500V;Ue：250V
• AC-7a  16A, AC-7b 6A
• Number of Poles : 2
• Mounting Type : 35mm DIN Rail Mount

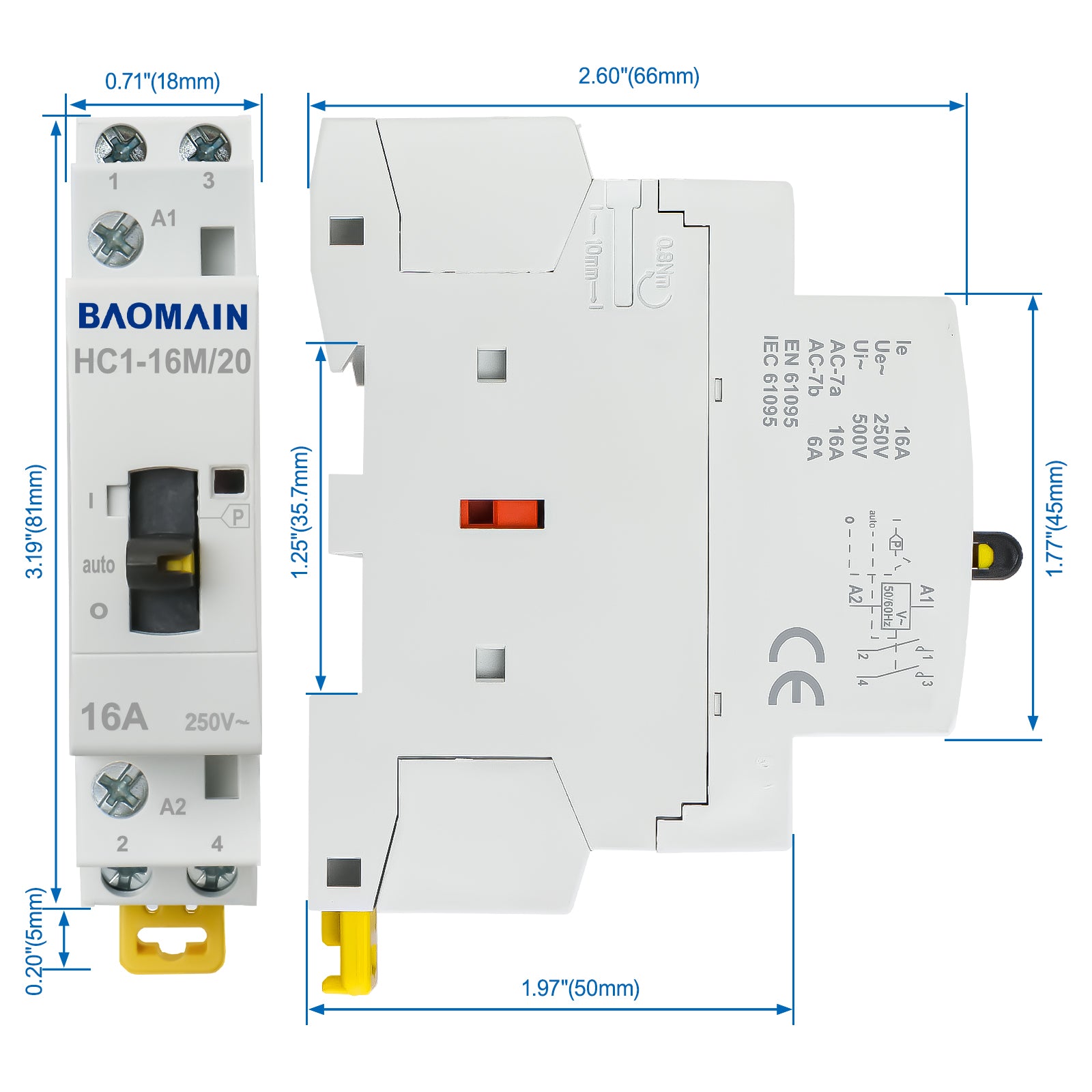

• Overall Size(Approx.) : 82 x 18 x 67mm / 3.20" x 0.71" x 2.6"(L*W*T)
• Weight : 110g;
• Package Content : 1 x Manual AC Contactor
