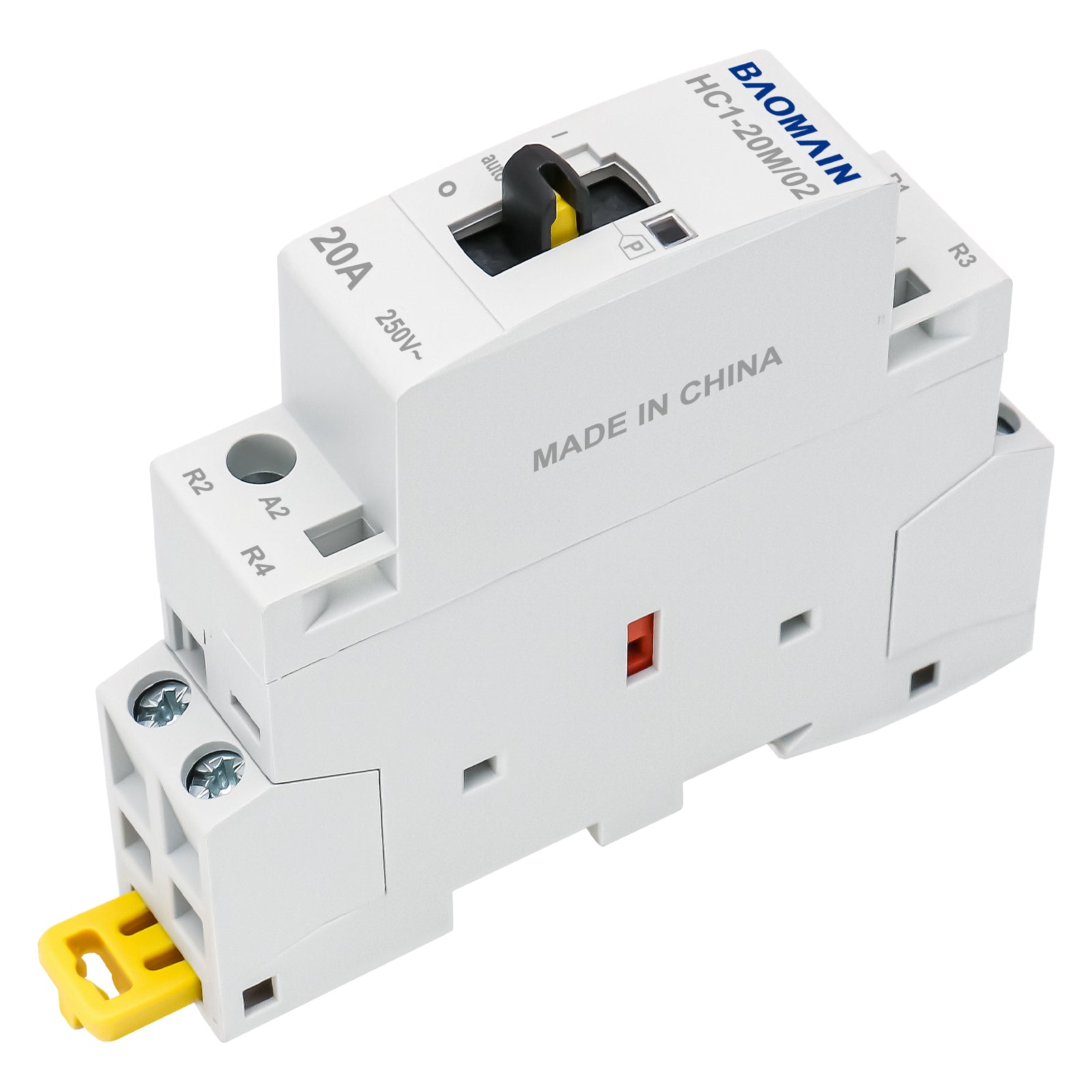

Baomain Manual Household AC Contactor HC1-20M 24V/110V/220VAC 20A 2 Pole 50/60Hz Modular Contactor Circuit Control 35mm DIN Rail

  • $9.99
    Einzelpreis pro


This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

  • Rated Coil Voltage : AC 24V/110V/220V
  • Operation method:Manual

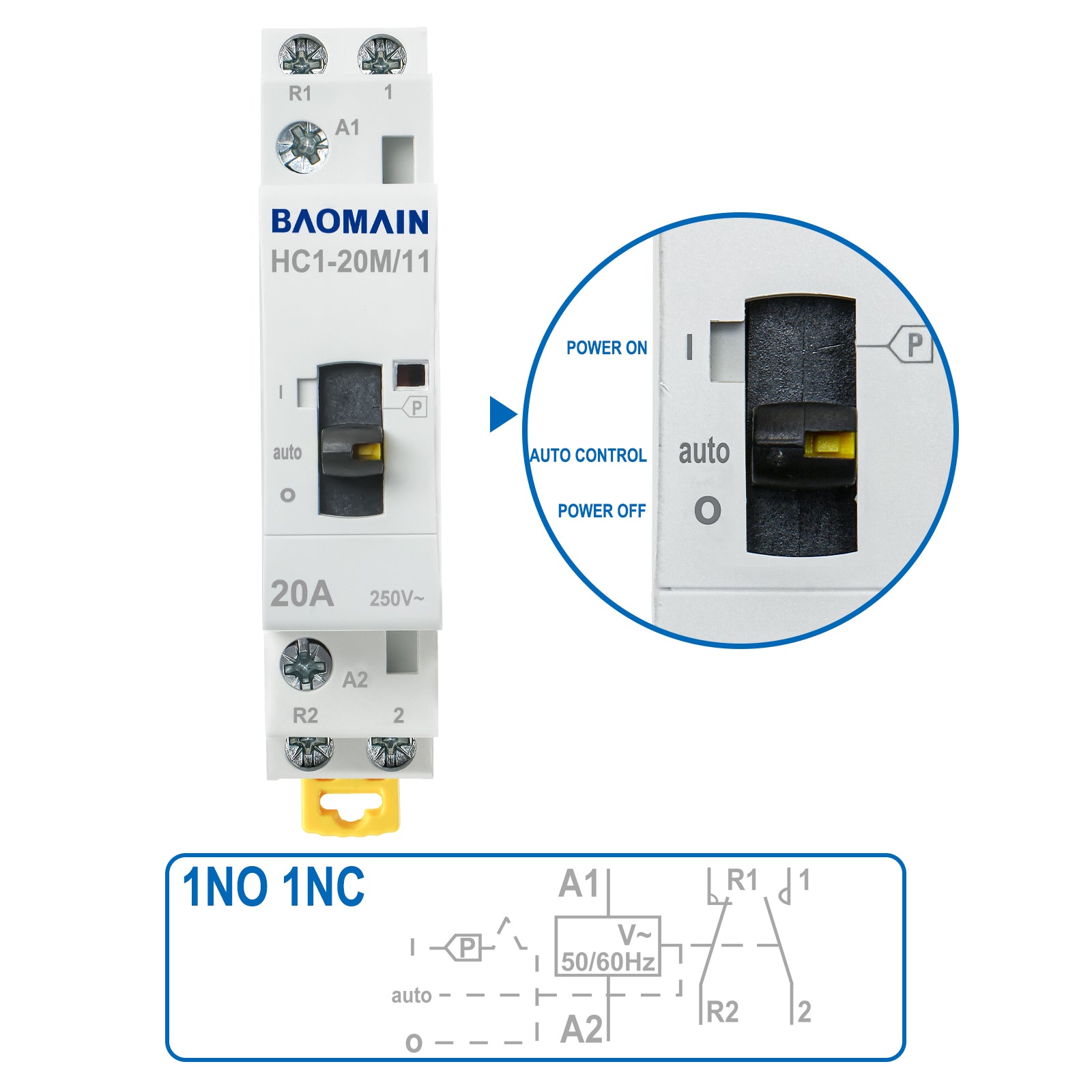

  • Type: Normally Open, Normally Closed ( 2NO, 2NC,1NO 1NC,)
  • Rated Current(le) : 20A
  • Ui : 500V;Ue:250V
  • AC-7a  20A, AC-7b 7A
  • Number of Poles : 2
  • Mounting Type : 35mm DIN Rail Mount

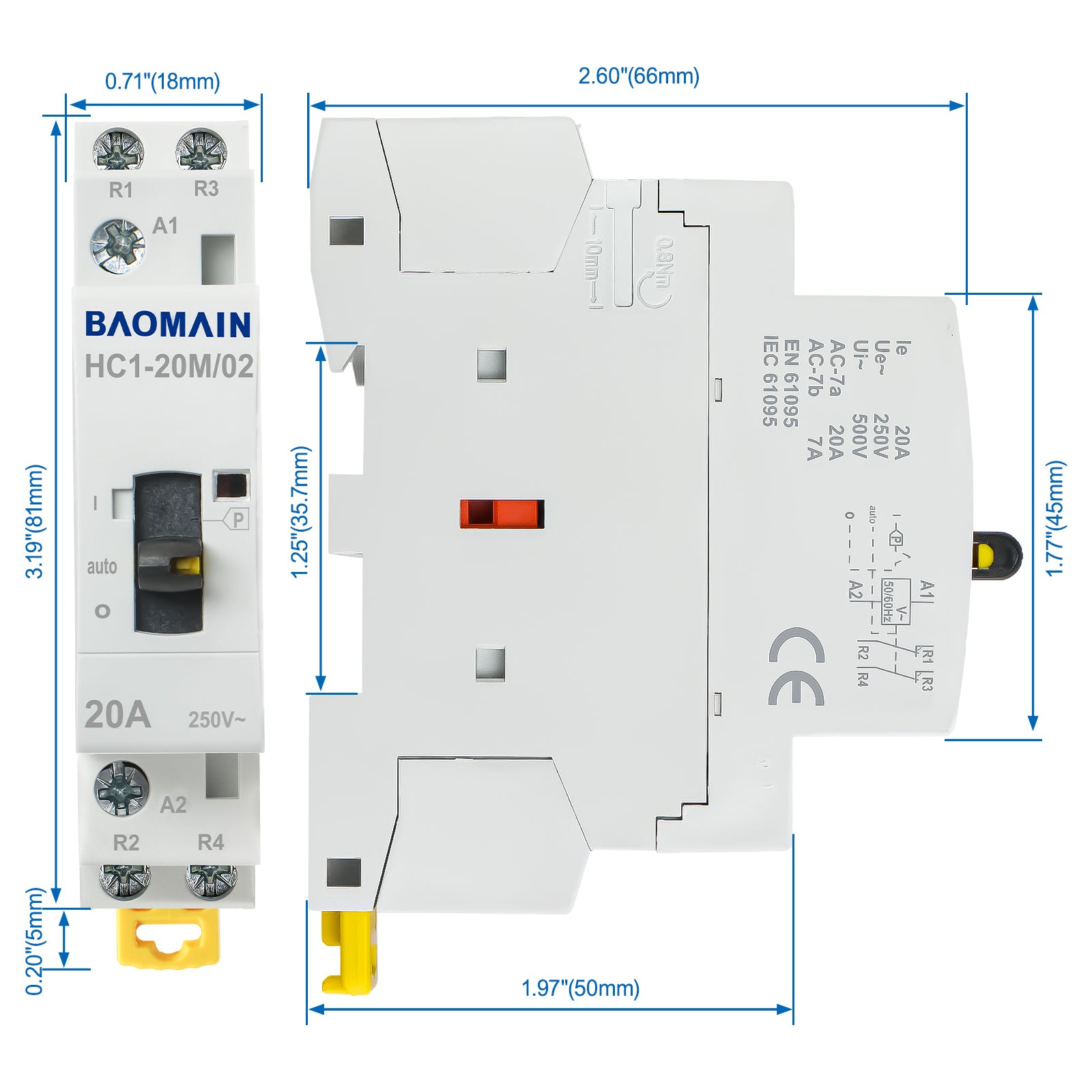

  • Overall Size(Approx.) : 82 x 18 x 67mm / 3.20" x 0.71" x 2.6"(L*W*T)
  • Weight : 110g;
  • Package Content : 1 x Manual AC Contactor
