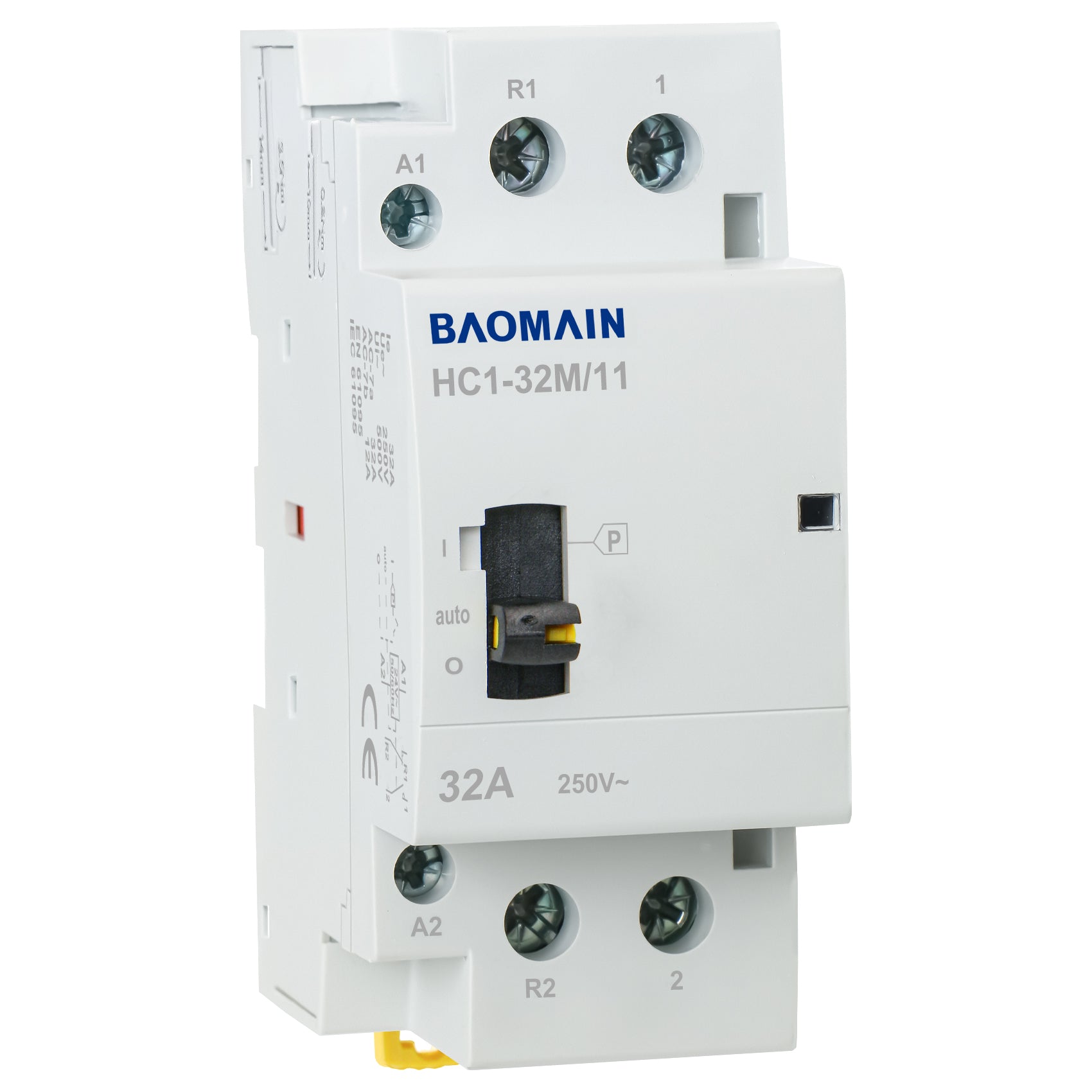

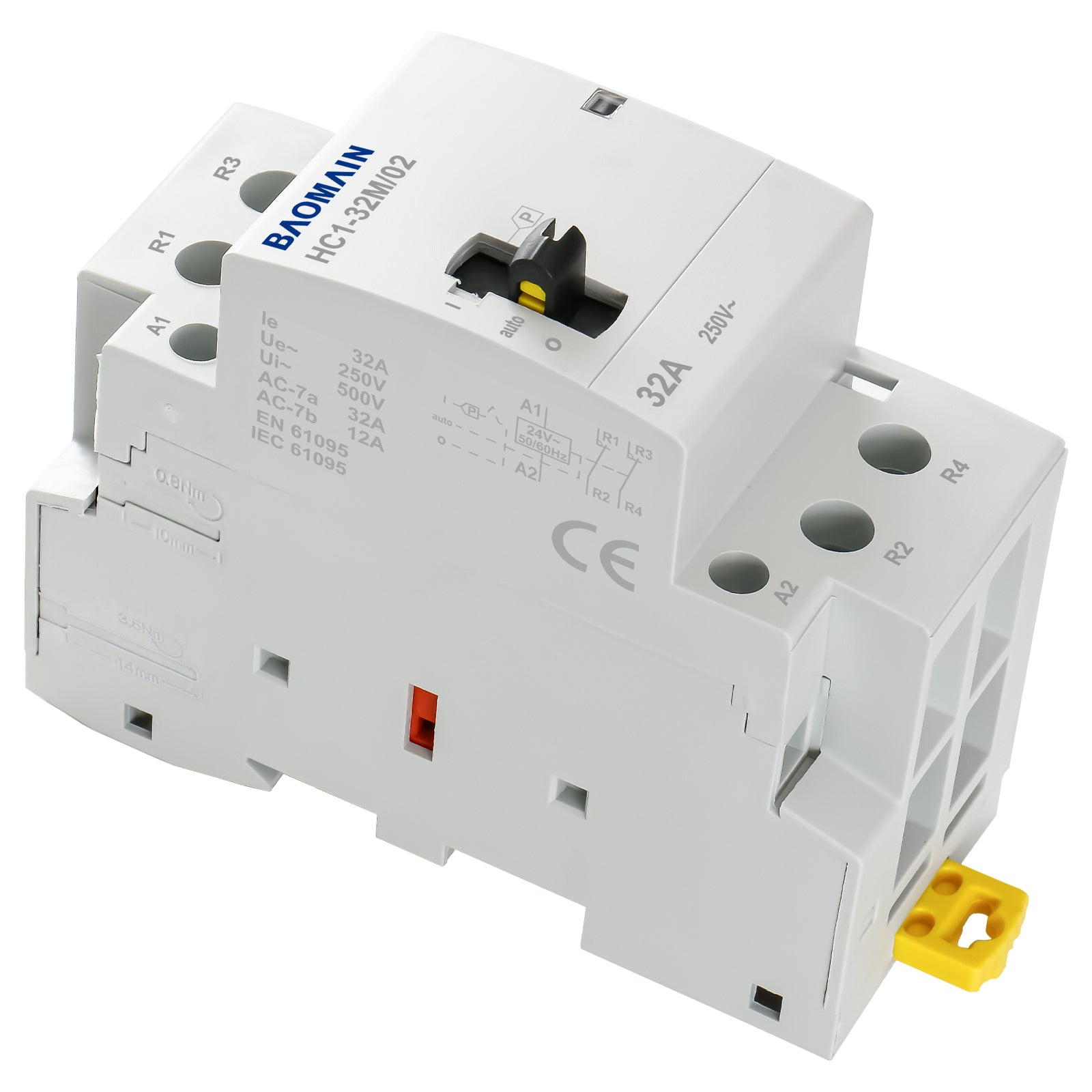

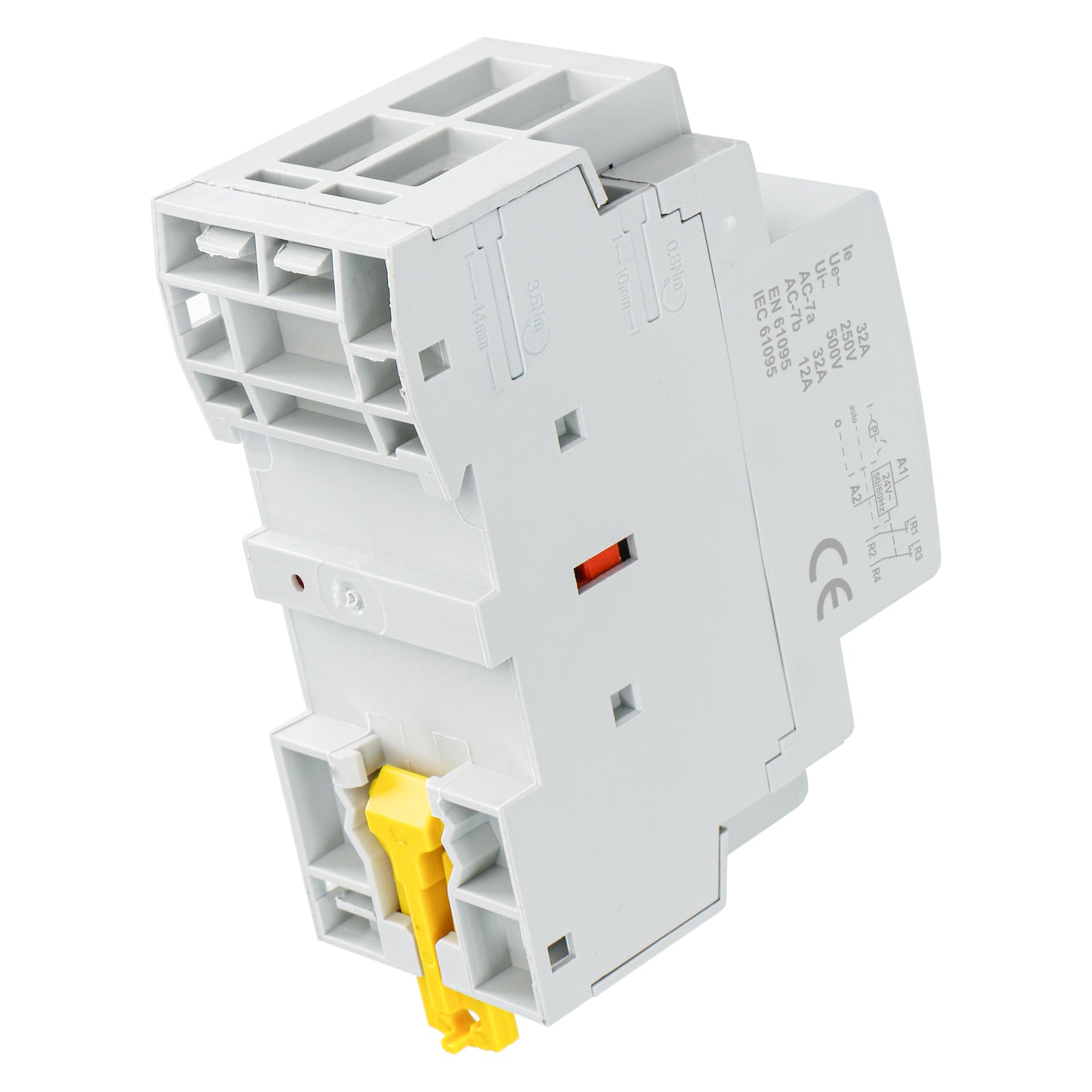

Baomain Manual Household AC Contactor HC1-32M 24V/110V/220VAC 32A 2Pole 50/60Hz Modular Contactor Circuit Control 35mm DIN Rail

  • $15.79
    Einzelpreis pro


This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

  • Rated Coil Voltage : AC 24V/110V/220V
  • Operation method:Manual

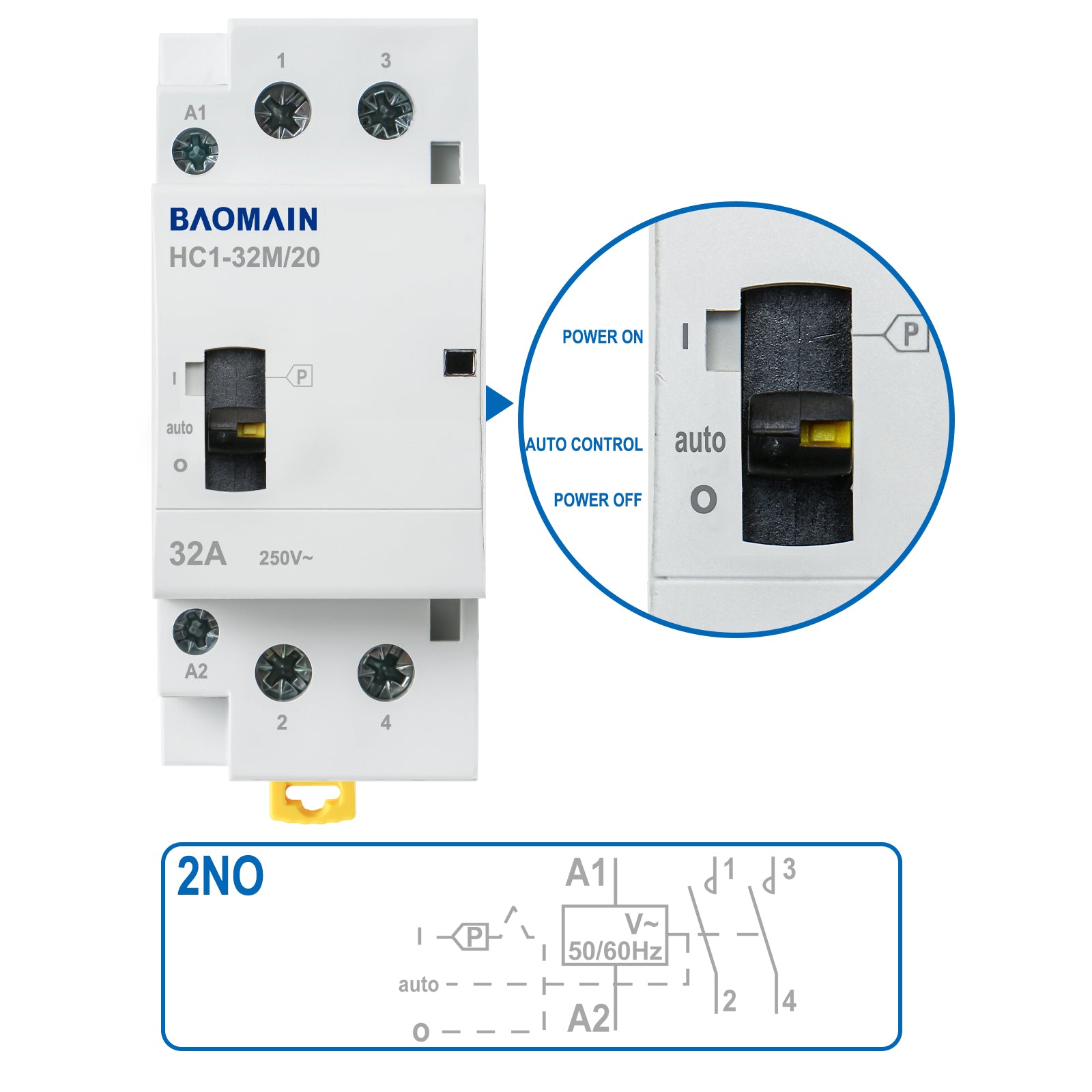

  • Type:  2NO,2NC,1NO 1NC
  • Rated Current (le) : 32A
  • Ui : 500V
  • Ue:250V
  • AC-7a 32A, AC-7b 12A
  • Max. Power: 1.6W
  • Number of Poles : 2
  • Mounting Type : 35mm DIN Rail Mount

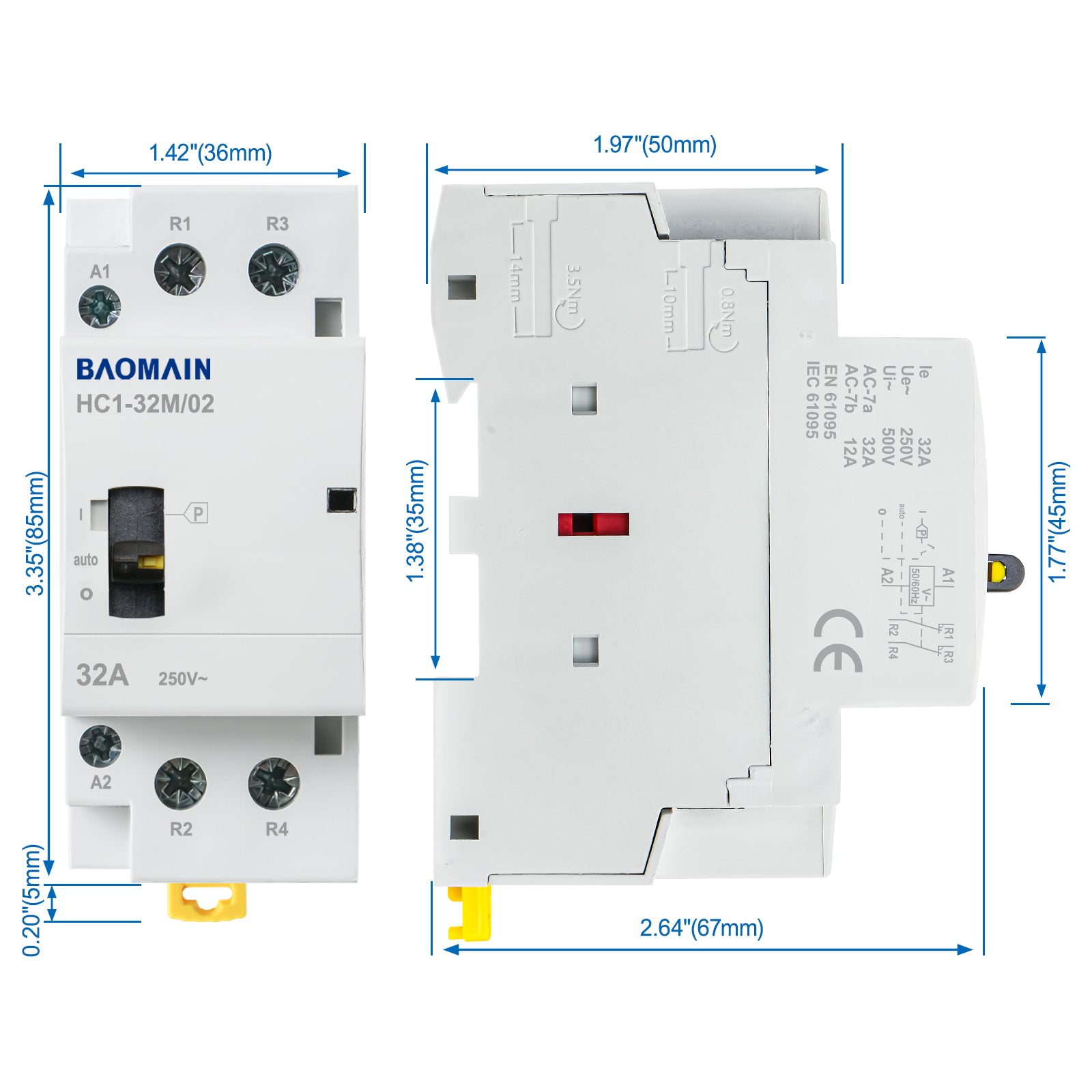

  • Overall Size(Approx.) : 85 x 36 x 73mm / 3.3" x 1.4" x 2.87"(L*W*H)
  • Weight : 250g;
  • Package Content : 1 x Manual AC Contactor

Welcome to contact us if you want to order more quantity.
