Baomain Manual Household AC Contactor HC1-40M 24V/110V/220VAC 40A 4 Pole 50/60Hz Modular Contactor Circuit Control 35mm DIN Rail

This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

• Rated Coil Voltage : AC 24V/110V/220V
• Operation method：Manual

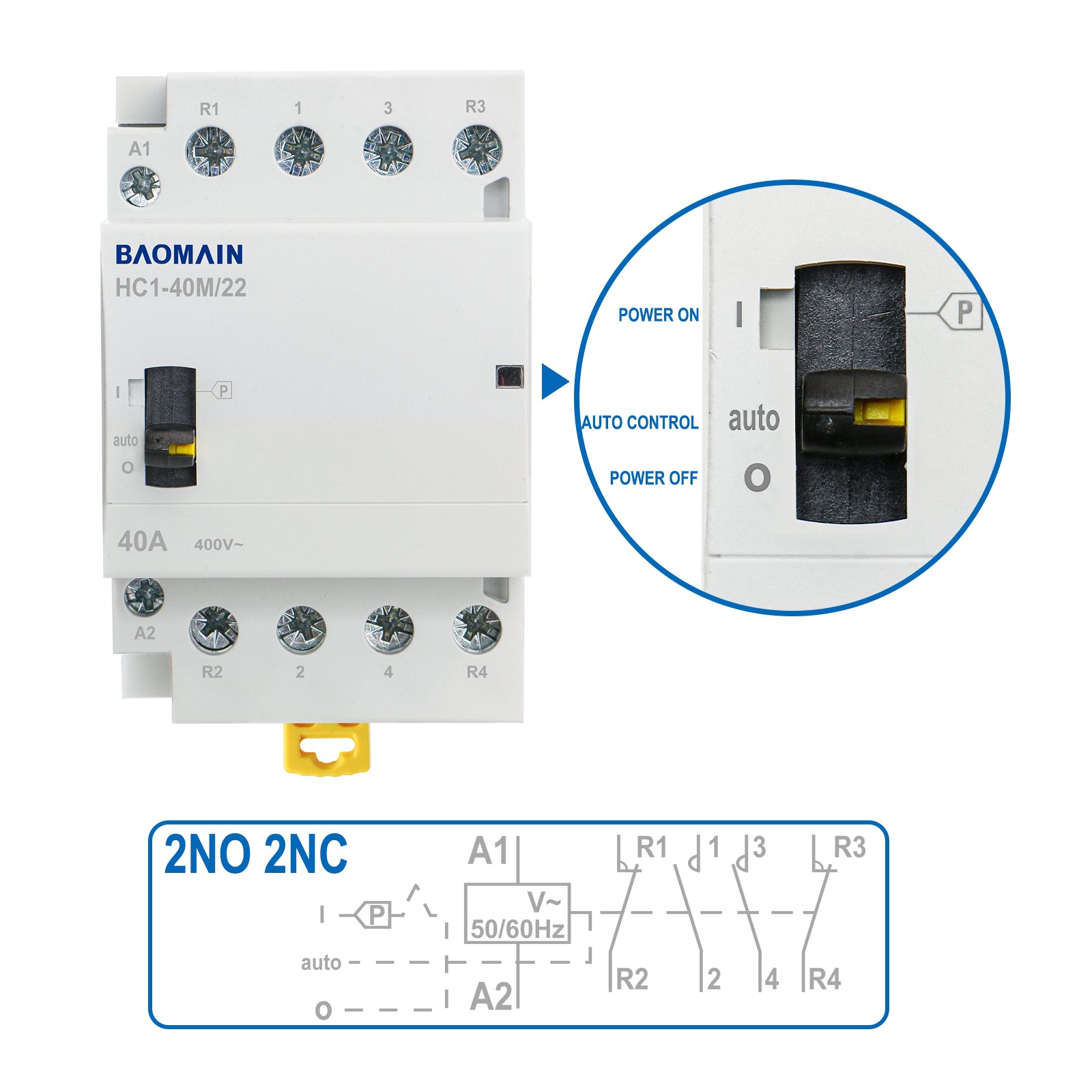

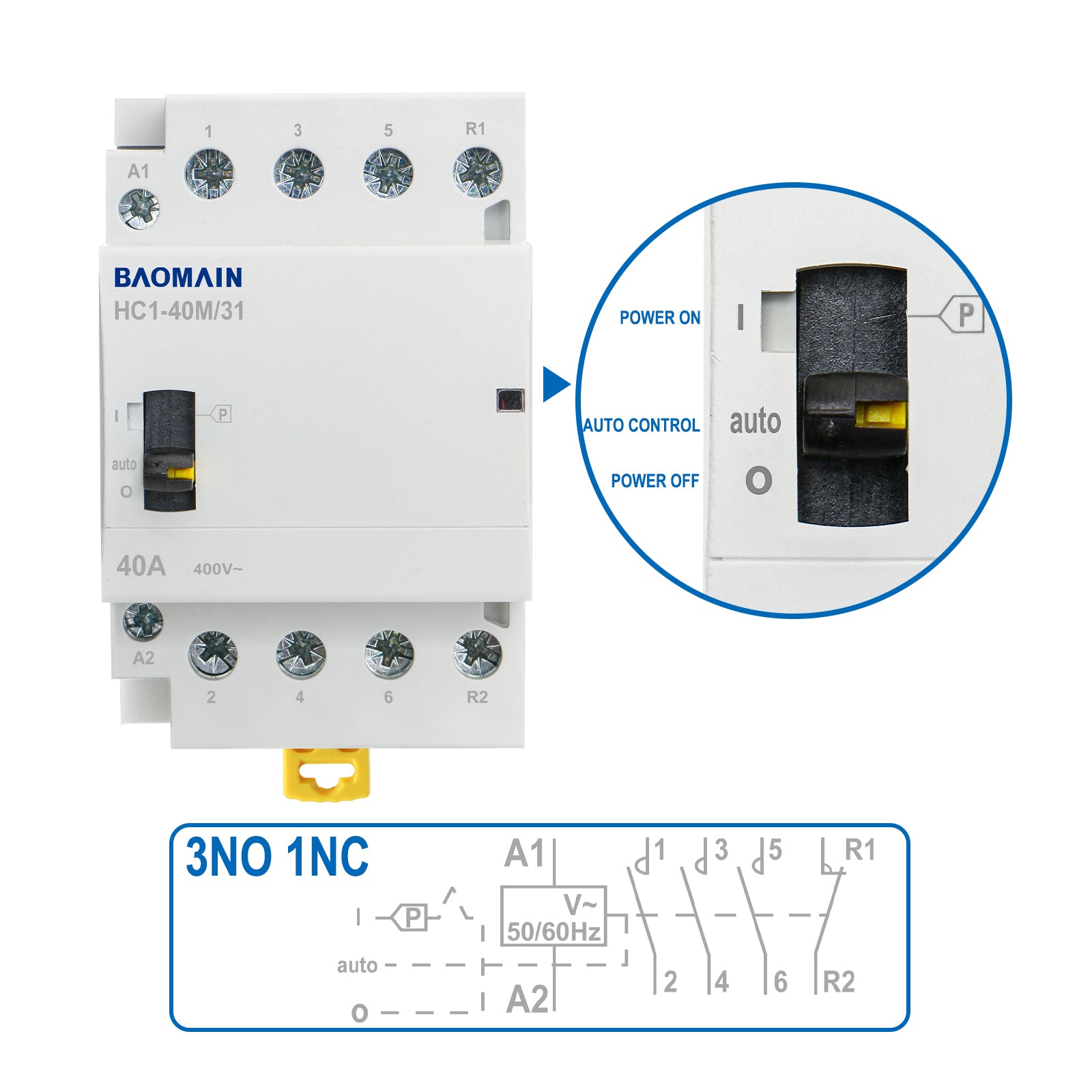

• Type:  4NO, 4NC, 2NO 2NC, 3NO 1NC
• Rated Current(le) : 40A
• Ui : 500V;Ue：250V
• AC-7a  40A, AC-7b 18A
• Number of Poles : 4
• Mounting Type : 35mm DIN Rail Mount

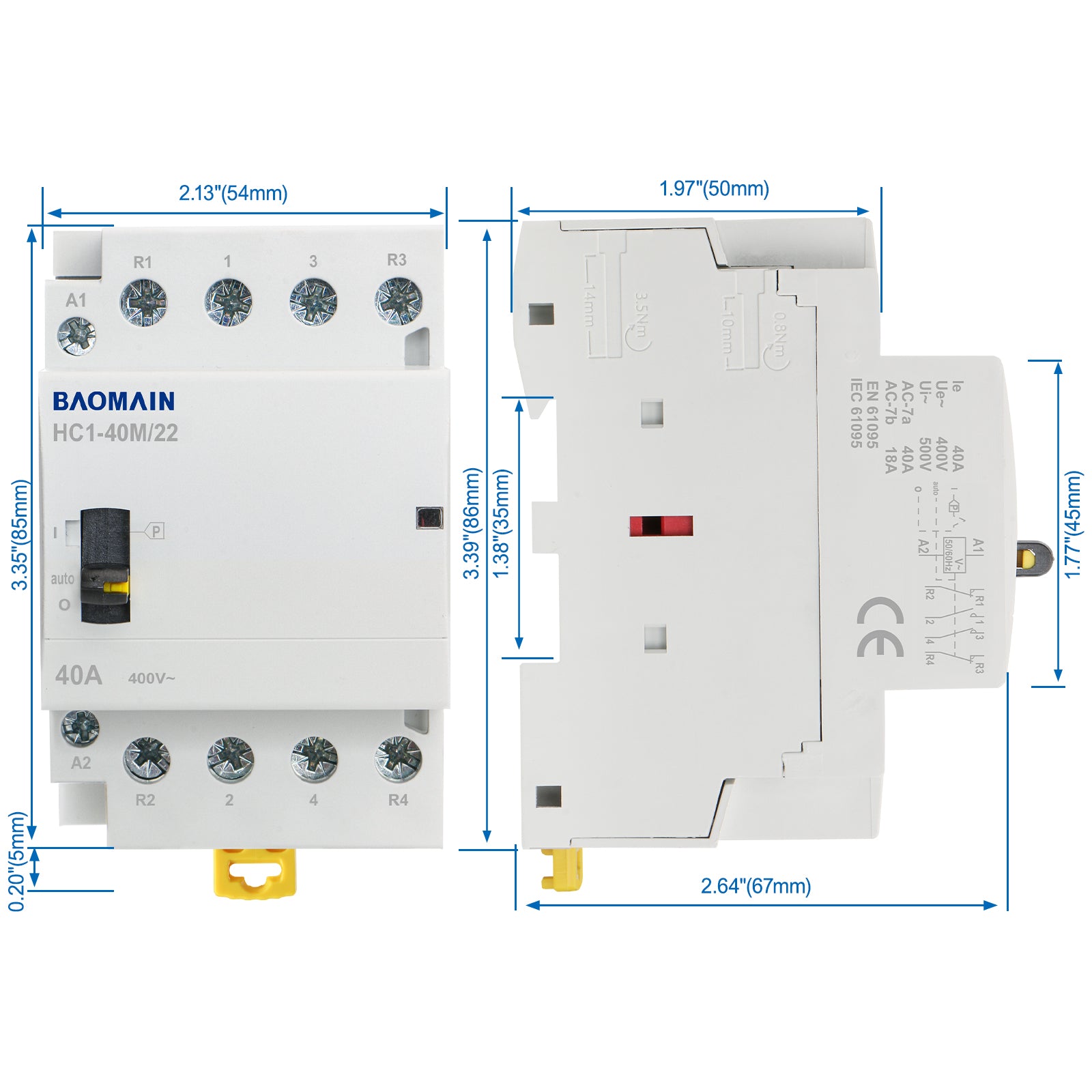

• Overall Size(Approx.) : 88 x 54 x 73mm / 3.3" x 2.1" x 2.87"(L*W*T)
• Weight : 350g;
• Package Content : 1 x Manual AC Contactor
