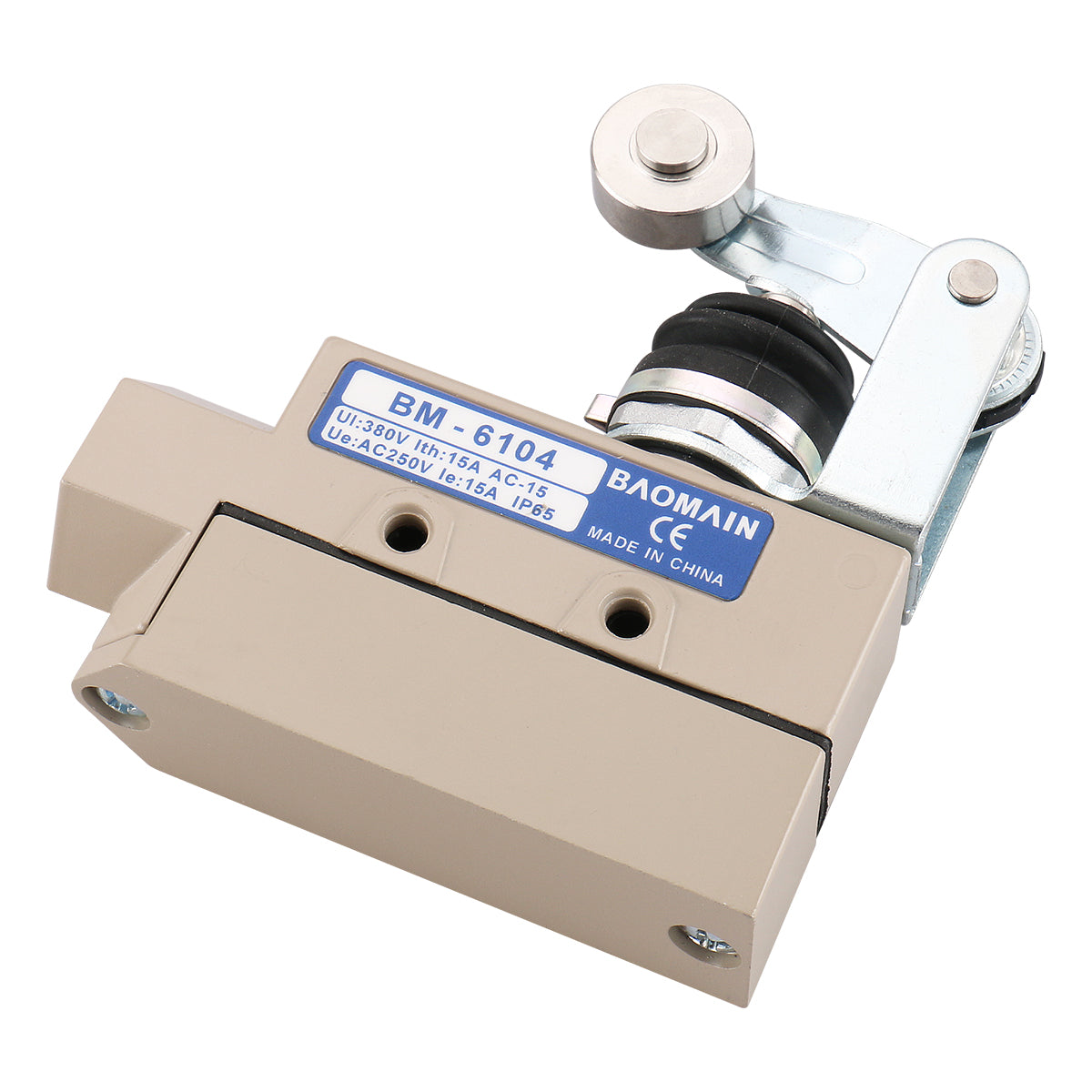

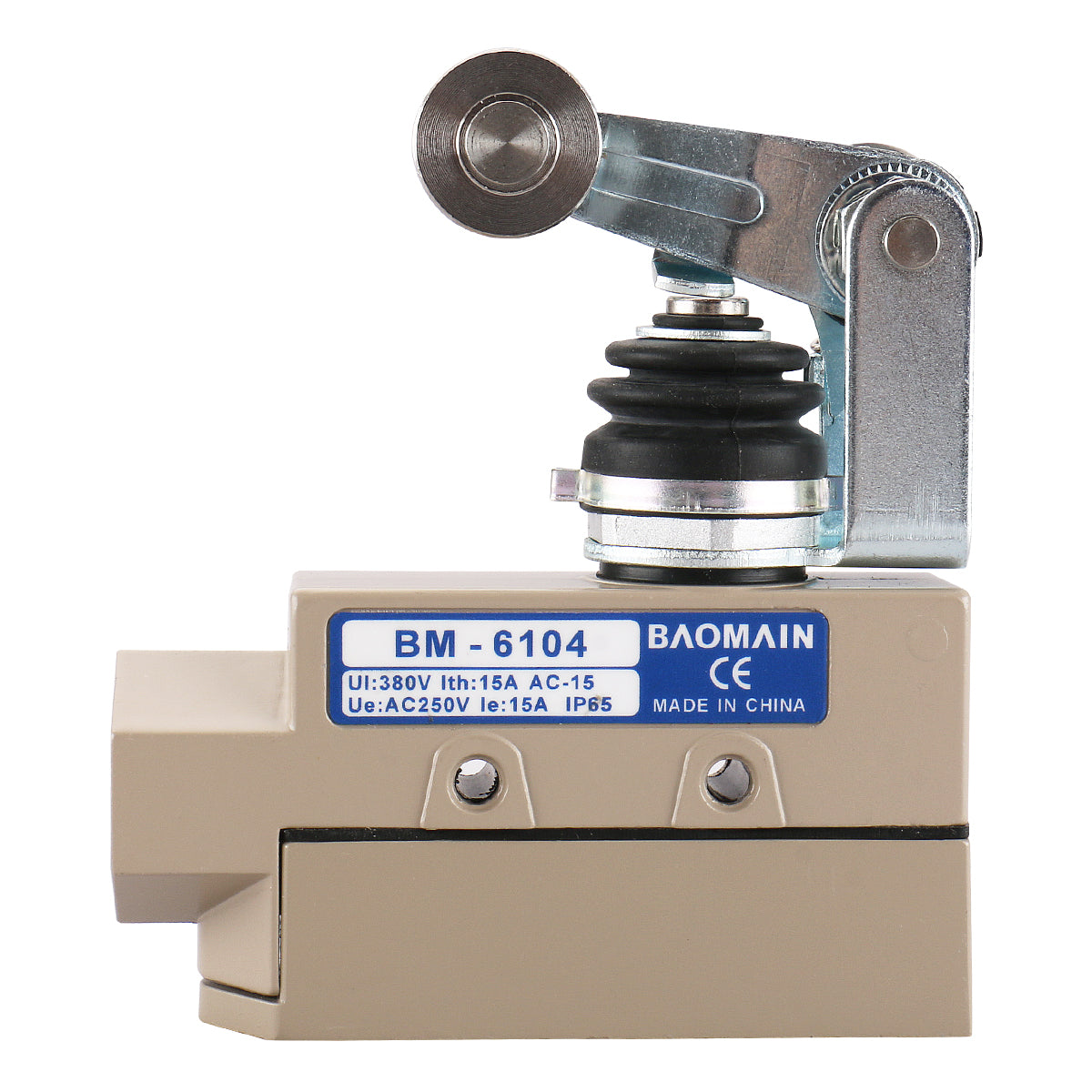

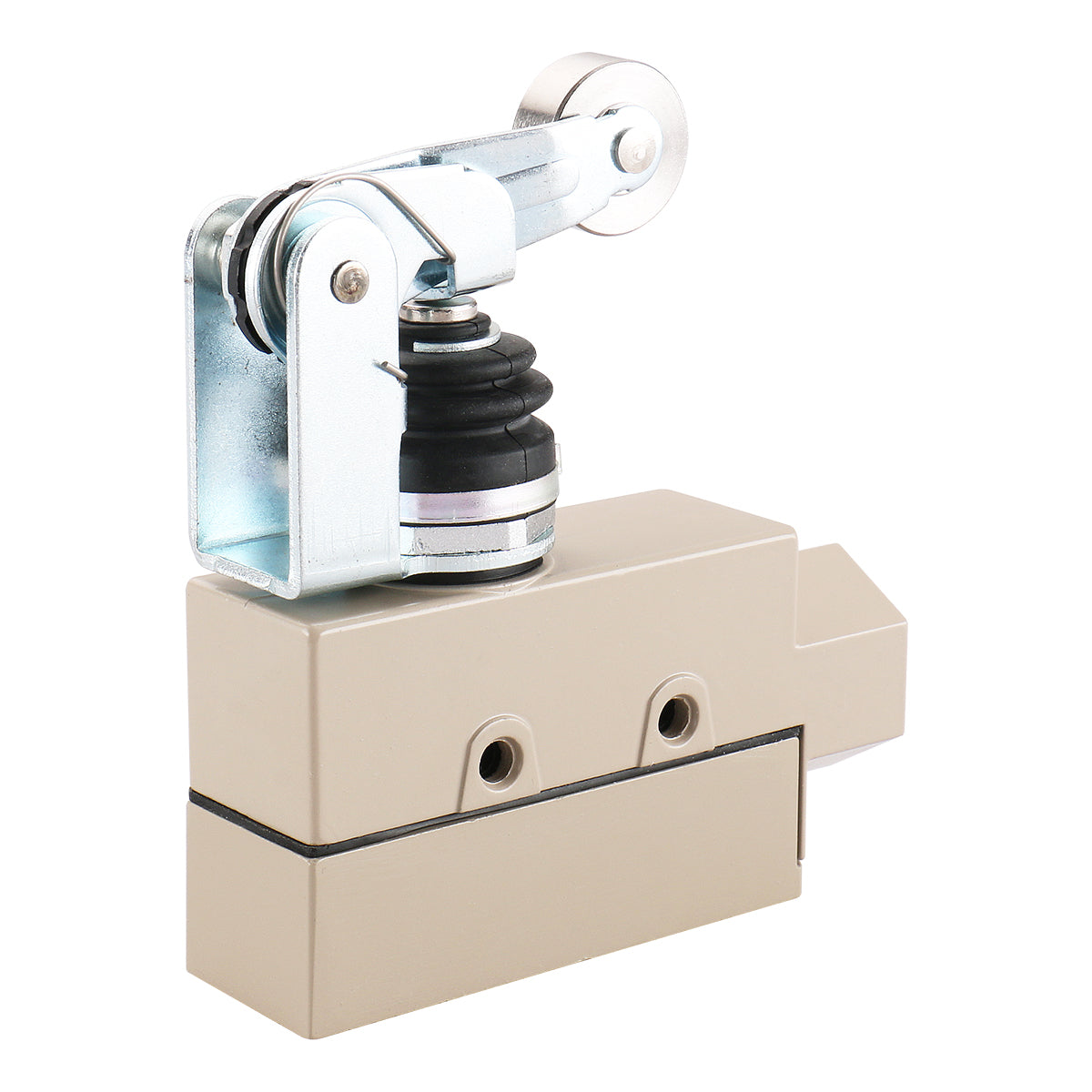

Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof
Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof
Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof
Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof
Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof
Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof
Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof

Baomain Roller Wheel Arm Head Reset Sealed Micro Switch TZ-6104 Roller Plunger 15A/250VAC IP65 Waterproof

zzgl. Versandkosten
  • Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
  • It is the same as CM micro switch in the rated value and characteristics
  • Various of actuators that are taken convenience for using
  • Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut
  • M20x1.5 cable gland that can be equipped

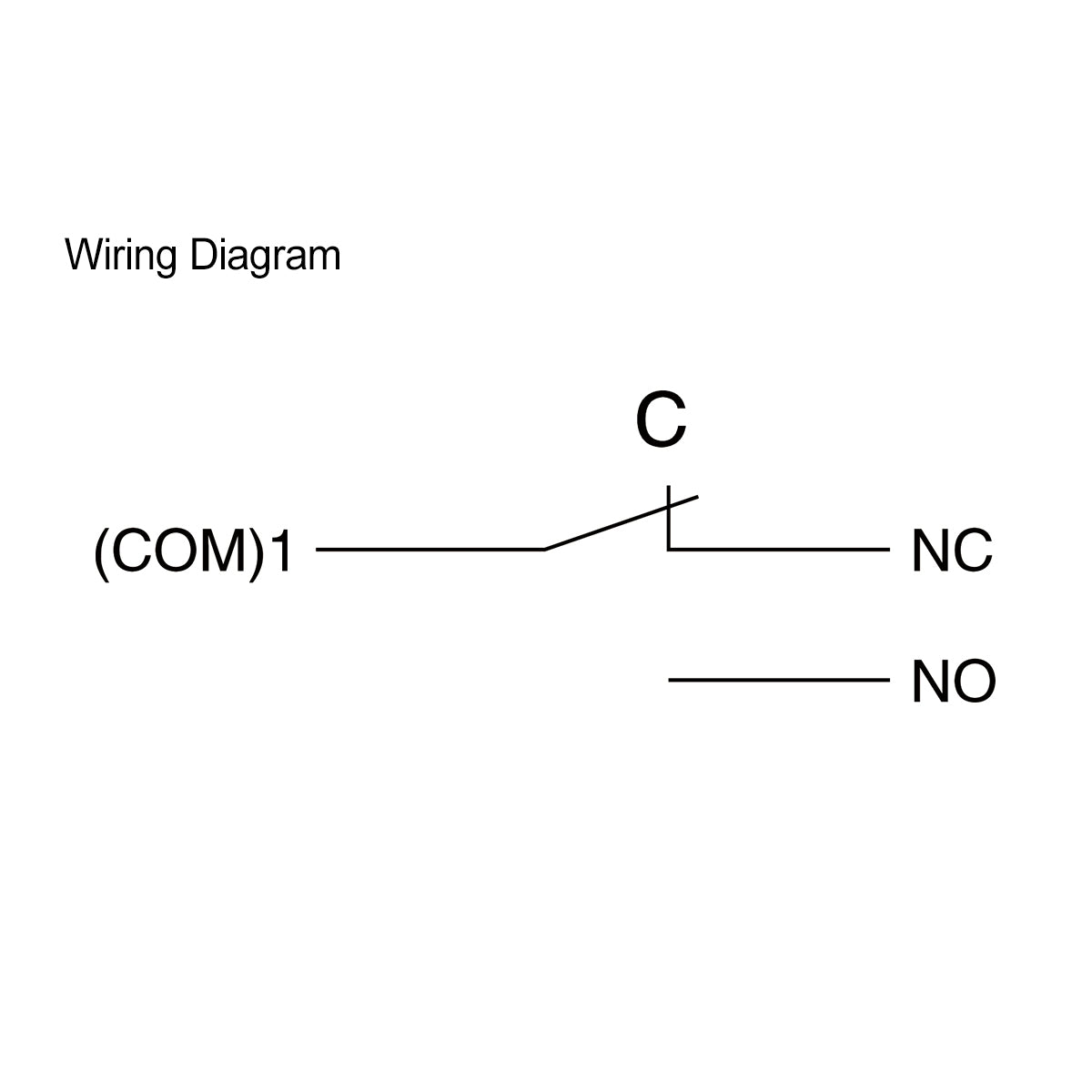

  • Contact Configuration: 1NO+1NC(SPDT);
  • Actuator Type : Roller Wheel Arm Head
  • Action Type : Momentary;
  • Ith : 15A;AC-15 : 250VAC 15A;
  • Roller Size : 12.7 x 3.8mm/0.5‘’ x 0.15‘’
  • Installing Hole Distance : 2.5cm/1‘’
  • Weight : 340g；
  • Waterproof Level: IP65;
  • Package Content: 1 x Limit Switch,Screws；
