Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1
Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1
Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1
Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1
Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1
Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1
Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1

Baomain Single-Function Time Relay, 5A AC/DC24V-240V, 1C ON-Delay, DIN Rail Mounting Timer Relay TBT5-1

zzgl. Versandkosten

    The time relay can be used for electrical appliances,control of lights,heating,motors,motors,pumps,and fans etc.

    • Function：
    • TBT5-1）1C ON-Delay

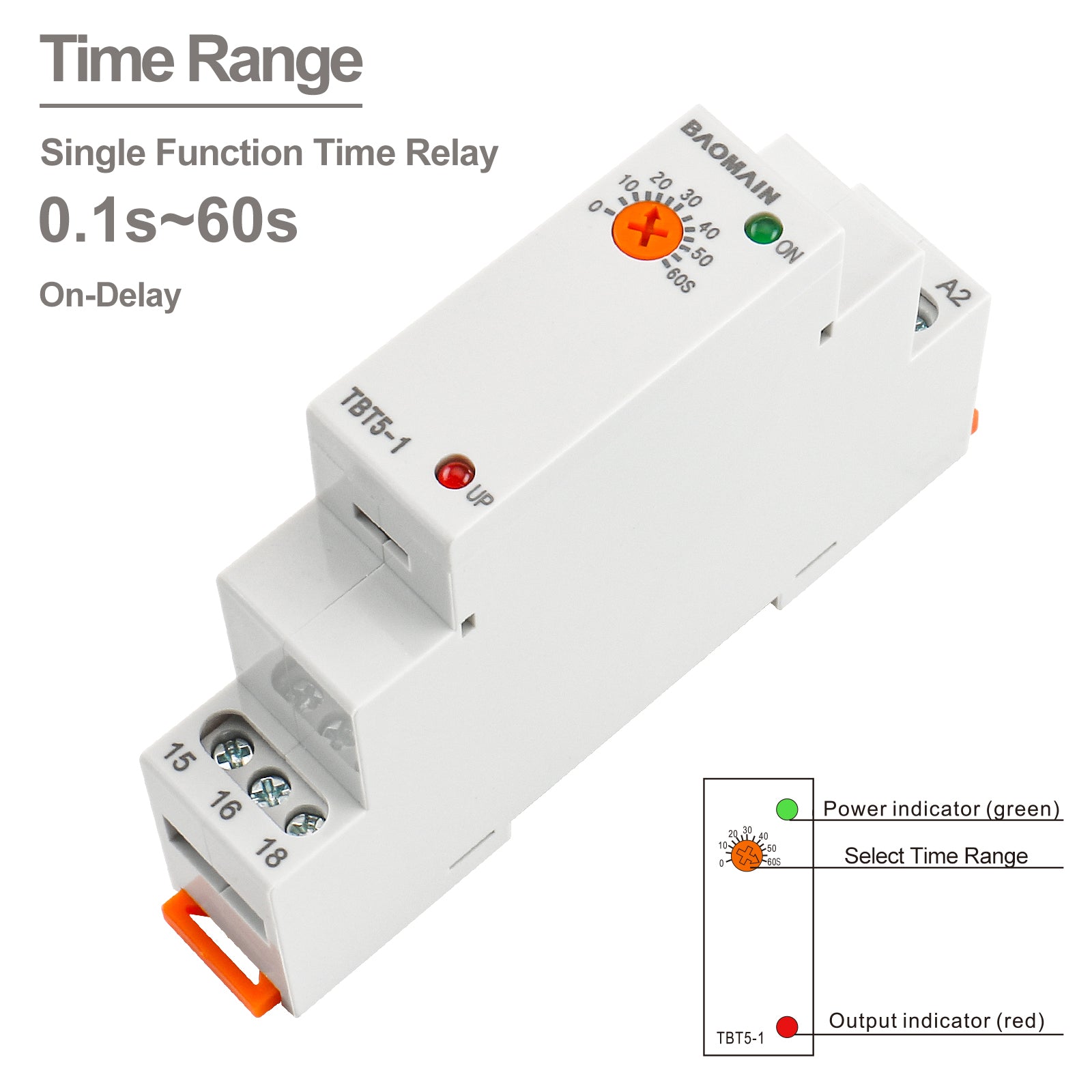

    • Time Range: 0.1s...60s;
    • Rated Control Supply Voltage: AC/DC24V-240V,50-60Hz
    • Output: 5A, 250VAC/24VDC;
    • Bueden: DC1.0W/AC1.0V
    • Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH);
    •  Weight: 60g;
    • Package Includes: 1 x Time Relay, Instruction

    TECHNICAL PARAMETERS

    • Supply Terminals：A1-A2
    • Voltage Range: AC/DC24V-240V,50-60Hz
    • Bueden: DC1.0W/AC1.0V
    • Time setting: Potentionmeter
    • Time deviation: <±5%
    • Repeat accuracy: <±0.5%
    • Output: AC1 5A, 250VAC/24VDC
    • Mechanical Life: 1x1,000,000 cycles
    • Electrical Life(AC1): 1x100,000 cycles
    • Protection Degree: IP20
    • Pollution degree：2
    • Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
    • Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F
    • Installation: DIN rail mounting or Screw mounting
    • Max.cable (size): Solid wire max.2.5 or 2x1.5/with sleeve max. 1x2.5(AWG12)
