Baomain Square Inductive Proximity Sensor Switch Non-Shield Type SN05-N2 Detector Distance 5mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire
Baomain Square Inductive Proximity Sensor Switch Non-Shield Type SN05-N2 Detector Distance 5mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire
Baomain Square Inductive Proximity Sensor Switch Non-Shield Type SN05-N2 Detector Distance 5mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire
Baomain Square Inductive Proximity Sensor Switch Non-Shield Type SN05-N2 Detector Distance 5mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire
Baomain Square Inductive Proximity Sensor Switch Non-Shield Type SN05-N2 Detector Distance 5mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire

Baomain Square Inductive Proximity Sensor Switch Non-Shield Type SN05-N2 Detector Distance 5mm 10-30VDC 200mA NPN Normally Closed(NC) 3 Wire

zzgl. Versandkosten

Detect Object: Magnetic Metal(the detection distance decreases when it is non-magnetic metal);Detection distance 5mm;Set distance 0-4mm;Power: DC10-30V;Temperature range -25 -+60℃;Isolation Resistance >50MΩ;Material ABS;Dimension: 18X18X29mm;Mounting Way: Non-shield type;CE certified.

  • Detection distance: 5mm±10%
  • Supply Voltage: DC 10-30V; Output Current: 200mA
  • Type: NPN, NC(Normally Closed)
  • Installation: Non-Shield(non-flush)

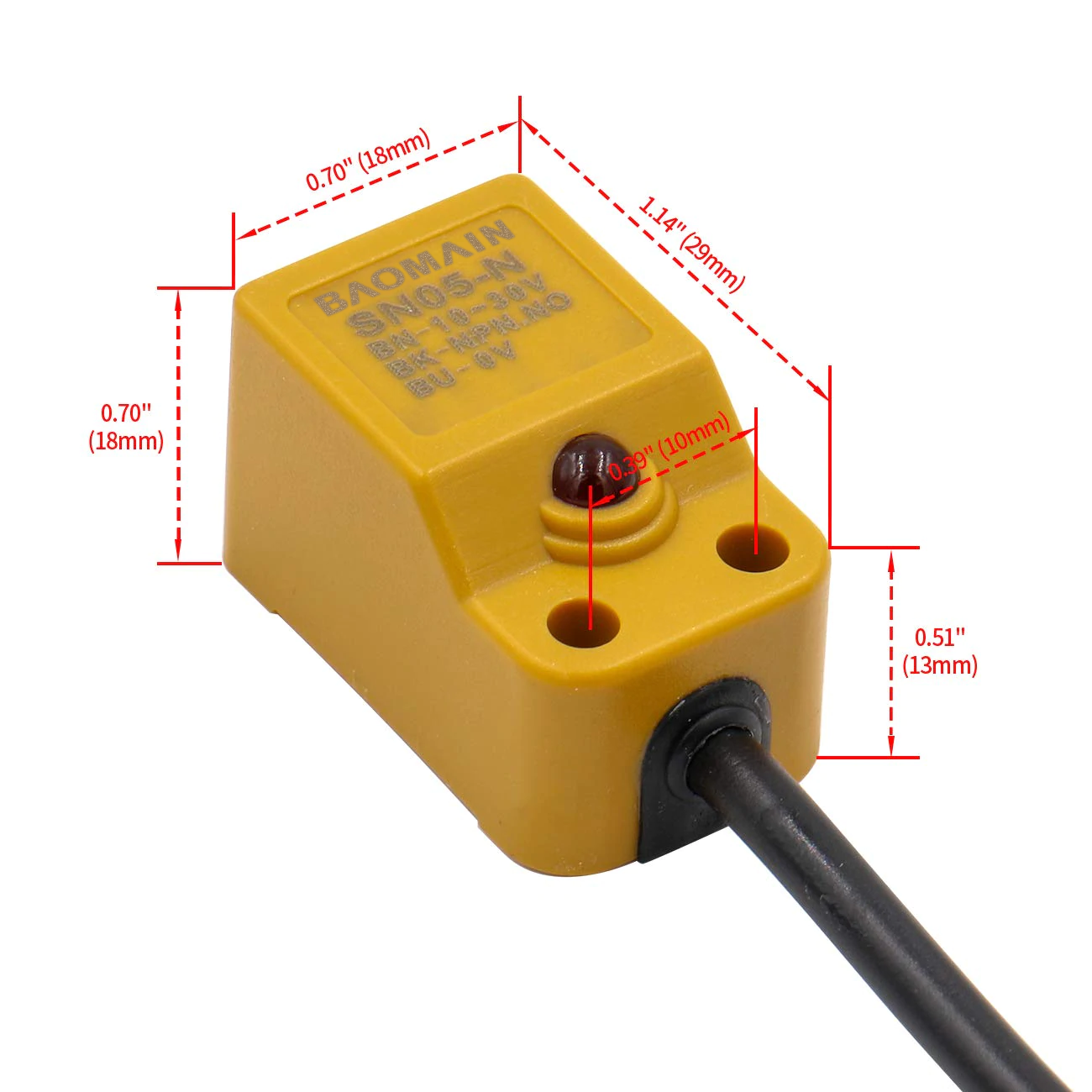

  • Dimension: 18×18×29mm
