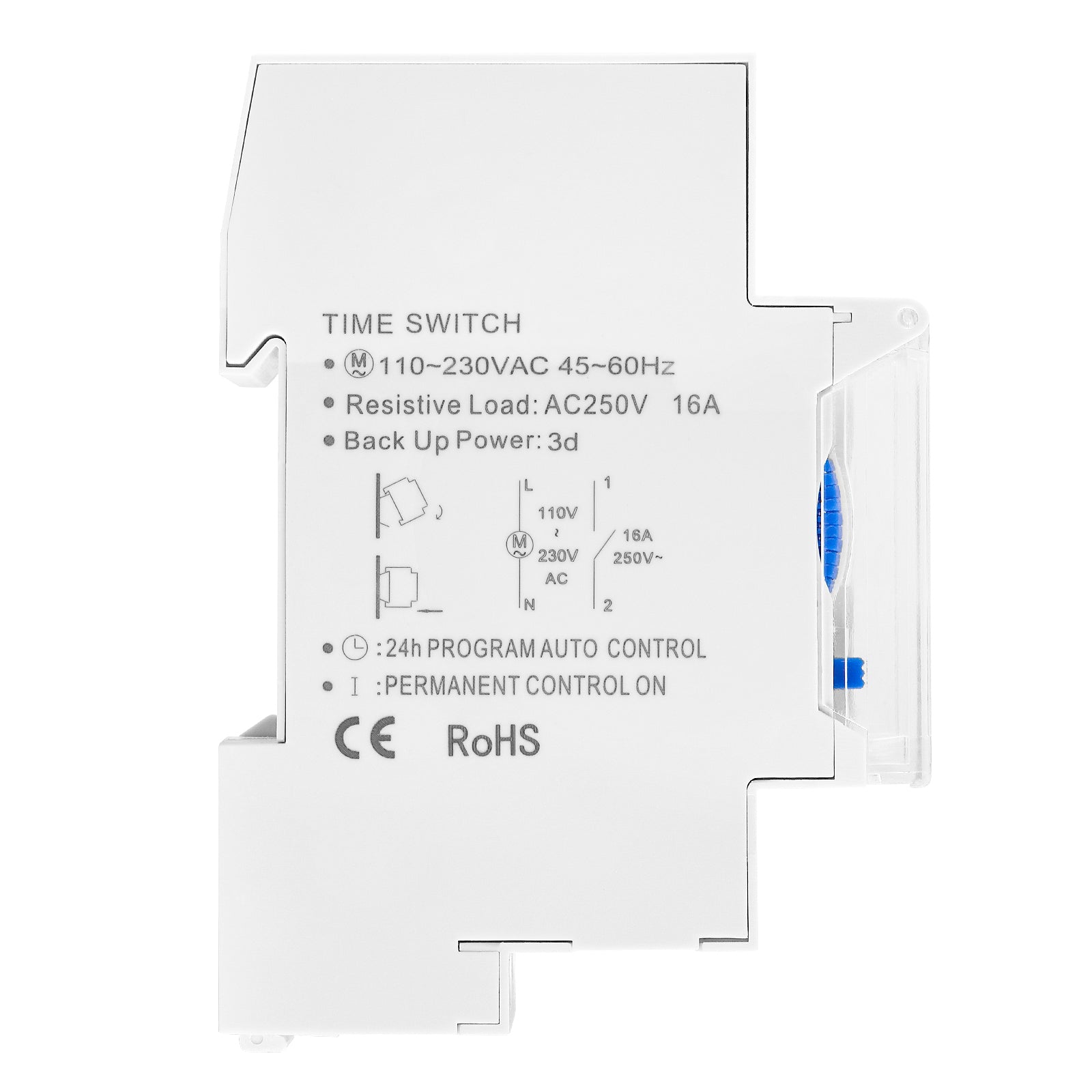

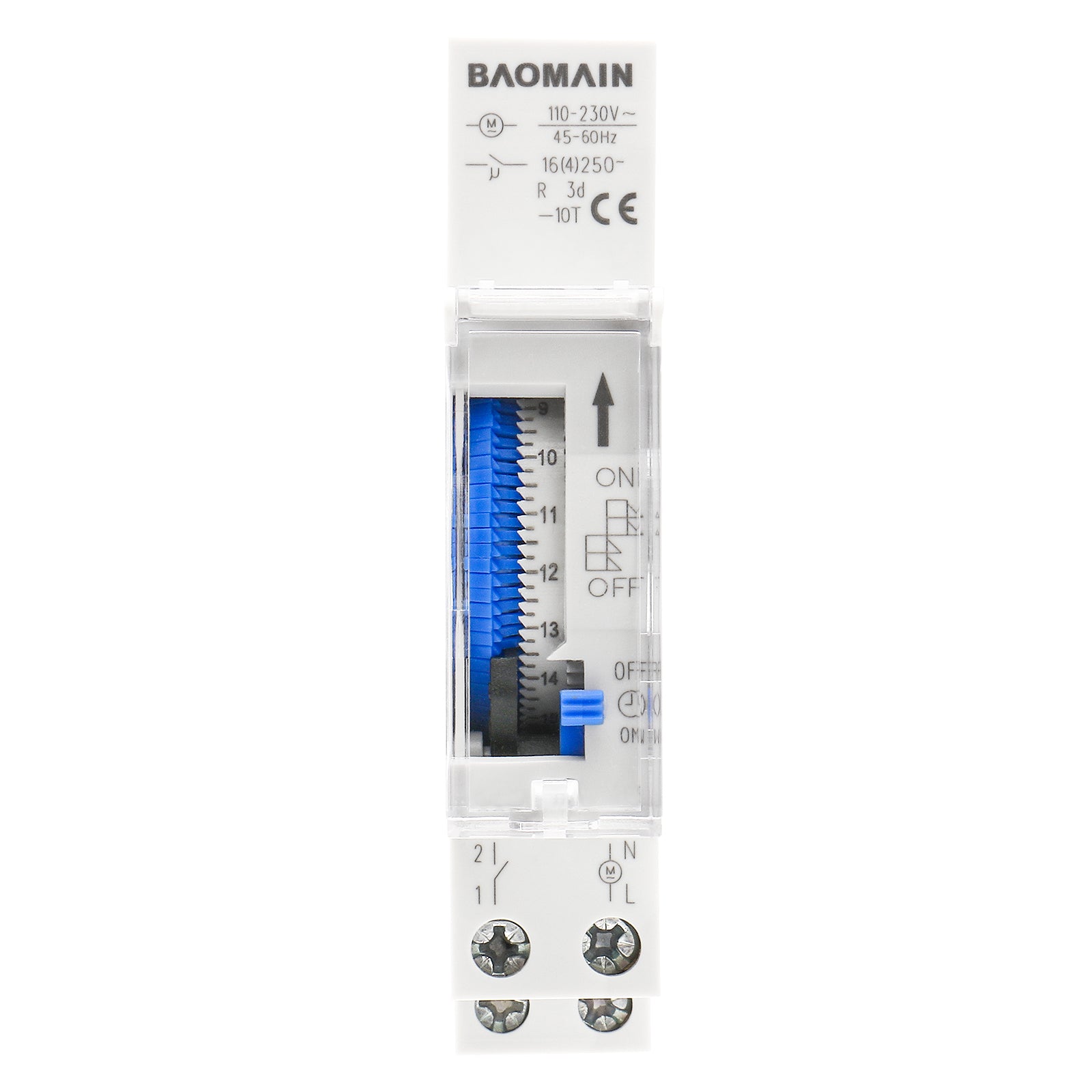

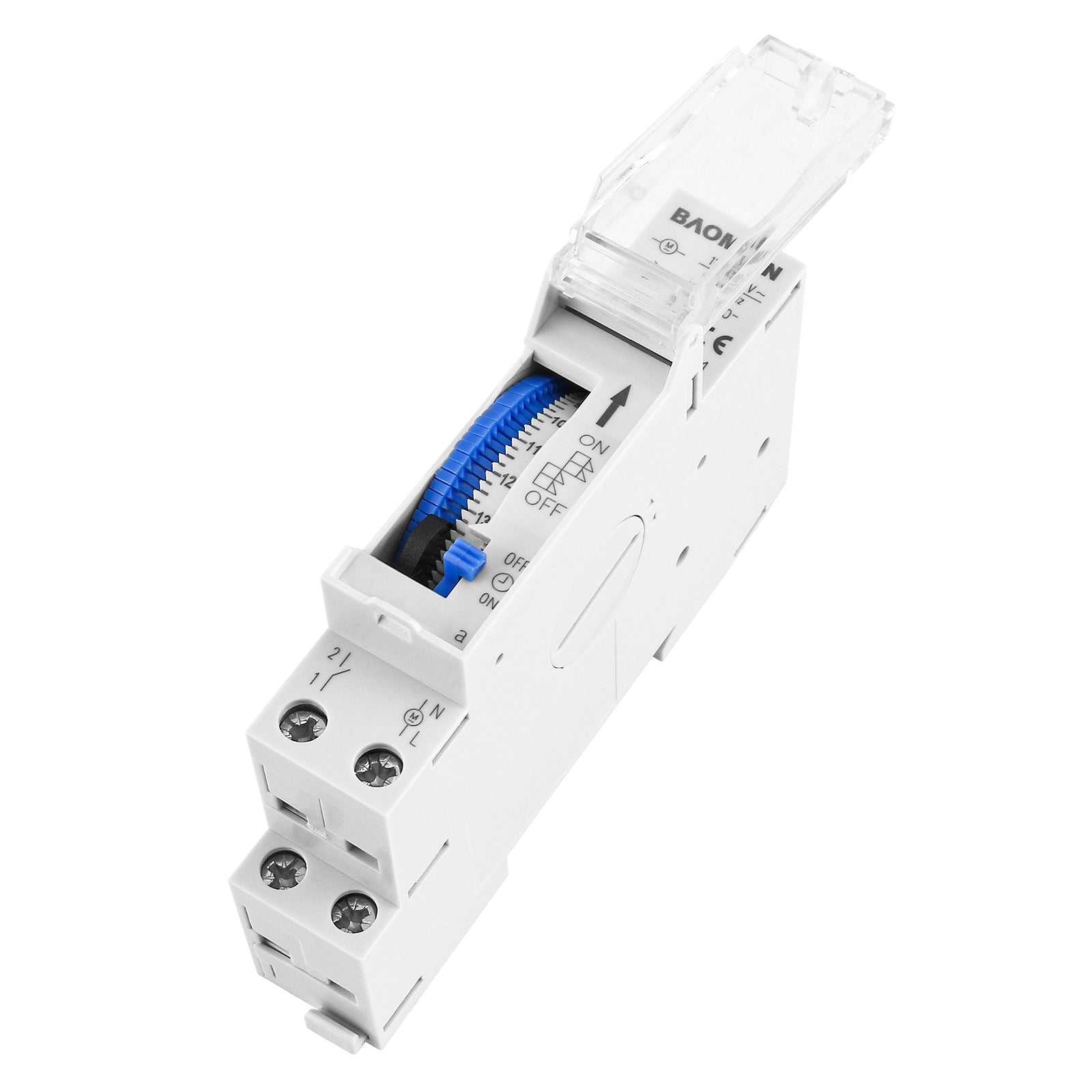

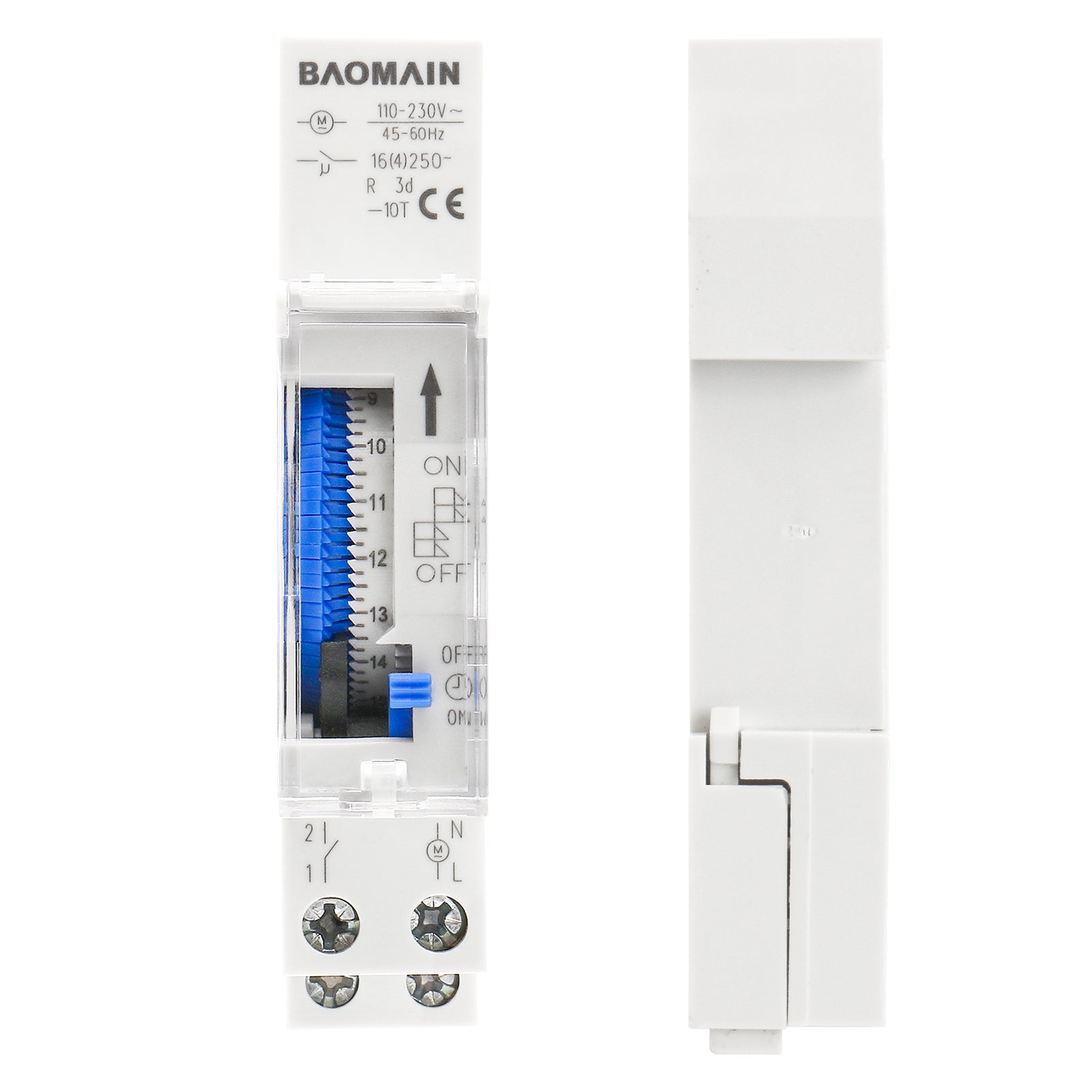

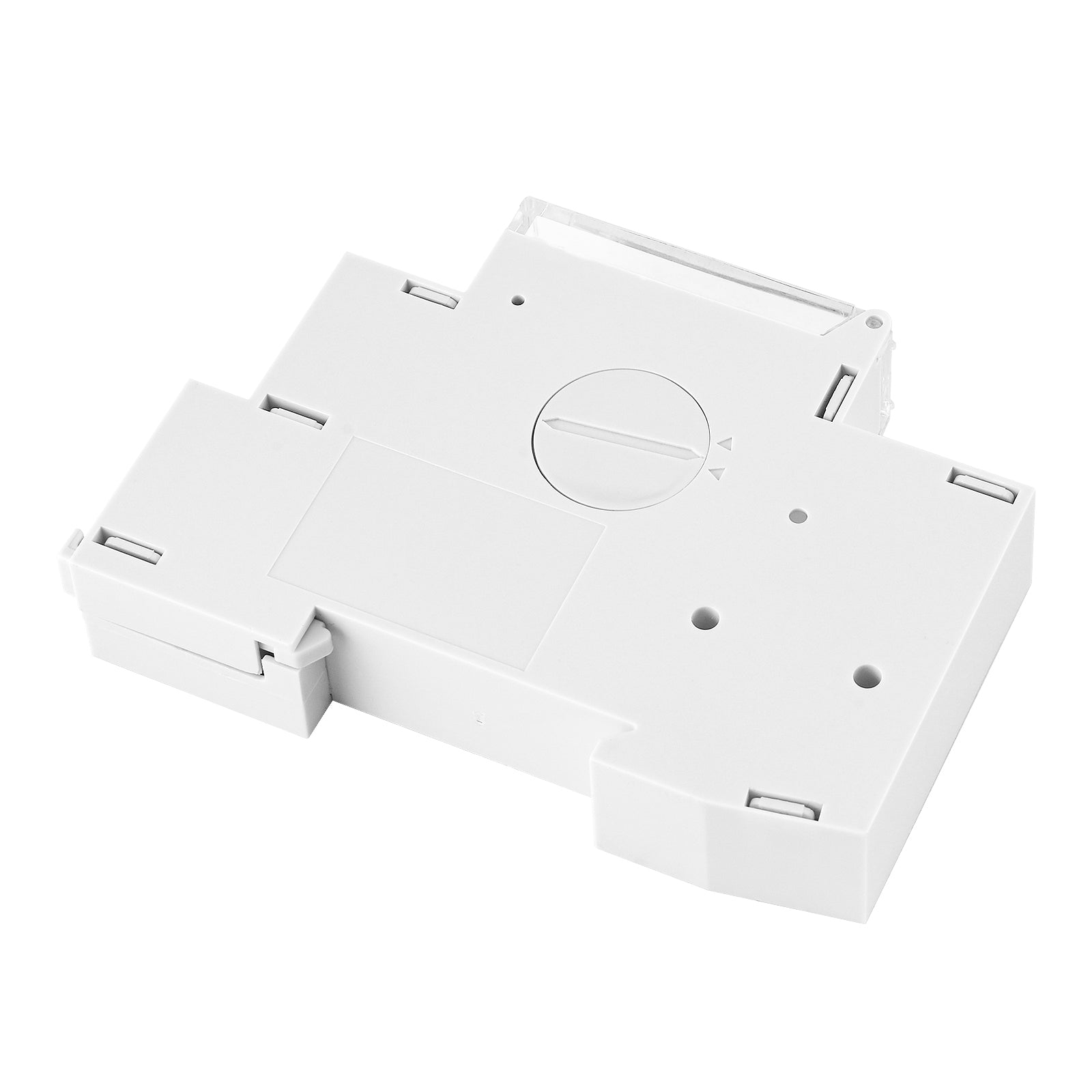

Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay
Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay
Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay
Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay
Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay
Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay
Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay

Baomain Daily Time Switch, SUL180a,16A 250VAC, 24-Hour programming Analog Timer, Quartz Controlled Time Relay

zzgl. Versandkosten
  • Operating Voltage: 110~230VAC; 45/60Hz
  • Resistive Load: AC250V 16A
  • Drive: Quartz-controlled stepper motor
  • Program: Daily program
  • Power Reserve: 3 Days
  • Exchangeable NIMH Rechargeable Battery
  • Switching Capacity: 250V Ac,Cosφ=1 16A
  • Incandescent/Halogen Lamp Load: 1000W
  • Min. Setting interval : 15 min
  • Time Accuracy At 25 °℃ : ≤ ±1 s/day(quartz)
  • Number Of Switching Segments: 96
  • Stand-By Consumption: ~0.5W
  • Type Of Protection: IP 20
  • Protection Class: Il acording to EN 60 730-1
  • Storage Temperature: -25℃~+70℃
  • Number of channels : 1
  • Installation Type: DIN Rail
  • Type of connection: Screw Terminals
  • Terminal wires: 2x2.5mmq
  • Weight: 80g
  • Size: 93X65X18mm (3.66''X2.56''X0.71'')
  • Package Includes: 1 x Time Switch, Instruction
