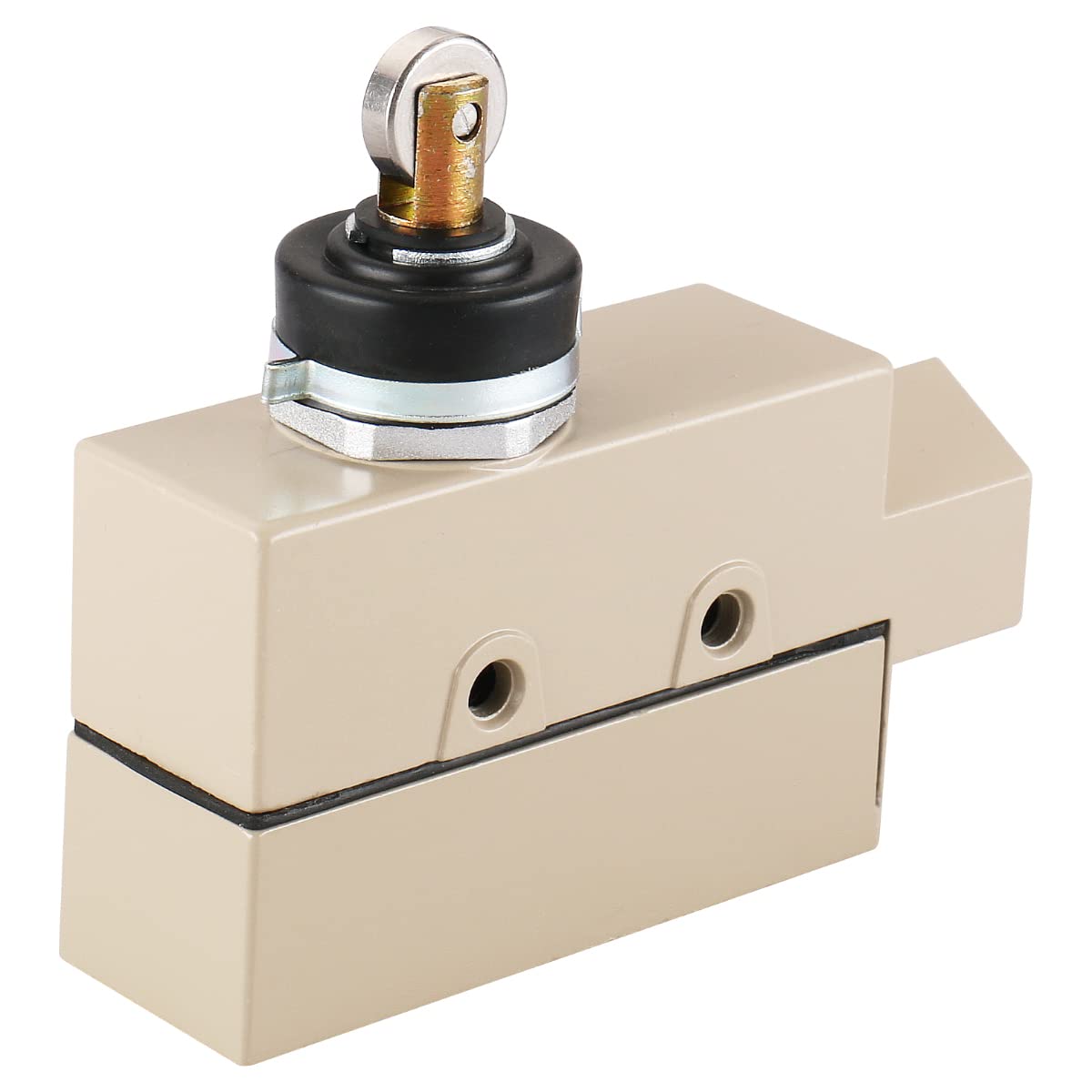

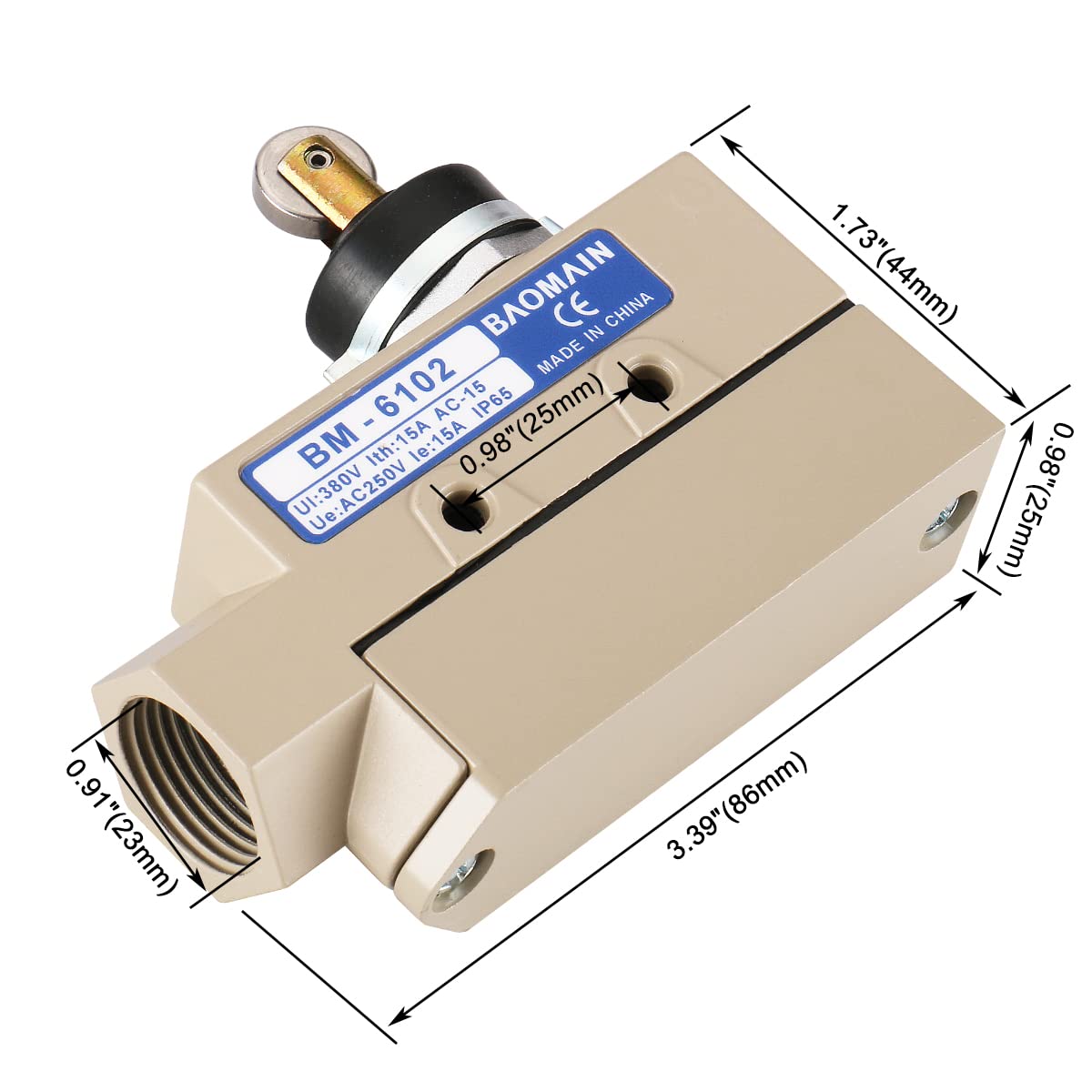

Baomain Horizontal Roller Plunger Limit Switch BM-6102 with M20 Cable Glands Work for Heavy Duty Door, Sliding Doors/Windows, Pioneer,Welbon, Air Curtains, Maxwell with IP65 Waterproof

  • $17.99
    Einzelpreis pro

Built-in BM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof. It is the same as BM micro switch in the rated value and characteristics. Various of actuators that are taken convenience for using. Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut.

  • Power of starting: 350
  • Power of release: 115
  • Switching position (mm): 0.5mm
  • Rated current In(А): 15A active load. 5A inductive load
  • Insulation resistance: 100
  • Rated voltage: 230V
  • IP code: IP65
  • Section of the power supply conductor: up to 1.5mmq
  • M20x1.5 cable gland that can be equipped
