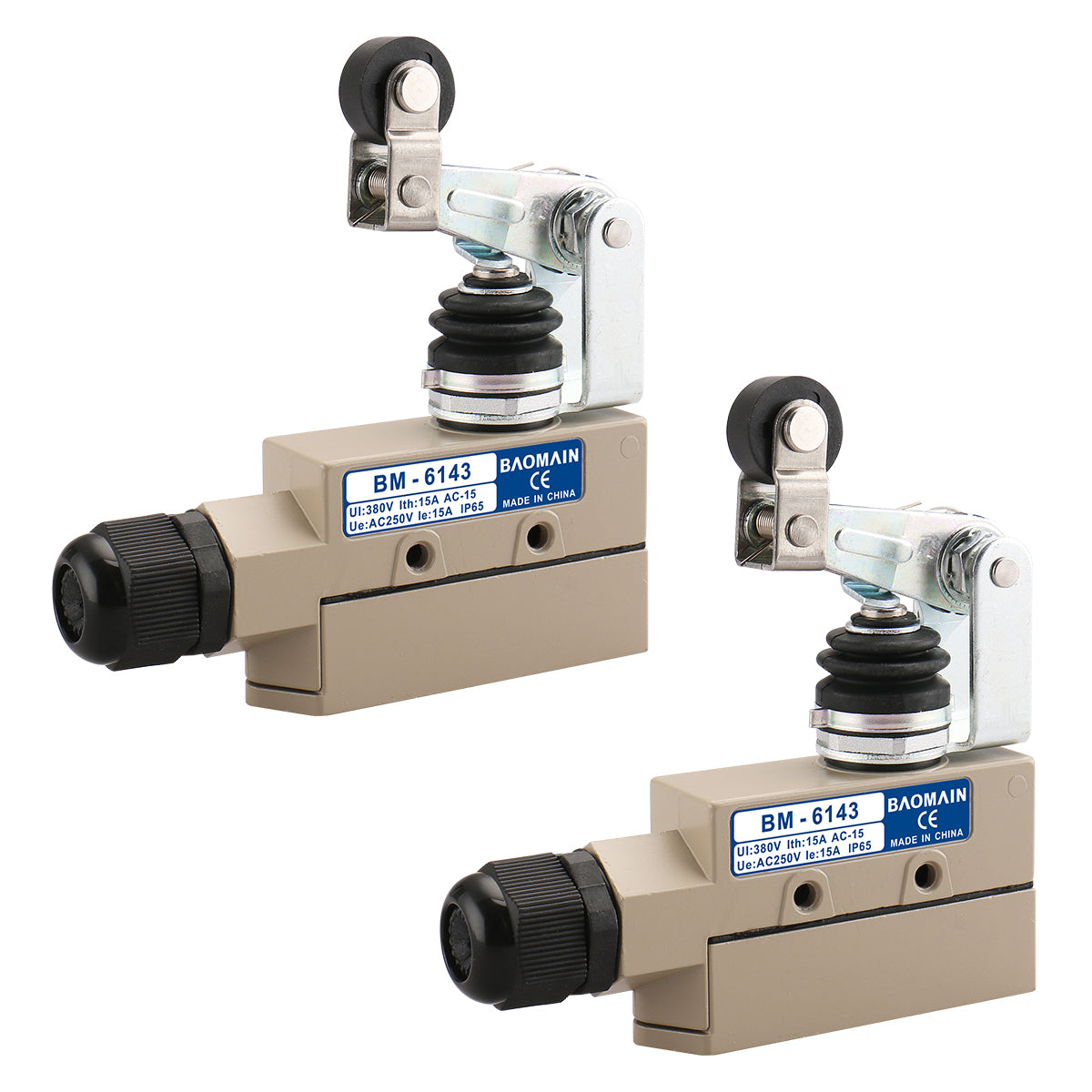

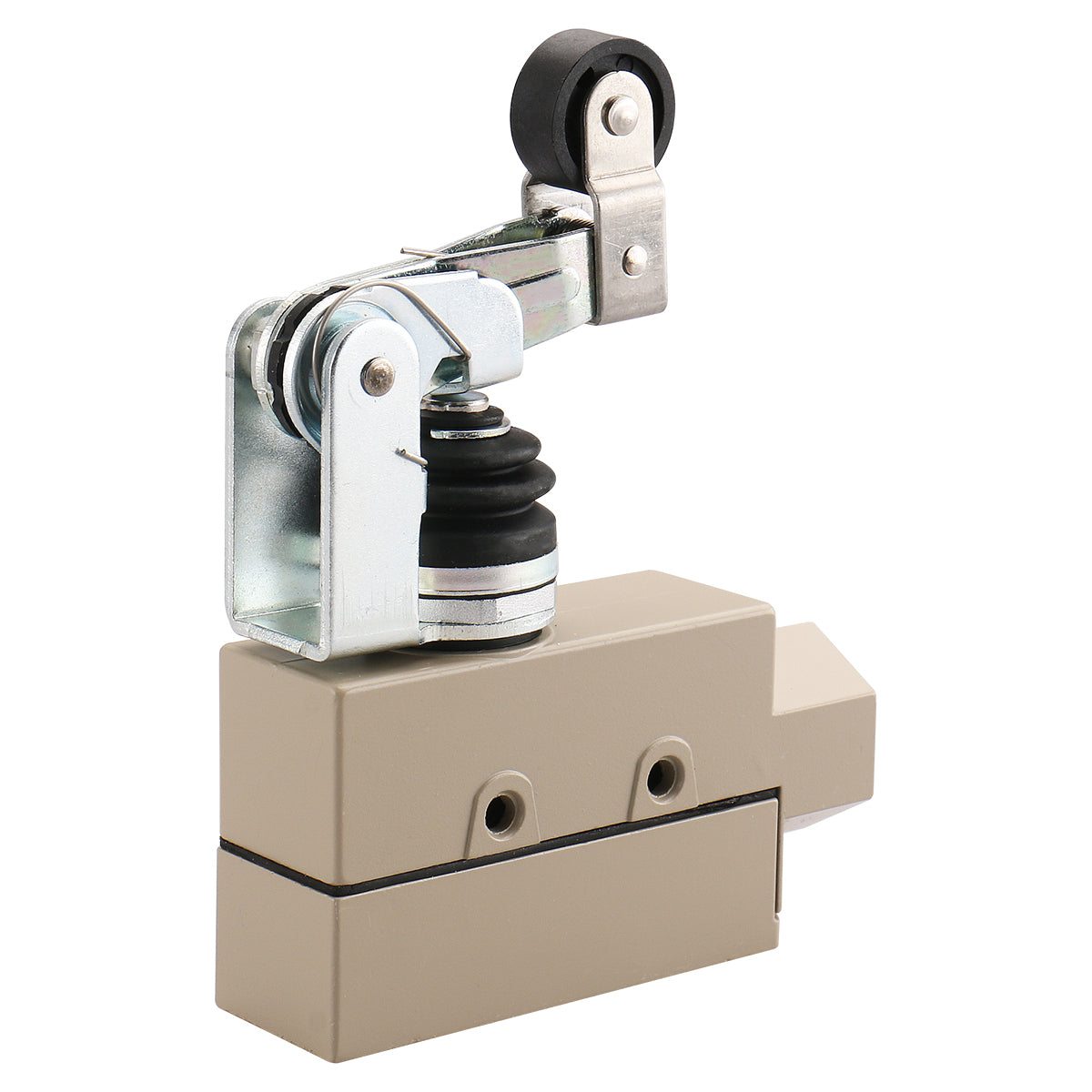

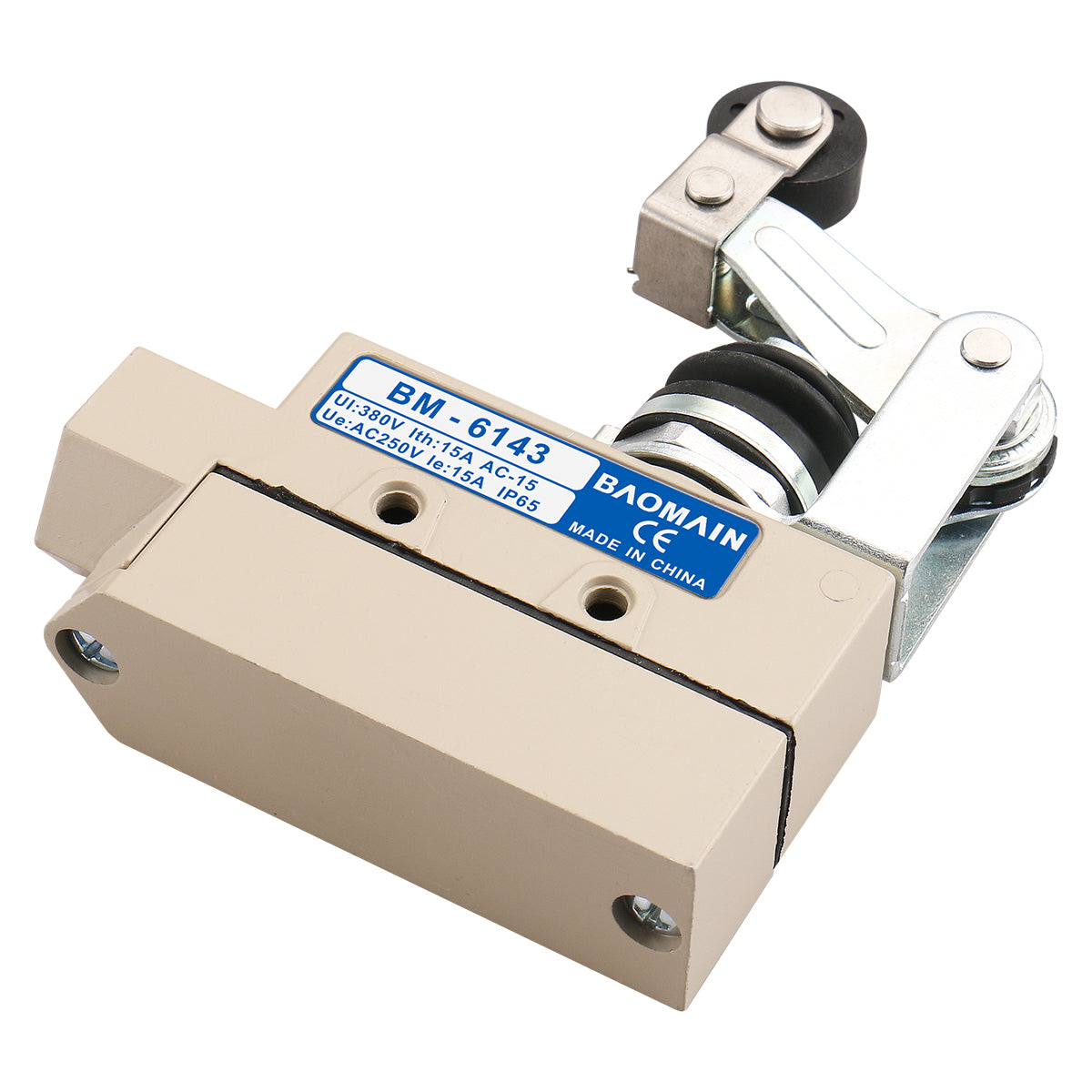

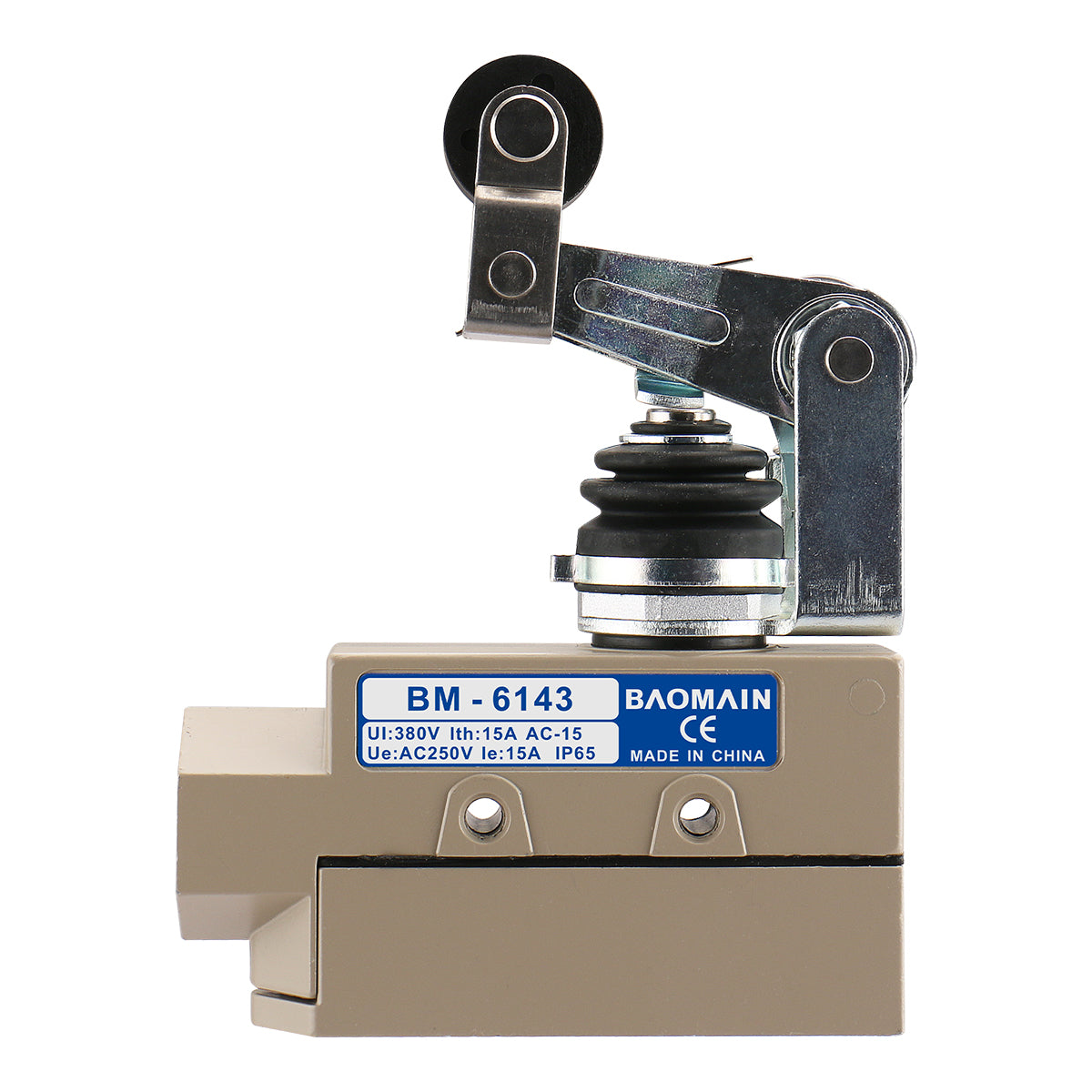

Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof
Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof
Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof
Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof
Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof
Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof
Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof

Baomain Roller Arm Head Reset BM-6143 (TZ-6143) Sealed Limit Switch 15A/250VAC IP65 Waterproof

zzgl. Versandkosten

Built-in BM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof. It is the same as BM micro switch in the rated value and characteristics. Various of actuators that are taken convenience for using. Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut.

  • Type of the head: Roller arm head reset
  • Power of starting: 350
  • Power of release: 115
  • Switching position (mm): 0.5mm
  • Rated current In(А): 15A active load. 5A inductive load
  • Insulation resistance: 100
  • Rated voltage: 230V
  • IP code: IP65
  • Section of the power supply conductor: up to 1.5mm2
  • Standards: GB14048.5
