Baomain Z-15GQ-B General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current
Baomain Z-15GQ-B General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current
Baomain Z-15GQ-B General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current
Baomain Z-15GQ-B General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current

Baomain Z-15GQ-B General Purpose Basic Switch, Panel Mount Plunger, Medium OP, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current

zzgl. Versandkosten
  • Actuator Type : Panel Mount Plunger;
  • Action Type : Momentary

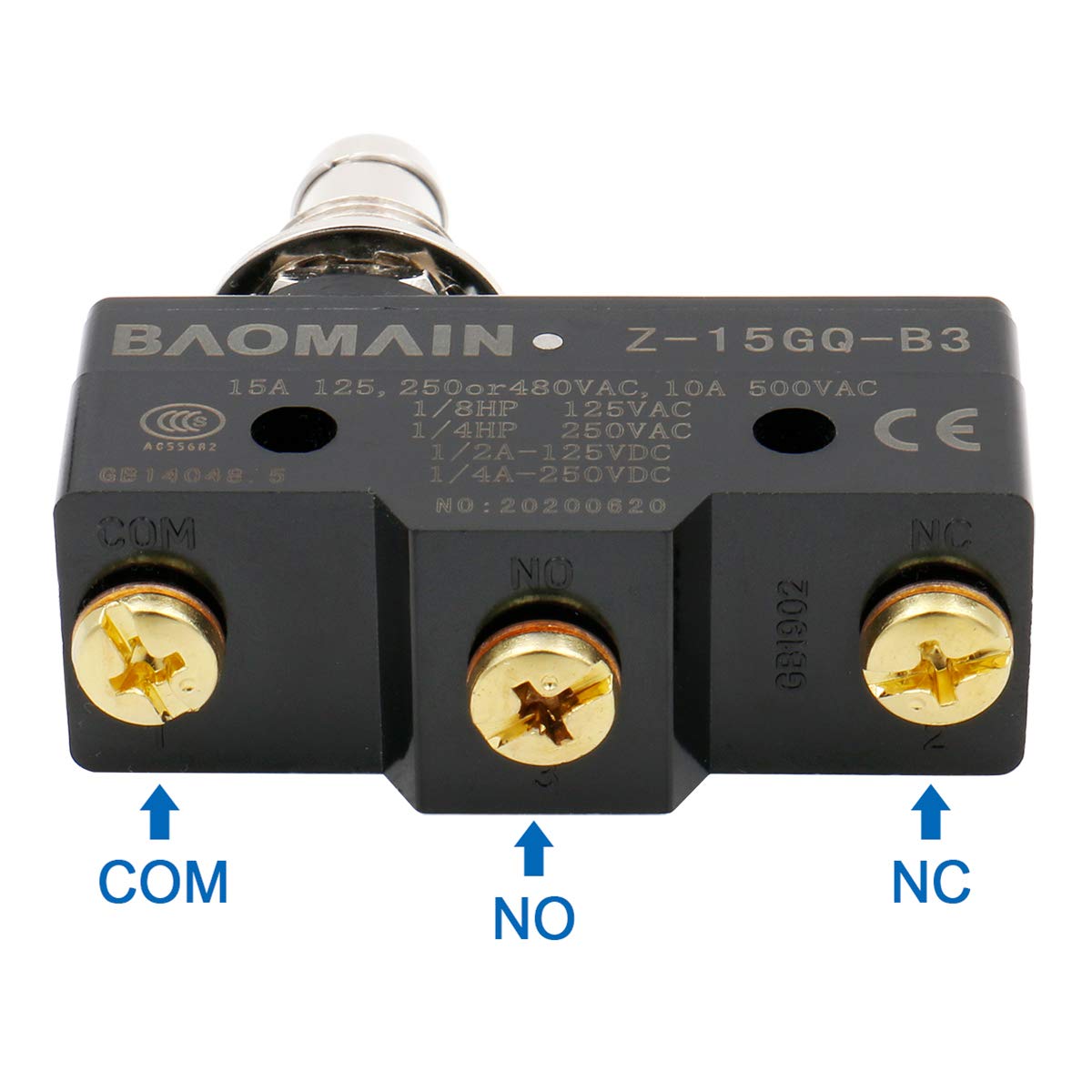

  • Contact Type : SPDT 1NO 1NC 1 Com;
  • Terminal Type : 3 Screw Terminals;
  • Ui / Ith : AC 250V 15A;
  • Rated : 15A 125/250/480VAC,1/4HP 250VAC / 1/4A 250VDC
  • ActuatorDiameter : 8mm/ 0.31";
  • Fix Hole Diameter : 0.4cm/ 0.15";

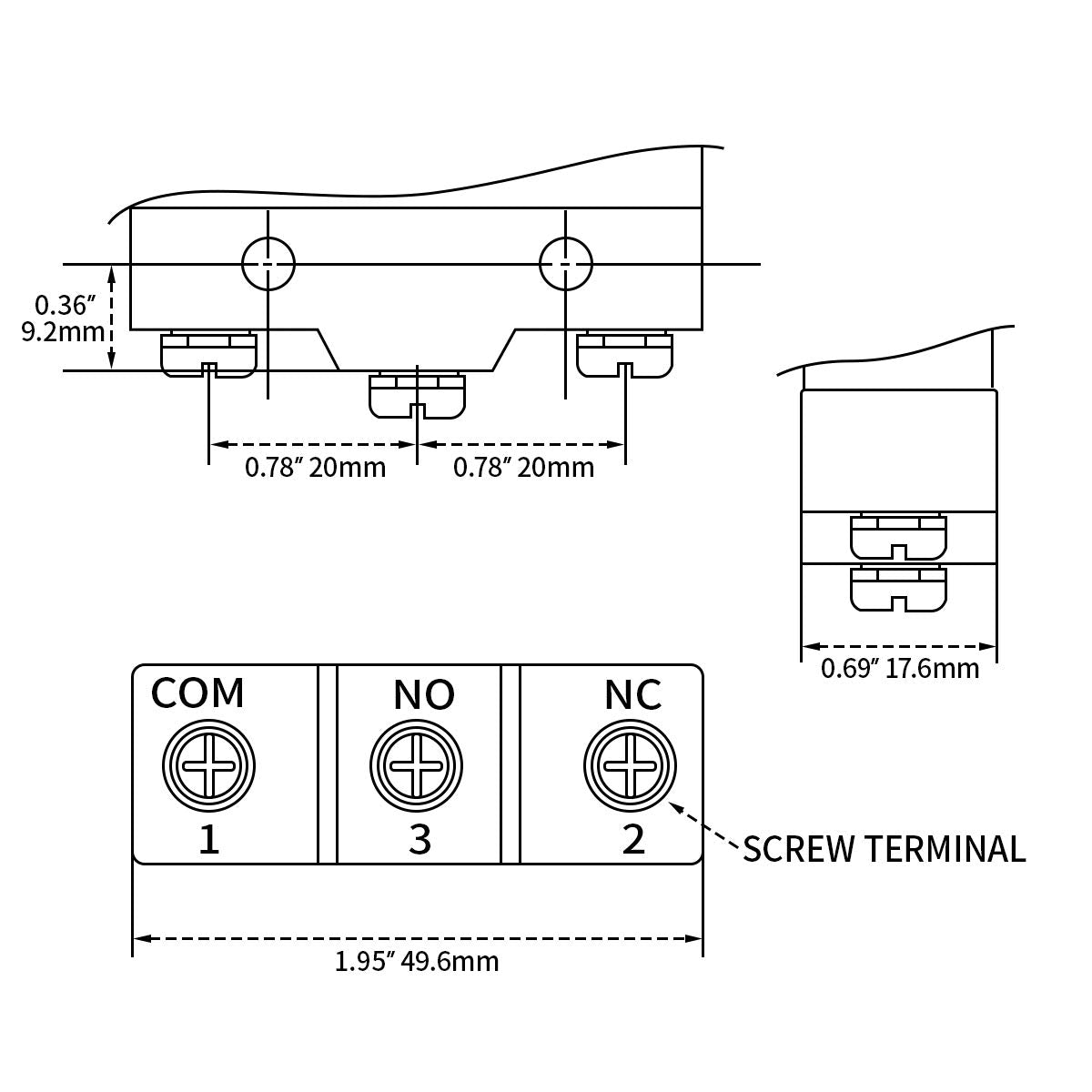

  • Fix Hole Distance : 25mm/ 0.98"(Center to Center)
  • Mount Thread Diameter : 12mm/ 0.47";
  • Suitable Board(Max) : 5mm/ 0.197"(Adjustable);
  • Main Body Size : 5 x 1.8 x 2.4cm/ 2" x 0.7" x 0.9"(L*W*H);
  • Overall Height : 5.1cm/ 2"
