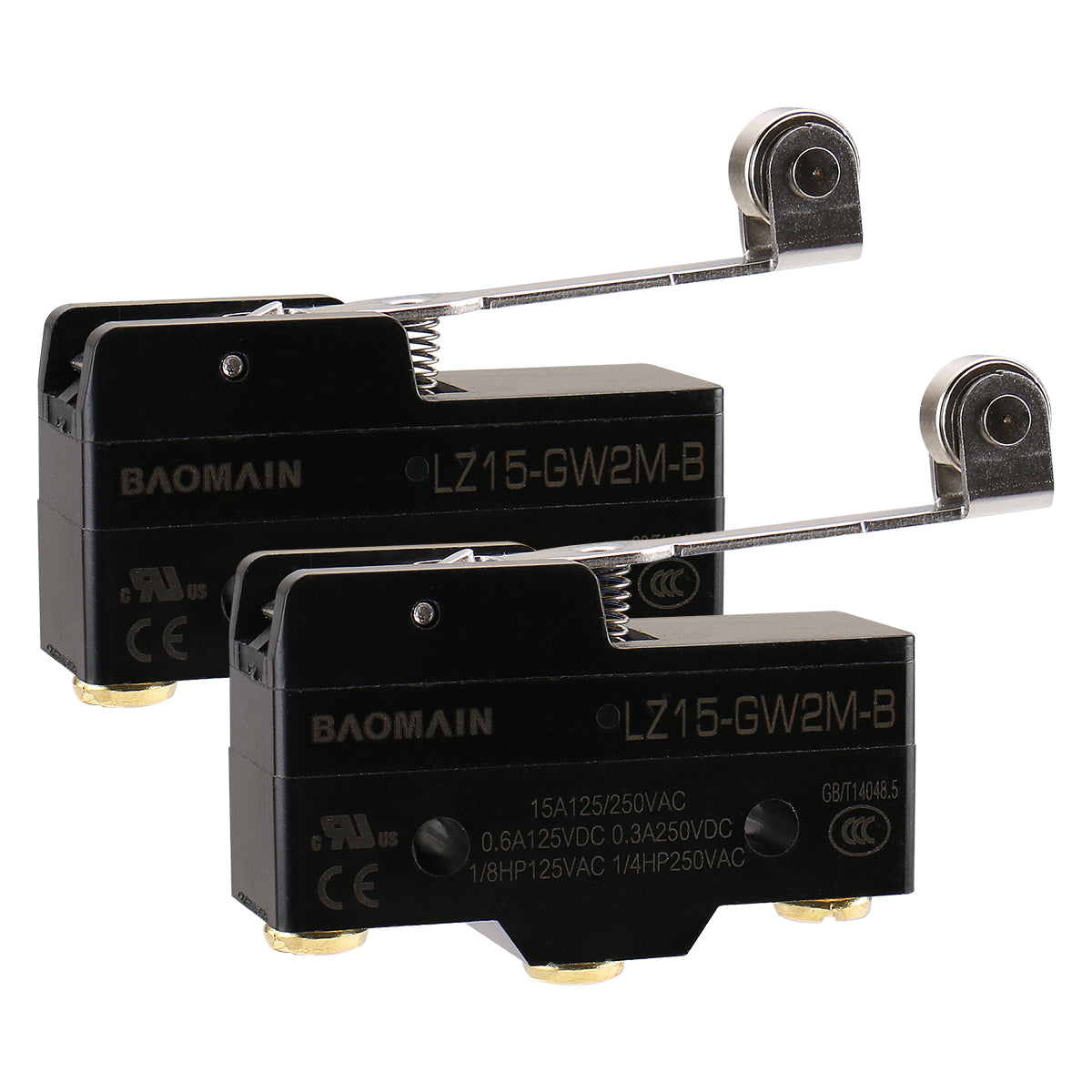

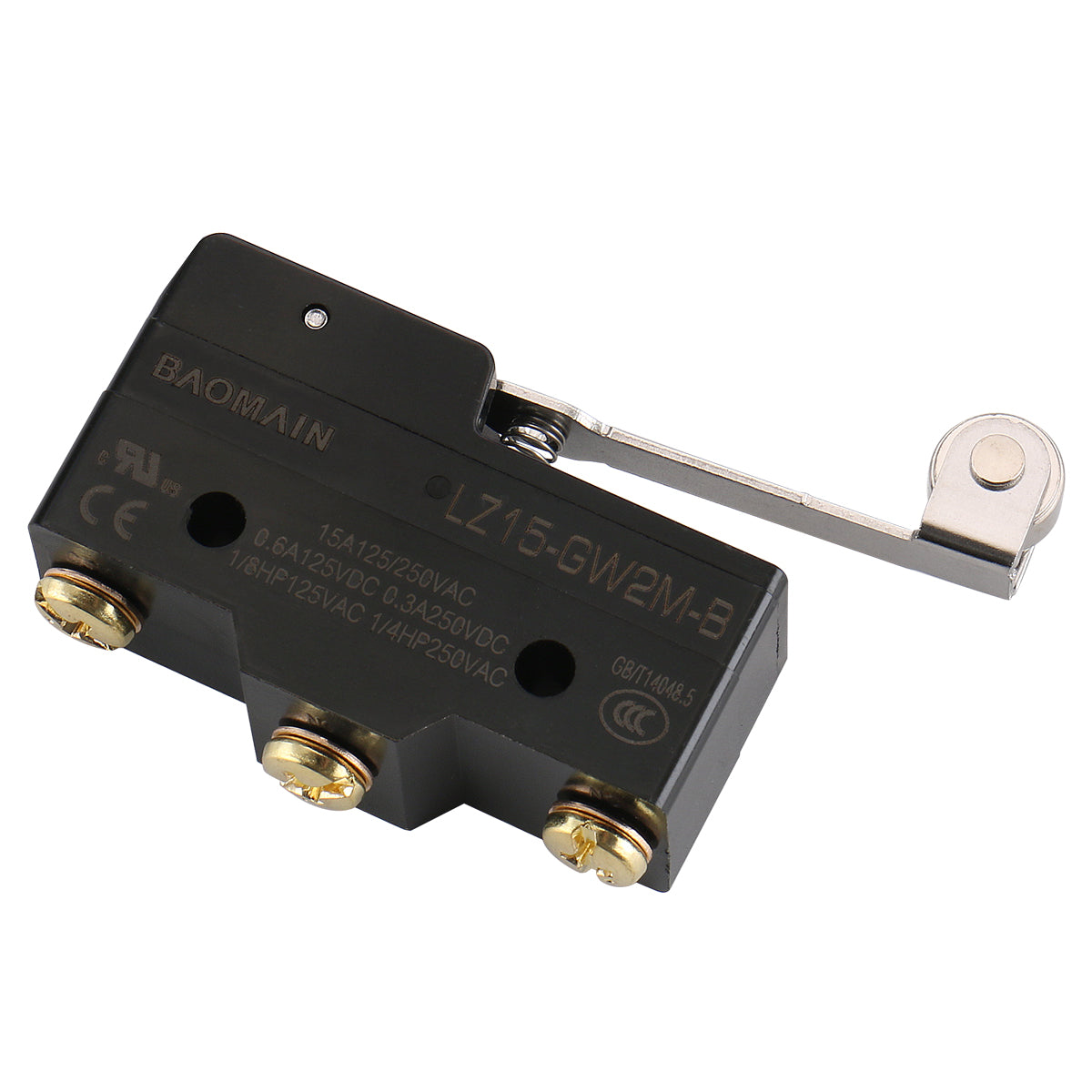

Baomain Micro Switch Z-15GW2S-B3( Z-15GW2M) 3-Screw Terminal Long Hinge Roller Lever AC DC Limit

  • $10.99
    Einzelpreis pro

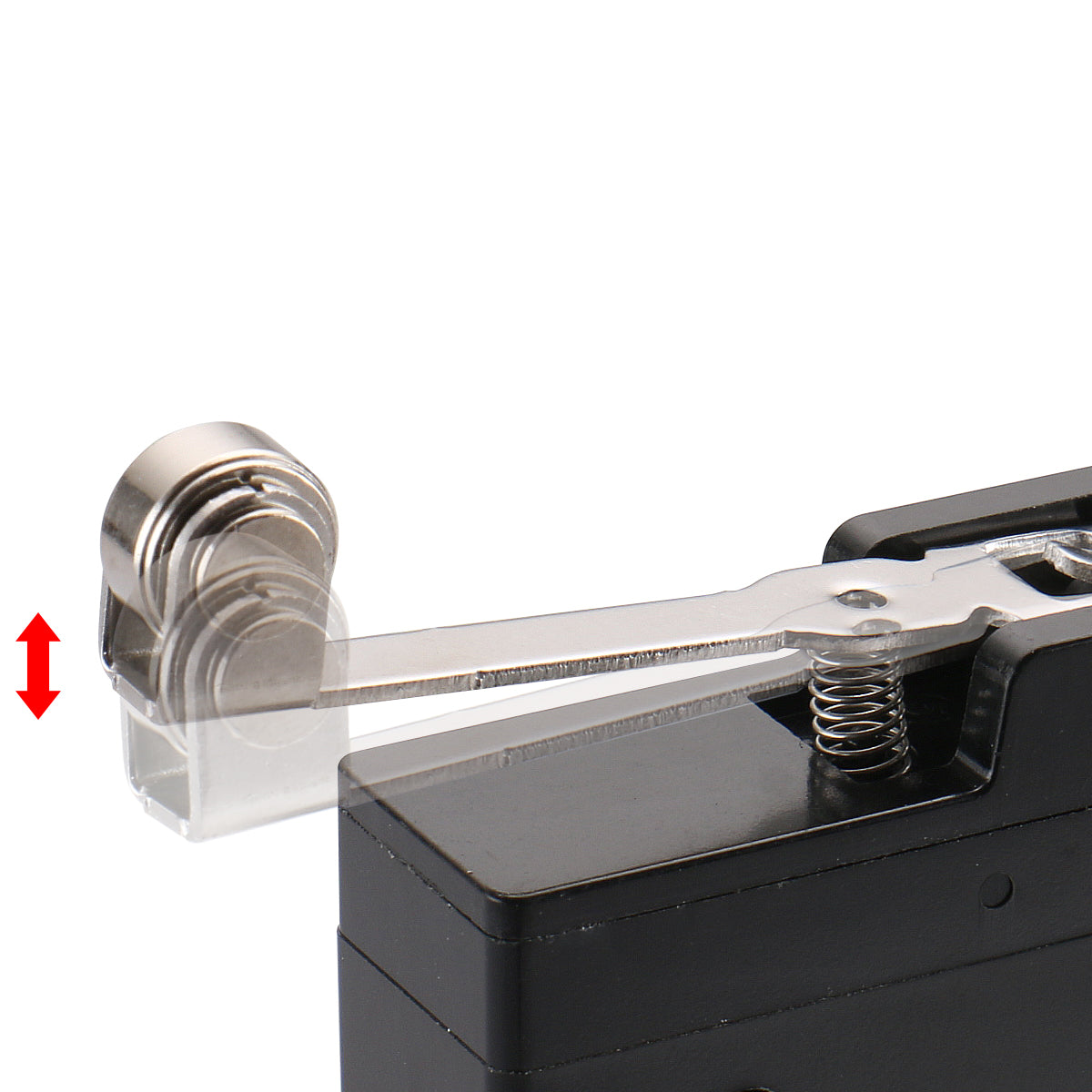

  • Product Name: Micro Switch; Actuator Type: Long Hinge Roller Lever; Actuator Action: Momentary

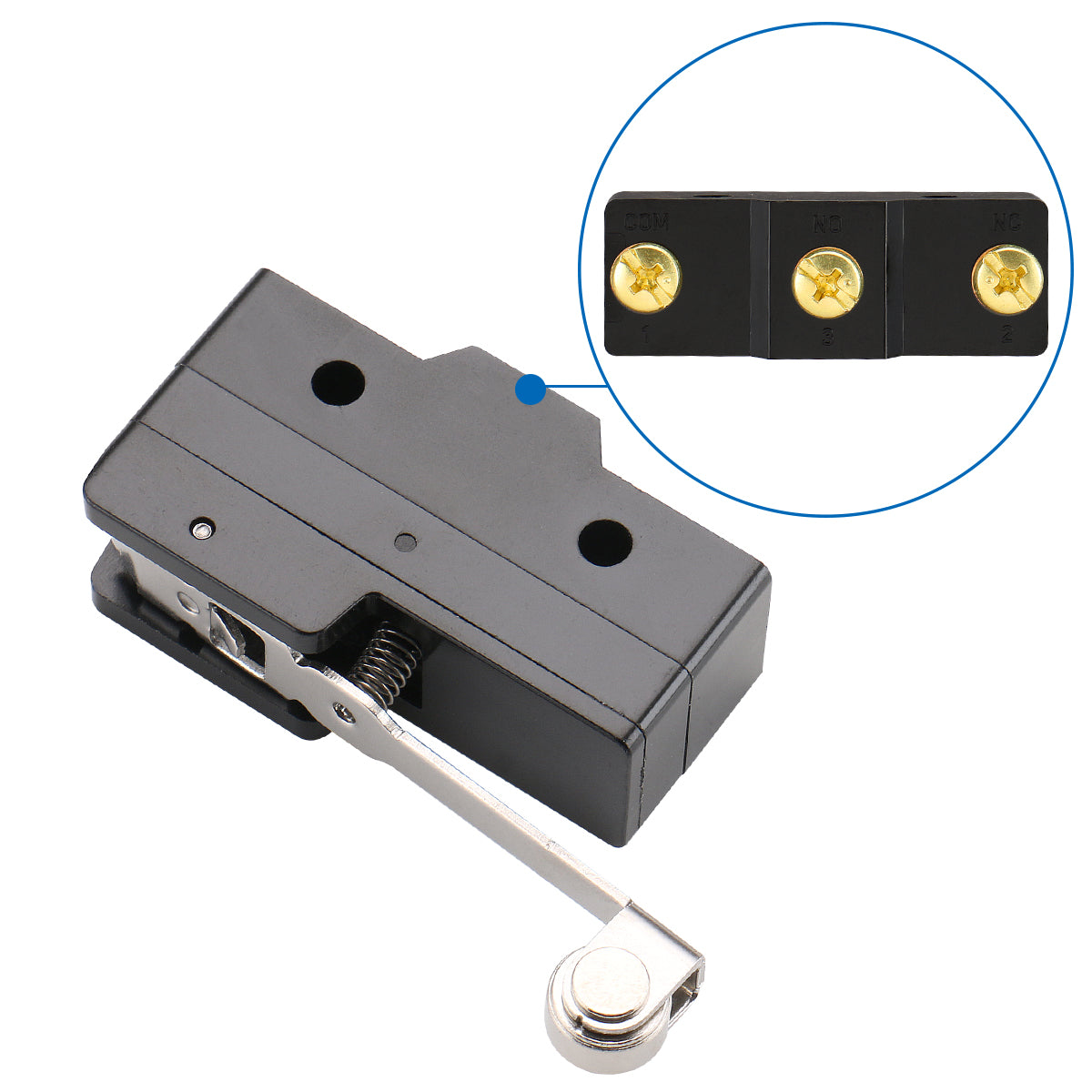

  • Contact Type : SPDT 1NO 1NC 1 Com;Terminal Type : 3 Screw Terminals;Ui / Ith : AC 250V 15A;Rated : 15A 125/250/480VAC,1/4HP 250VAC / 1/4A 250VDC

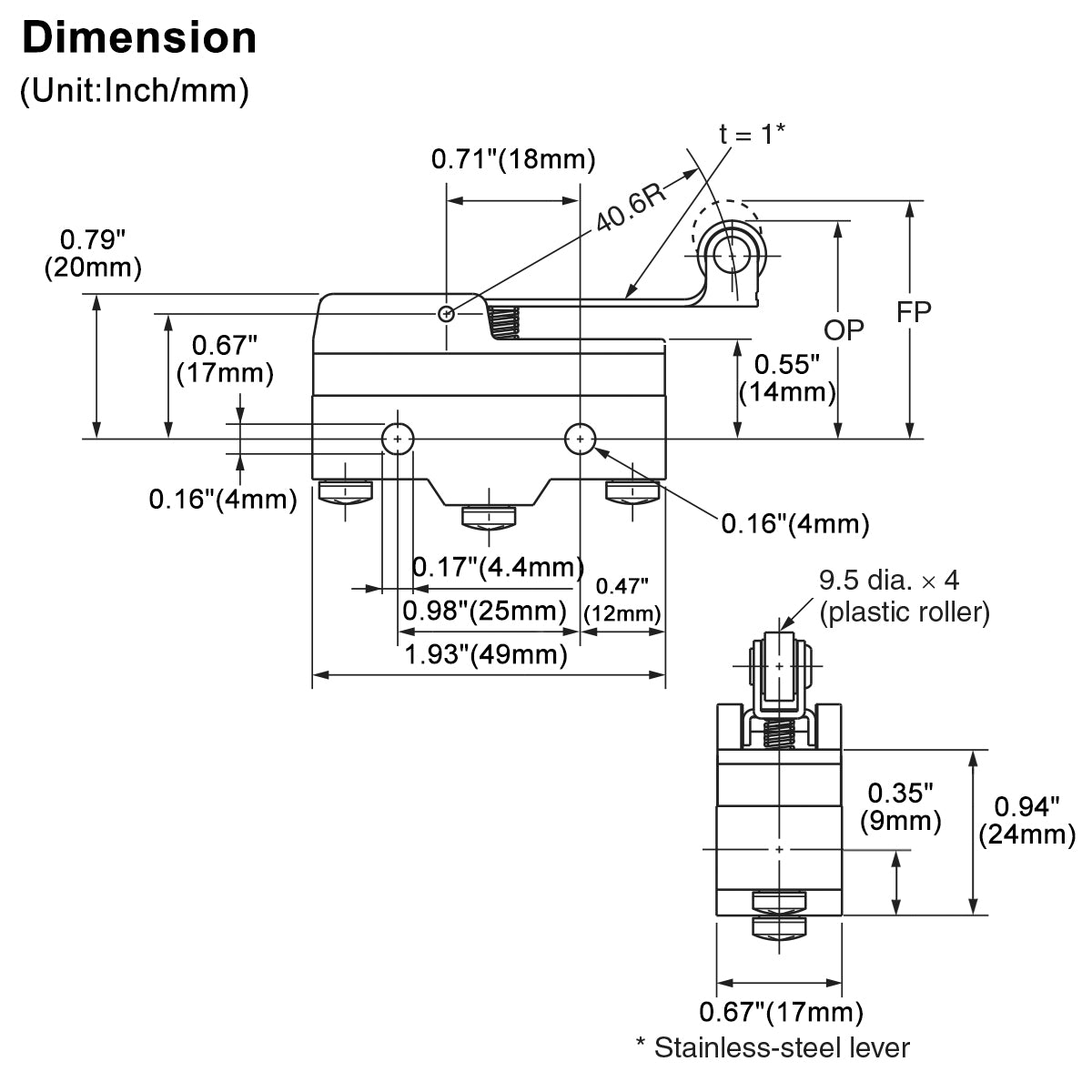

  • AC-15 : 2A/15A 250V;DC-13 : 0.25A 250V;Switch Body Size : 4.9 x 1.7 x 3.3cm / 1.9" x 0.7" x 1.3" (L*W*H)
  • Fixing Holes Dia. : 0.4cm / 0.16“;Distance Between Centers of Fixing Holes : 2.5cm / 1";Roller Lever Size : 6.2 x 0.8 x 1.2cm/2.4" x 0.3" x 0.5" (L*W*H)
  • UL & CUL CE listed;
