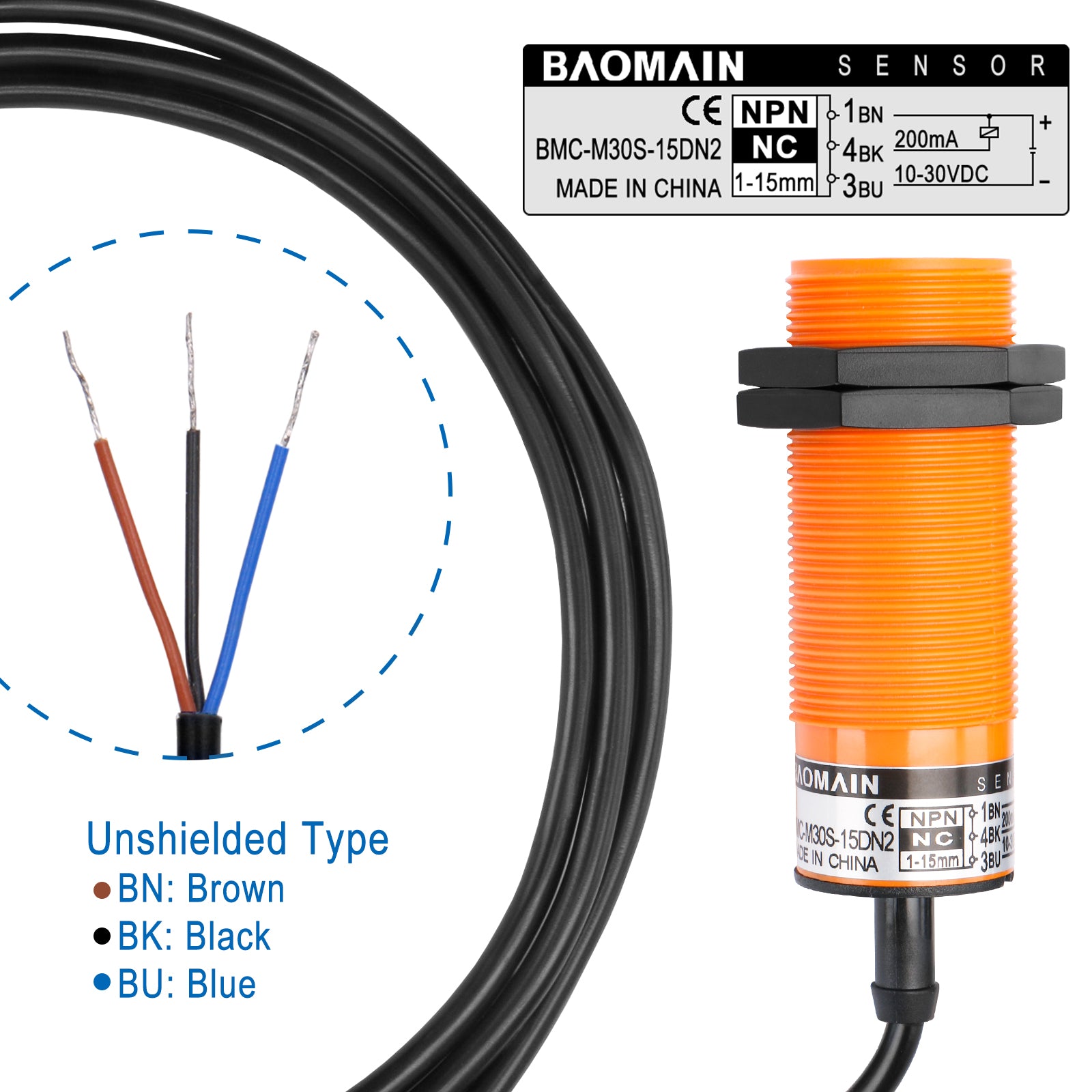

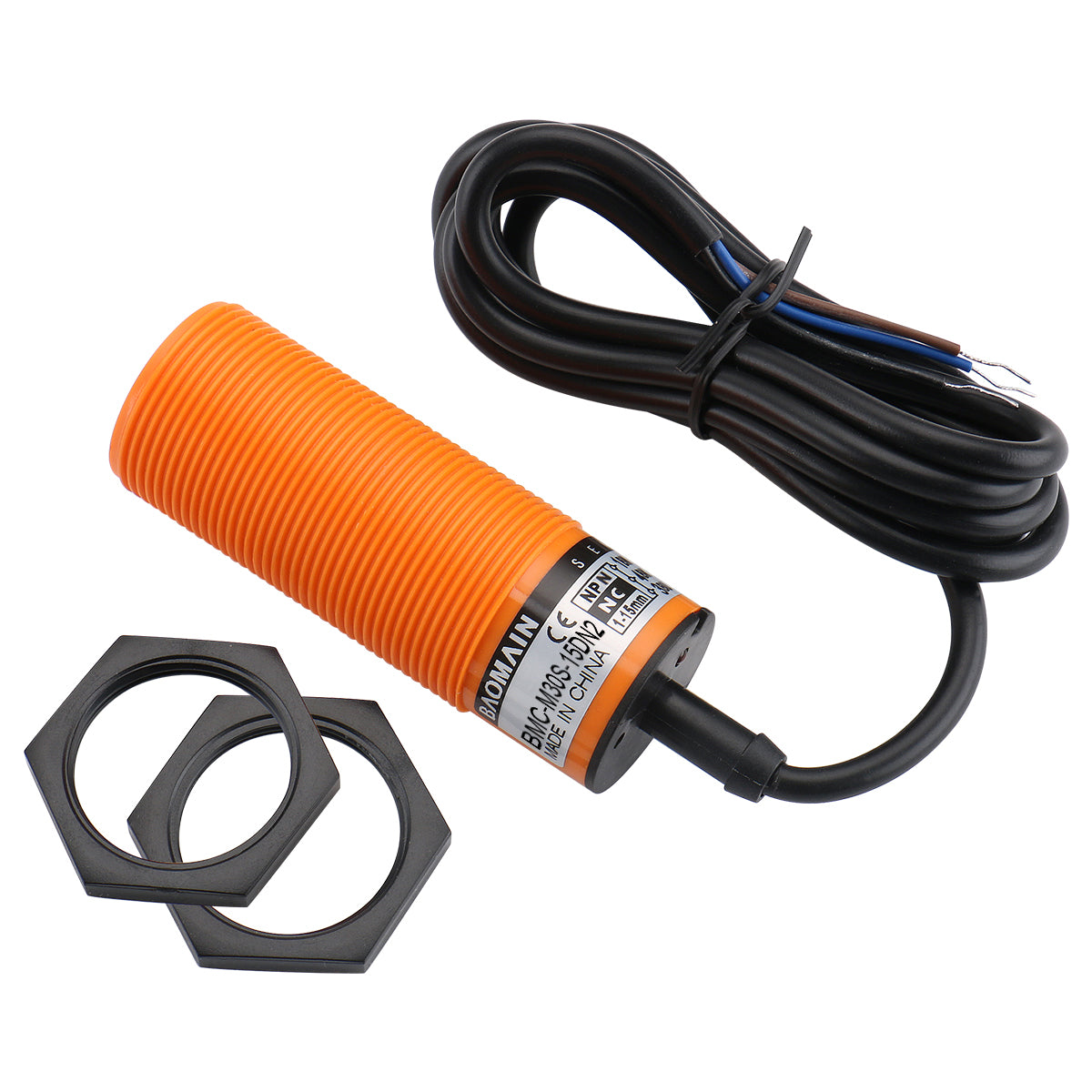

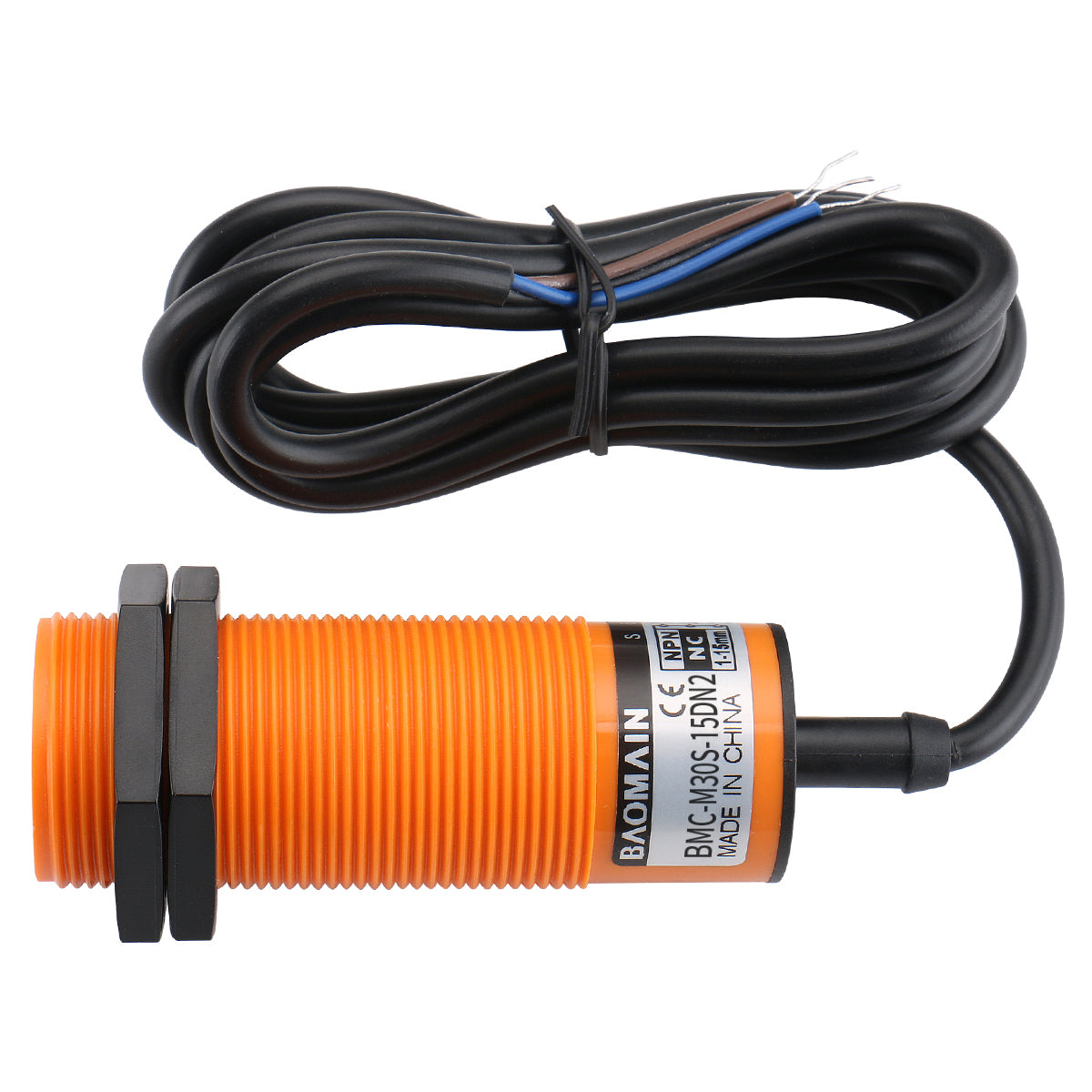

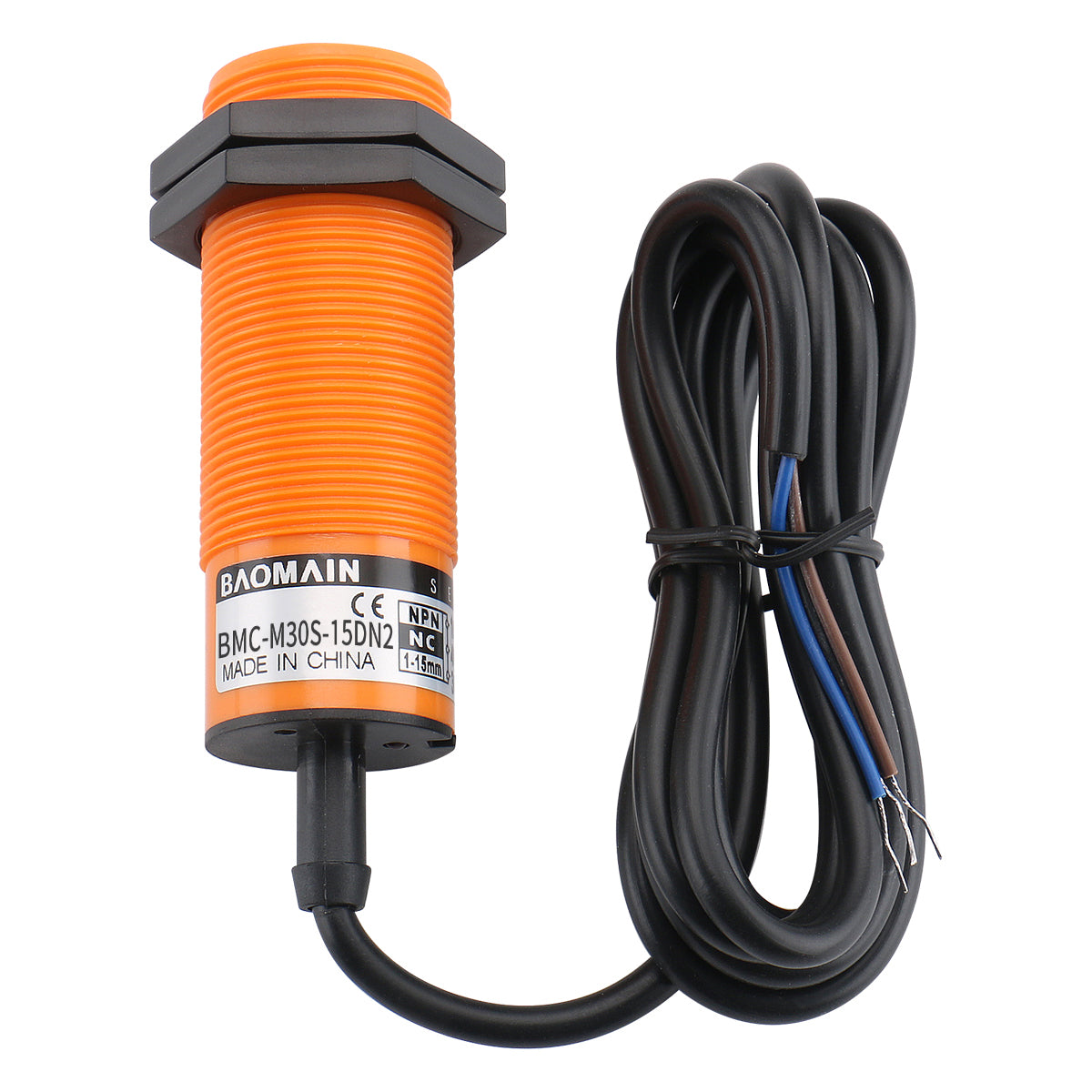

Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2

Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, SN 15 mm, 3-Wire NPN Output, VDC Input, Normally Closed(NC) Contacts, Cable 2 mm BMC-M30S-15DN2

zzgl. Versandkosten
  • Sensor type: Capacitive proximity sensor

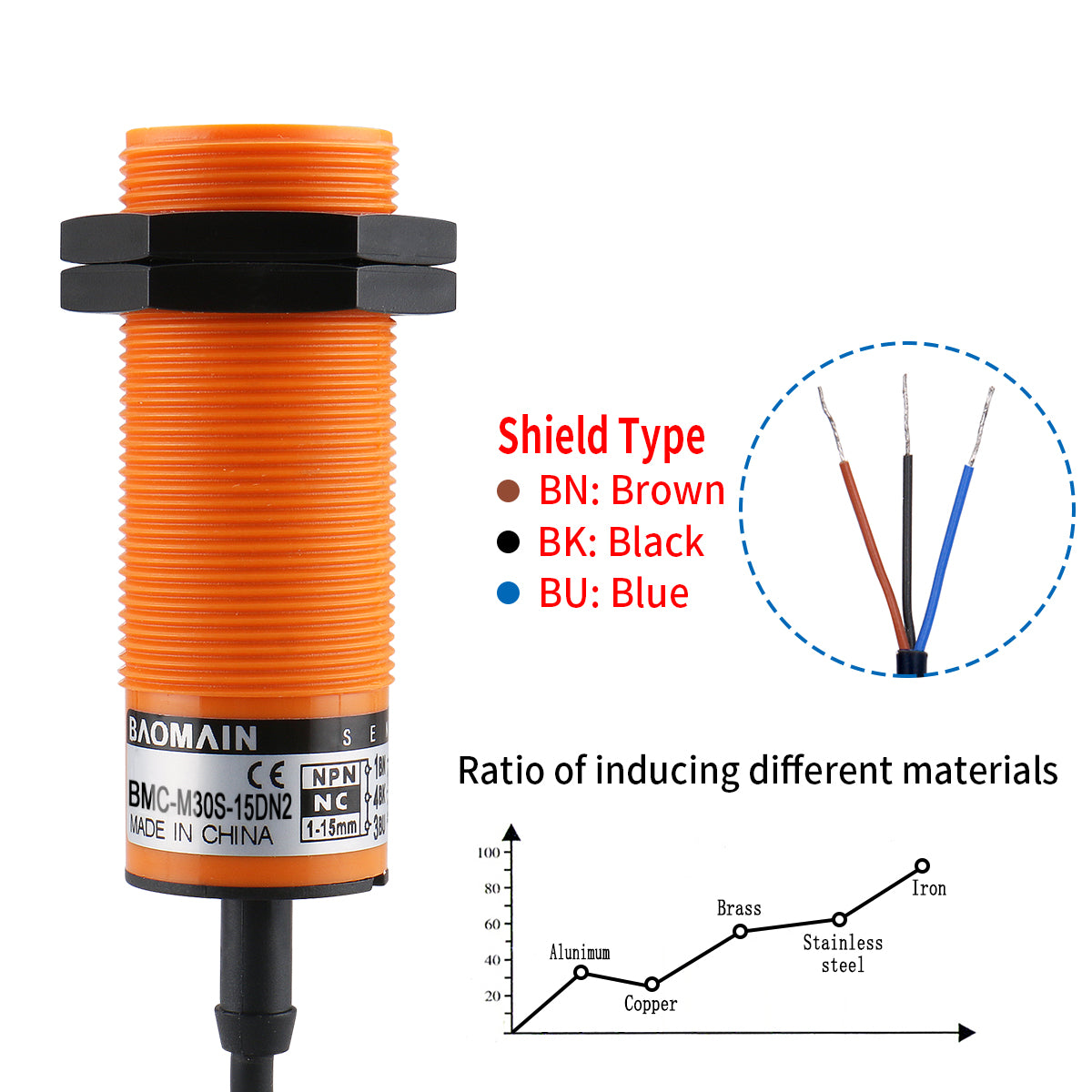

  • Product specific application: Detection of insulated or conductive materials

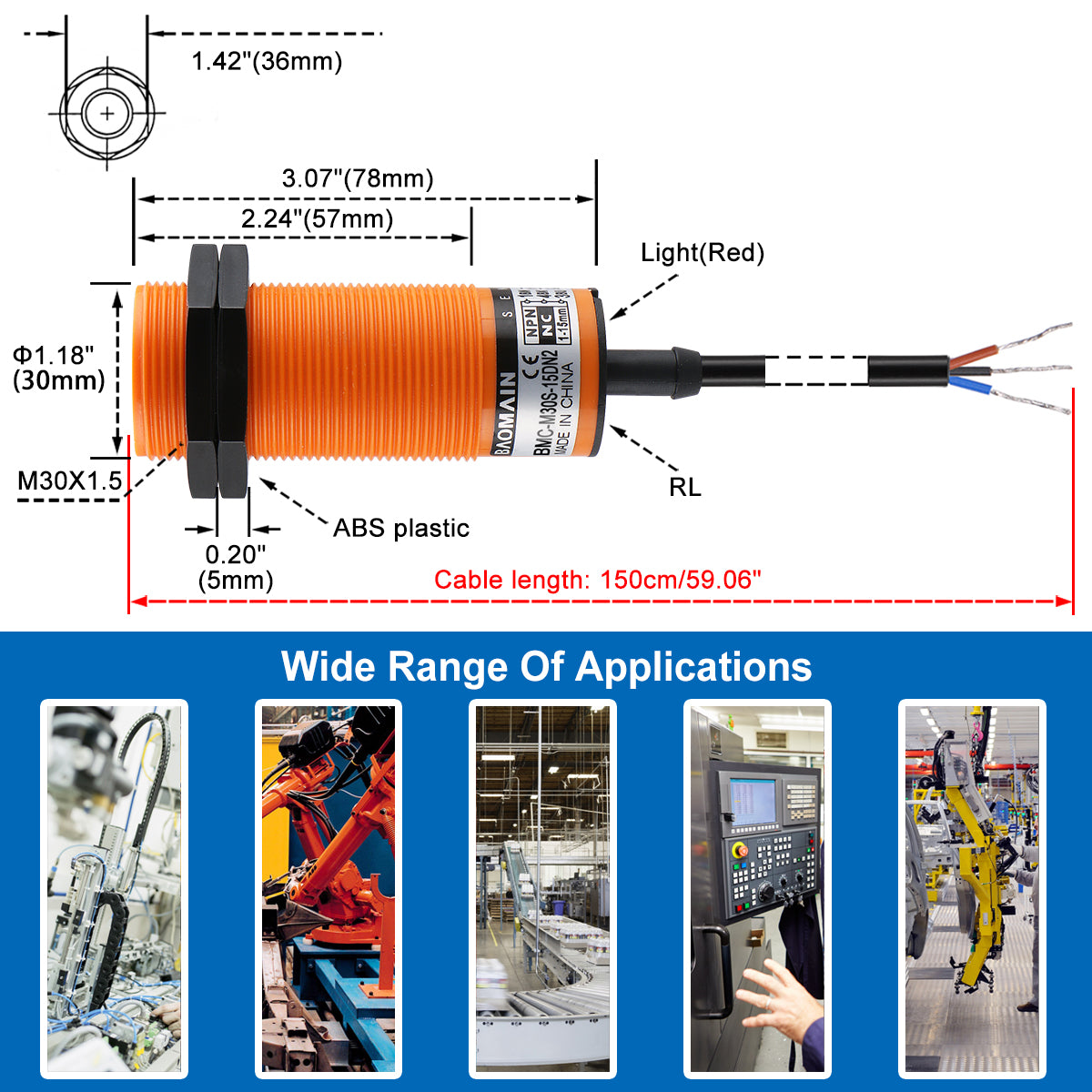

  • Sensor design: Cylindrical M30
  • Detector flush mounting acceptance: Non flush mountable
  • Wiring technique: 3-wire
    • [Sd] sensing range: 8...15 mm
    • [Sn] nominal sensing distance: 15mm
    • Discrete output function: 1 NC
    • Output circuit type: DC
    • Discrete output type: NPN
    • Electrical connection: Cable
    • Cable length: 2 m
    • [Us] rated supply voltage: 12...24 V DC with reverse polarity protection
    • Delay response: <10 ms
    • IP degree of protection: IP67 double insulation conforming to IEC 60529
    • [Sa] assured operating distance: 0...11 mm
    • Adjustment zone: 0...17 mm
    • Status LED: 1 LED for output state indication
    • Supply voltage limits: 10...30 V DC
    • Residual current: <100 mA open state
    • Switching frequency: <150Hz
    • Voltage drop: <2.5 V (closed)
