Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP
Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP

Baomain Capacitive Proximity Sensor, Cylindrical M30 Plastic, Sn 15 mm, 3-Wire PNP Output, VDC Input, NO Contacts, Cable 2 mm BMC-M30S-15DP

zzgl. Versandkosten
  • Sensor type: Capacitive proximity sensor

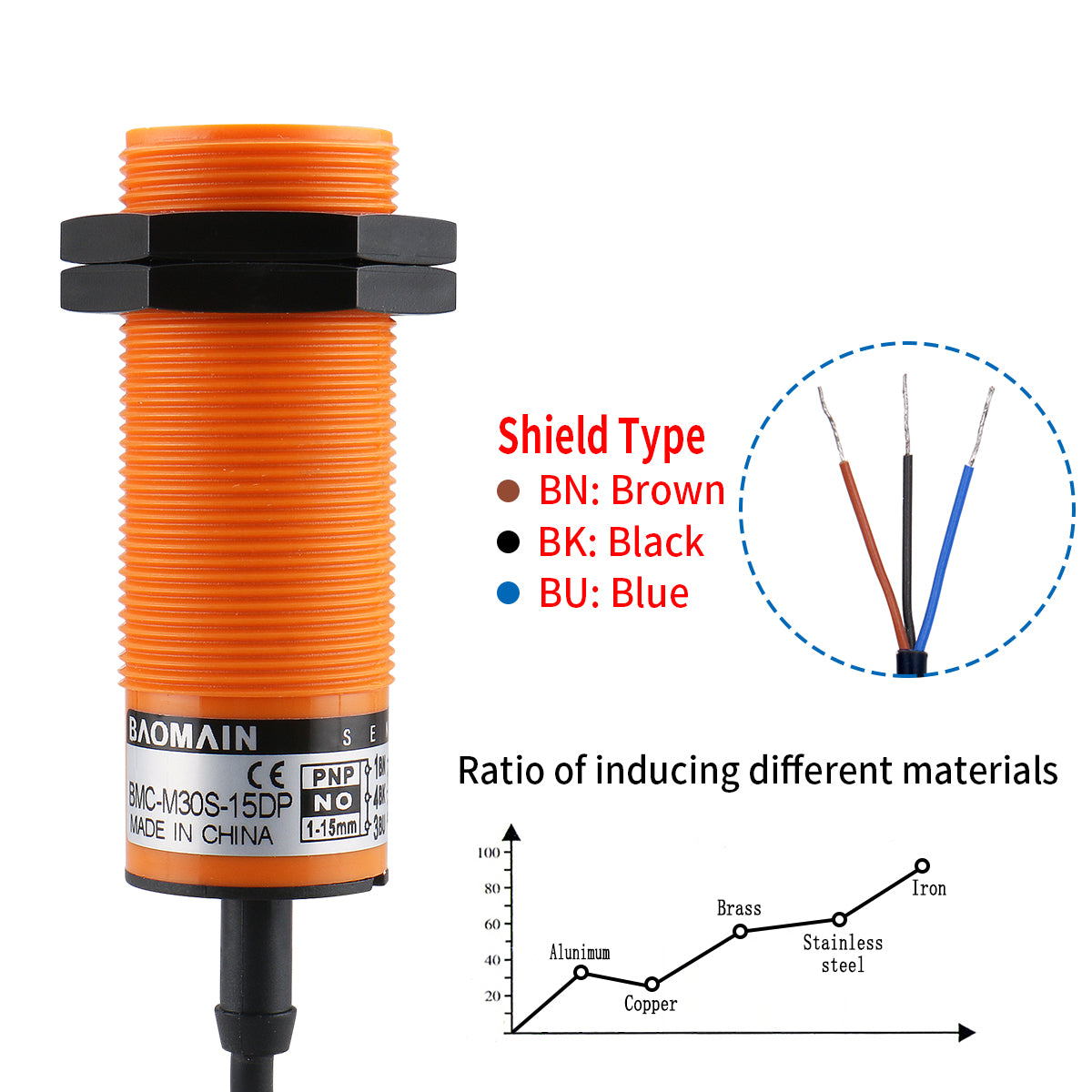

  • Product specific application: Detection of insulated or conductive materials

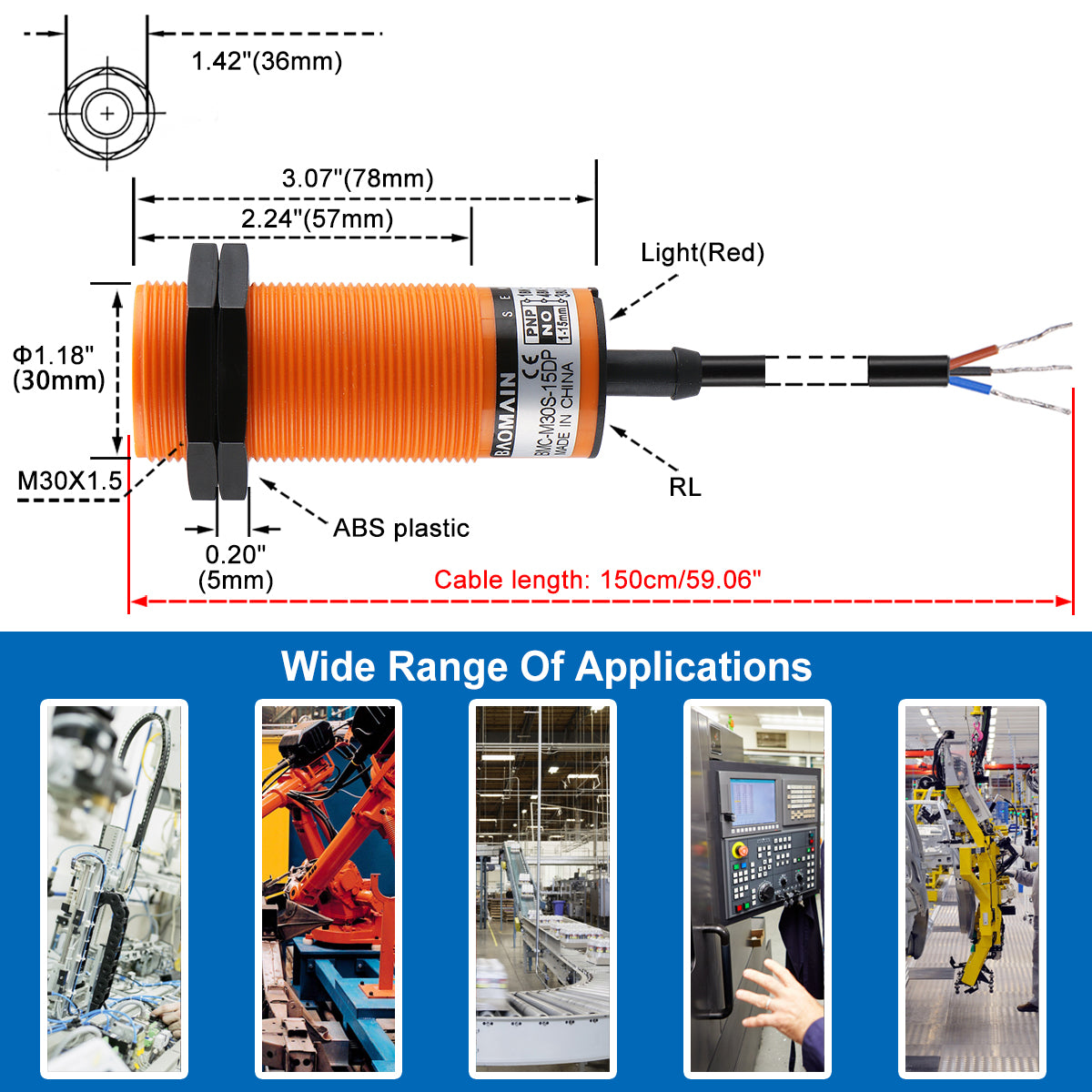

  • Sensor design: Cylindrical M30
  • Detector flush mounting acceptance: Non flush mountable

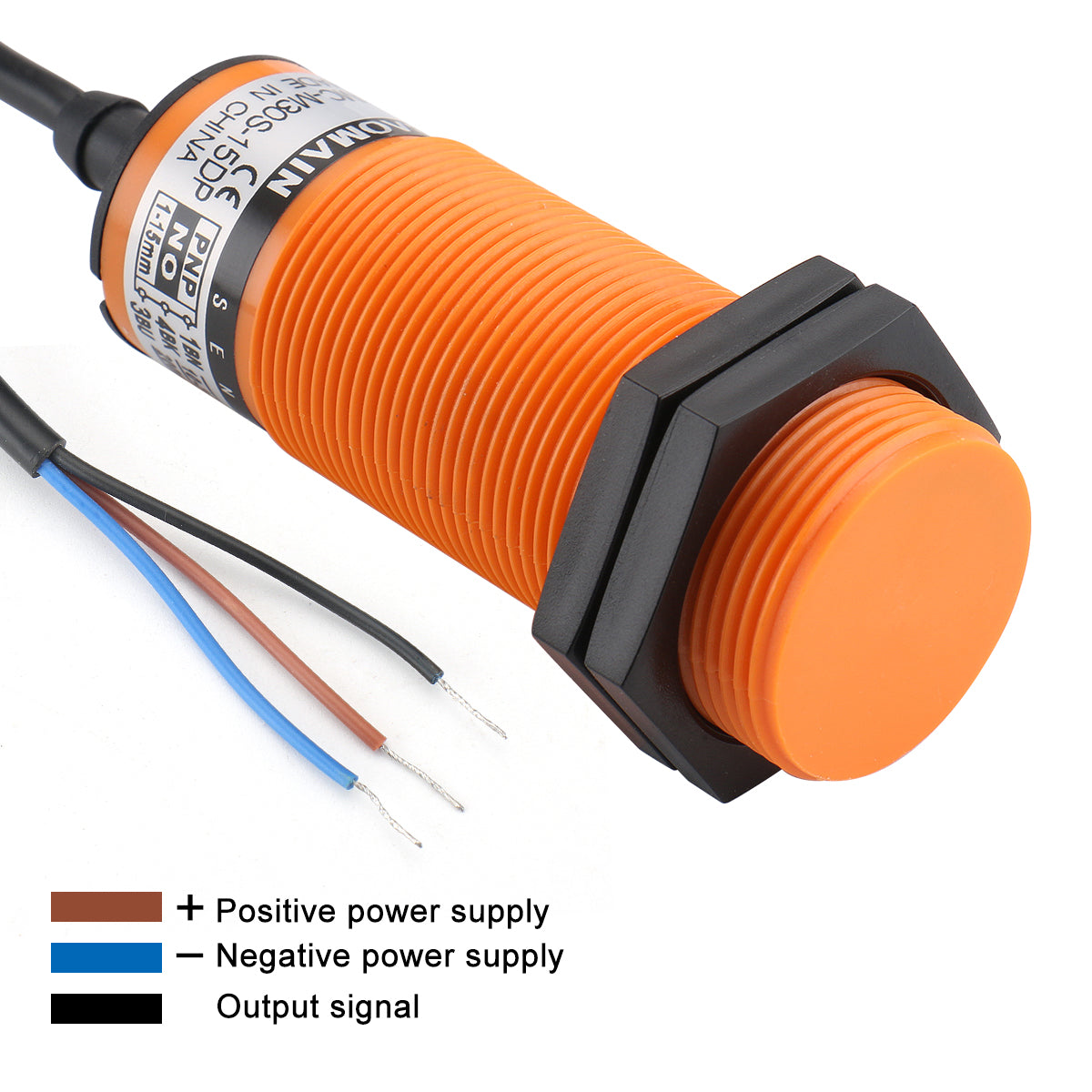

  • Wiring technique: 3-wire
        • [Sd] sensing range: 8...15 m
        • [Sn] nominal sensing distance: 15m
        • Discrete output function: 1 NO
        • Output circuit type: DC
        • Discrete output type: PNP
        • Electrical connection: Cable
        • Cable length: 2 m
        • [Us] rated supply voltage: 12...24 V DC with reverse polarity protection
        • Delay response: <10 ms
        • IP degree of protection: IP67 double insulation conforming to IEC 60529
        • [Sa] assured operating distance: 0...11 m
        • Adjustment zone: 0...17 mm
        • Status LED: 1 LED for output state indication
        • Supply voltage limits: 10...30 V DC
        • Residual current: <100 mA open state
        • Switching frequency: <150Hz
        • Voltage drop: <2.5 V (closed)
