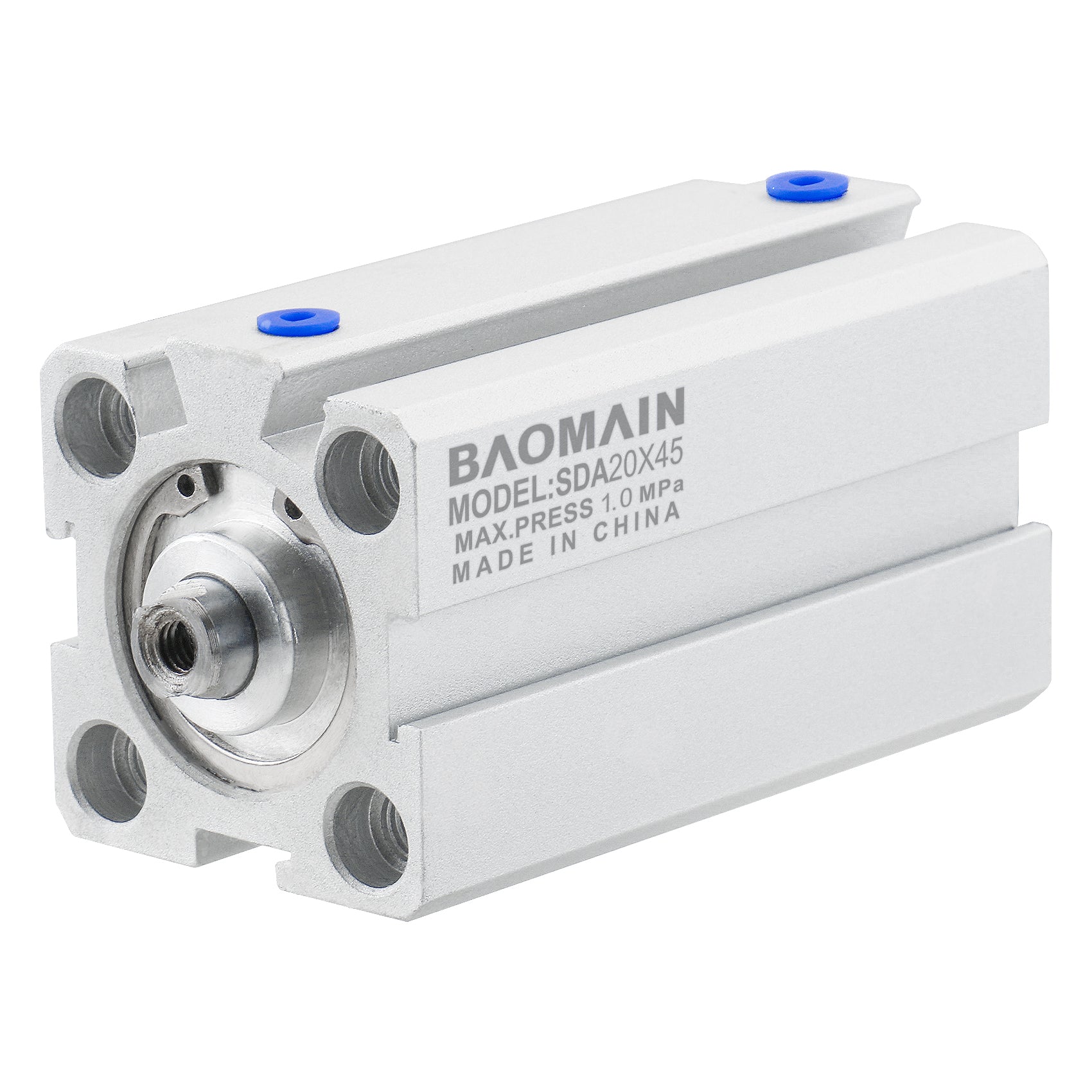

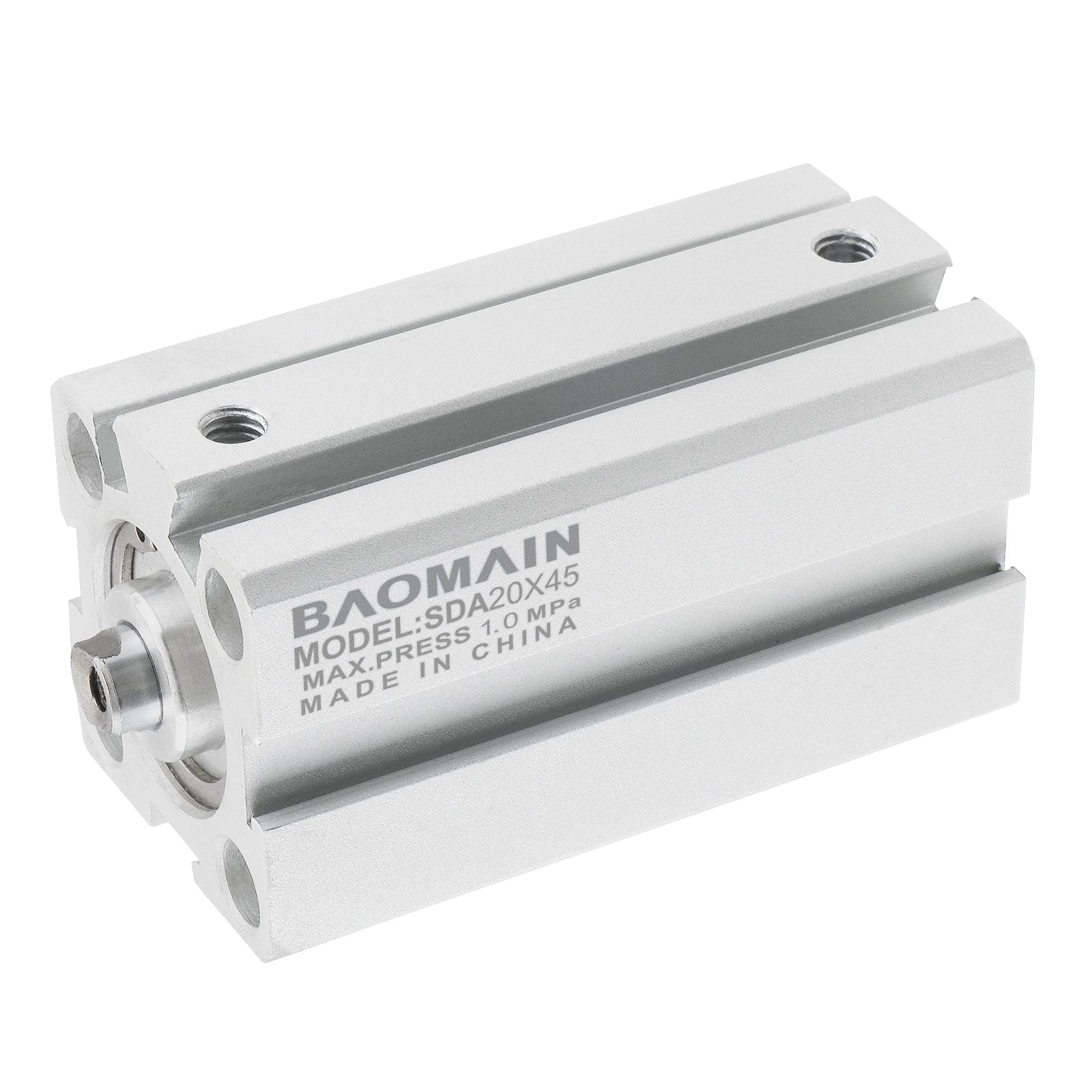

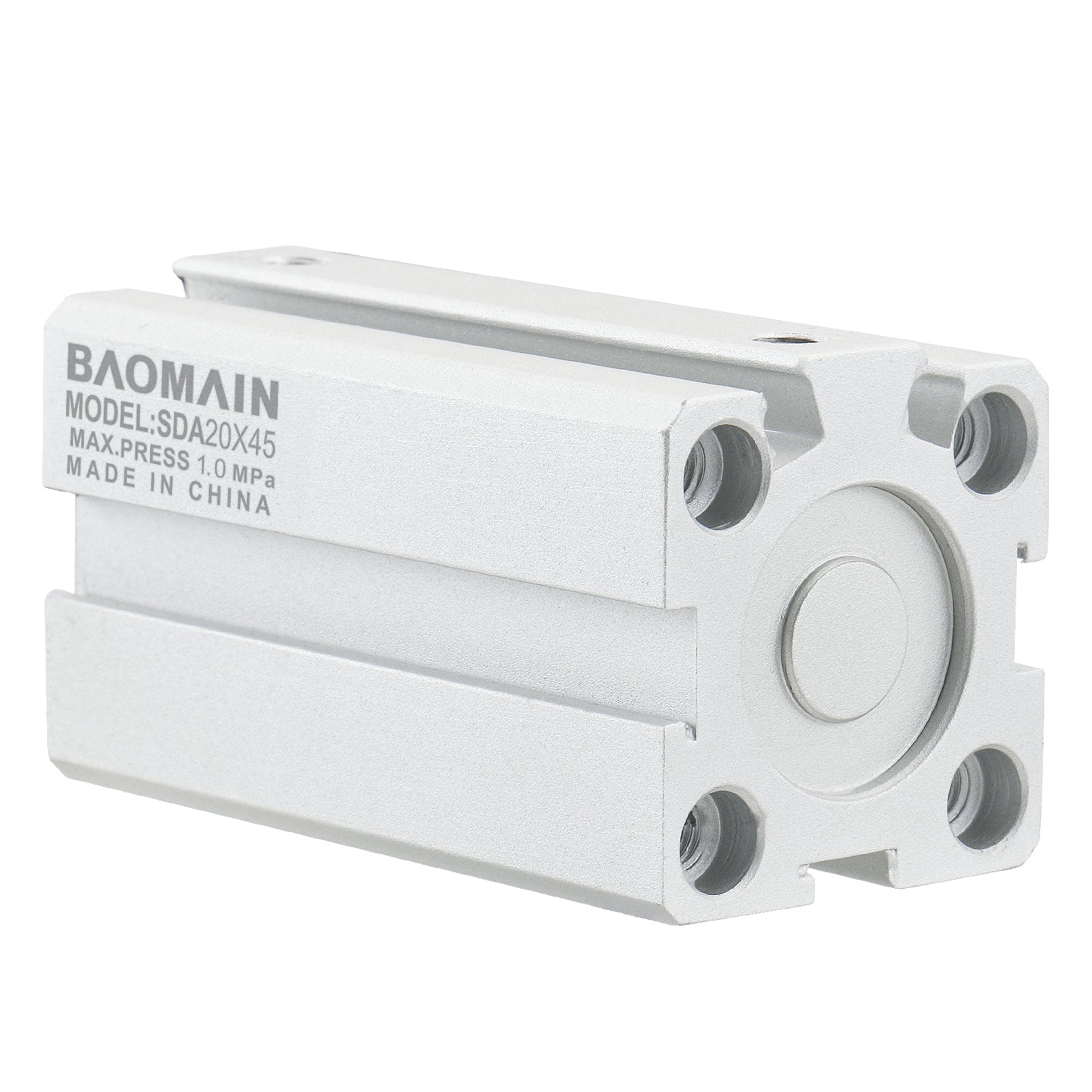

Baomain Compact Thin Pneumatic Air Cylinder SDA 20 Series 20mm Bore Double Action M5 Port

  • $8.49
    Einzelpreis pro


The compact thin cylinder requiring small space for installation, easy maintance and disassembly. It provide with push-in slot for installation of magnet switch, which can fix the magnet switch at any position. The air cylinder, without need to lubrication, suitable for used in the places with small space for installation.

  • Bore: 20mm
  • Port size: M5
  • Motion Type: Double Action
  • Max Working Pressure: 1.0Mpa
  • Piston Rod External Diameter: 6mm/ 0.24"
  • Mounting Thread Diameter: 4.2mm/ 0.165"
