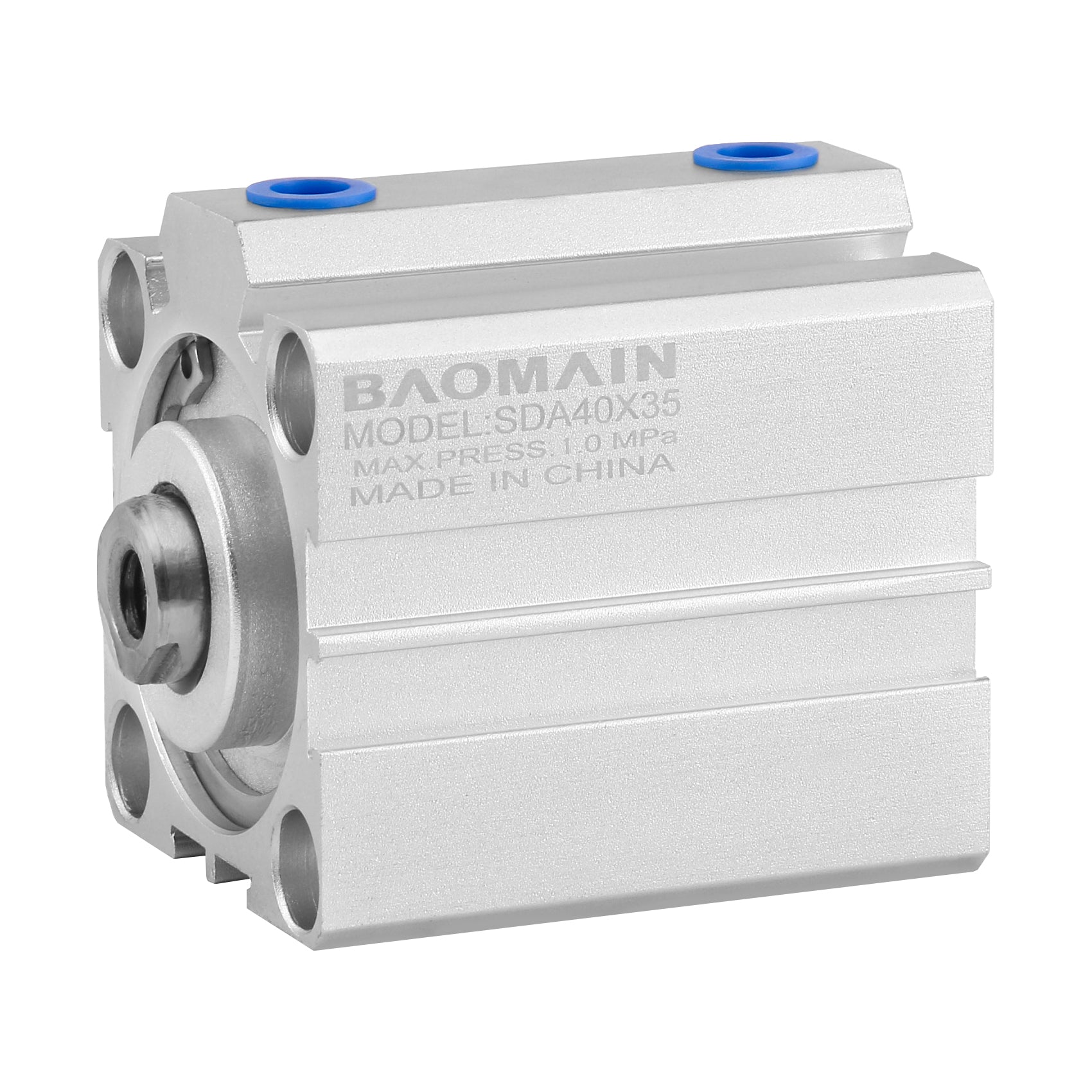

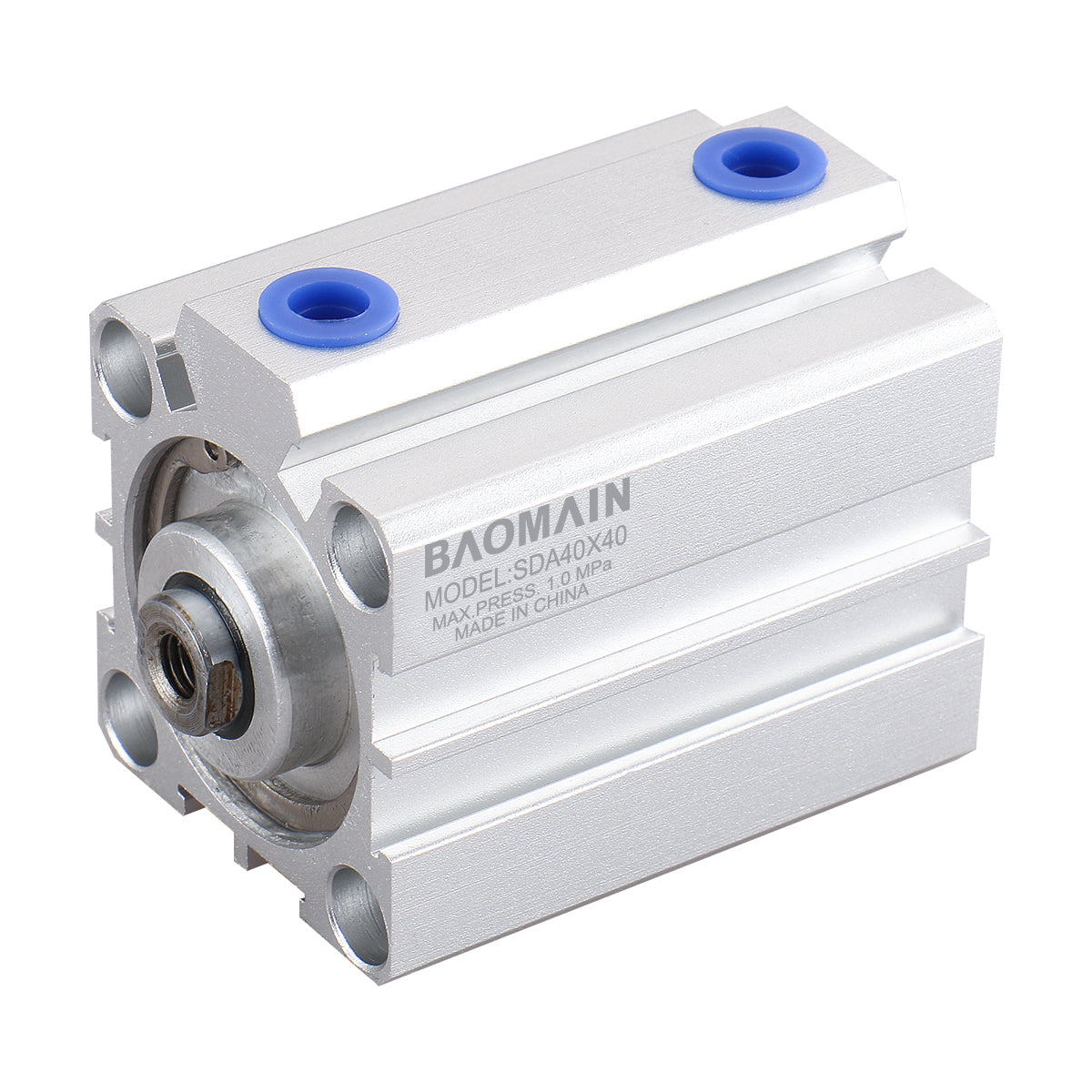

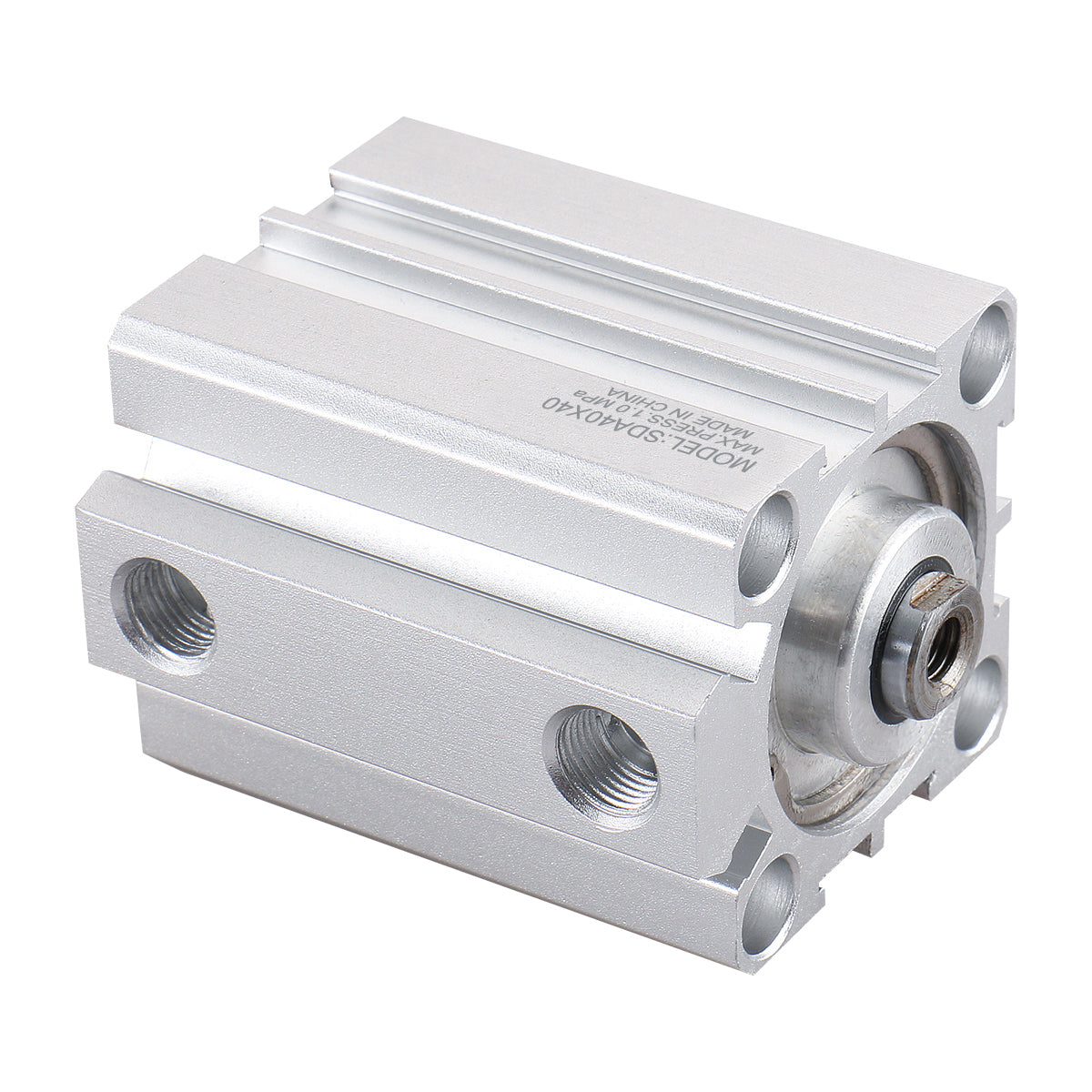

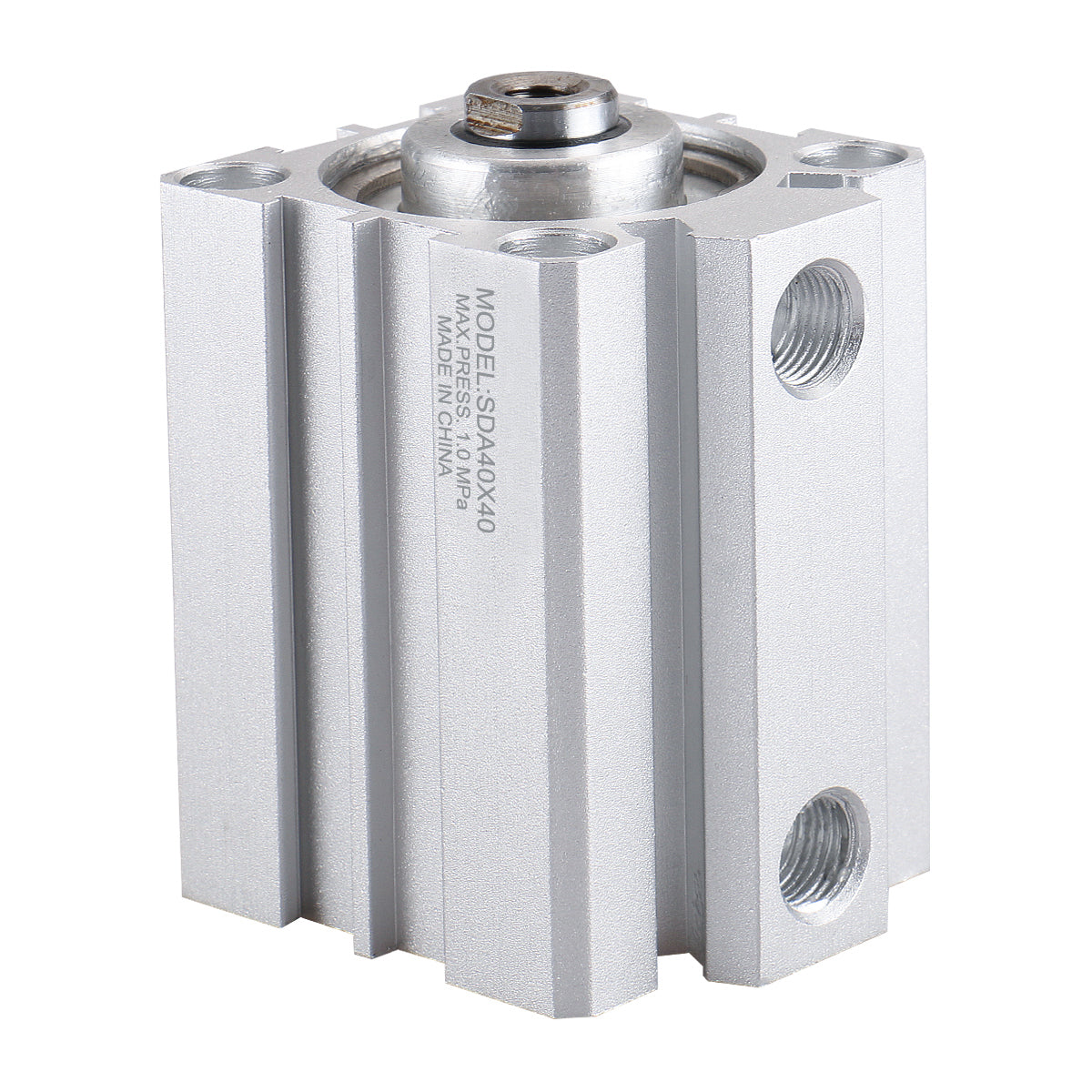

Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port
Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port
Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port
Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port
Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port
Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port

Baomain Compact Thin Pneumatic Air Cylinder SDA-40 40mm Bore Double Action PT1/8 Port

zzgl. Versandkosten

The compact thin cylinder requiring small space for installation, easy maintance and disassembly. It provide with push-in slot for installation of magnet switch, which can fix the magnet switch at any position. The air cylinder, without need to lubrication, suitable for used in the places with small space for installation.

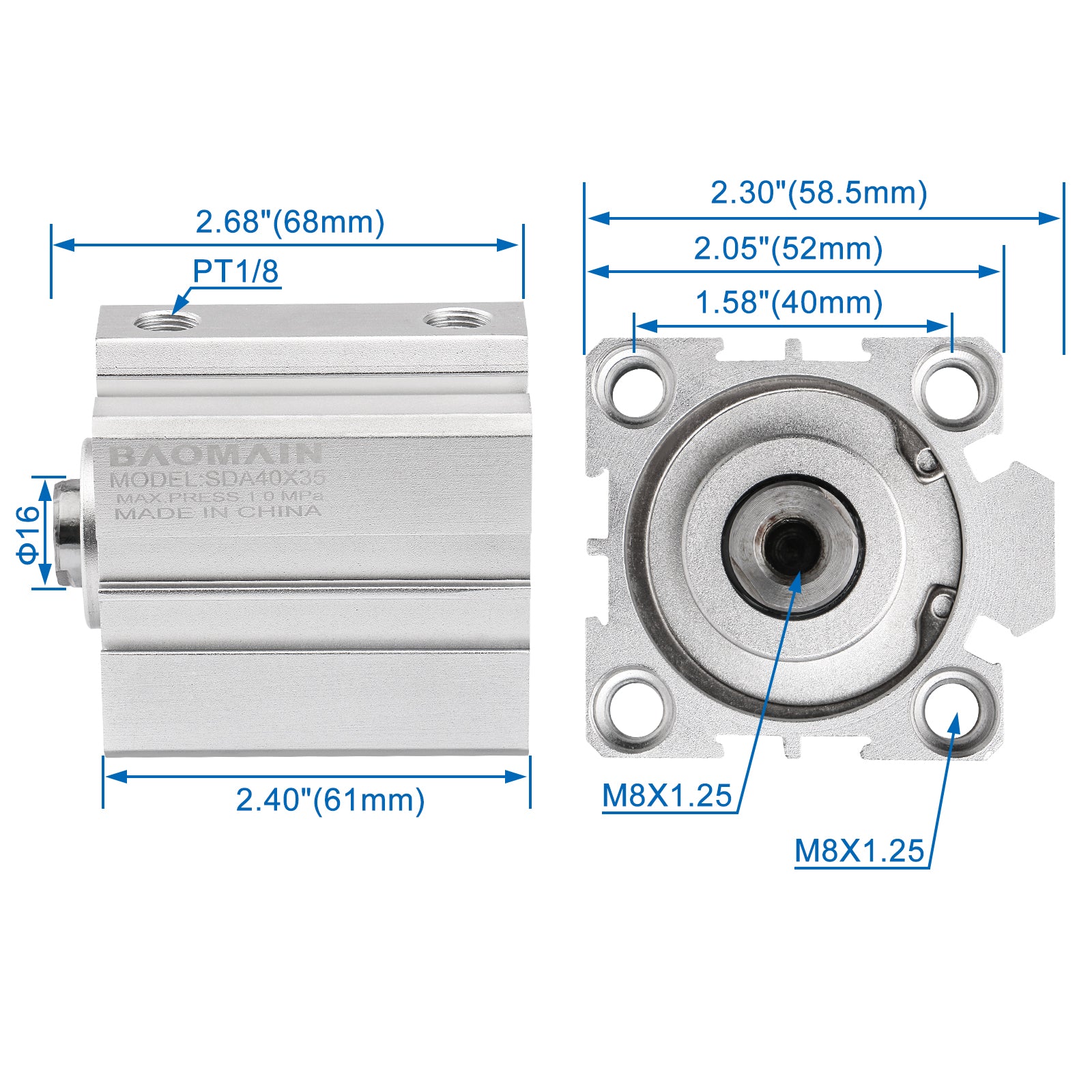

  • Bore: 40mm
  • Port size: PT1/8
  • Motion Type: Double Action
  • Max Working Pressure: 1.0Mpa
  • Piston Rod External Diameter: 16mm/ 0.628"
  • Mounting Thread Diameter: 7.2mm/ 0.28"
