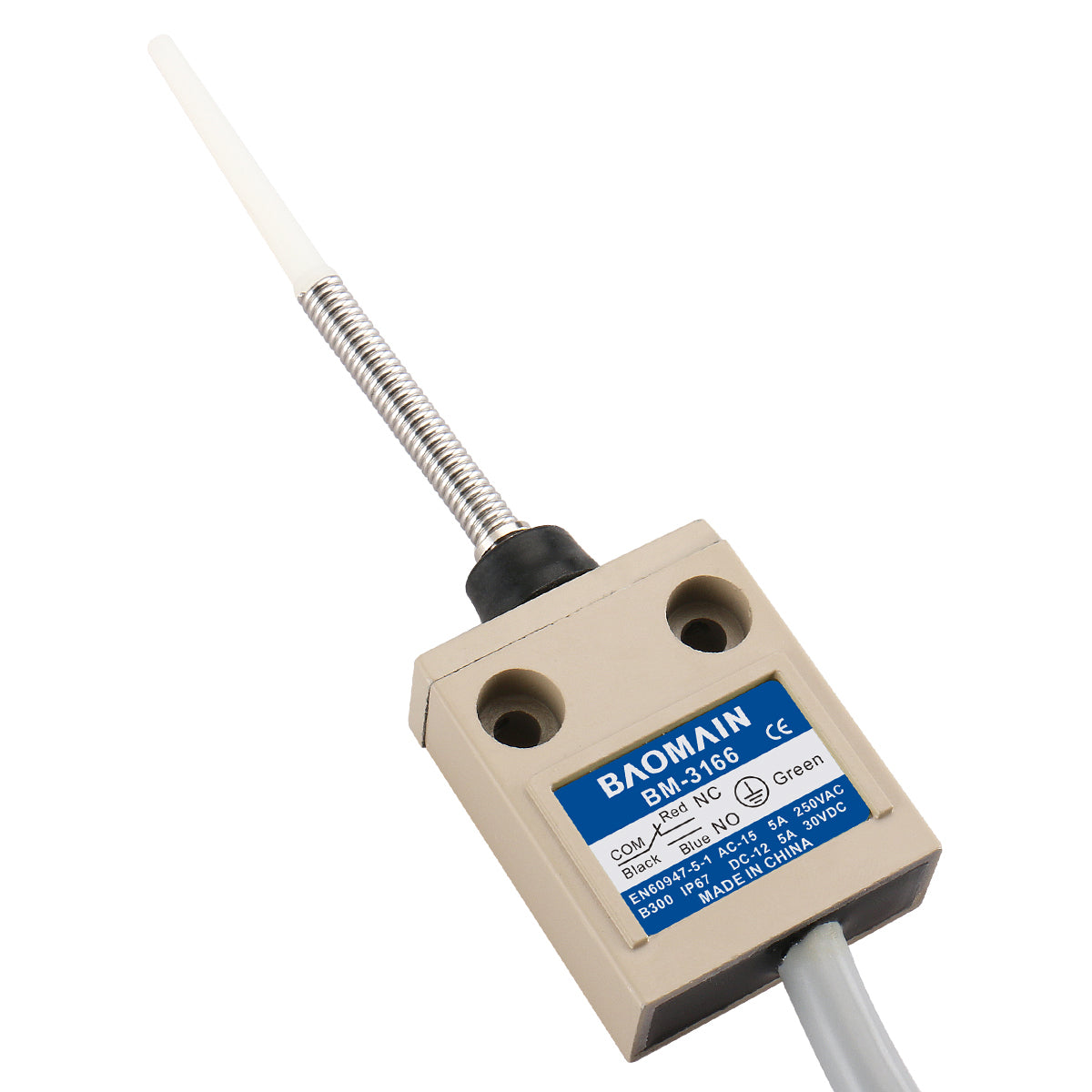

Baomain Limit Switch BM-3166 (TZ-3166) Coil Spring Plunger Momentary SPDT 1NO 1NC IP67 Waterproof with Inner Core Multiple Mounting …

  • $21.19
    Einzelpreis pro


  • Contact Configuration: 1NO+1NC(SPDT);
  • Action Type: Momentary;
  • Actuator Type : Roller Lever Plunger;
  • Ith: 5A;AC-15: 250VAC 5A; DC-12: 30VDC 5A;
  • Installing Hole Size: 5.5mm/0.22"(Dia);

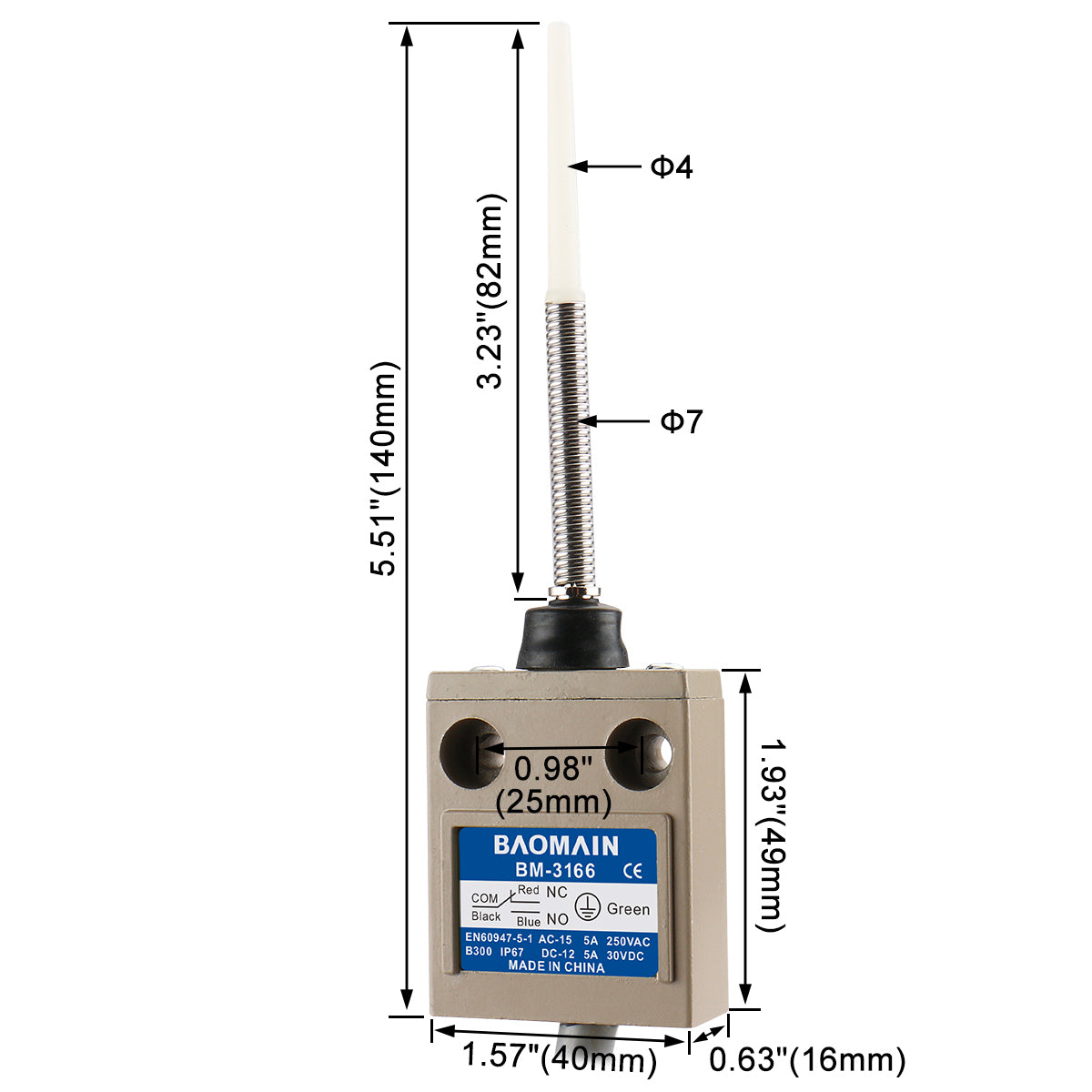

  • Actuator Size: 16 x 120mm/ 0.63" x 4.7"(D*L);
  • Installing Hole Distance : 2.5cm/1"(L*W)(Center to Center)
  • Cable Length: 3 meter/9.8Ft;
  • Switch Size : 650 x 380 x 160mm/2.6" x 1.5" x 0.63"(L*W*H);
  • Spring with Plastic:82mm/3.32‘’
  • Weight :360g
