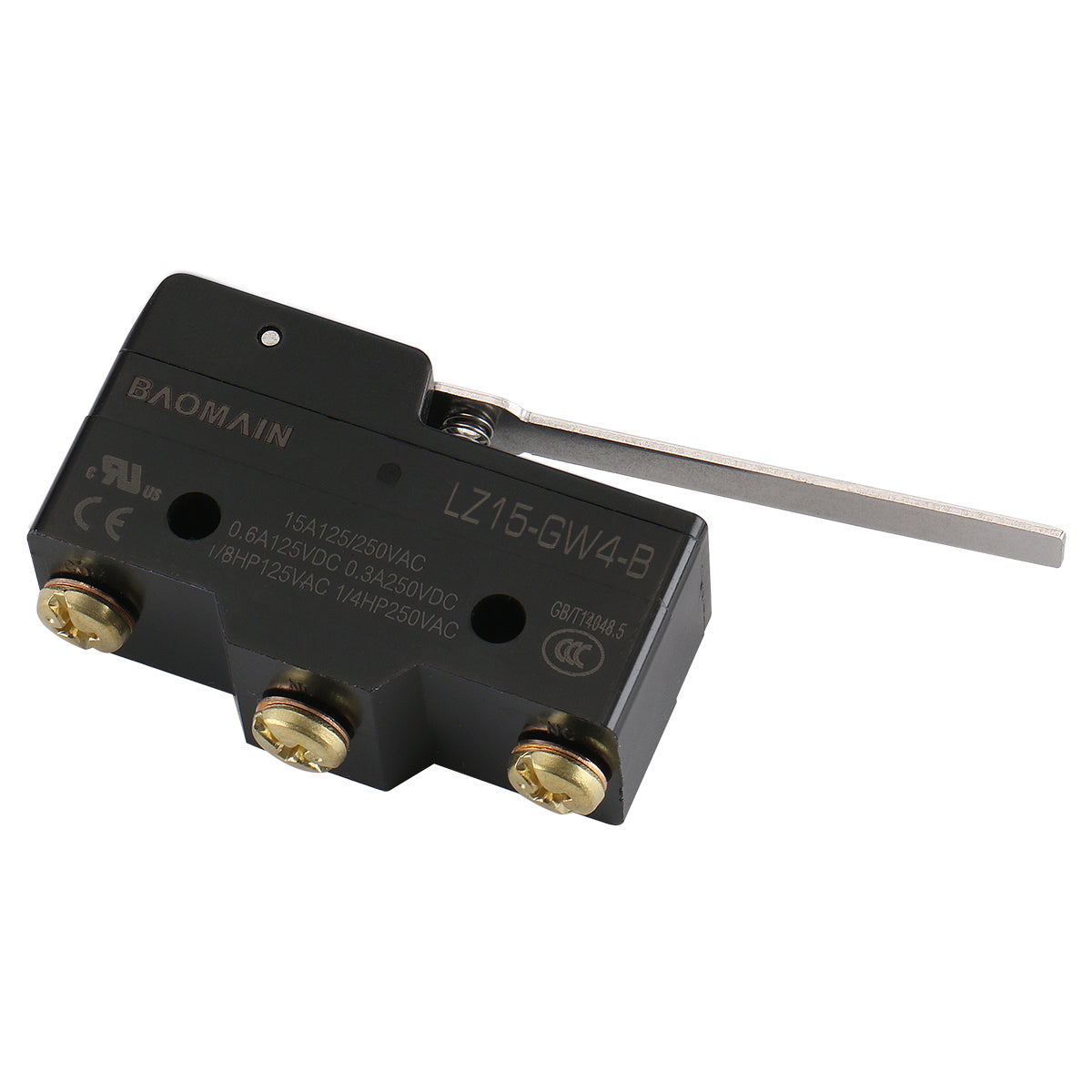

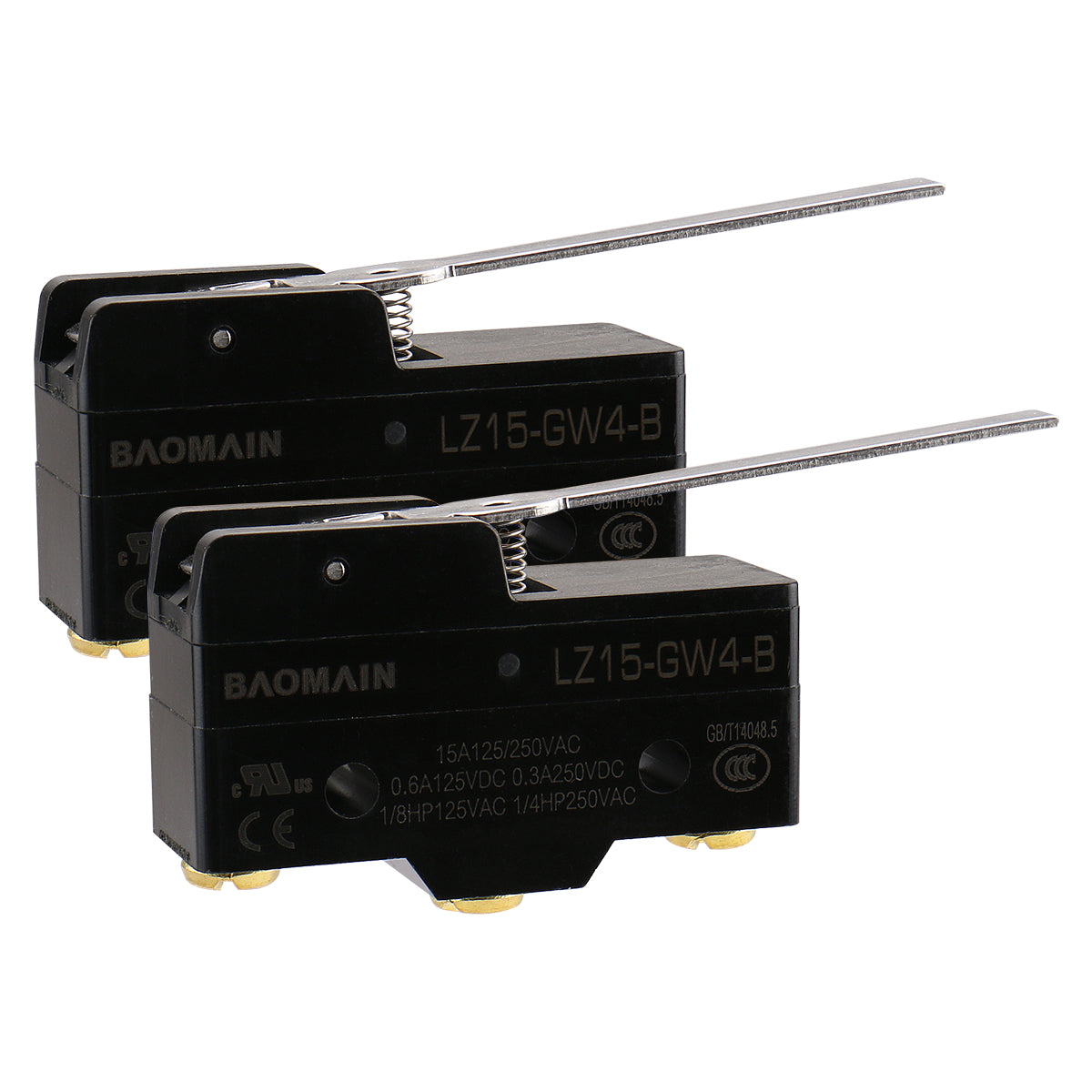

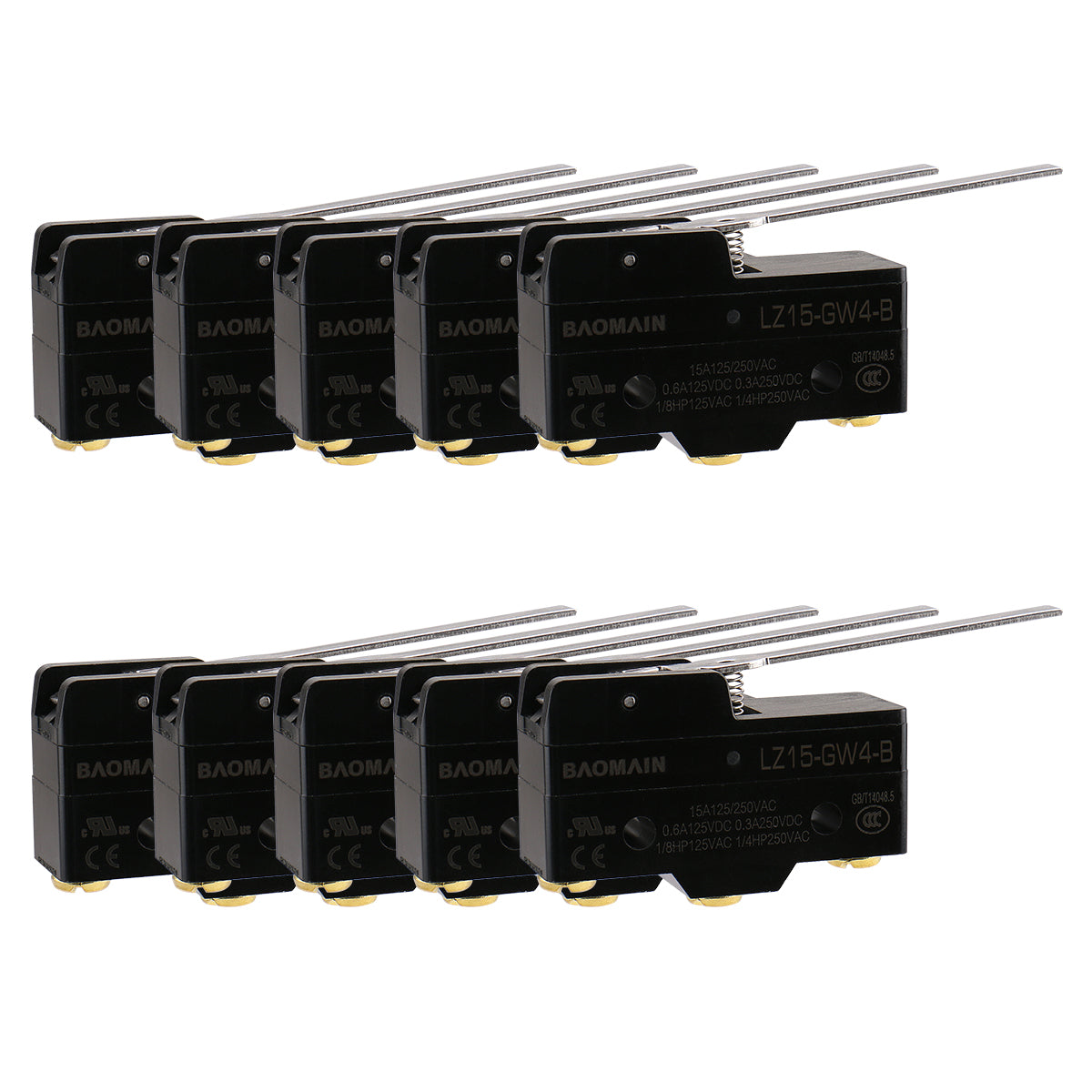

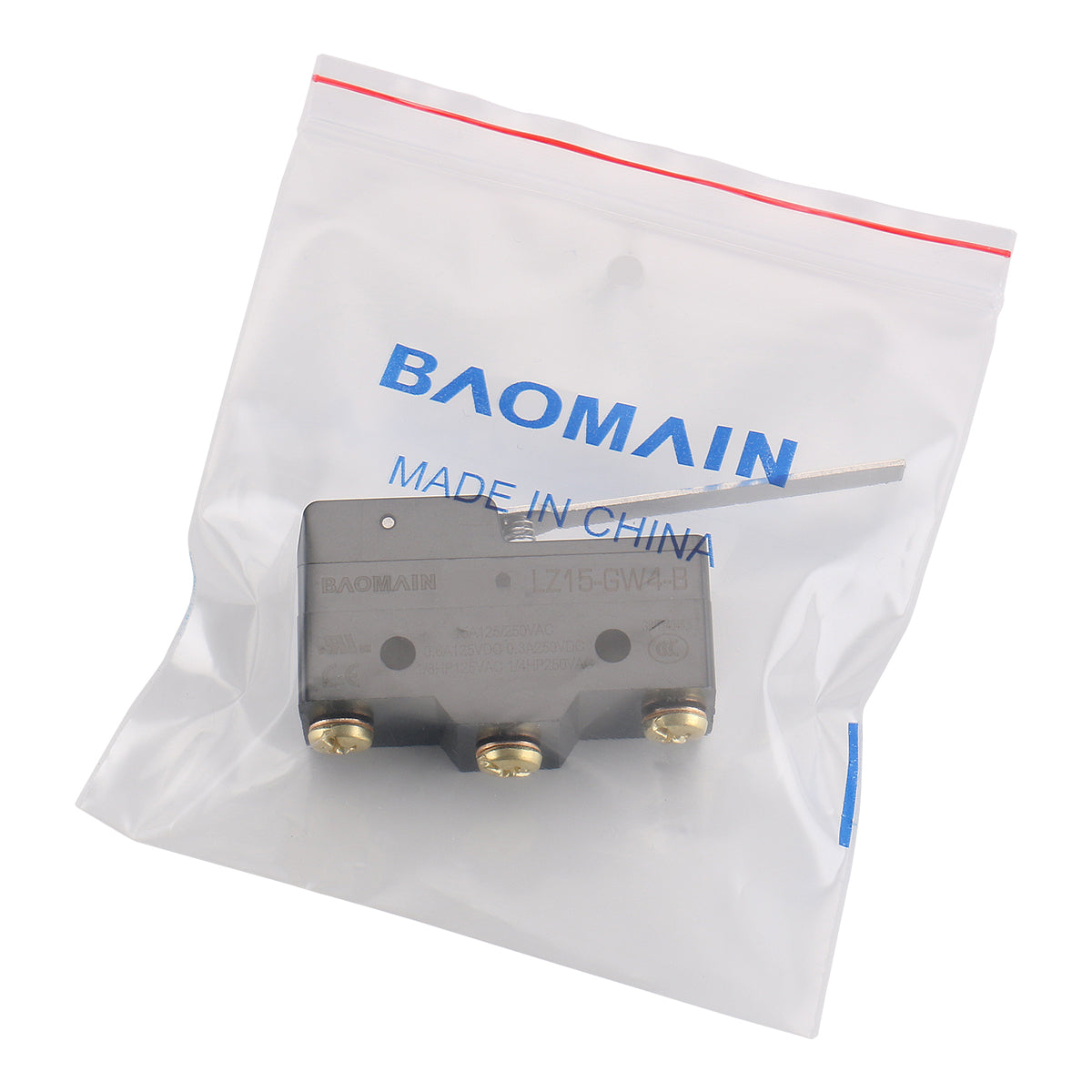

Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed
Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed

Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B(LZ15-GW4-B) Momentary Micro Push Button Switch UL CE Listed

zzgl. Versandkosten
  • Actuator Action : Momentary；

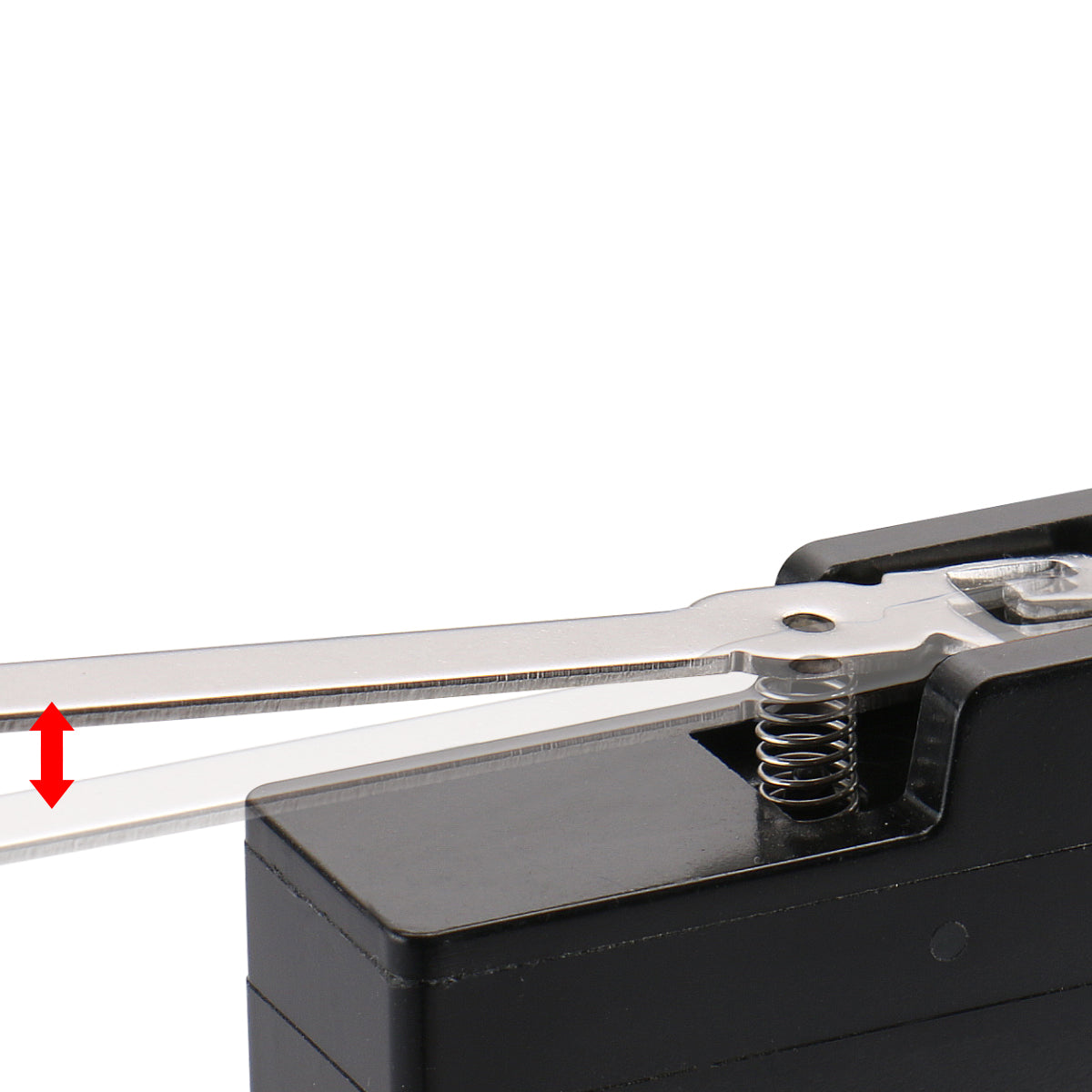

  • Actuator Type: Hinge Lever ;
  • Contact Type : SPDT, 1NO 1NC 1 Com;

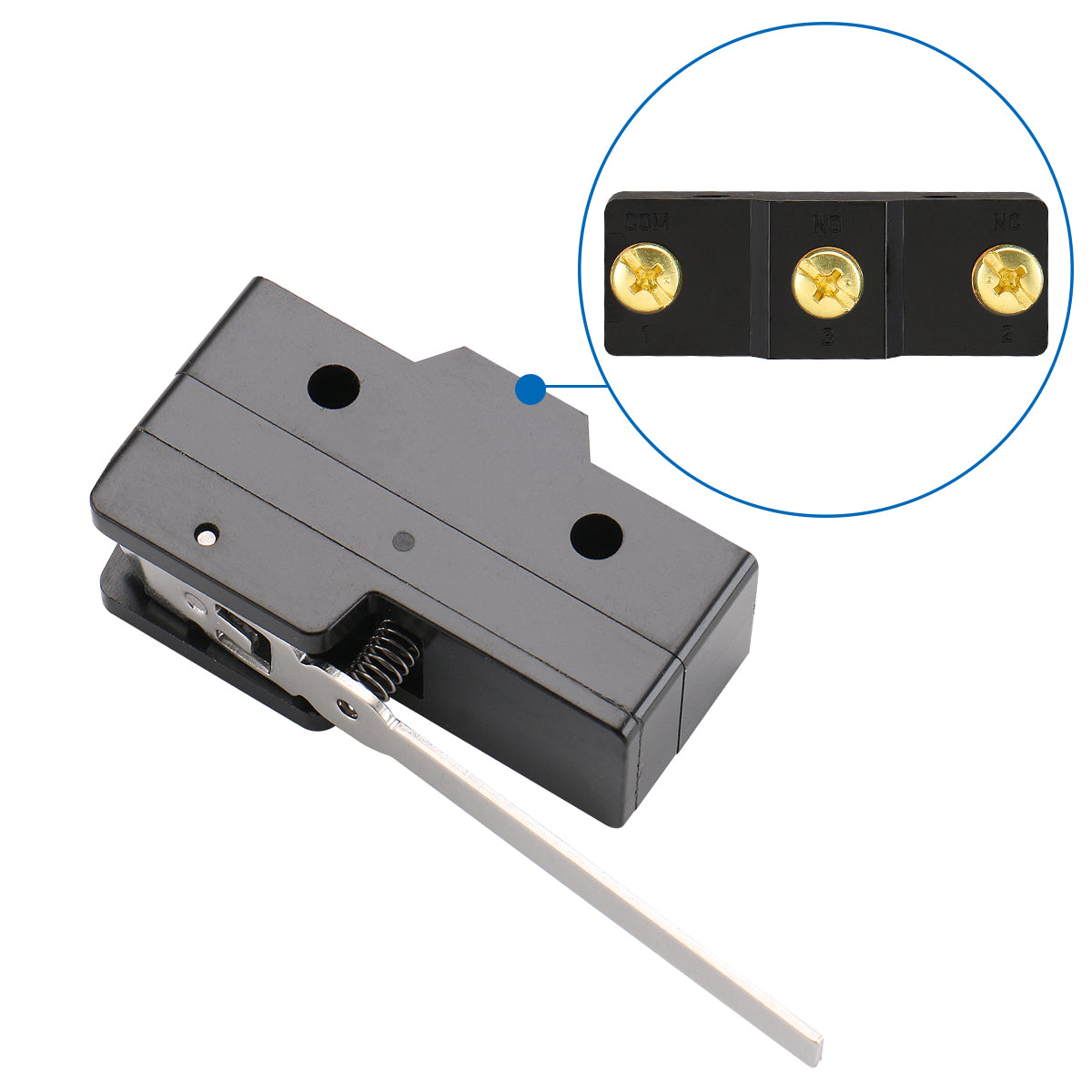

  • Termination Type: 3 Screw Terminals;
  • Mounting Type: Panel Mount;
  • Ui: AC 250V; Ith: 15A；

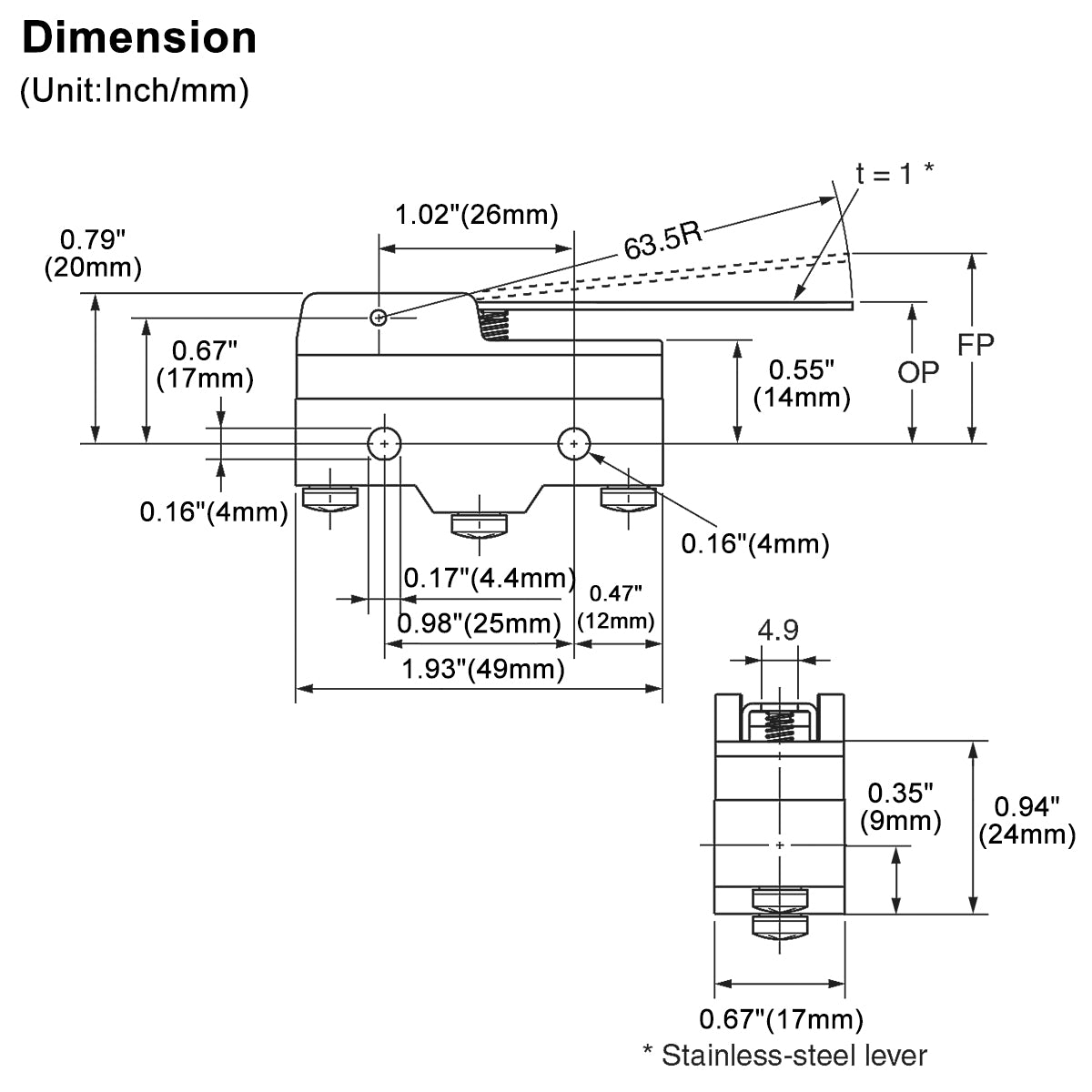

  • Switch Body Size: 49 x 17 x 24mm / 1.93" x 0.67" x 0.95" (L*W*H);
  • Fixing Holes Dia. : 4mm / 0.16“ ;
  • Distance Between Centers of Fixing Holes : 25.4mm / 1";
  • Material: Plastic,Metal;
  • Protection Level: IP 40;
  • Weight:35g
