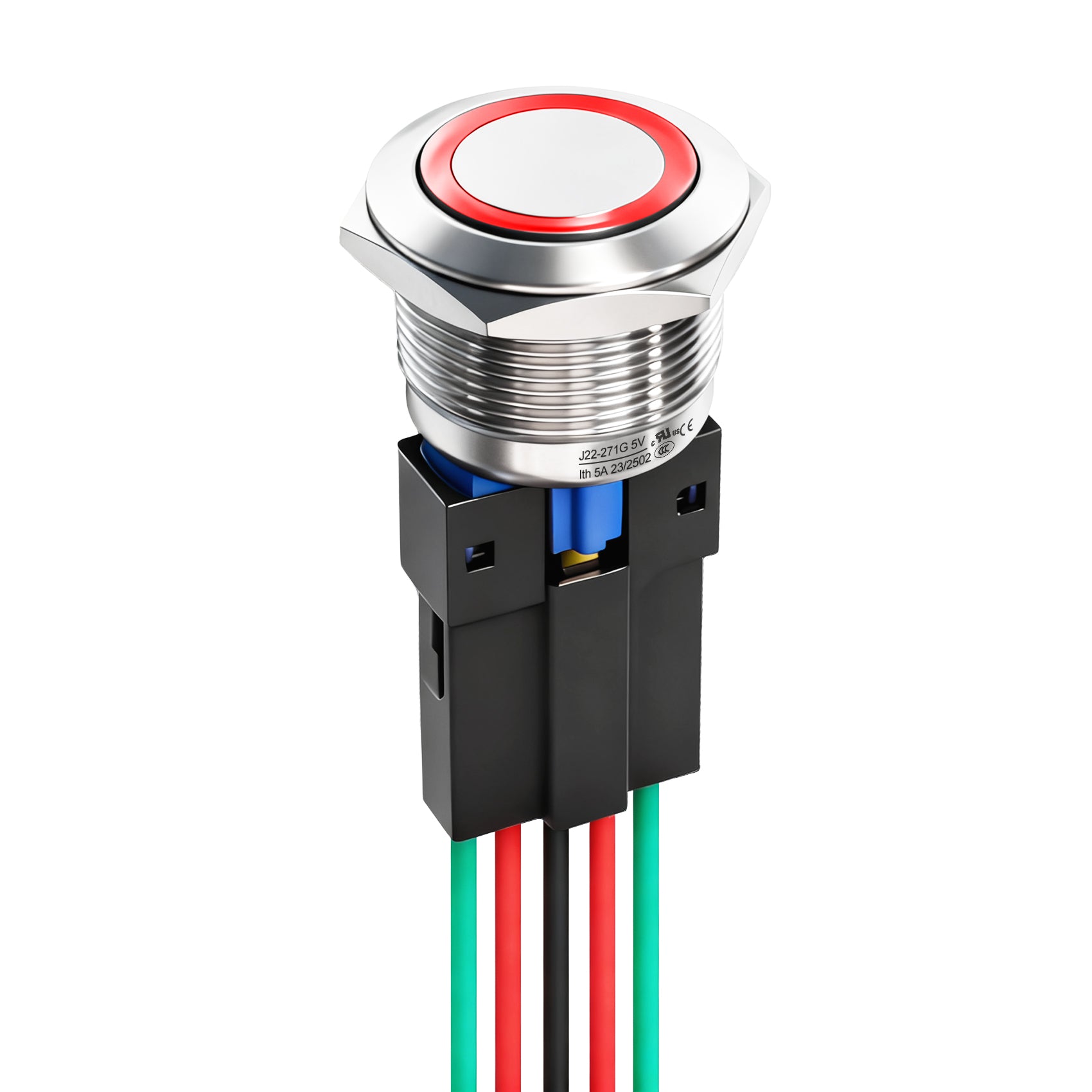

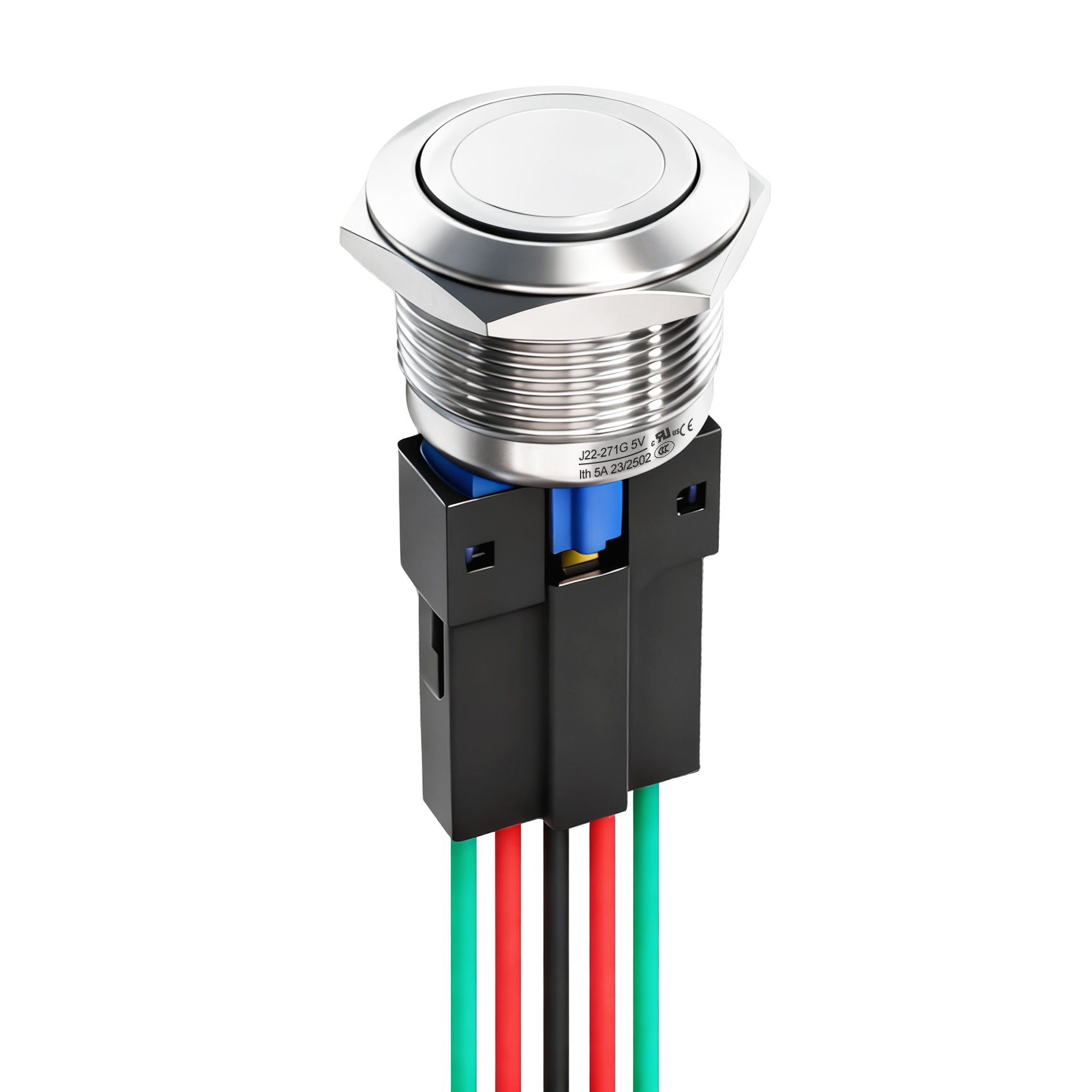

Baomain 22mm (7/8'') Momentary Metal Push Button Switch with Pigtail, AC/DC 12V Eagle Eye LED Stainless Steel Button Switch, 5A 250VAC NO+NC Waterproof for Cars,Boat,Truck, DIY, UL CE Approved
1000 In Stock
- Regular price
- $12.39
- Sale price
- $12.39
- Regular price
-
The push-button switches have approved the UL, CE certification complying with international safety standards.
Product Parameter
| Rated Voltage/Current | 250VAC 5A |

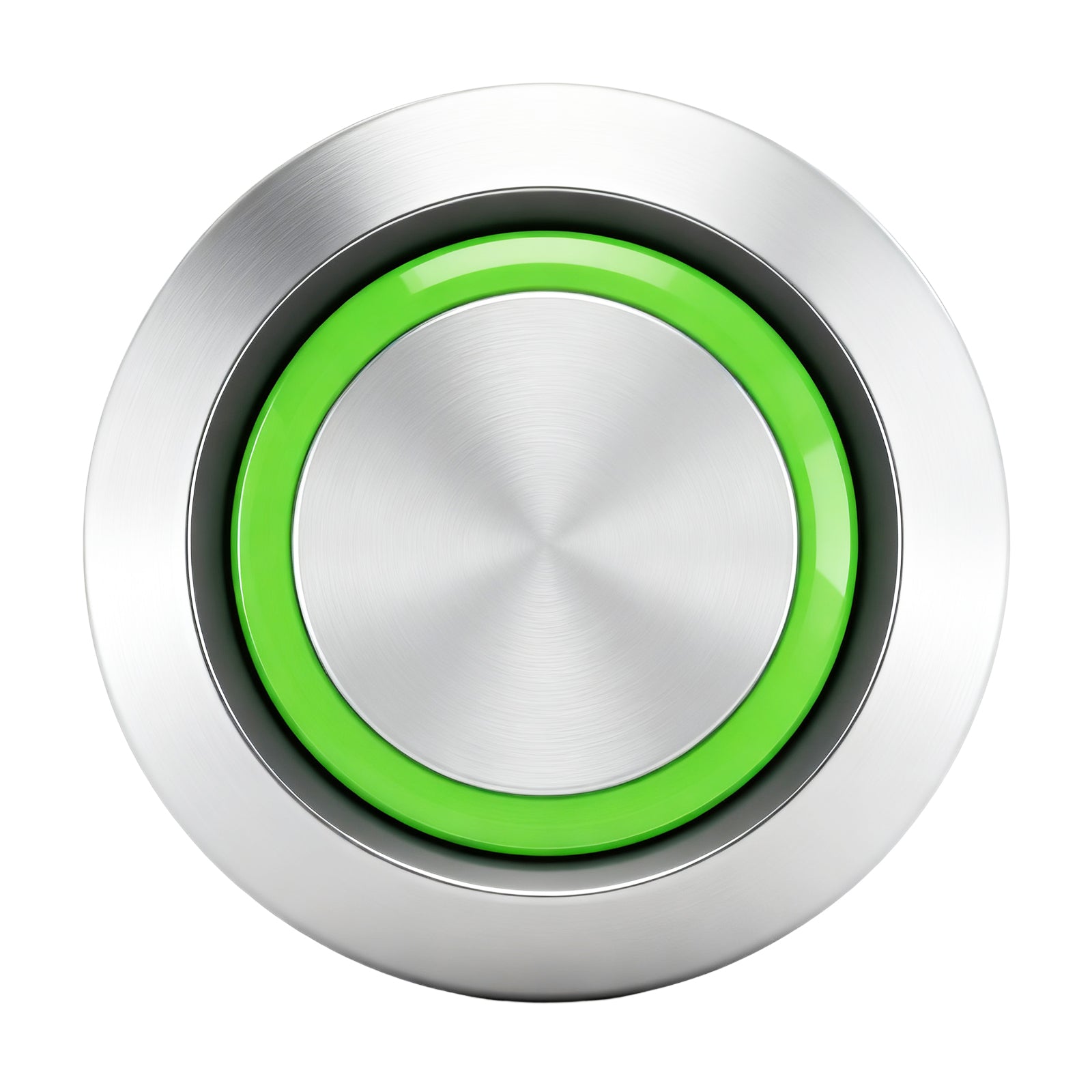

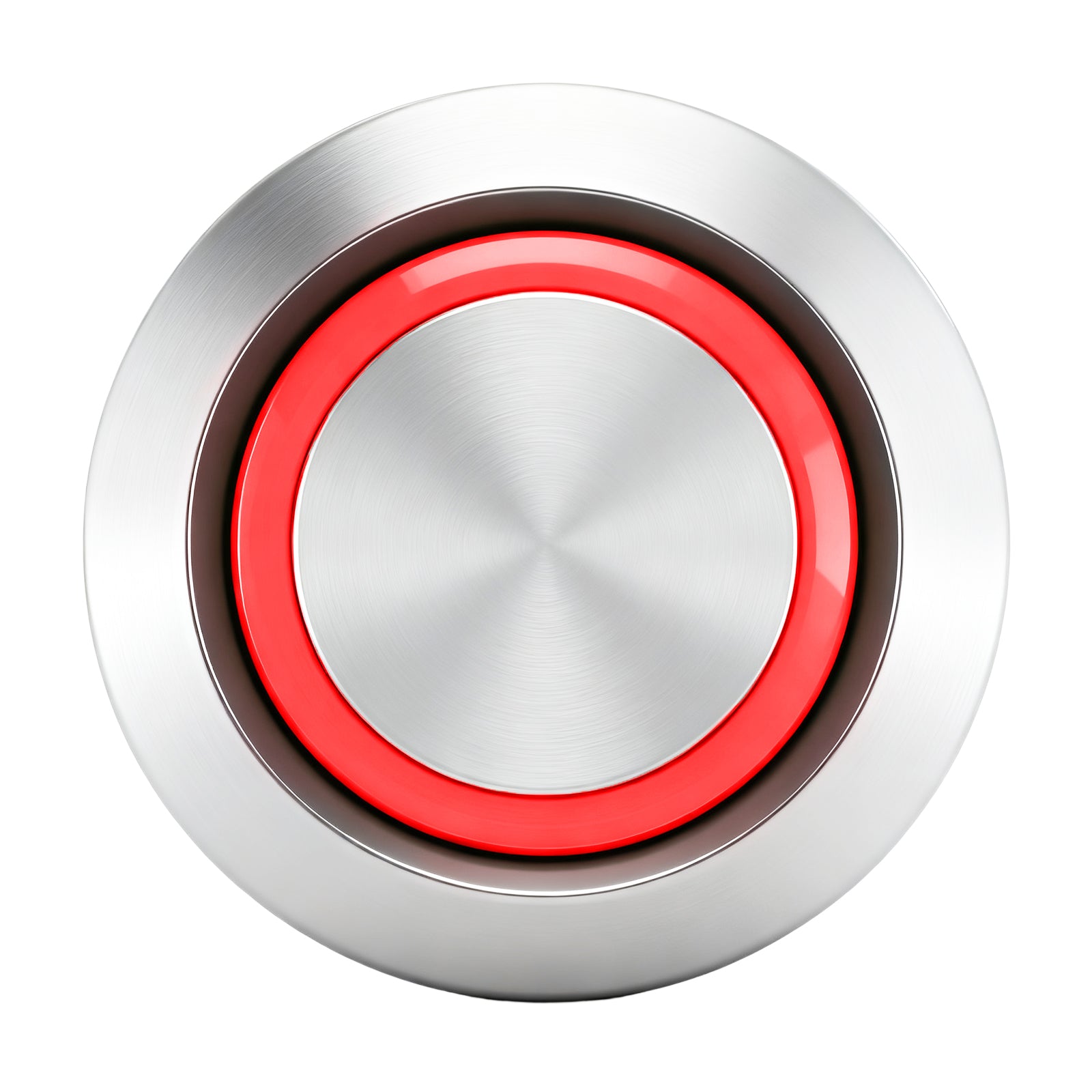

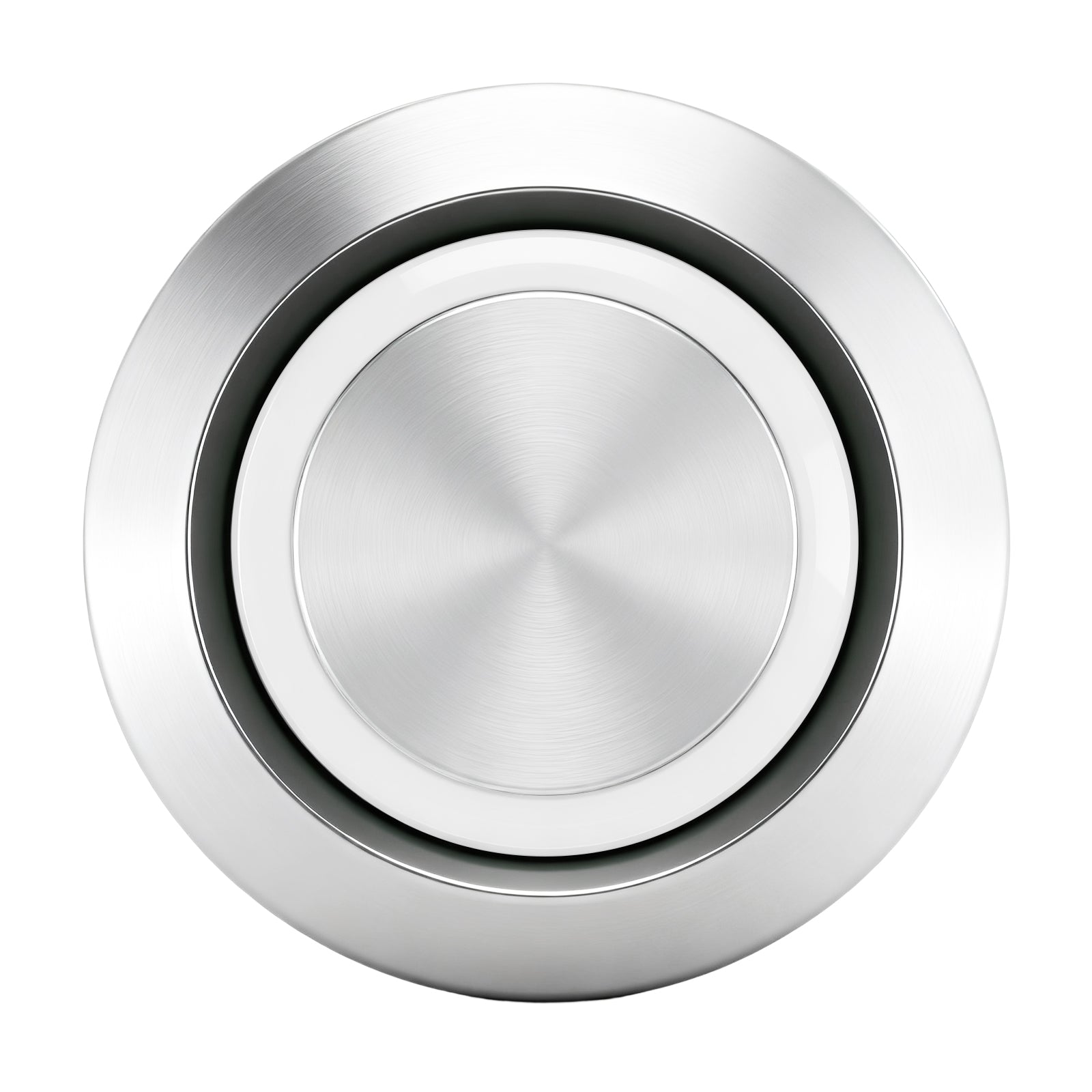

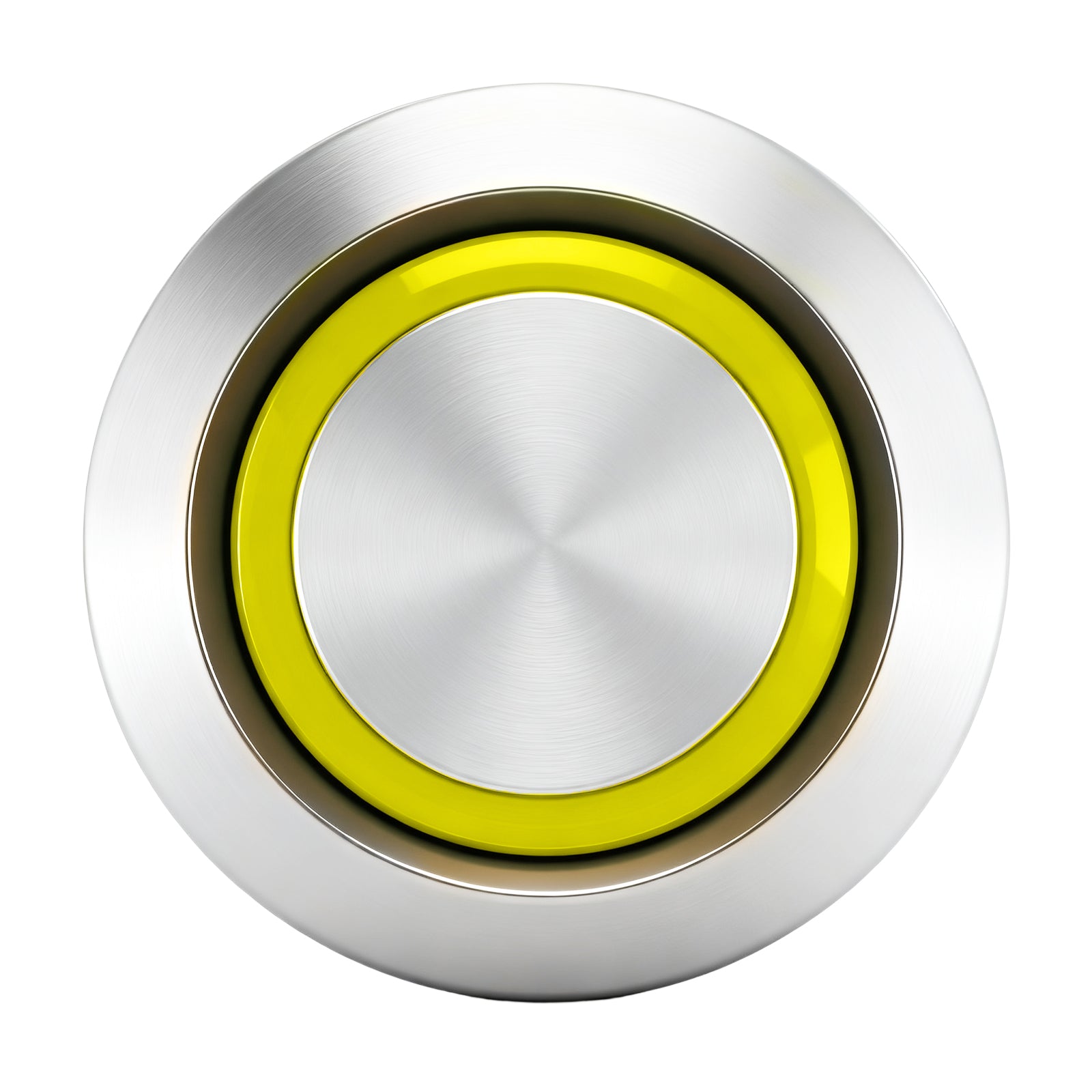

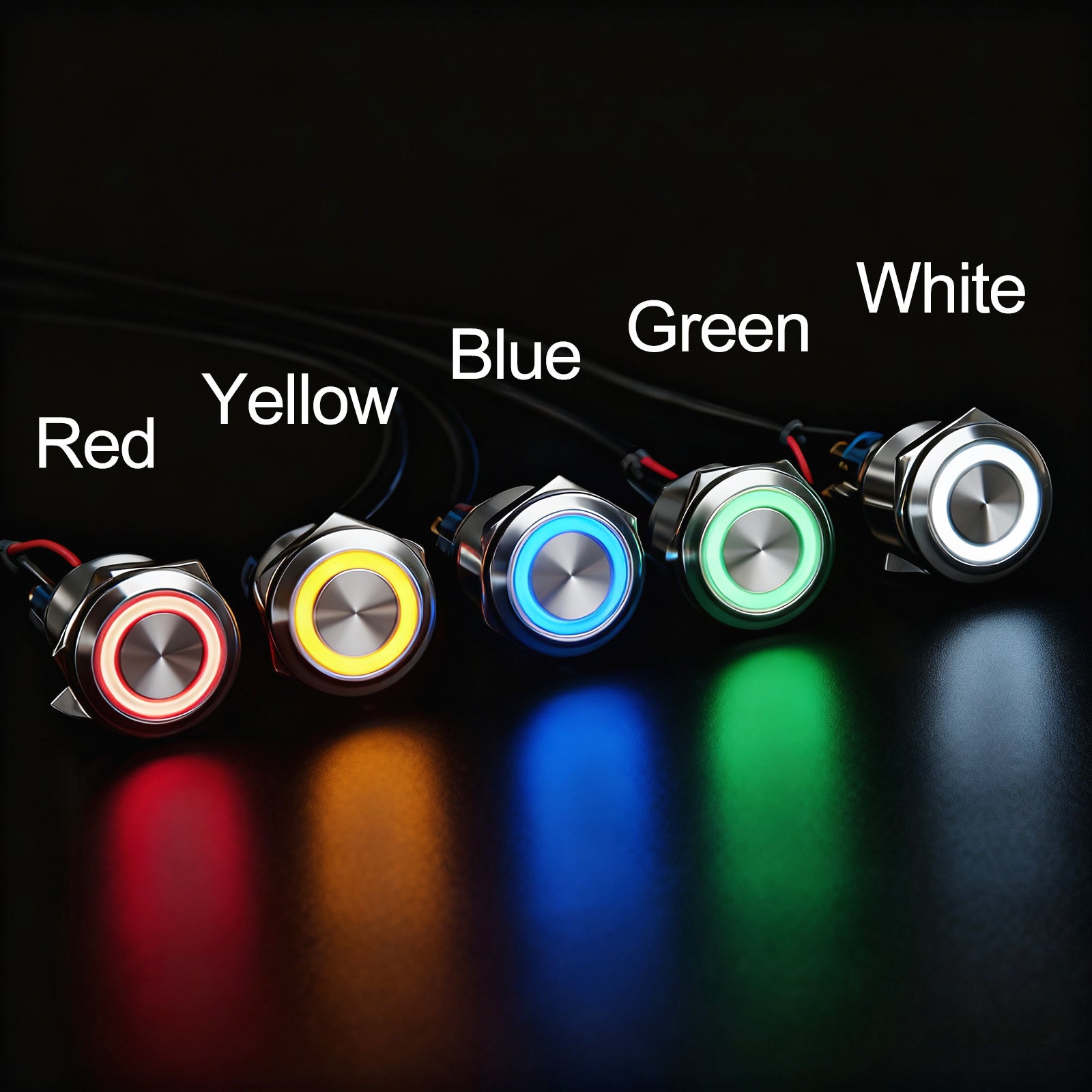

| LED Lamp Color | Red / Green / Blue / White / Yellow |
| Contact Type | 1 NO 1 NC |
| Contact Resistance | ≤50mΩ |
| Insulation voltage | 250V |
| Insulation Resistance | ≥100mΩ minimum (500VDC megger) |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm p-p |
| Terminal Style | .110" Solder / Quick Connect |
| Operating Temperature | -25 °C to +55 °C |
| Operating Humidity | 45 to 85% RH |
| LED Power Consumption | 7 ~ 8mA |
| Lamp Life | 40,000 Hours (Reference) |
| Mechanical Life | 300,000 cycles |
| Electrical Life | 100,000 cycles |
| Housing/Button Material | Stainless Steel |
| Switch Base | PA66 |
| Wire Socket | Plastic |

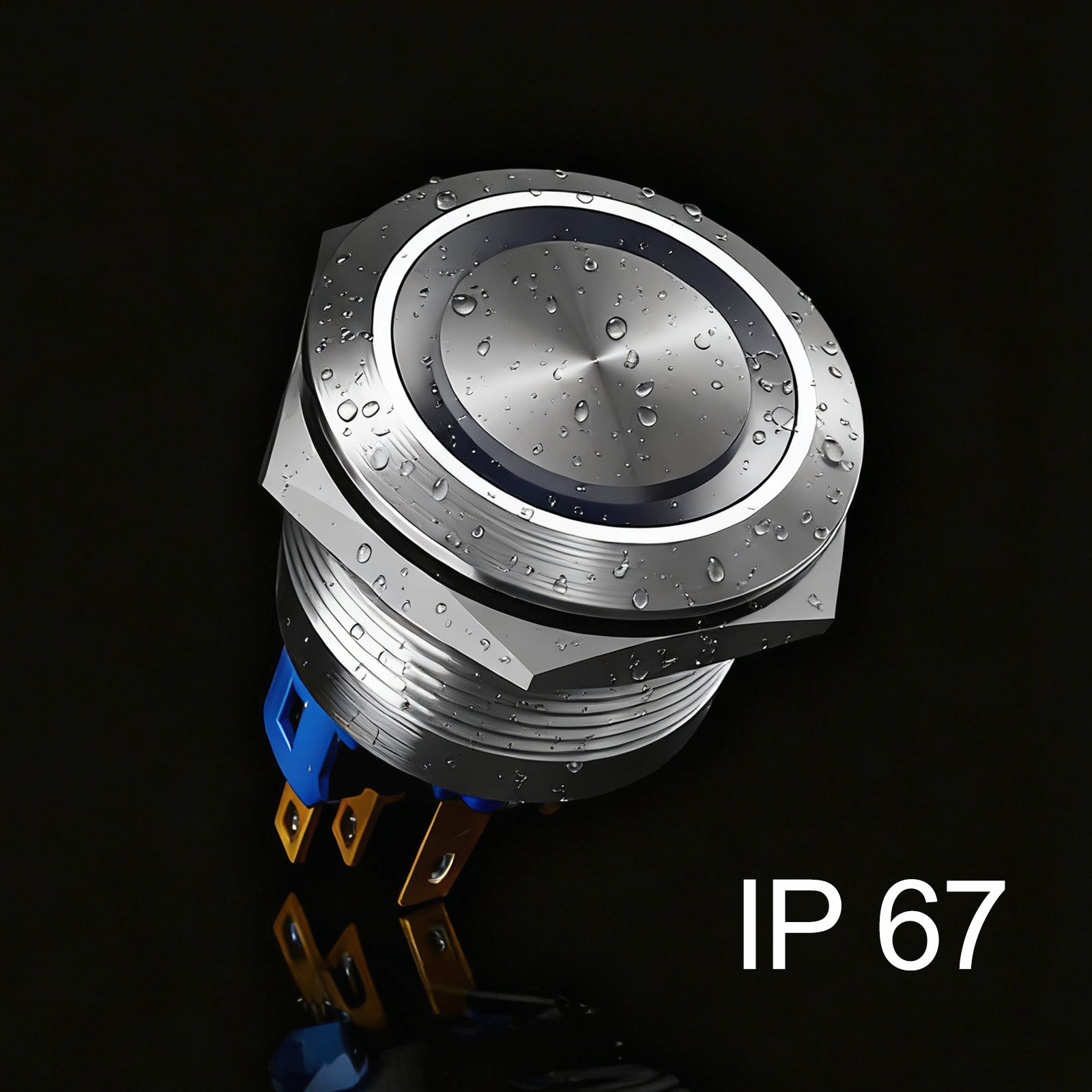

| Protection Rating | IP67 |
| Thermal Current | ≥100,000 operations (at full rated load) |
| Soldering Temperature | 20W/5 seconds or 260 C/3 seconds |
| Impact Resistance | Greater than IK10 |
| Insulation Resistance | 100 megohms or higher (measured at 500VDC with megohmmeter) |
