Baomain 2NO AC/DC Household Contactors, 63A 2P Modular Contactor, 2 Poles Normally Open, DIN Rail Mount, UL Listed (BMC7-63U)
In stock
- Regular price
- $35.69
- Sale price
- $35.69
- Regular price
-
UL Listed BMC7 miniature automatic AC/DC contactor provides a comprehensive solution for controlling non-inductive or low-inductive loads in a variety of settings. It is a reliable choice for who is looking for a high-quality contactors for their electrical control.
Suitable For Use On A Circuit Capable Of Delivering Not More Than 5000rms Symmetrical Amperes,250/500 Volts Maxium.
| Rate： |
RC:63A, RV~:250V , AC-1: 63A, AC-3:25A |
| Uimp.: | 4kV for 12/24V |
| Rated Current: | 63A |
| Max. Power: | 2.0W |

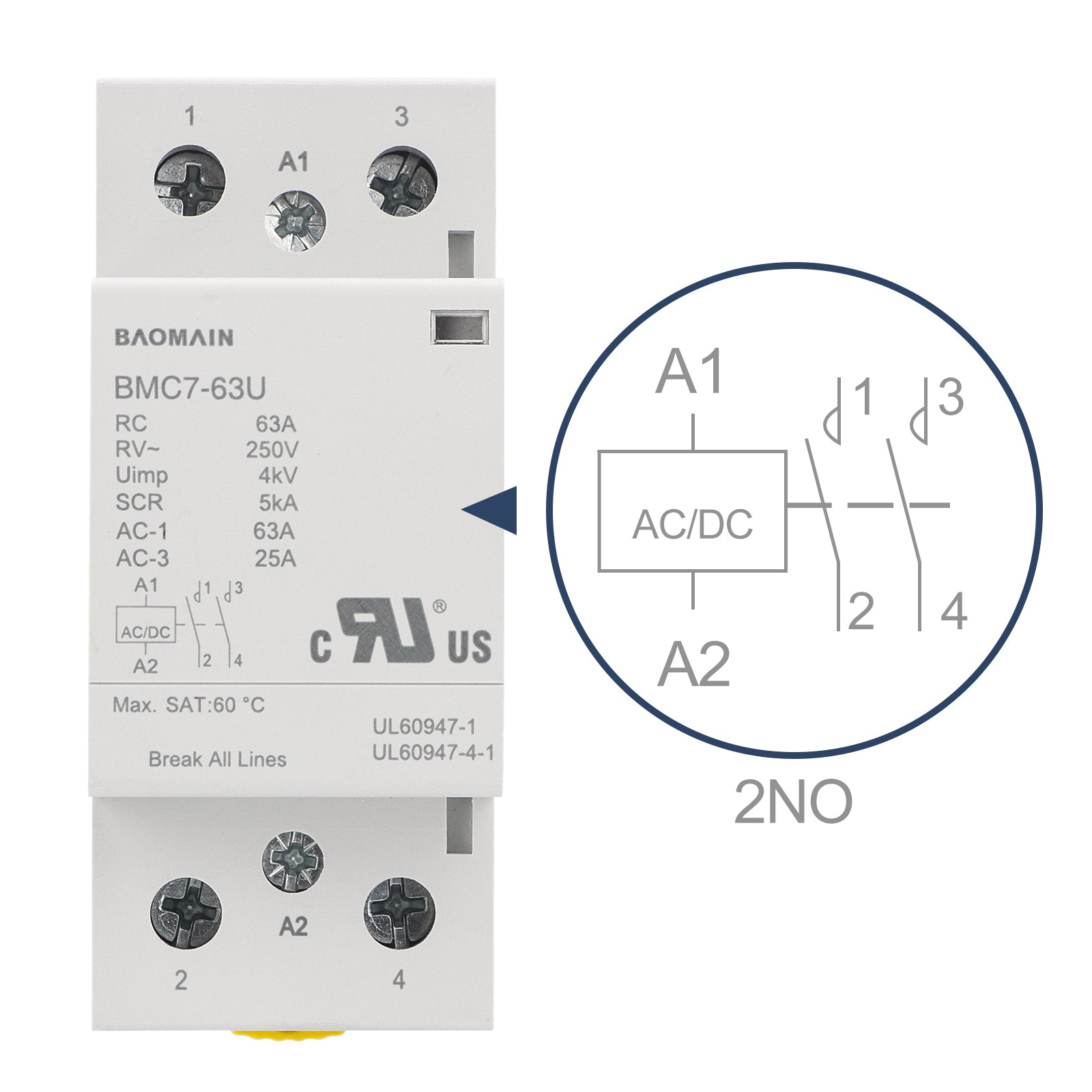

| Contact: | 2 Pole-2NO |
| Features: | Hum-free |
| The frequency： | 50Hz/60Hz |
| Operating Temperature: | -5℃~+60C |
| Storage Temperature: | -40℃~+70℃ |

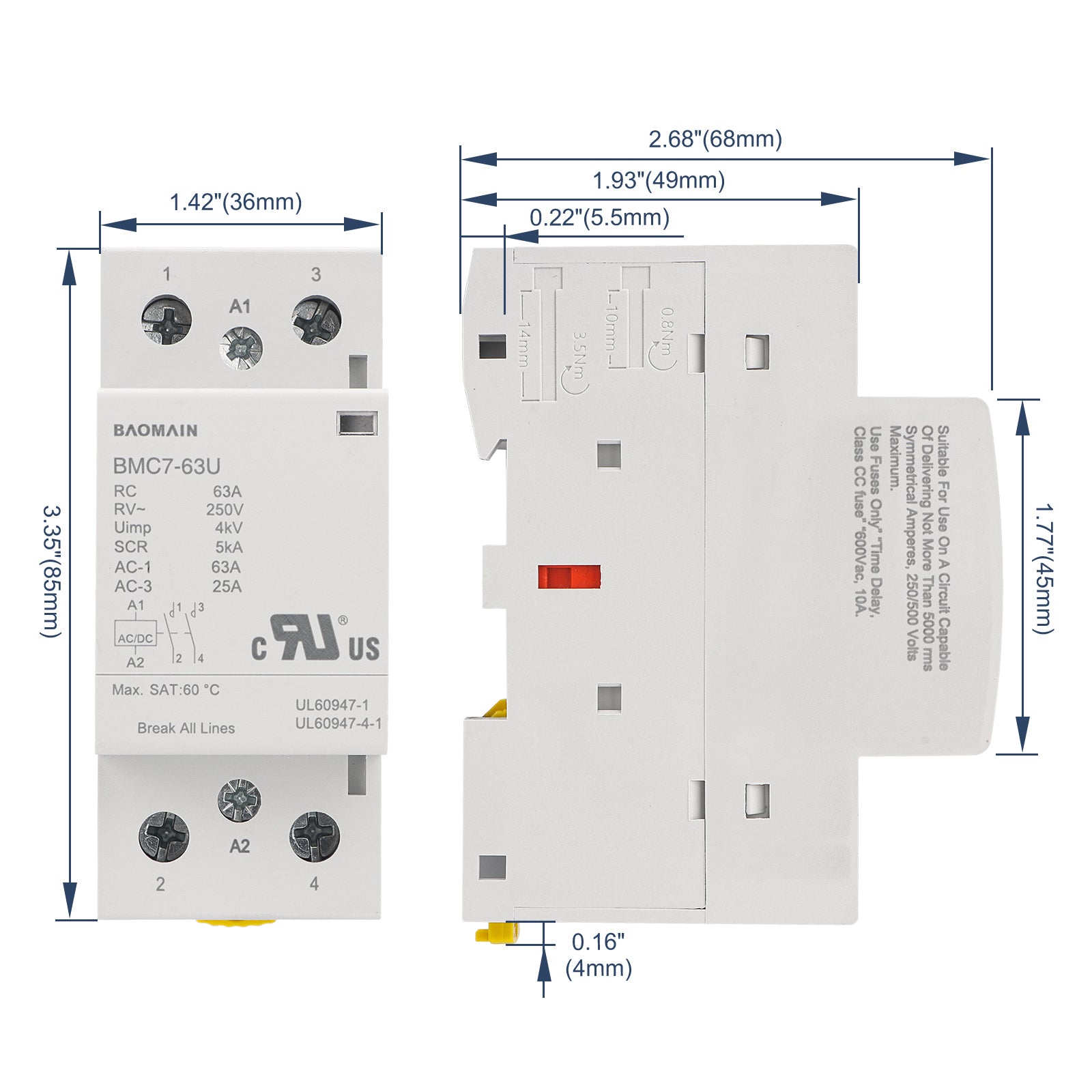

| Size/Weight : : | 81mm* 36mm* 68mm (3.19"*1.42"*2.68")(L*W*T) /260g |
| Material : | Plastic, Electronic Parts |
| Mechanical life : | 1,000,000 cycles |
| Maximum number of switching operation a day : | 100 |
| Contactor body: | IP20 (Protection level) |
| Installed in the distribution box: | IP40 (Protection level) |
| Pollution degree: | 2 |

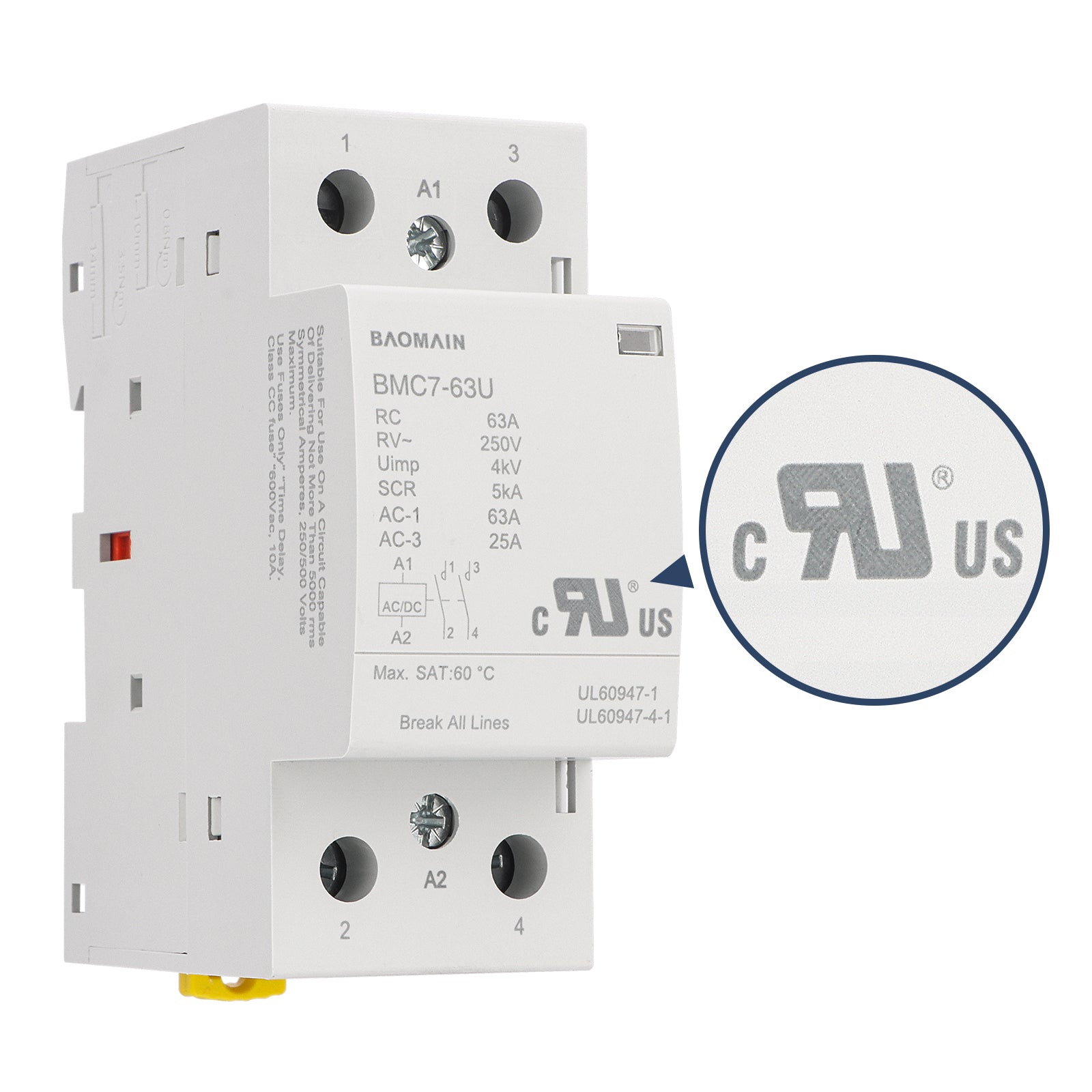

| Certificate | UL |
