BAOMAIN 660V 10A Industrial Push Button Switch with Box - Momentary (1NO) or Emergency Stop (1NC) Twist-to-Reset, Weatherproof, UL CE TUV Certified

100 In Stock
$12.59
$12.59
Type
Number

Industrial Grade Push Button Control Station

Upgrade your industrial control systems with our professional-grade push button switches. Available in two essential configurations—Momentary Start and Emergency Stop—these switches are engineered for reliability, safety, and durability in demanding environments.

Choose Your Configuration:

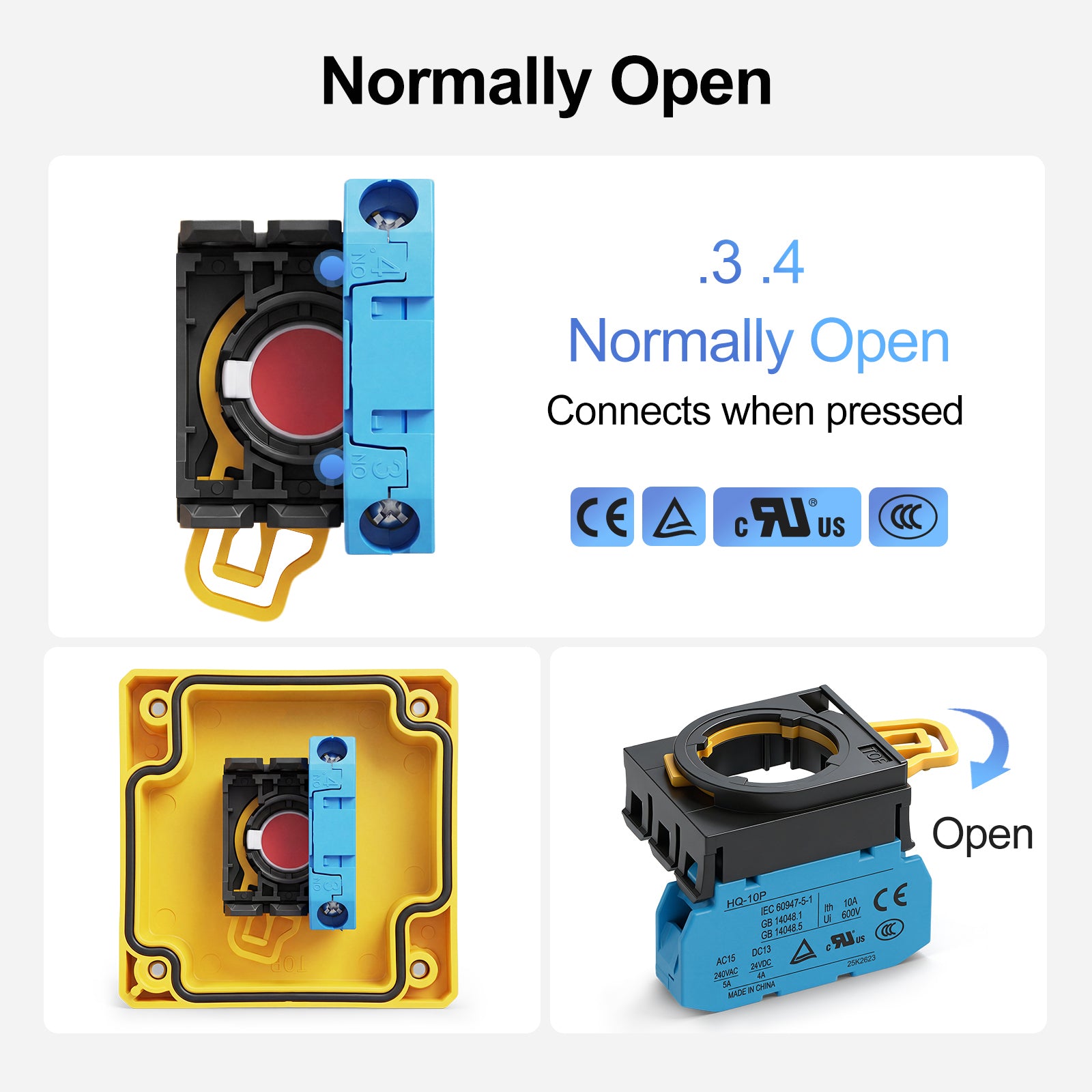

  • Momentary (1NO): Standard red button that activates the circuit only while pressed. Ideal for start commands or signaling.

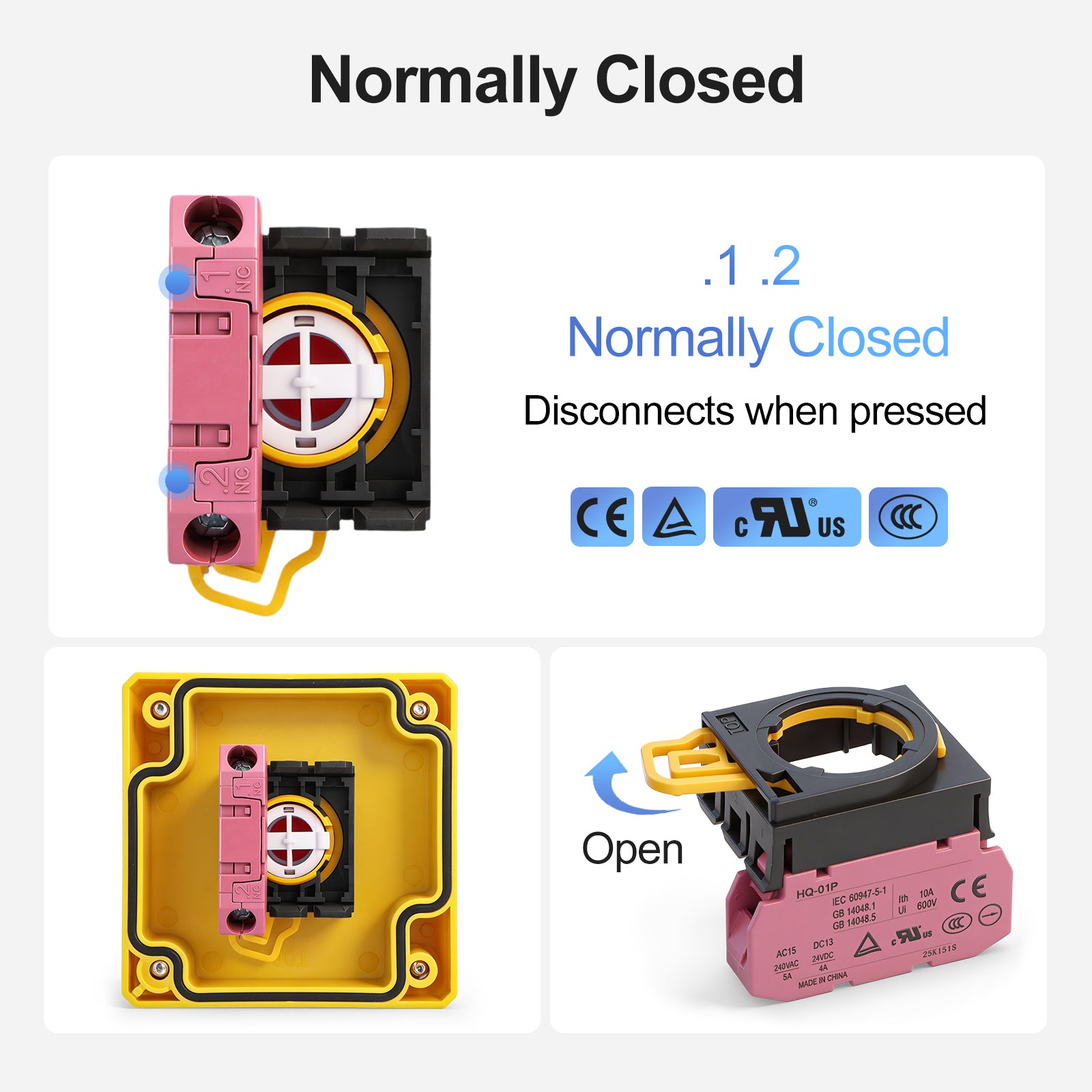

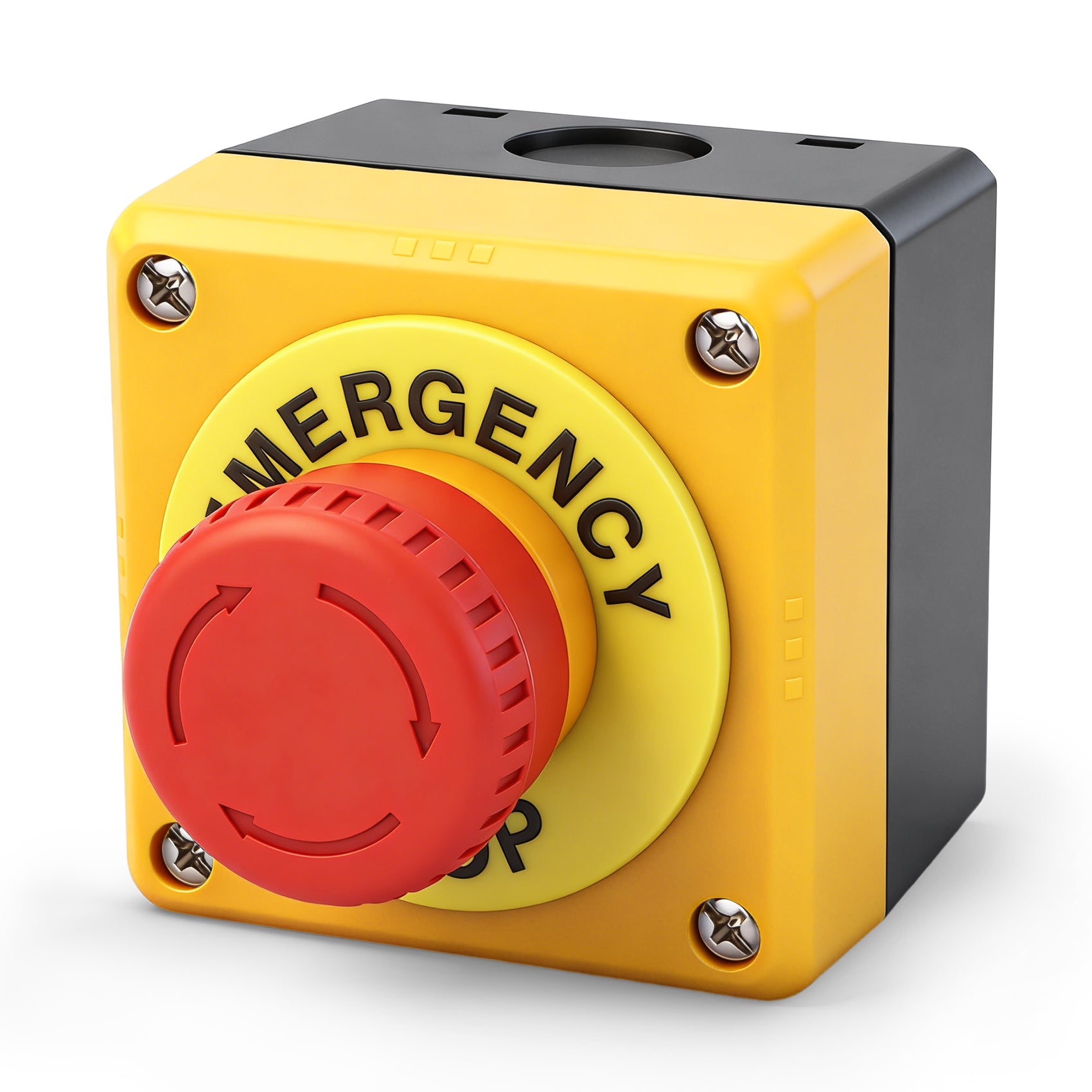

  • Emergency Stop (1NC): Latching red mushroom head that cuts power when pushed and requires a manual twist to reset. Essential for safety shutdowns.

Key Features

  • High Visibility & Safety: Feature a bold red mushroom head for instant identification and easy operation.
  • Industrial-Strength Rating: Rated for up to 660V AC and 10 Amps, making them suitable for heavy-duty control panels, motor starters, and relays.

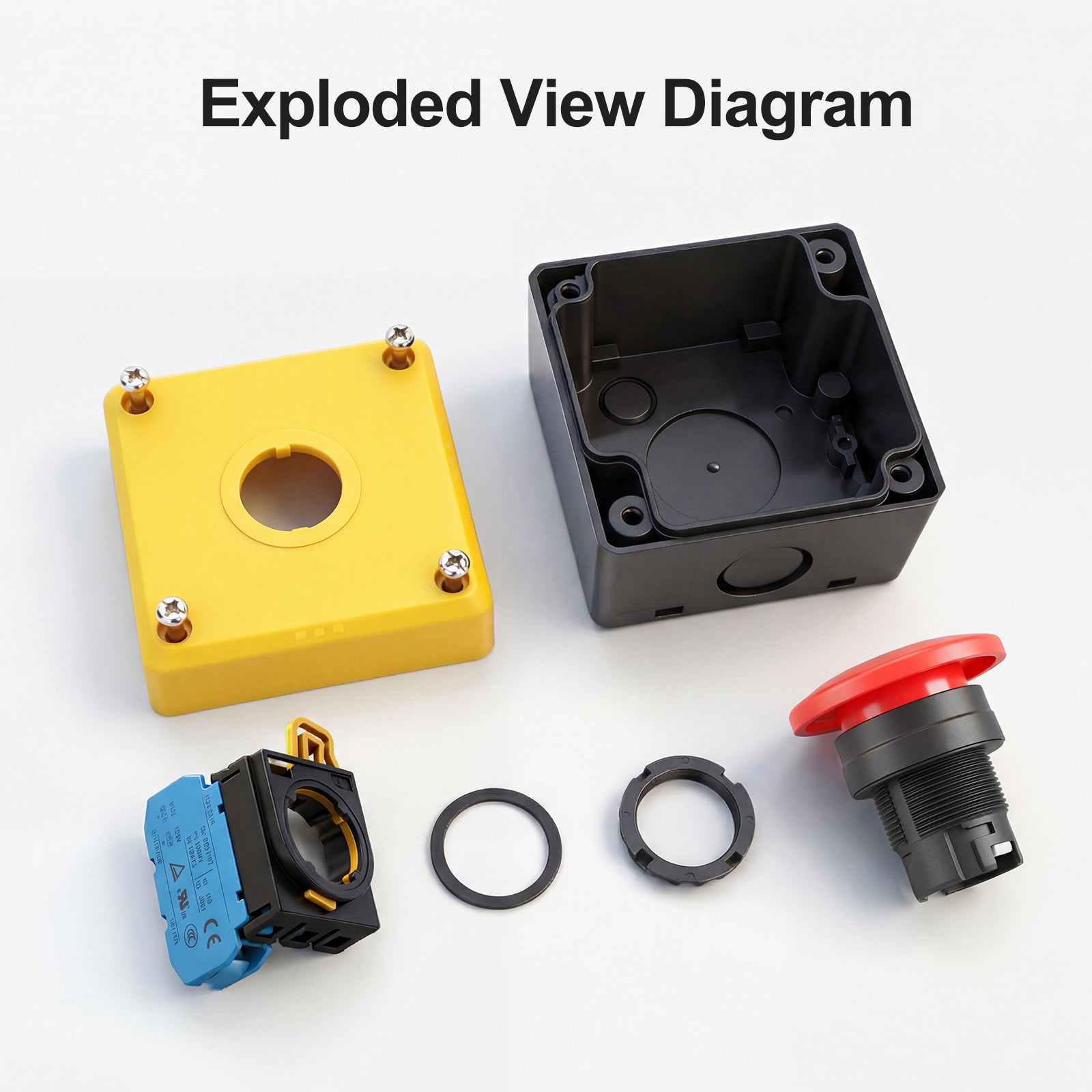

  • Weatherproof Enclosure: Housed in a robust, sealed protective box (IP54 rated) that shields the internal components from dust, moisture, and harsh outdoor conditions.
  • Certified Reliability: Fully compliant with international safety standards, holding UL, CE, and TUV certifications for professional use.
  • Silver Contact Material: Equipped with high-quality silver contacts for superior conductivity and long-lasting performance.

Comparison Specifications

Feature Momentary Version Emergency Stop Version
Contact Type 1NO (Normally Open) 1NC (Normally Closed)

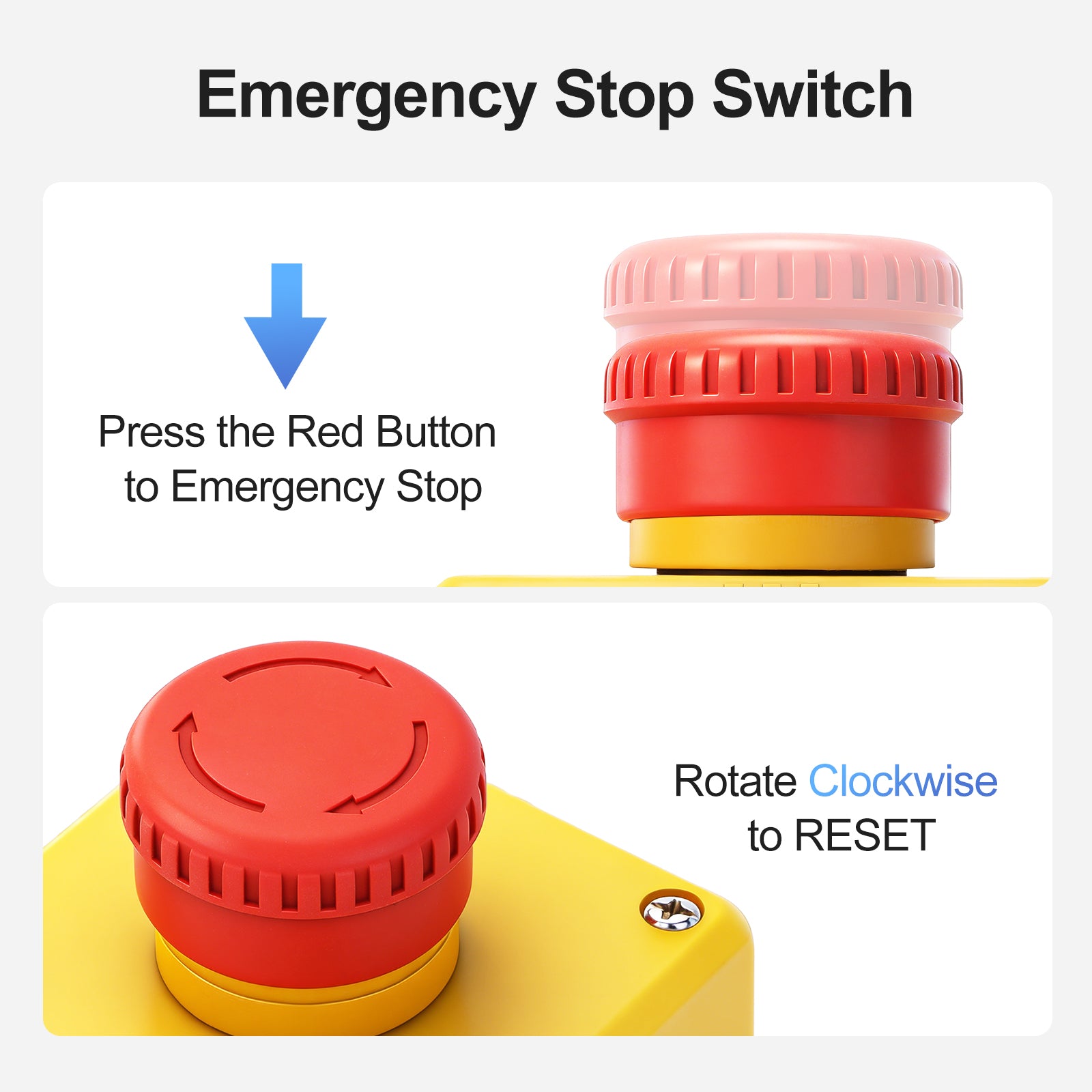

Operation Mode Press to Activate / Auto Reset Push to Lock / Twist to Reset
Max Voltage 660V AC 660V AC
Current Rating 10 Amps 10 Amps

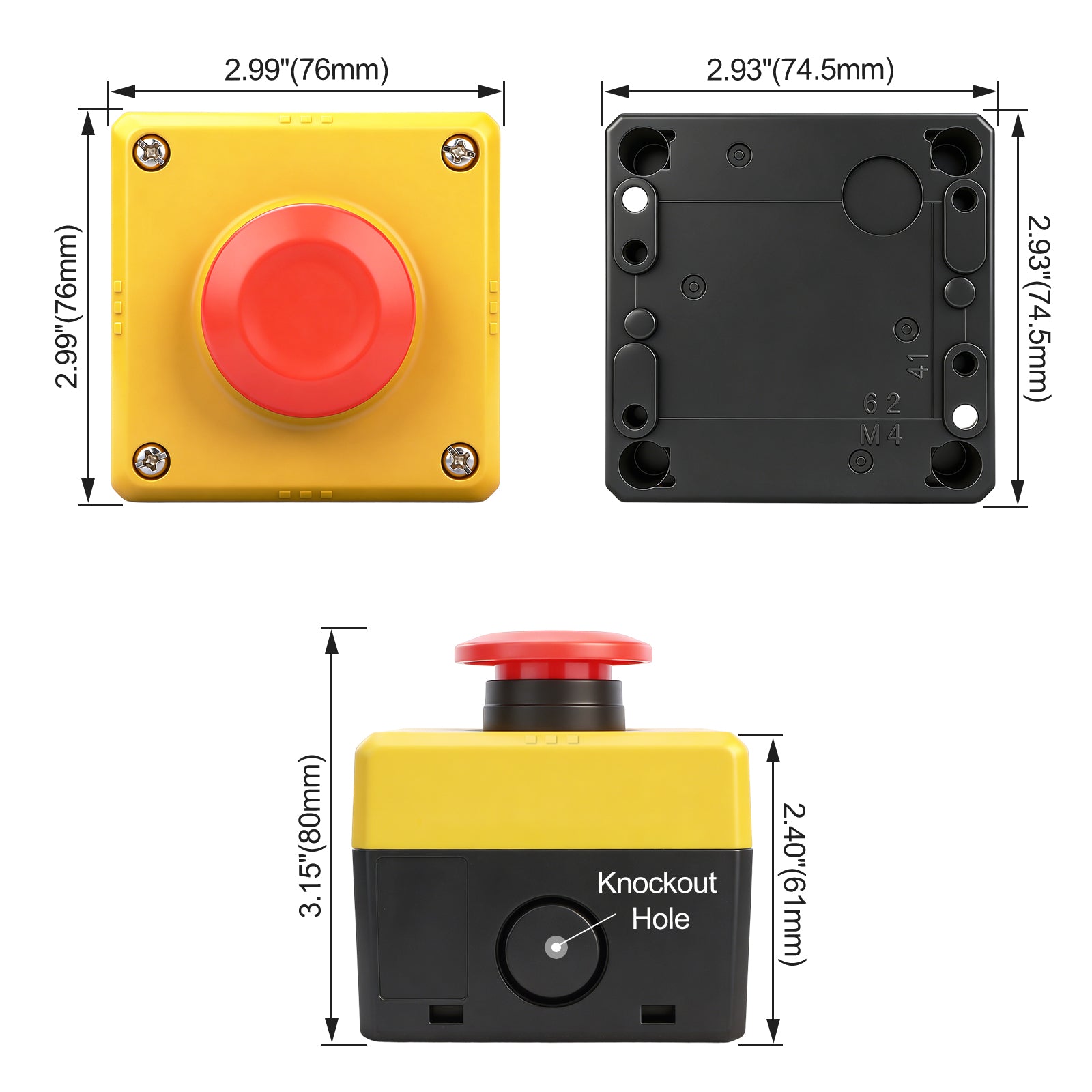

Dimensions Approx. 2.4 x 1.5 x 1.2 inches Approx. 2.4 x 1.5 x 1.2 inches

Broad Applications

Designed for versatility across multiple sectors:

  • Industrial Machinery: Conveyor systems, production line controls, and CNC equipment.
  • Commercial Use: HVAC systems, motor control panels, and alarm activation.

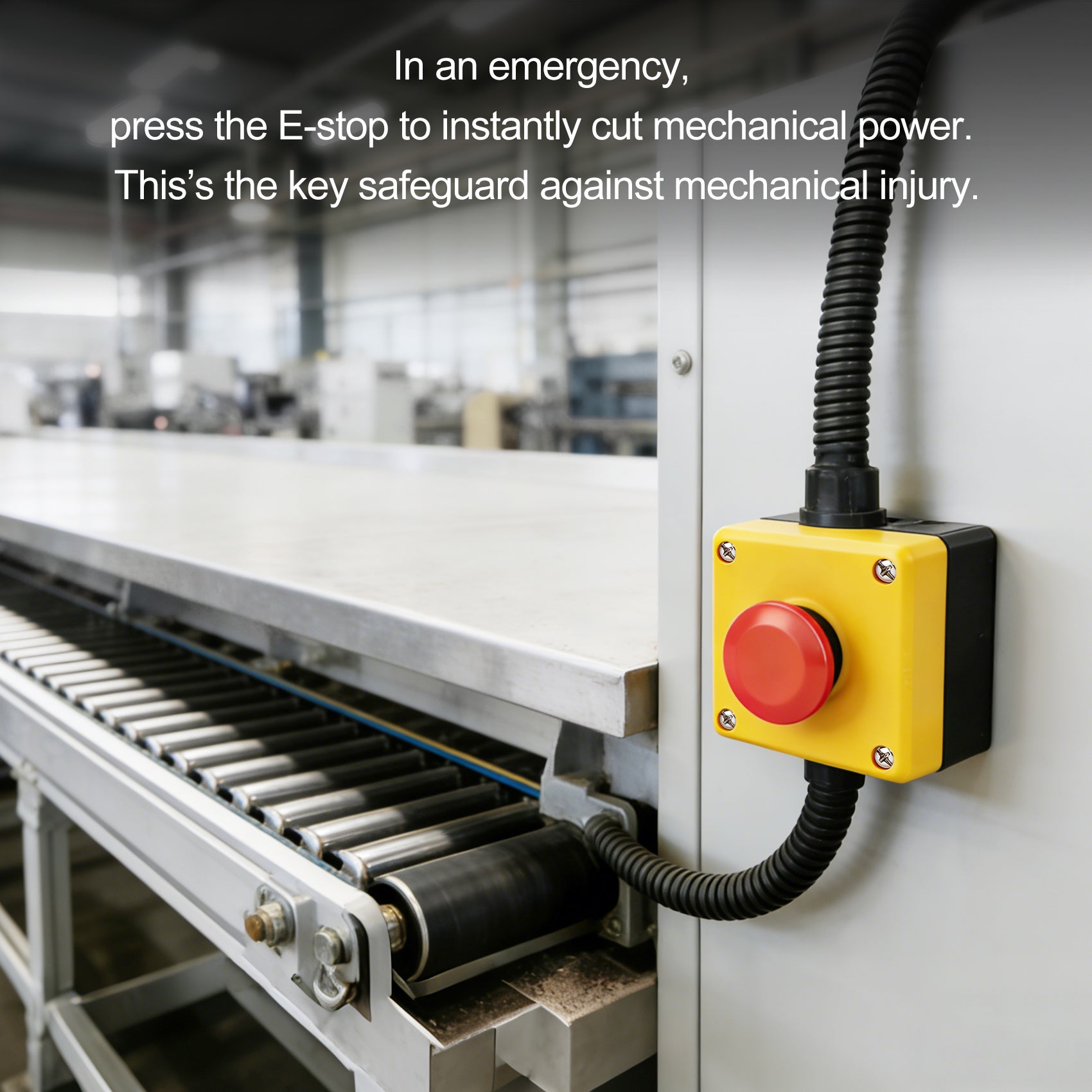

  • Safety Systems: Critical emergency power cutoff and pilot devices for relays/contactors.
