Baomain AC Contactor 63A 2 Pole Universal Circuit Control 35mm DIN Rail Mount CE Listed BCT-63

  • $16.29
    Unit price per
Shipping calculated at checkout.

This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

  • Rating: AC 12V/24V/110V/220V, 50/60Hz;
  • Max. Power: 2.1W
  • Rated Current(Ith): 63A; Ui : 500V; Ue: 250V;

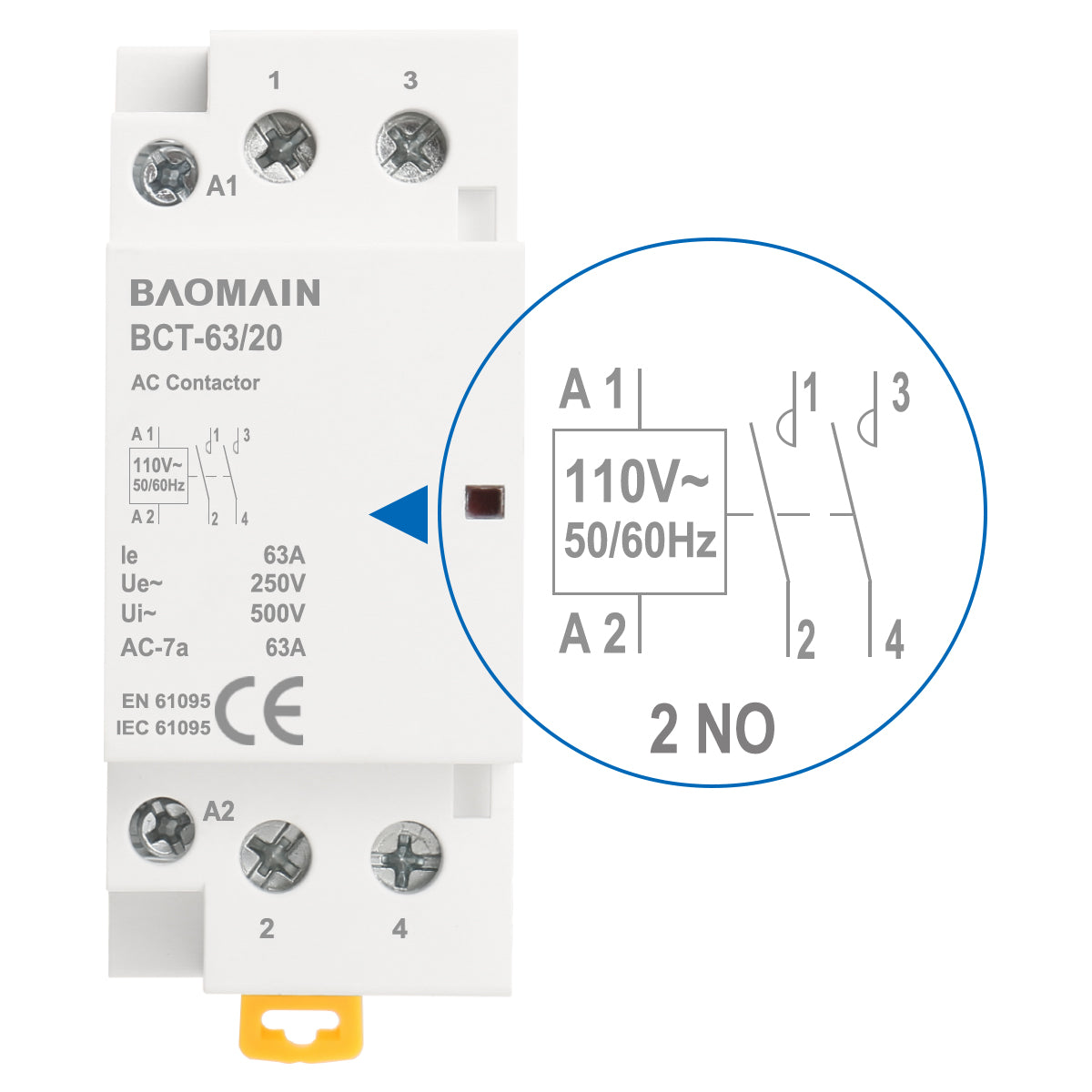

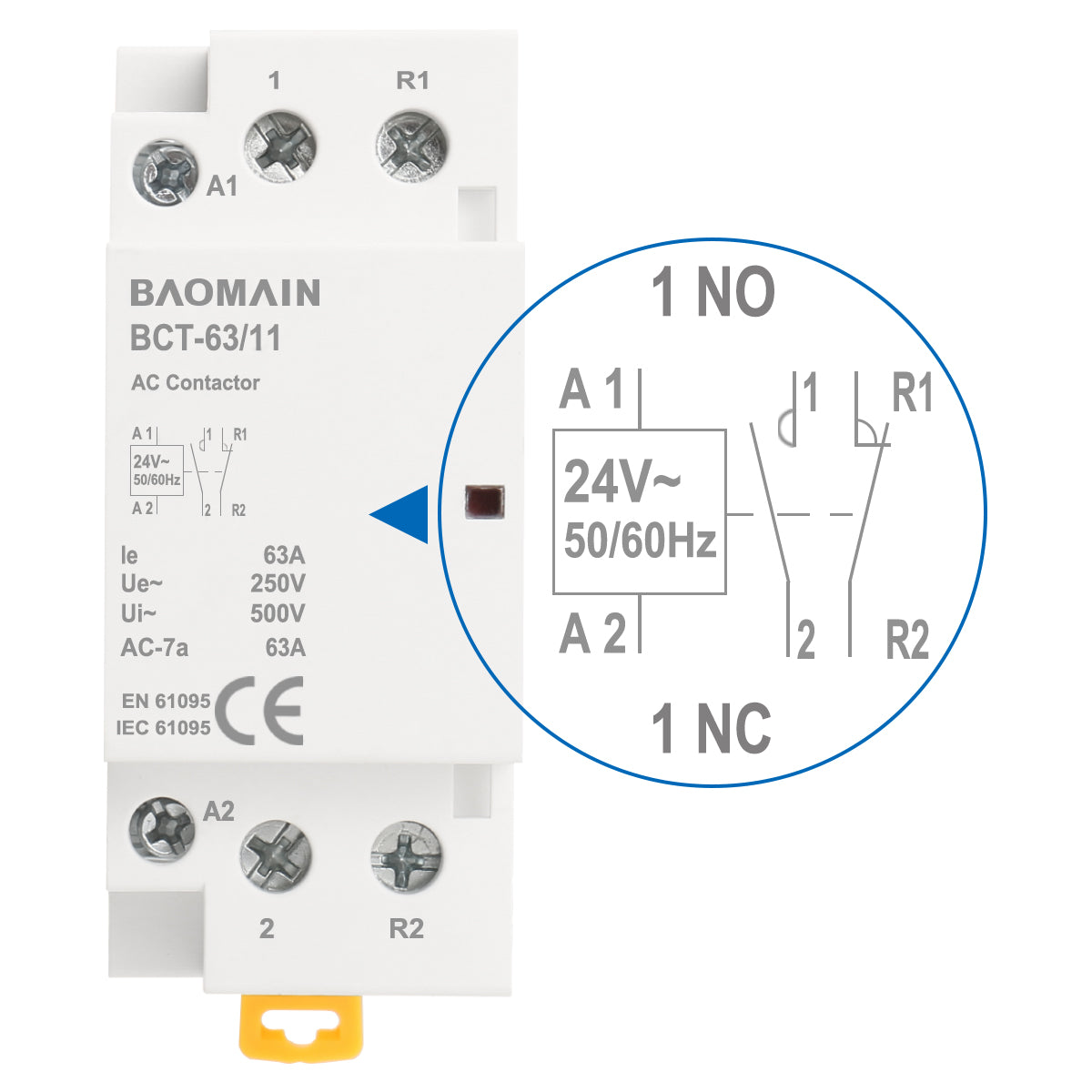

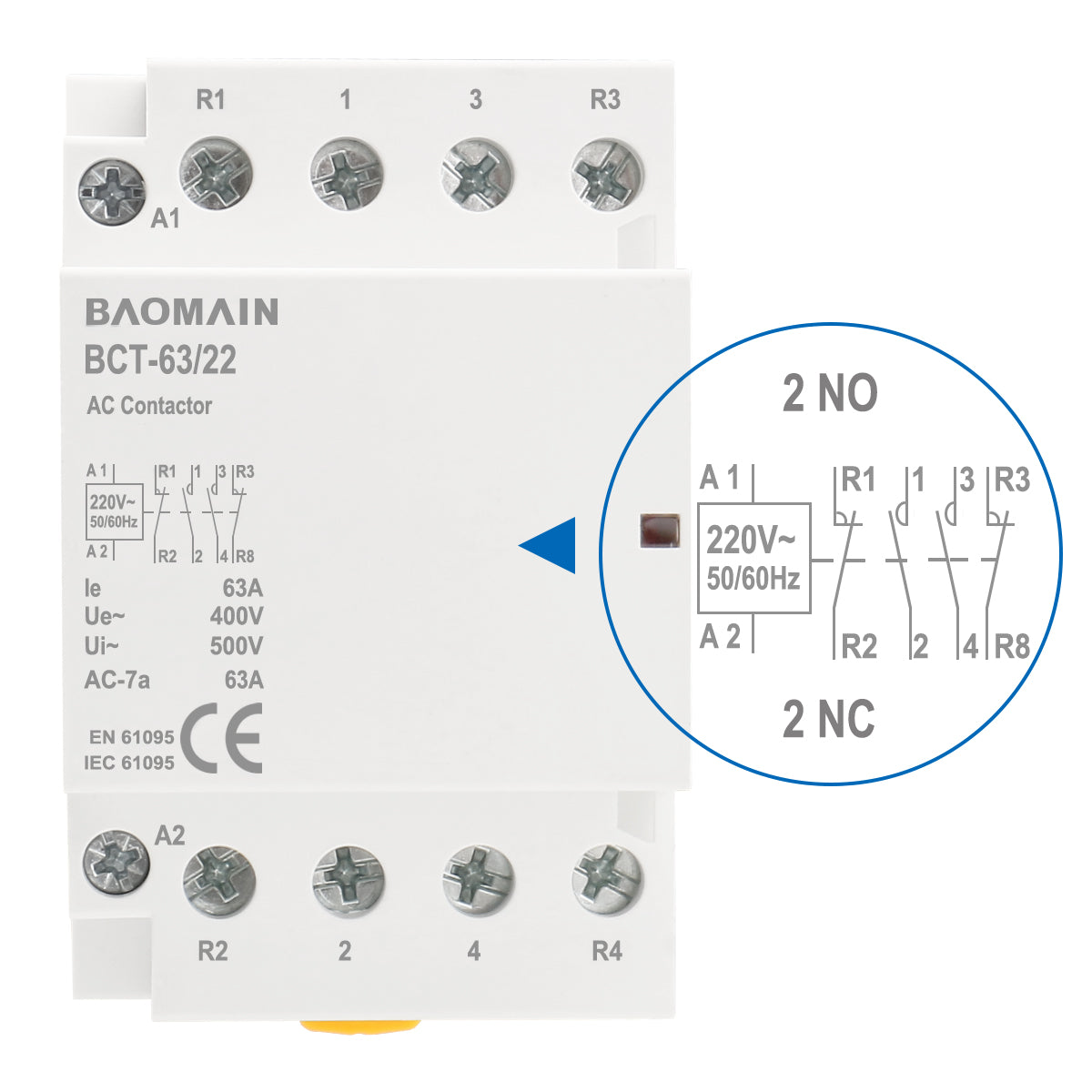

  • Contact: 2 Pole; 2NO/2NC/ 1NO 1NC
  • AC-7a 63A, AC-7b 25A
  • Size: 85 x 36 x 65mm / 3.35" x 1.42" x 2.6"(L*W*T)

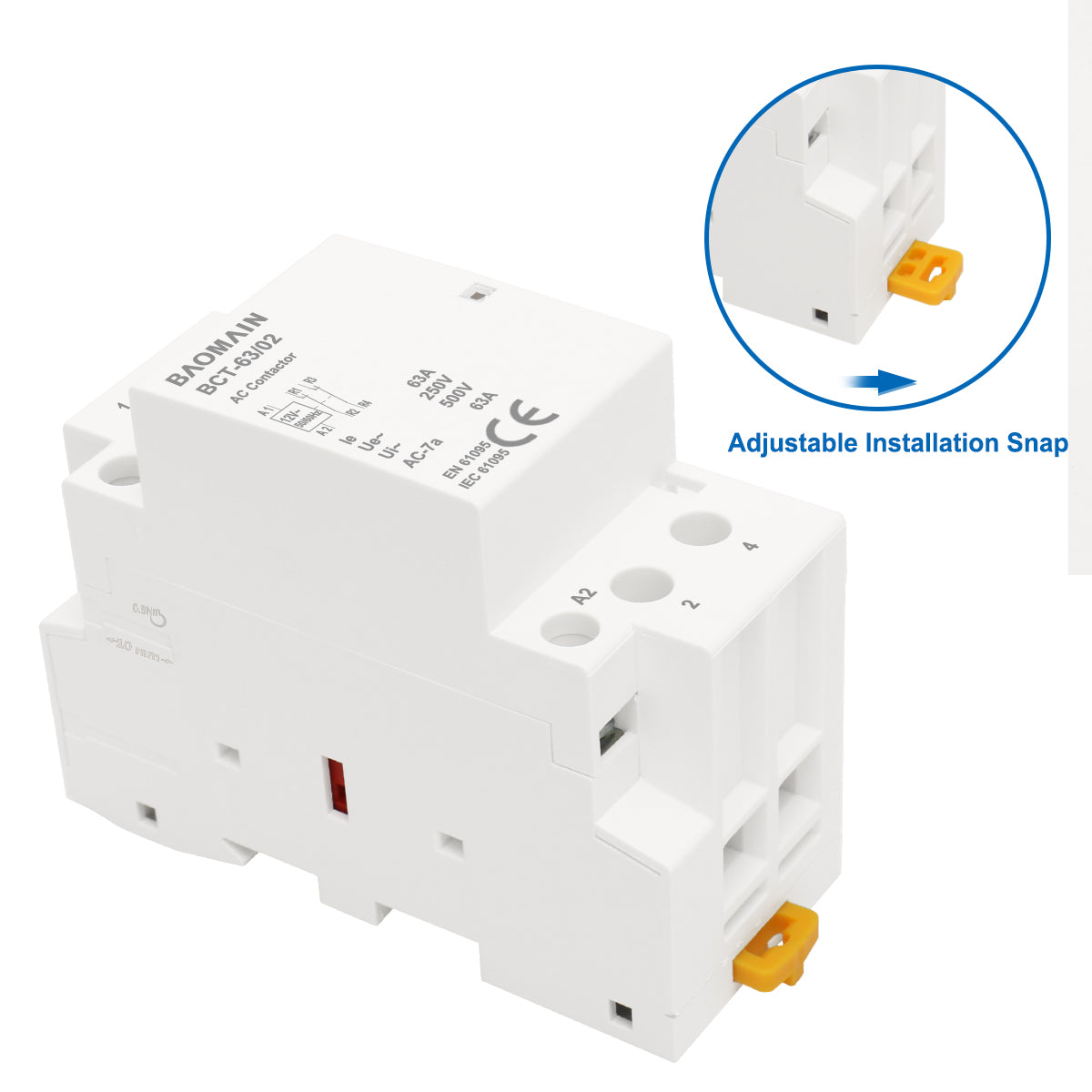

  • Mounting Type: 35mm DIN Rail Mount;
  • Weight: 220g
