Baomain Asymmetric Cycler Time Relay, 16A 1-SPDT, Repeat Cycle Time Relay for Room Ventilation,Cyclic Dehumidification TBT7-R1

The Asymmetric Cycler time relay can be used for regular room ventilation,cyclic dehumidification,light control,circulating pumps,noon signs.Etc

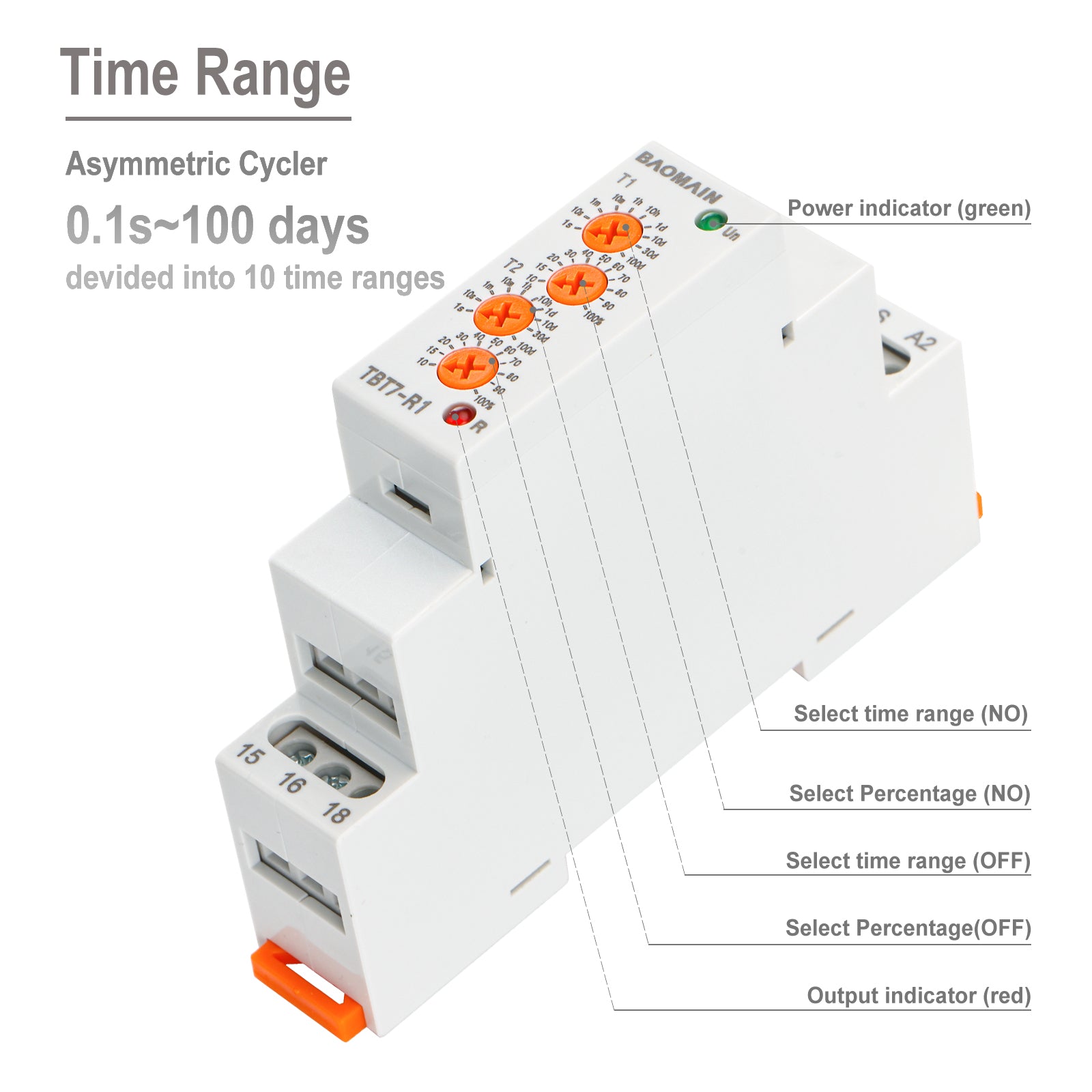

Time scale 0.1s-100days devided into 10 time ranges: 0.1s-1s/1s-10s/0.1m-1m/1m-10m/0.1h-1h/1h-10h/0.1d-1d/1d-10d/3d-30d/10d-100d

• Time Function: Cycler beginning with pulse
• Time Range: 0.1s - 100d devided into 10 time ranges
• Voltage Range: AC/DC12V-240V,AC200V-240V,50-60Hz
• Power Input：AC max. 12VA/1.9W ;
• Bueden: AC0.7-3VA/DC0.5-1.7W

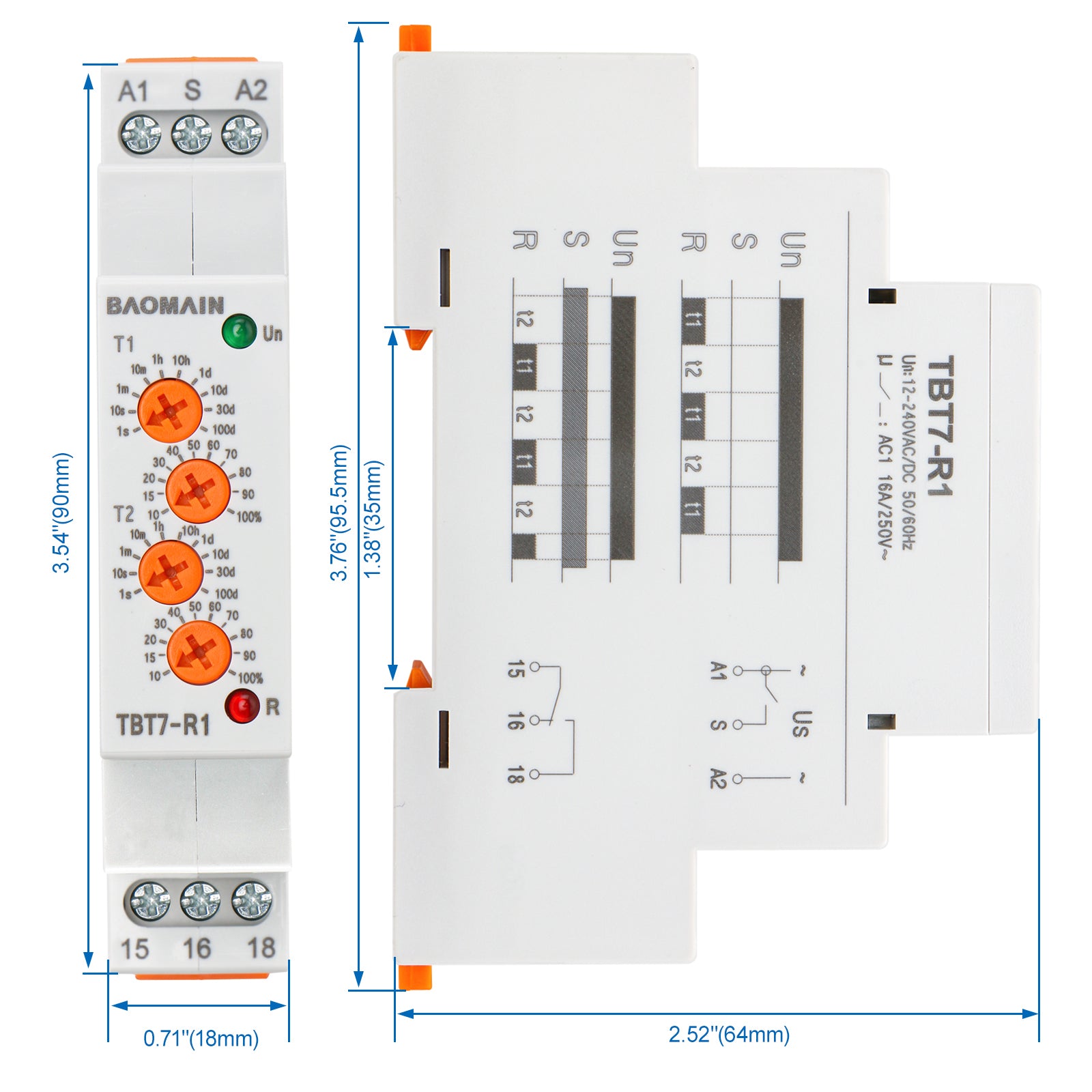

• Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH);

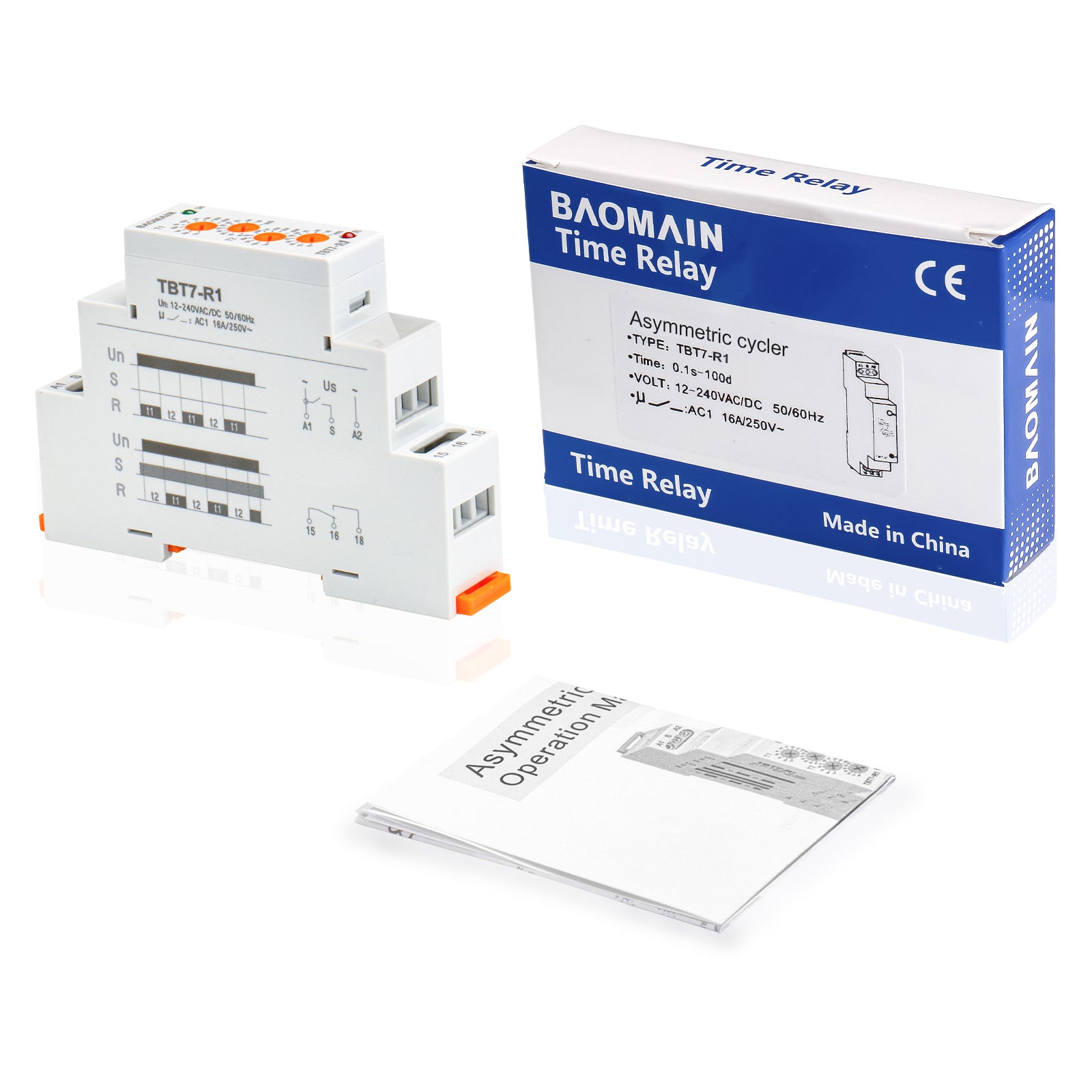

• Package Includes: 1 x Time Relay, Instruction

TECHNICAL PARAMETERS

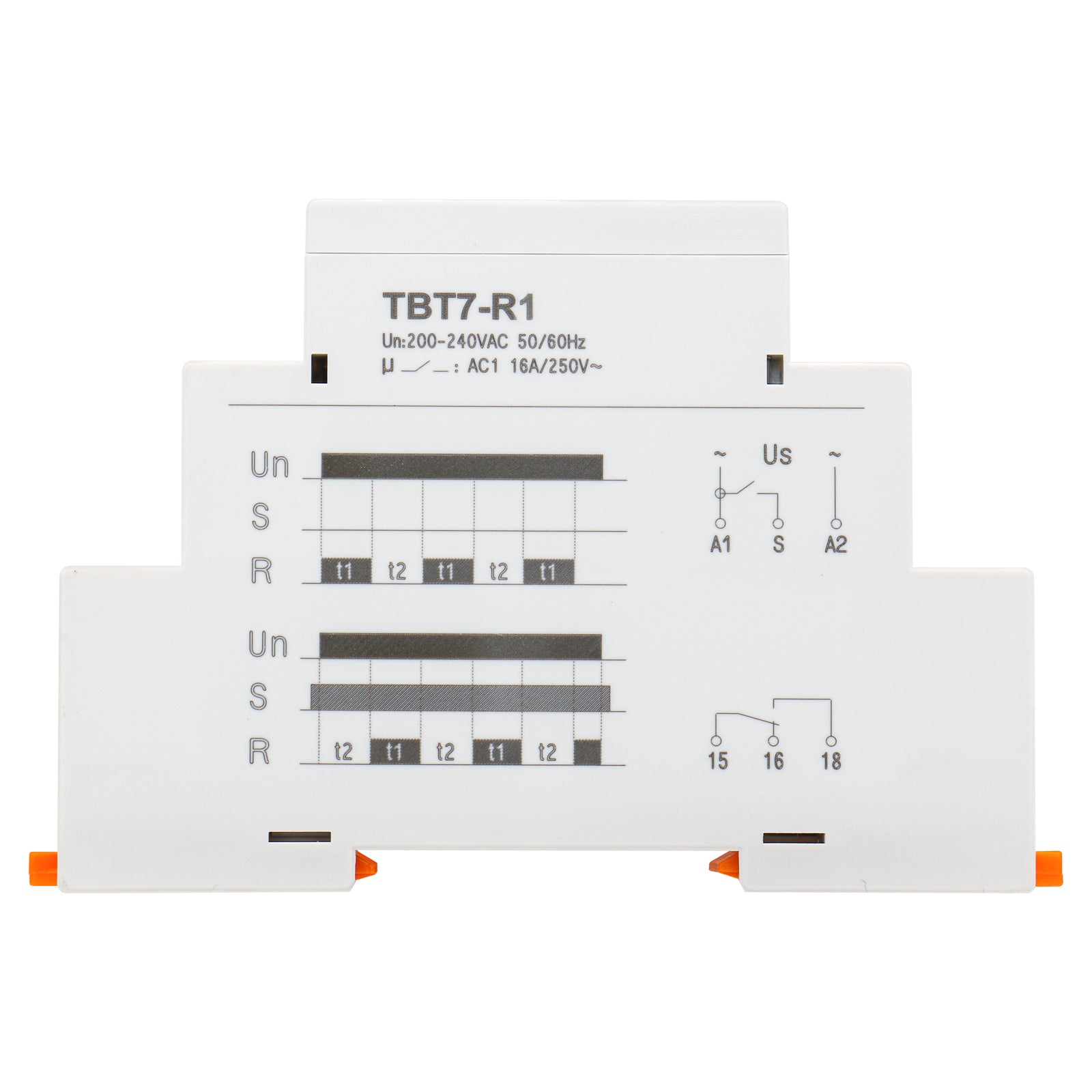

• Function: Asymmetric Cycler Time Relay
• Supply Terminals：A1-A2
• Voltage Range: AC/DC12V-240V,50-60Hz
• Supply voltage tolerance: -15%; +10%
• Supply Indication: Green Led
• Time setting: Potentionmeter
• Time deviation: 10%-Mechanical setting
• Repeat accuracy: 0.2%-Set valve stability
• Temperature coefficient: 0.05%/°C,at=20°C(0.05%°F=at 68°F)
• Output: 1 x SPDT  Current Rating: 1x16A (AC1)
• Switching voltage: 250VAC/24VDC,
• Min. breaking capacity DC: 500mW
• Out Indication: Red Led
• Mechanical Life: 1x10,000,000 cycles
• Electrical Life(AC1): 1x100,000 cycles
• Reset time: max.200ms
• Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
• Storage Temperature: -35°C ~ 75°C / -22°F ~ 158°F
• Protection Degree: IP40 for Front Panel / IP20 Terminals
• Overvoltage cathegory: III
• Pollution degree：2
• Installation: DIN rail mounting or Screw mounting
• Max.cable (size): Solid wire max.1x2.5 or 2x1.5/with sleeve max. 1x2.5(AWG12)
