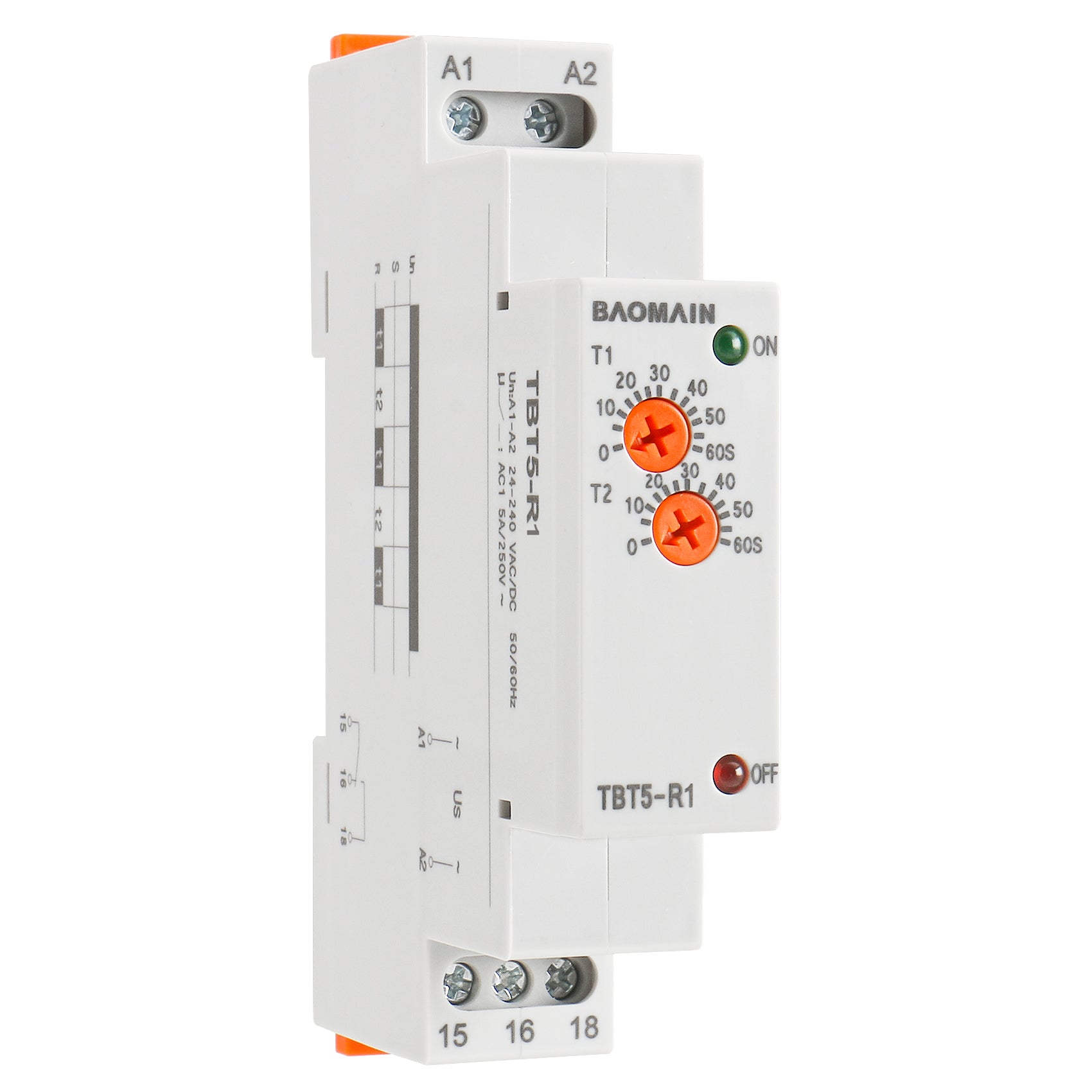

Baomain Asymmetric Cycler Time Relay, 5A 24V-240VAC/DC SPDT, Repeat Cycle Time Relay, On-Delay for Industrial Equipment, Lighting Control, Heating Control TBT5-R1

Time scale 0.1S-60s: 0.1s~1s/0.1s~6s/0.1S~10S/0.1S~12S/0.16S~30S/0.33S~60S

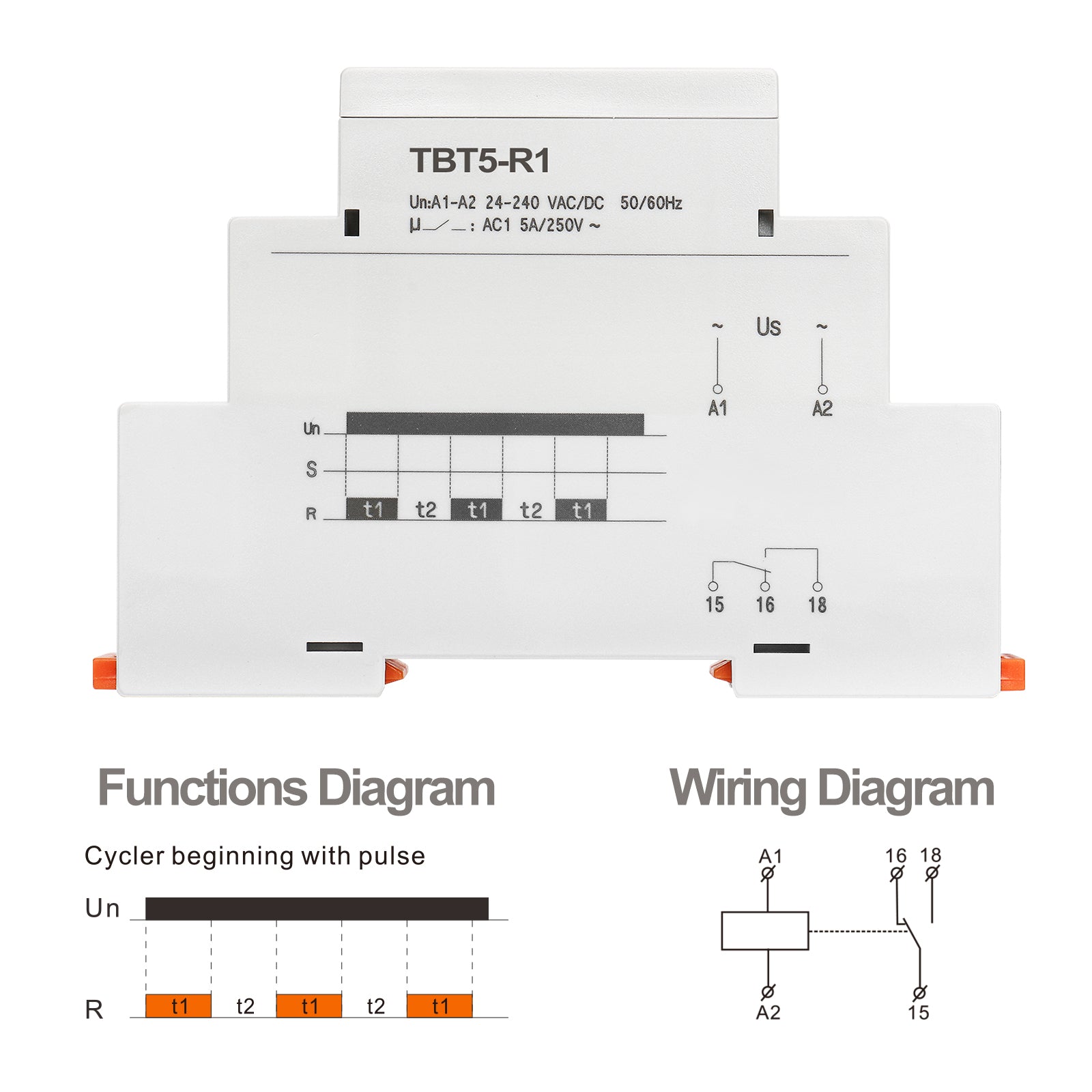

• Function: 1 C On-delay

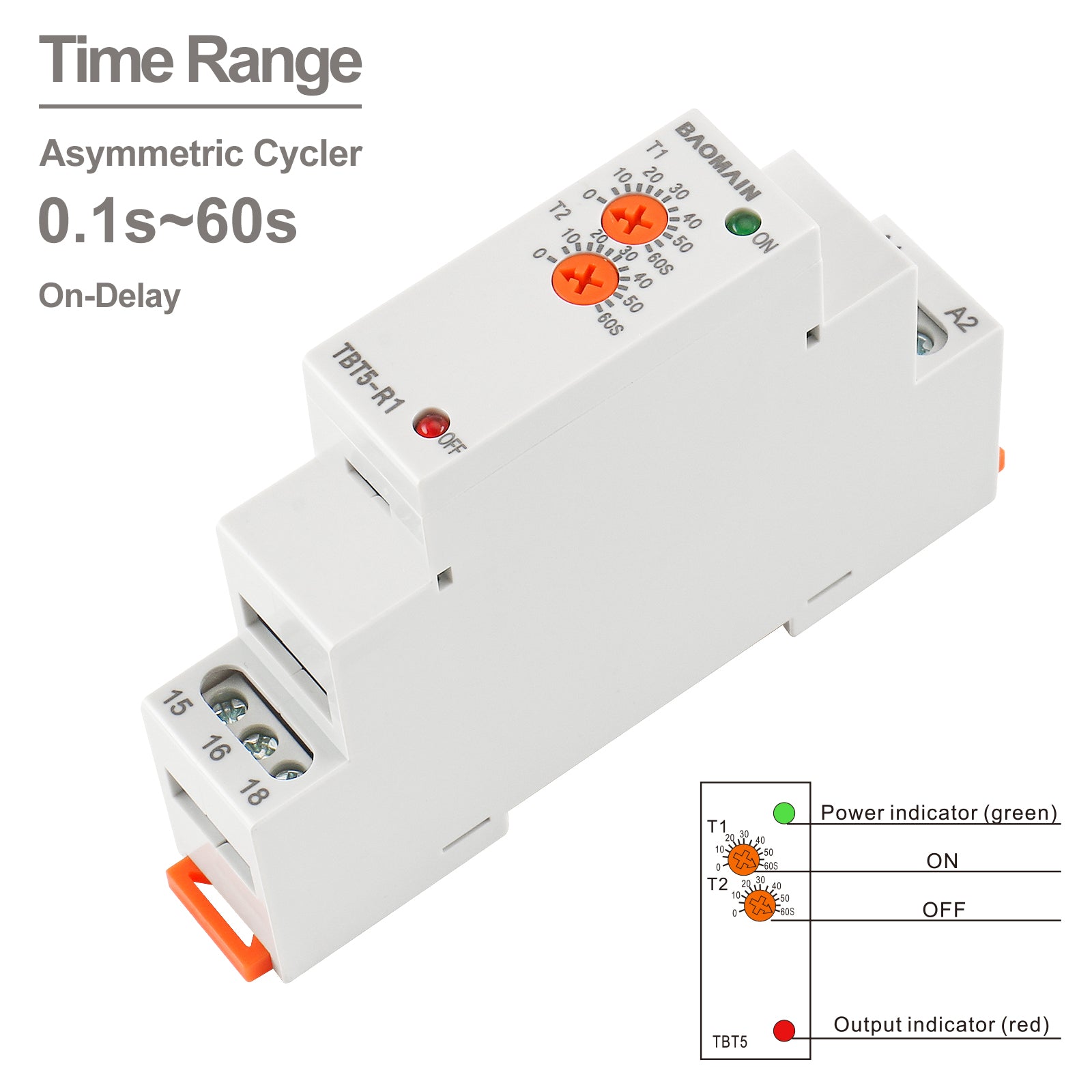

• Time Range: 0.1S - 60S
• Voltage Range: AC/DC24V-240V, 50-60Hz

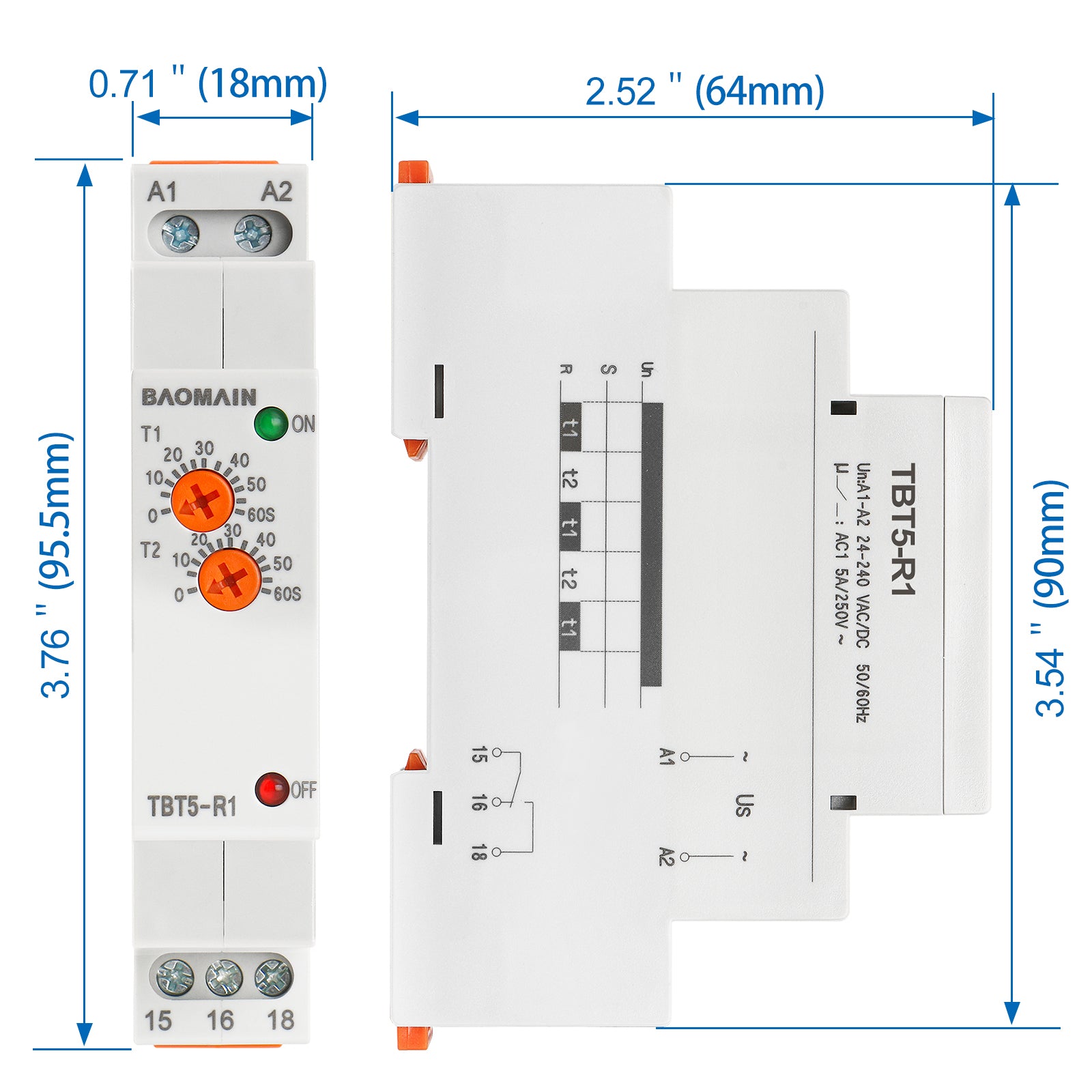

• Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH);
• Weight: 70g;

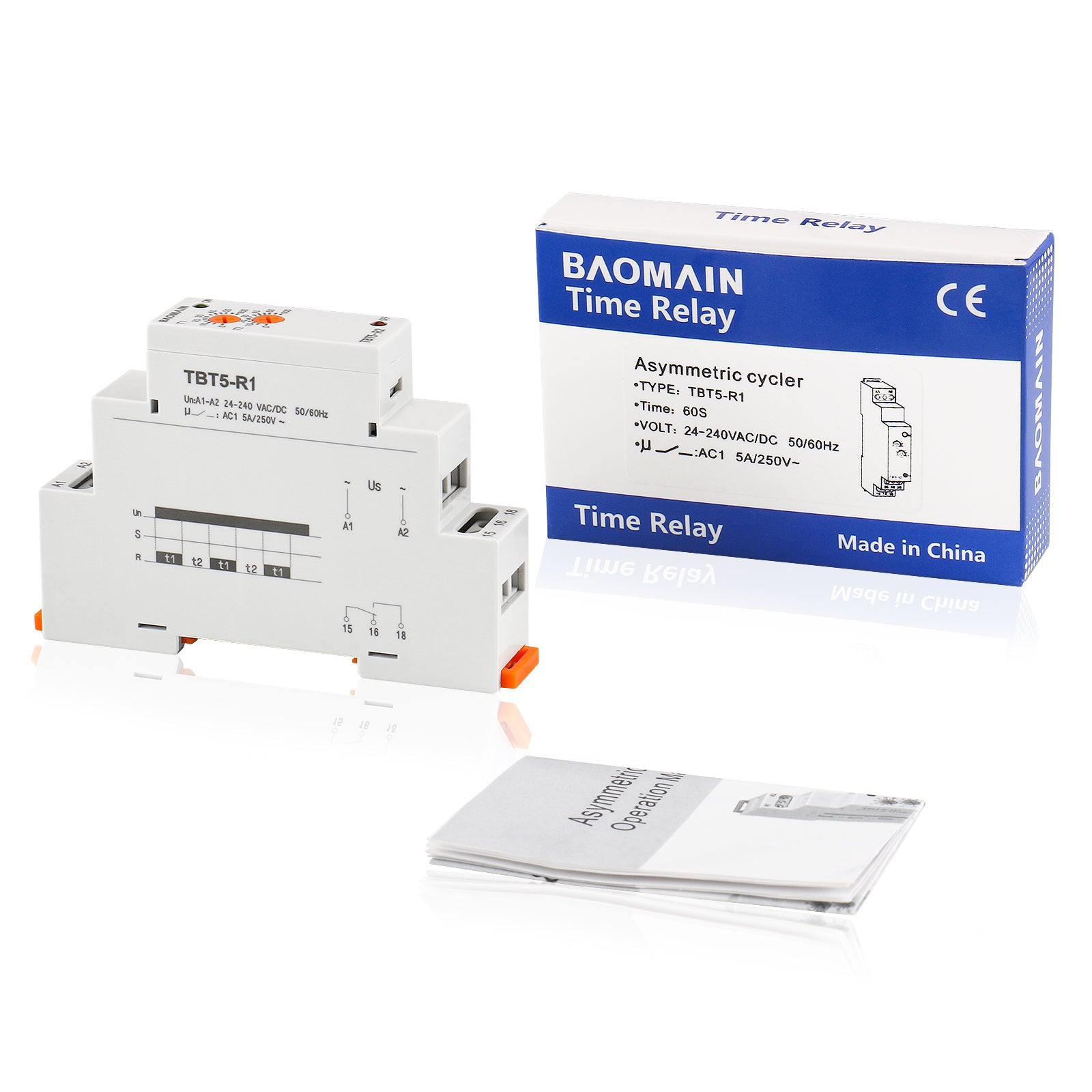

• Package Includes: 1 x Time Relay, Instruction

TECHNICAL PARAMETERS

• Supply Terminals：A1-A2
• Time setting: Potentionmeter
• Time deviation: <±5%
• Repeat accuracy: <±0.5%
• Output: AC1 5A, 250VAC/24VDC
• Mechanical Life: 1x1,000,000 cycles
• Electrical Life(AC1): 1x100,000 cycles
• Protection Degree: IP20
• Pollution degree：2
• Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
• Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F

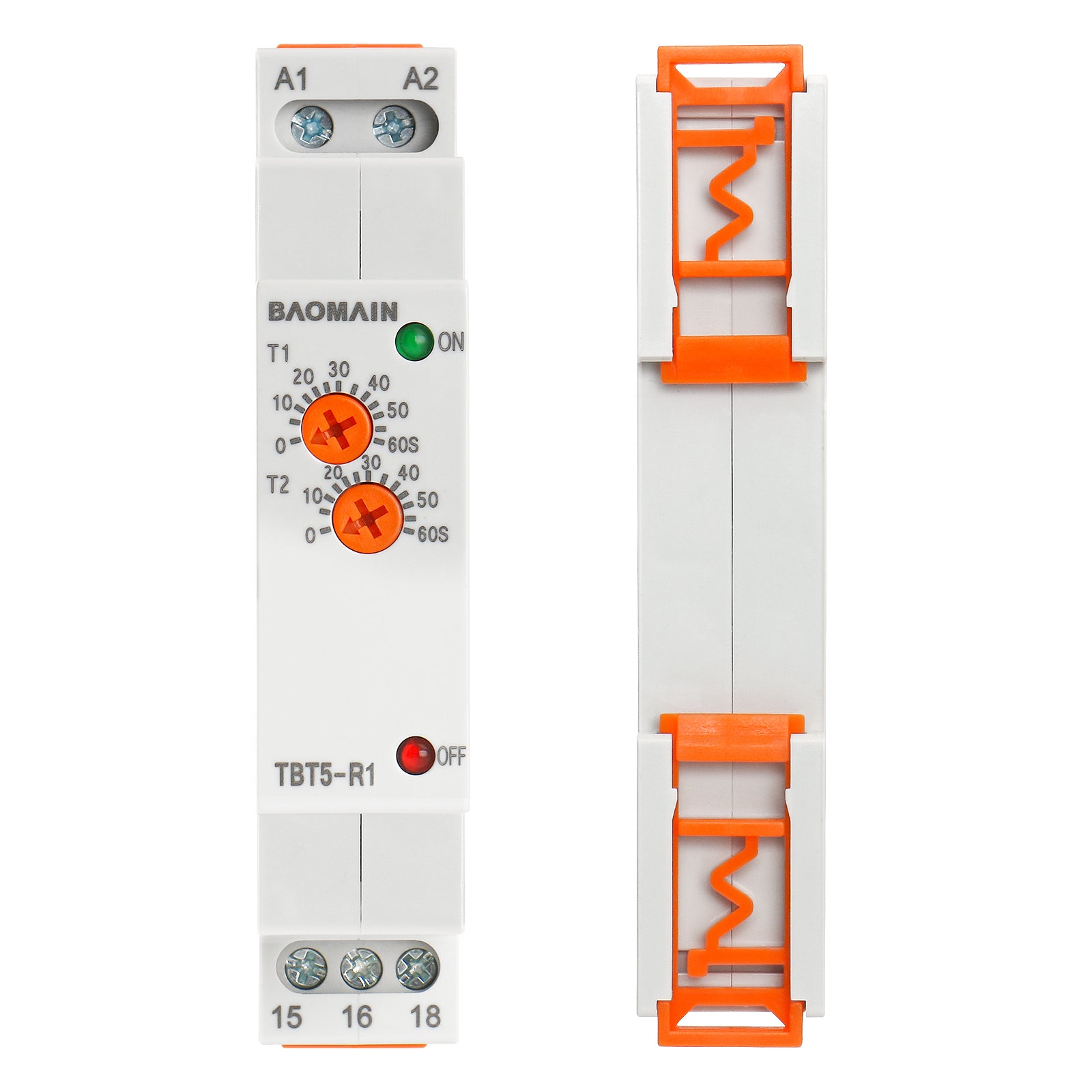

• Installation: DIN rail mounting or Screw mounting
• Max.cable (size): Solid wire max.2.5 or 2x1.5/with sleeve max. 1x2.5(AWG12)

APPLICATION

It's an-off twin timer that is used to set the switching time of devices so that can work peroidically.
It can be used for Industrial Equipment, Lighting Control, Heating Control .Etc.
