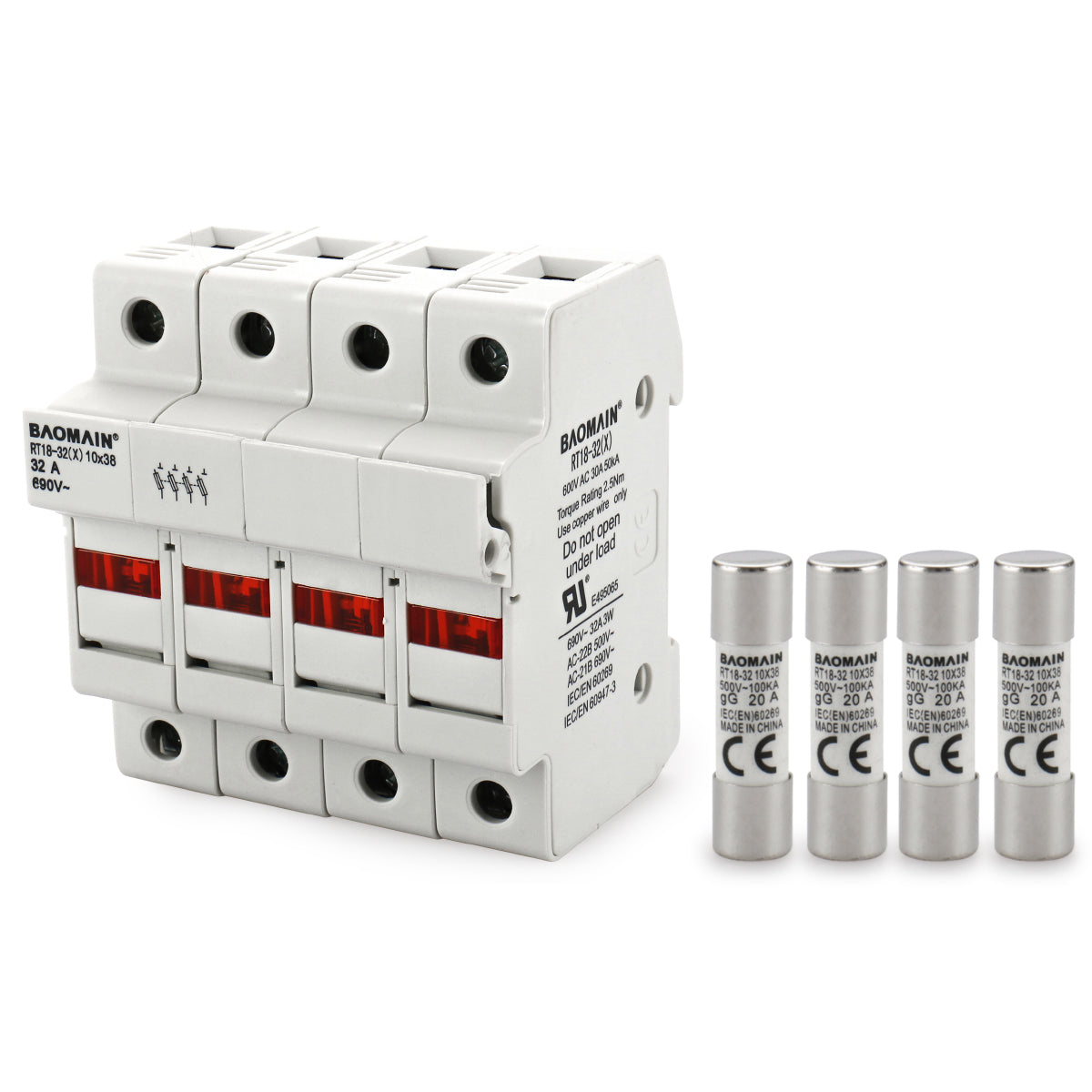

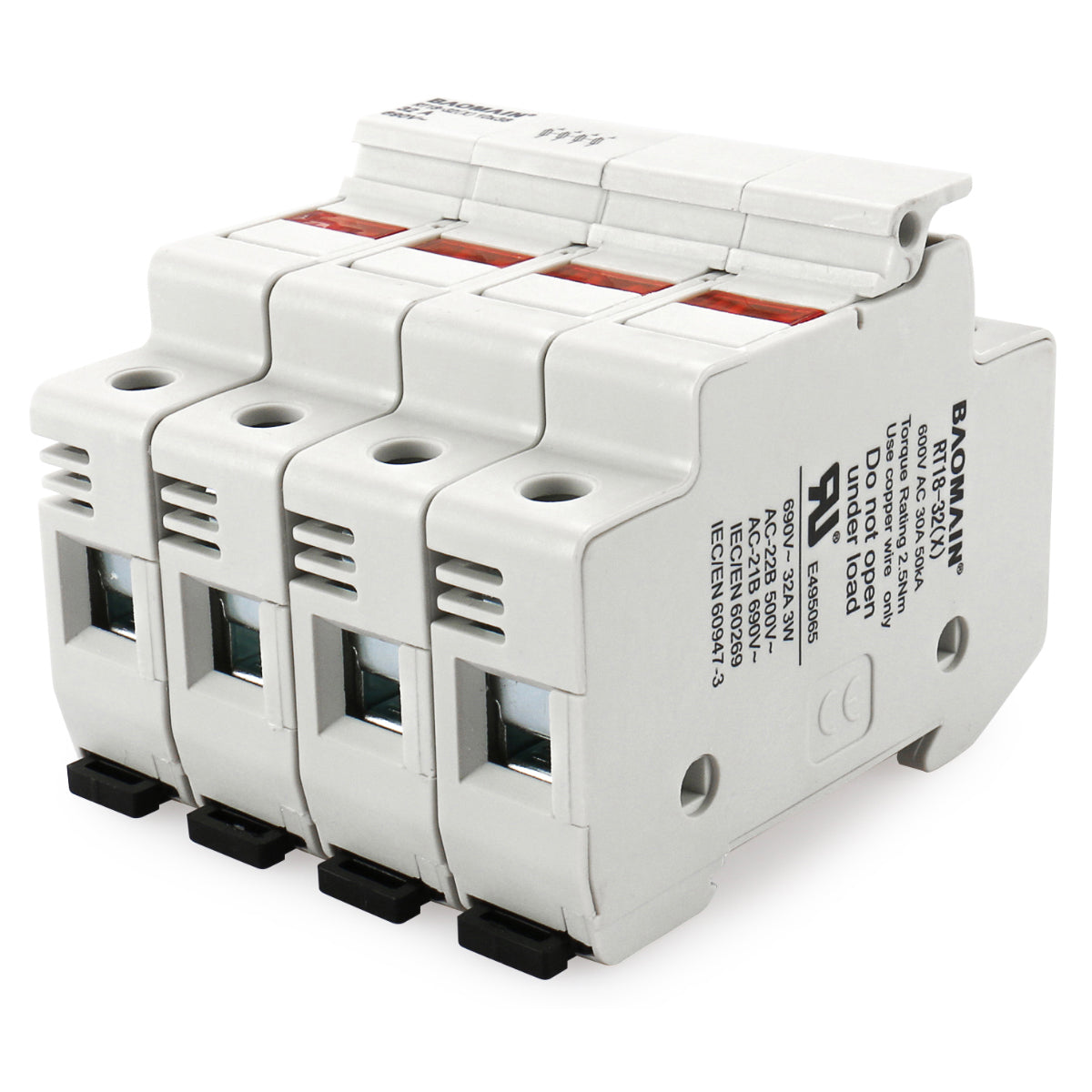

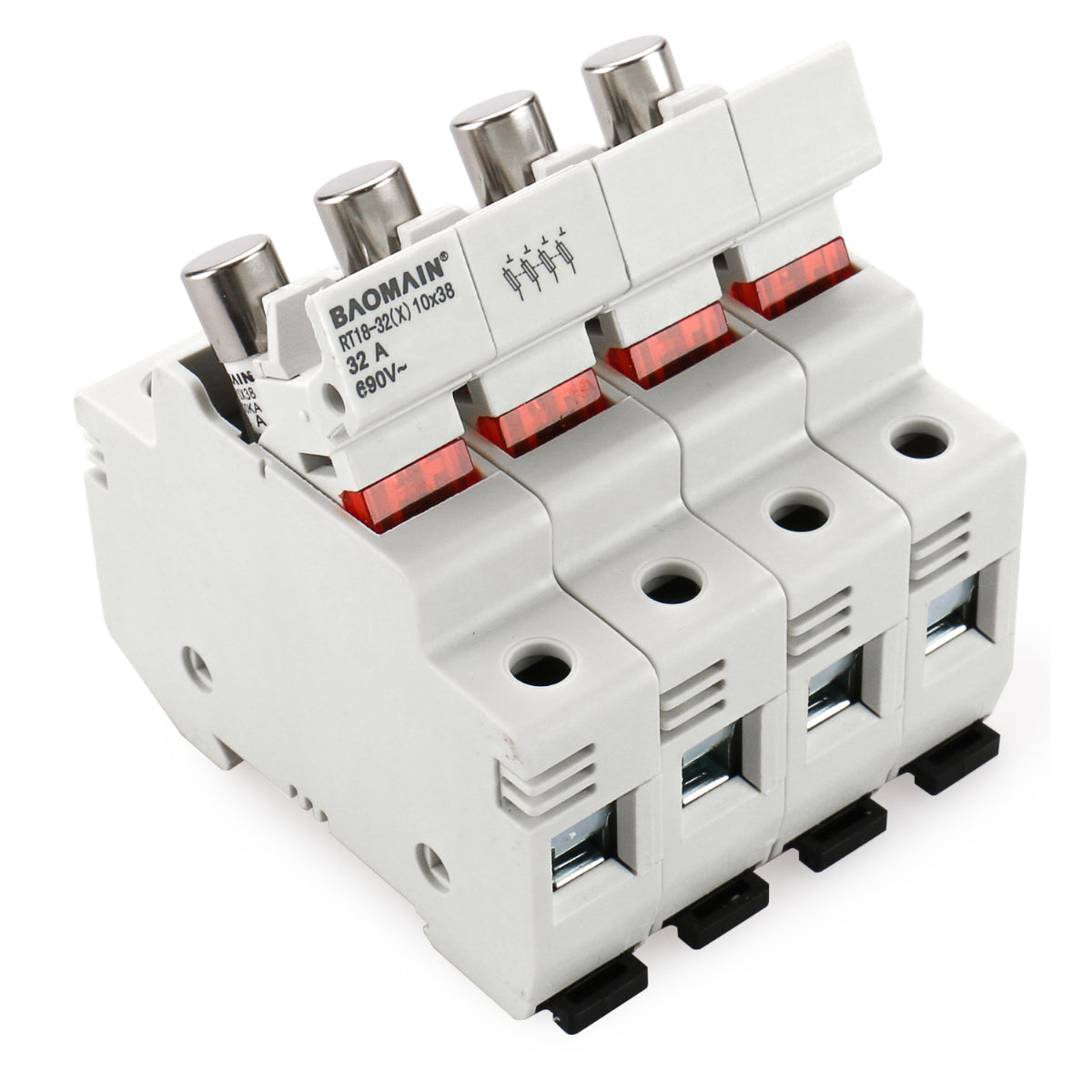

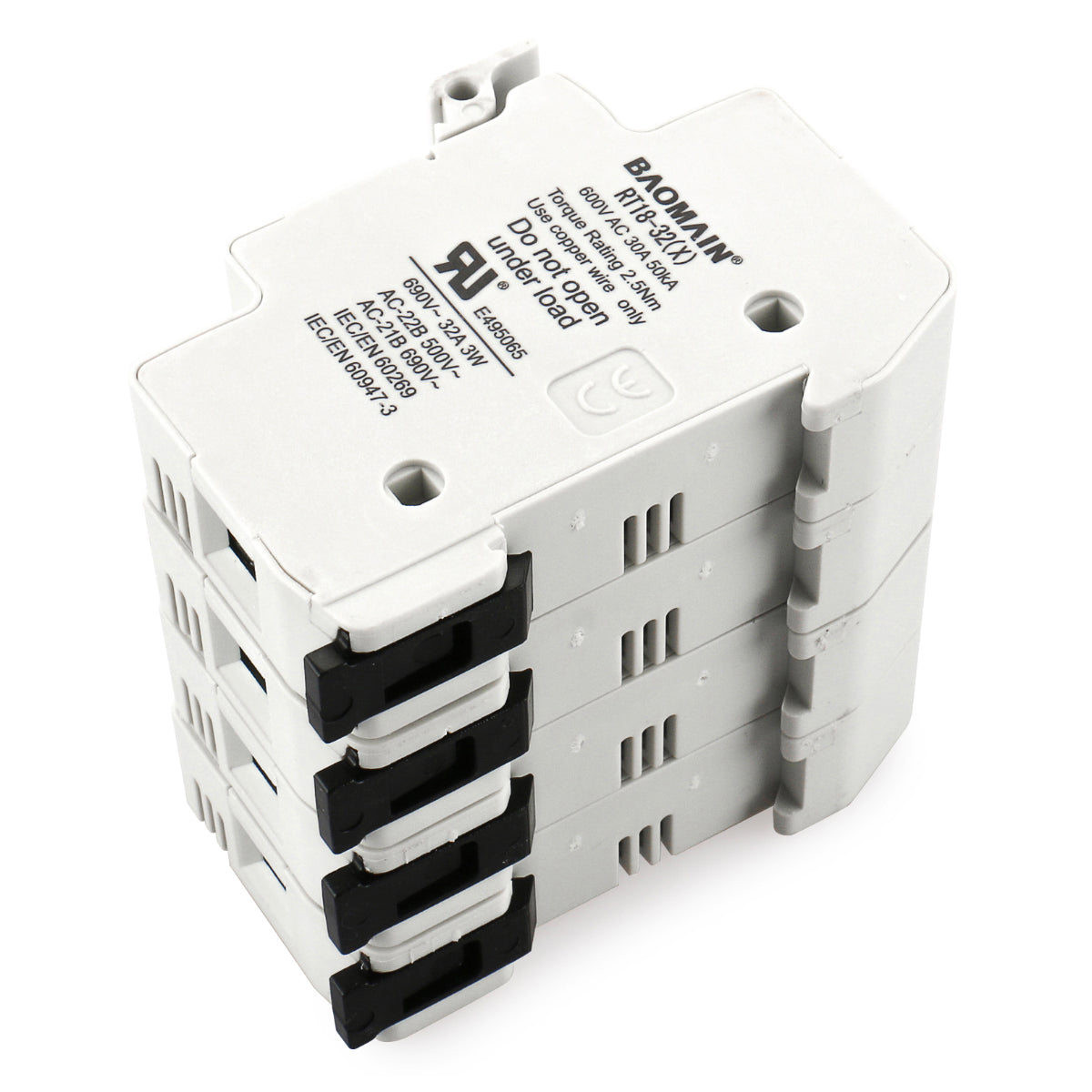

Baomain Cylindrical Fuse Holder RT18-32(X) 10mm X 38mm Fuse Base 4 Poles DIN Rail Mount CE&UR Listed 20 PCS of Fuse
Shipping calculated at checkout.
- These fuse holders are supporters for fuses with size up to 10×38mm.
- They are capable of working under heat caused by rated current and expected short impacting current up to 100KA.
- It can also function as a fuse disconnecting switch by multi-phase combination.
- There are two in/out lines at the RT18N fuse base, providing a power cut function.
- The RT18L type has a safety lock to lock the fuse carrier when disconnected to avoid wrong operation;
- it can also be equipped with an indicator, which goes on when the fuse linke breaks.
- Rated insulate voltage up to 690V; Working frequency 50Hz AC
- Conventional free air thermal current up to 125A
- Package Content: RT18-32 Holder + Pack of 20 (RT18-32)
