Baomain DC/AC Modular contactor Hum-Free 20A DC/AC/12V/24V/110V/220V 2 Pole Circuit Control 35mm DIN Rail BMHC7-20
In stock
- Regular price
- $12.69
- Sale price
- $12.69
- Regular price
-
BMHC7 miniature automatic AC/DC contactor provides a comprehensive solution for controlling non-inductive or low-inductive loads in a variety of settings. It is a reliable and versatile choice for who looking for a high-quality contactor for their electrical control needs.
>> Please email us if there are not enough stocks in order to get the lastest lead time.
| Rate： |
Ui: 500V ,Ue: 250V AC-7a: 20A, AC-7b: 7A |
| Uimp.: | 2.5kV (4kV for 12/24/48VAC) |
| Rated Current: | 20A |
| Max. Power: | 2W |
| Contact: | 2 Pole-2NO, 2NC, 1NO 1NC |
| Features: | Hum-Free |
| The frequency： | 50Hz/60Hz |
| Operating Temperature: | -5℃~+60C |
| Storage Temperature: | -40℃~+70℃ |

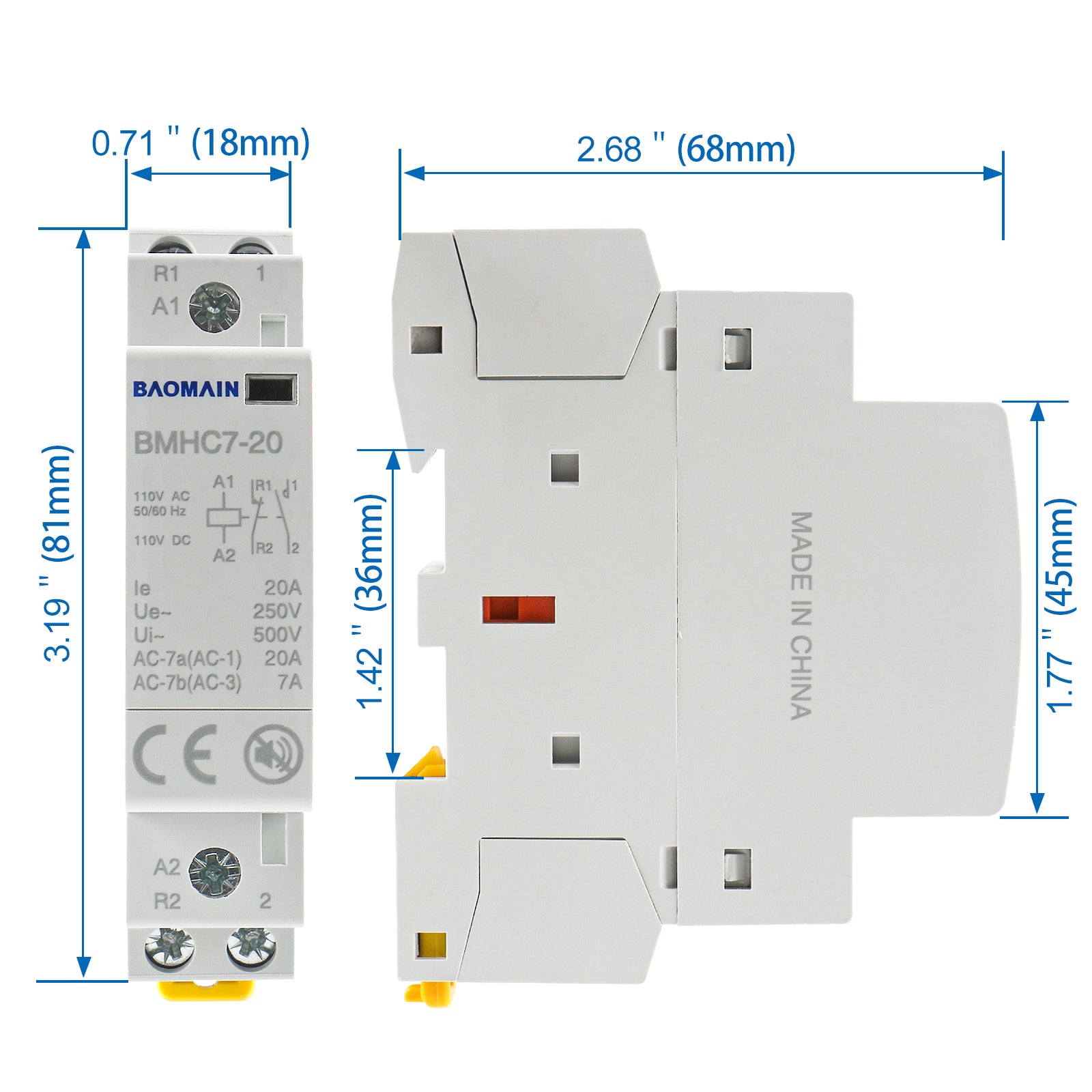

| Size : | 81 mm x 18mm x 68mm (3.19" x 0.71" x 2.68")(L*W*T) |
| Material : | Plastic, Electronic Parts |
| Mechanical life : | 1,000.000 cycles |
| Maximum number of switching operationa day : | 100 |
| Contactor body: | IP20 (Protection level) |
| Installed in the distribution box: | IP40 (Protection level) |
| Pollution degree: | 2 |
| Weight : | 140g |
