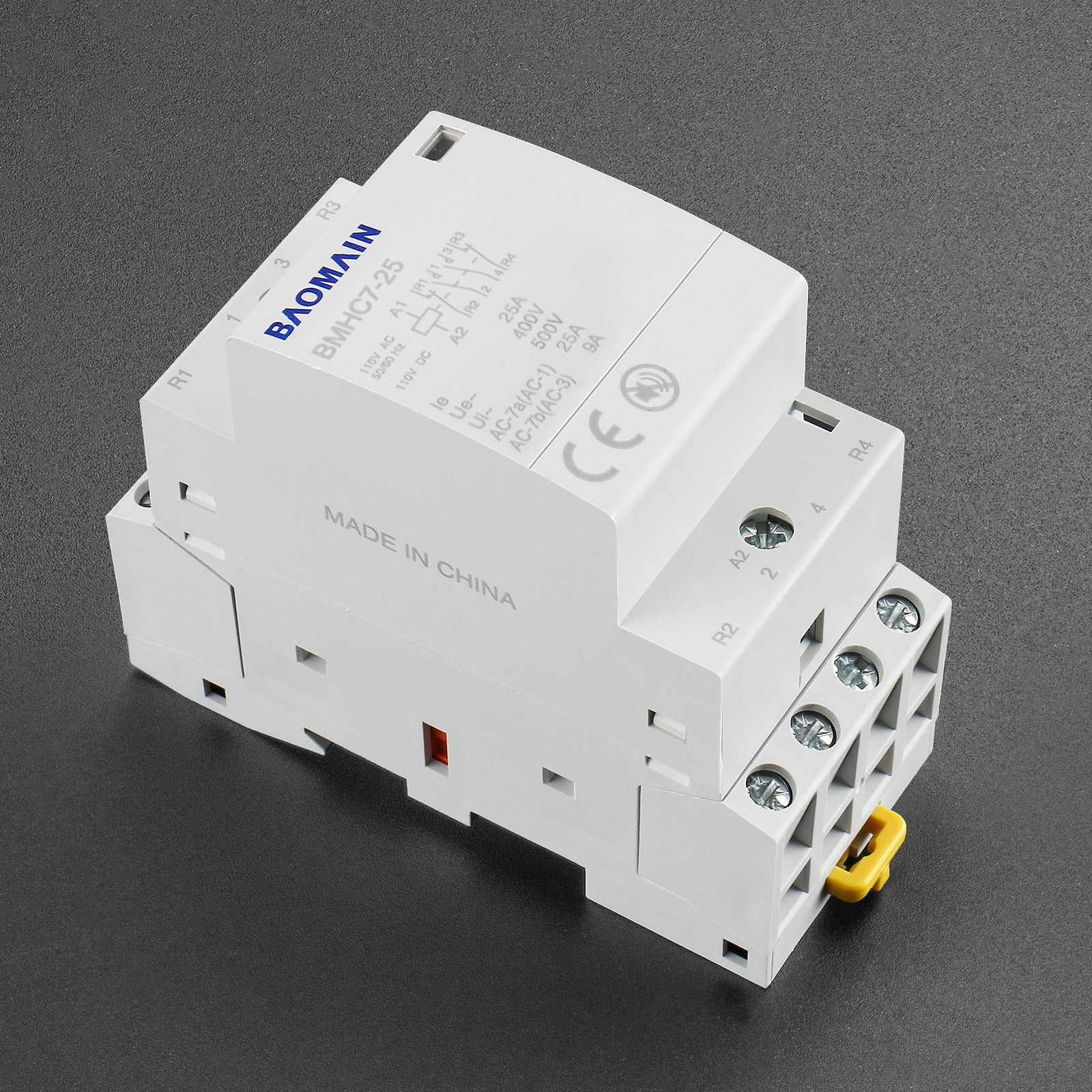

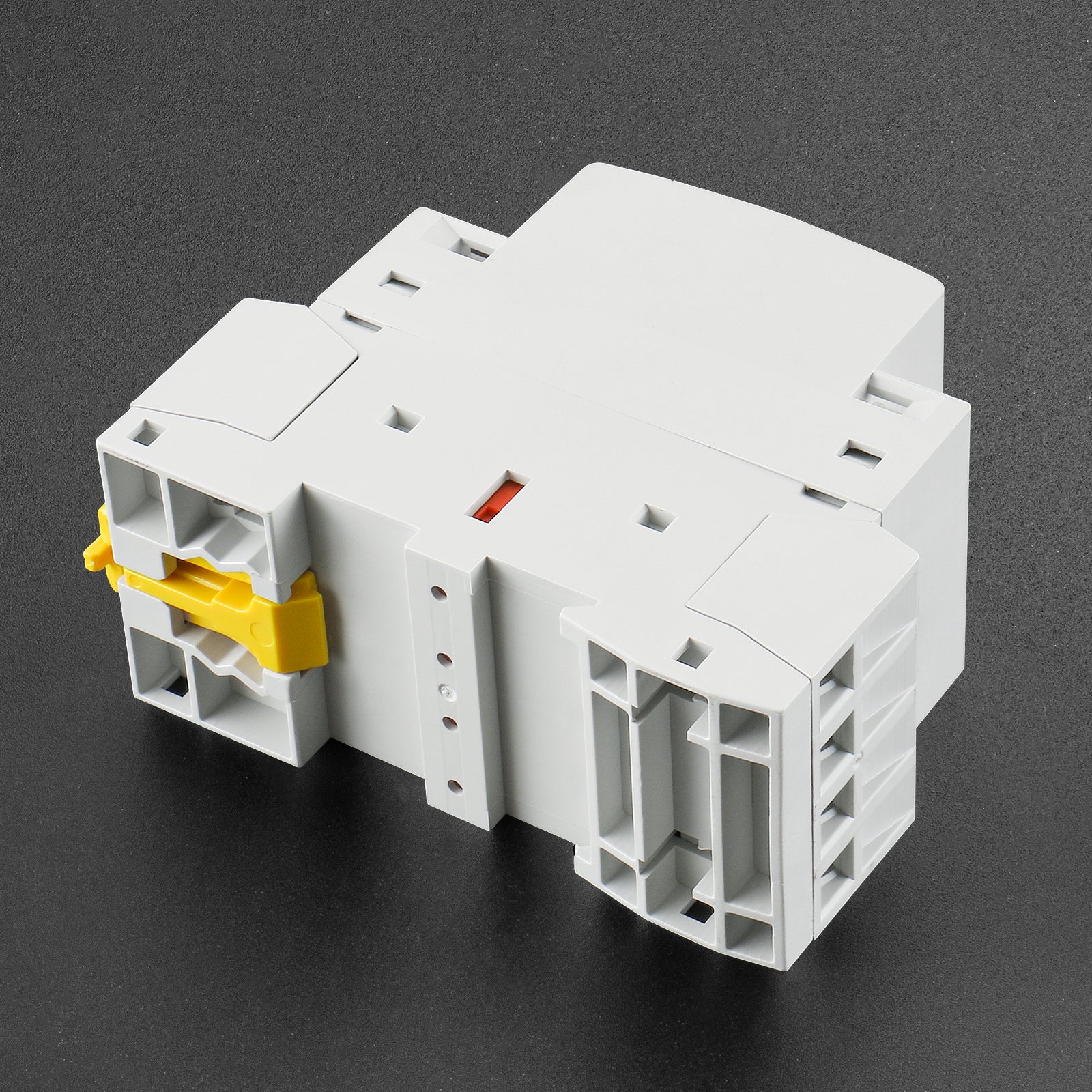

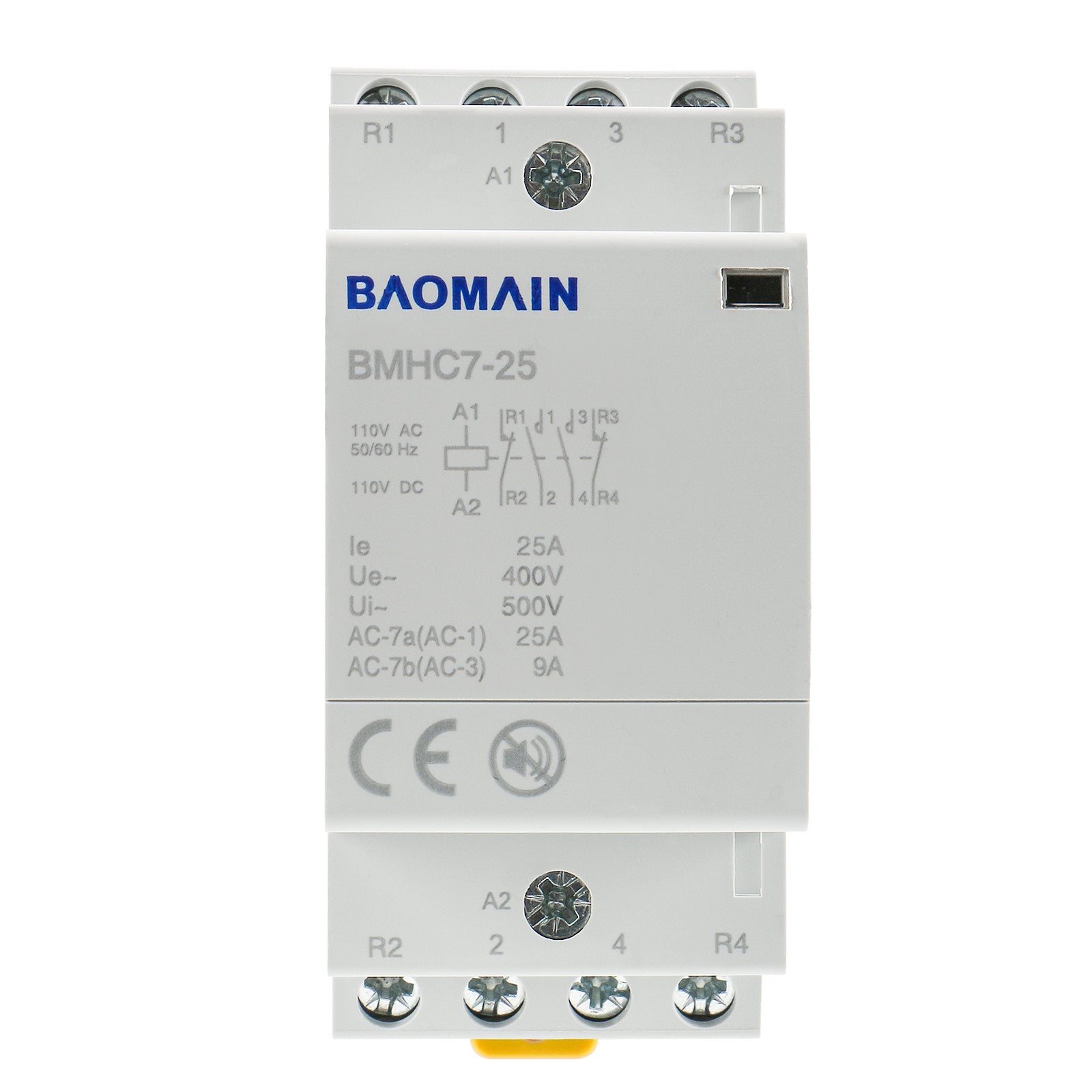

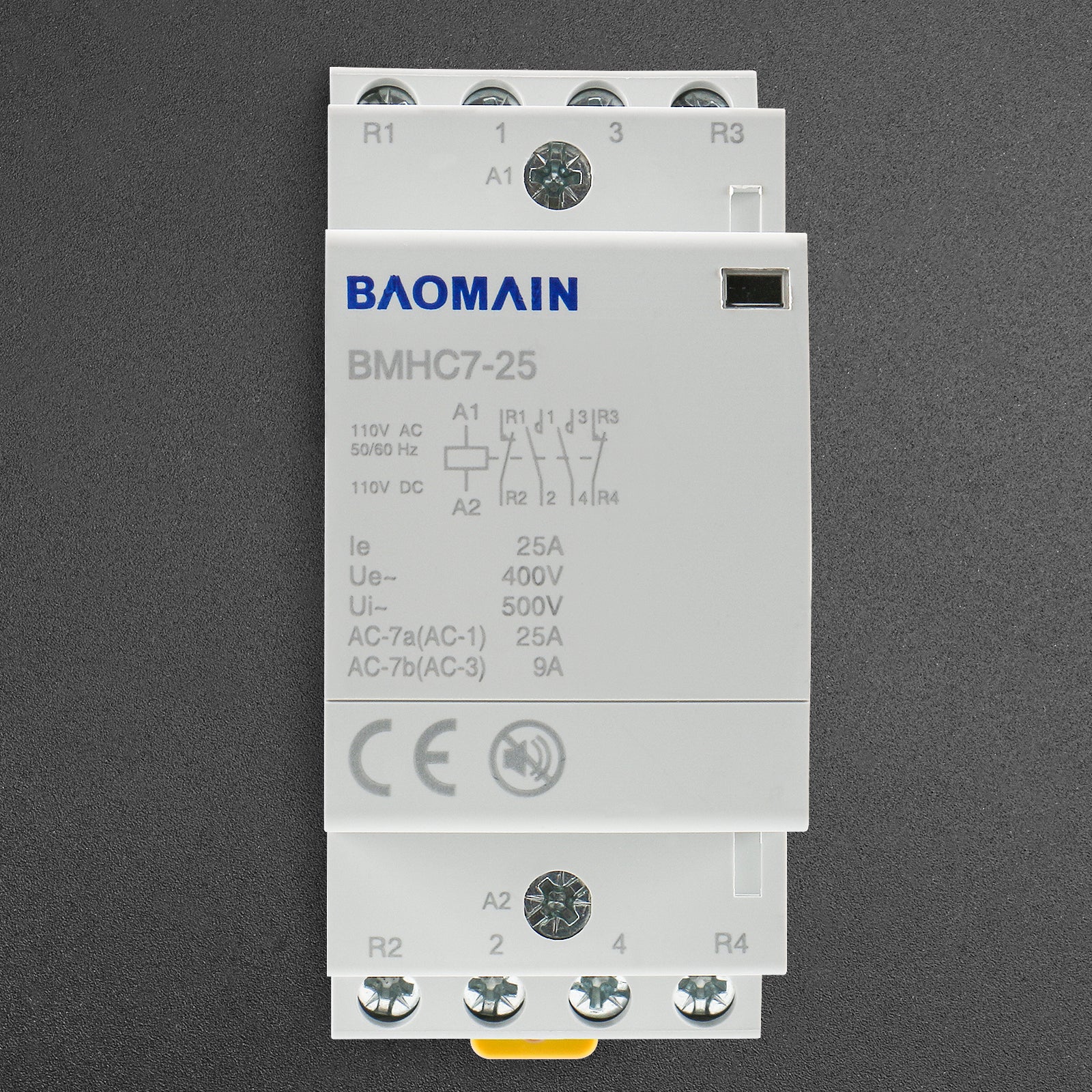

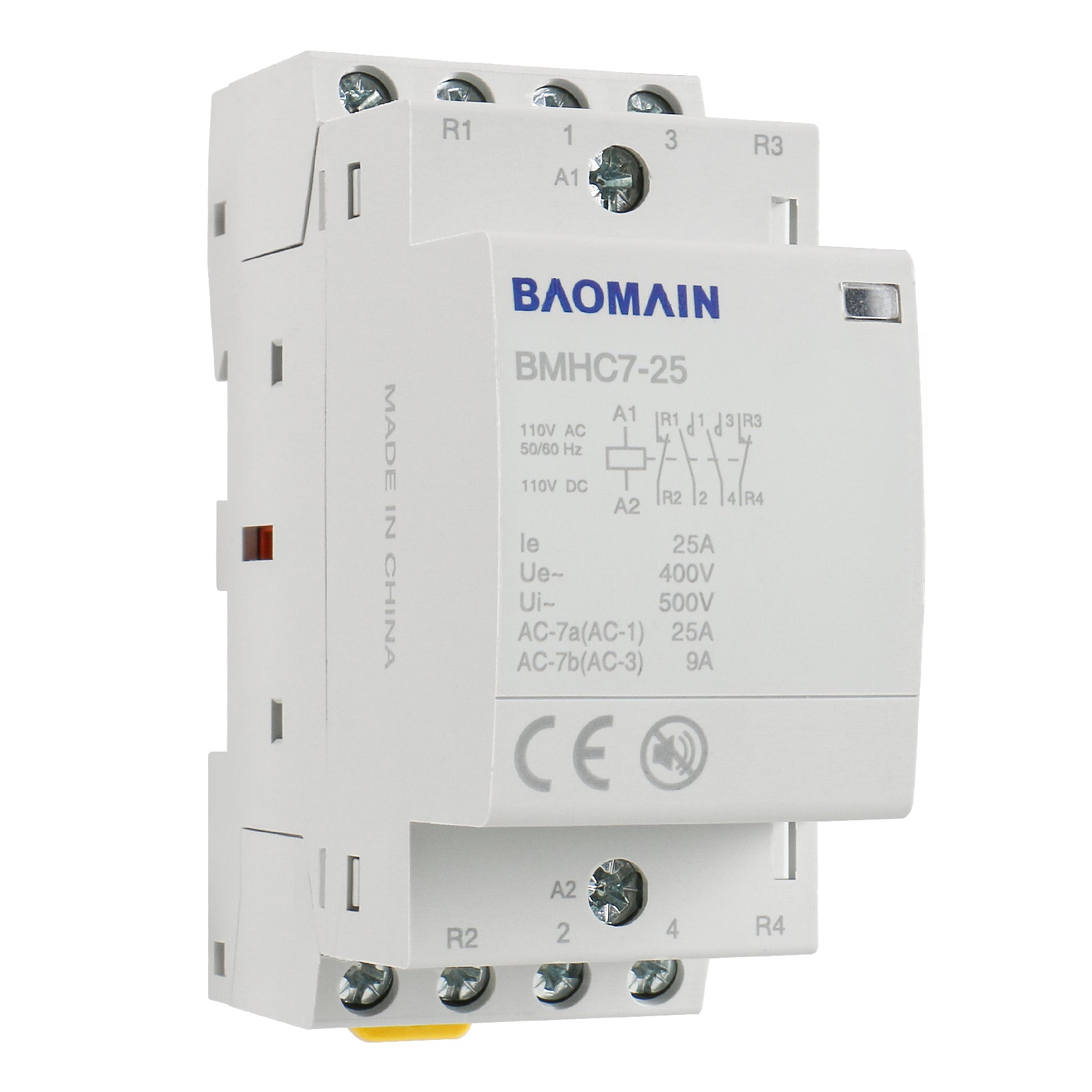

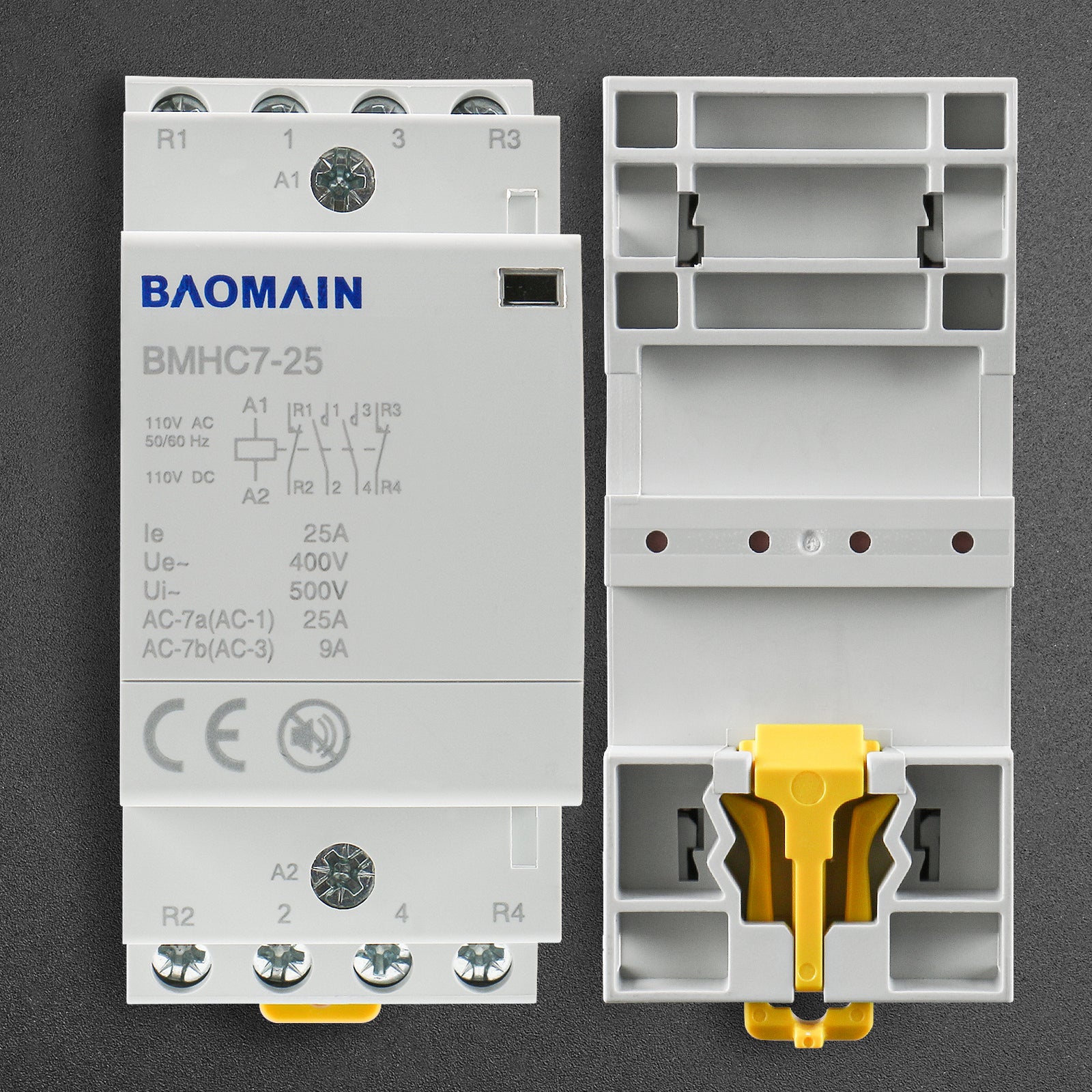

Baomain DC/AC Modular contactor 25A DC/AC12V/24V/110V/220V 4 Pole Circuit Control 35mm DIN Rail BMHC7-25

In stock
Regular price
$16.79
Sale price
$16.79
Regular price
Contact
Voltage

BMHC7 miniature automatic AC/DC contactor provides a comprehensive solution for controlling non-inductive or low-inductive loads in a variety of settings. It is a reliable and versatile choice for who looking for a high-quality contactor for their electrical control needs.



>> Please email us if there are not enough stocks in order to get the lastest lead time.

Rate:

Ui:500V ,Ue:400V

 AC-7a: 32A, AC-7b:12A

Uimp.: 2.5kV (4kV for 12/24/48VAC)
Rated Current: 32A
Max. Power: 2W
Contact: 4 Pole-4NO,4NC, 2NO 2NC,3NO 1NC
Features:  Hum-free
The frequency: 50Hz/60Hz
Operating Temperature:  -5℃~+60C
Storage Temperature:  -40℃~+70℃

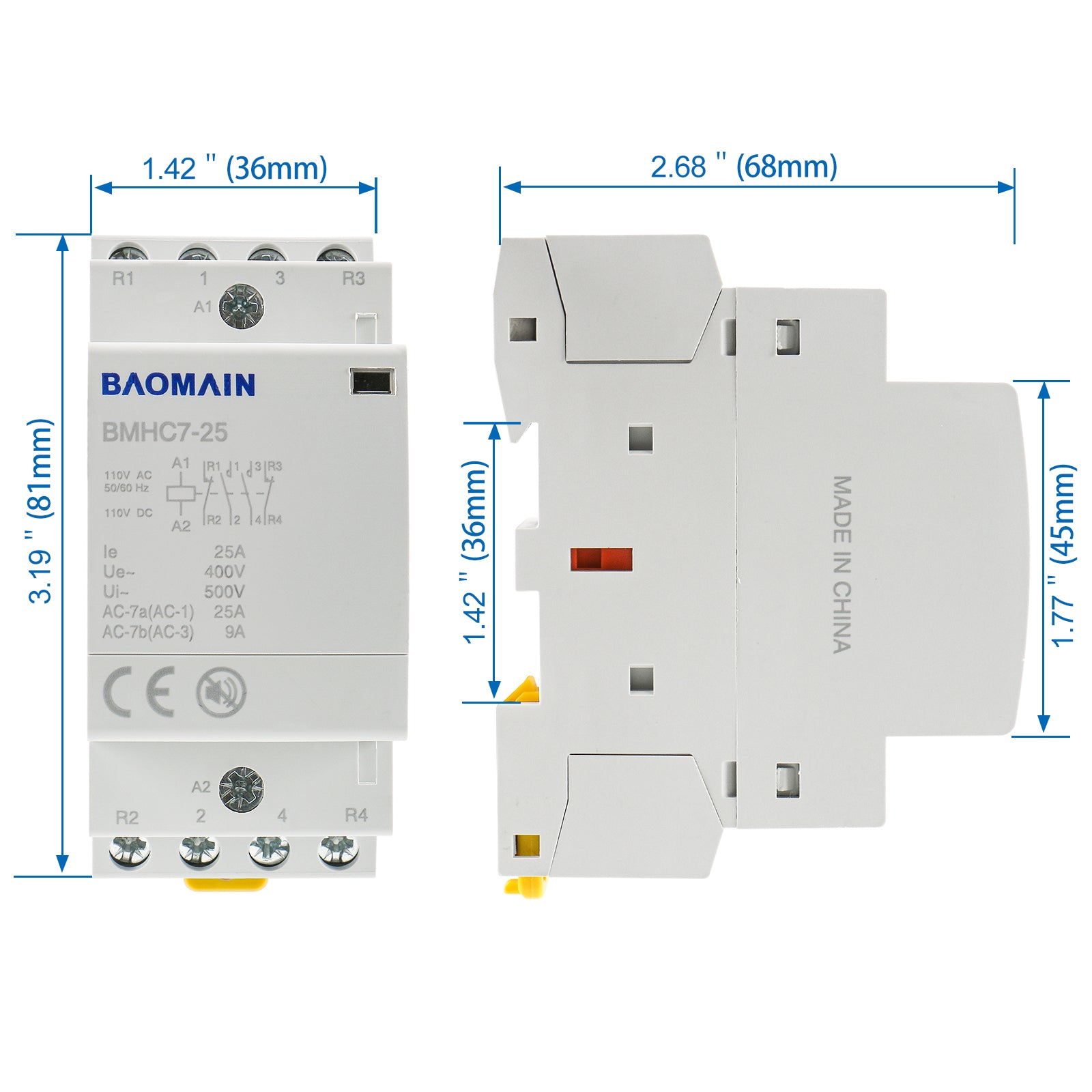

Size : 81mm*36 mm*68 mm(3.19"*1.42"*2.68")(L*W*T)
Material :  Plastic, Electronic Parts
Mechanical life :  1,000.000 cycles
Maximum number of switching operationa day : 100
Contactor body:  IP20 (Protection level)
Installed in the distribution box: IP40 (Protection level)
Pollution degree:  2
Weight :  253g
