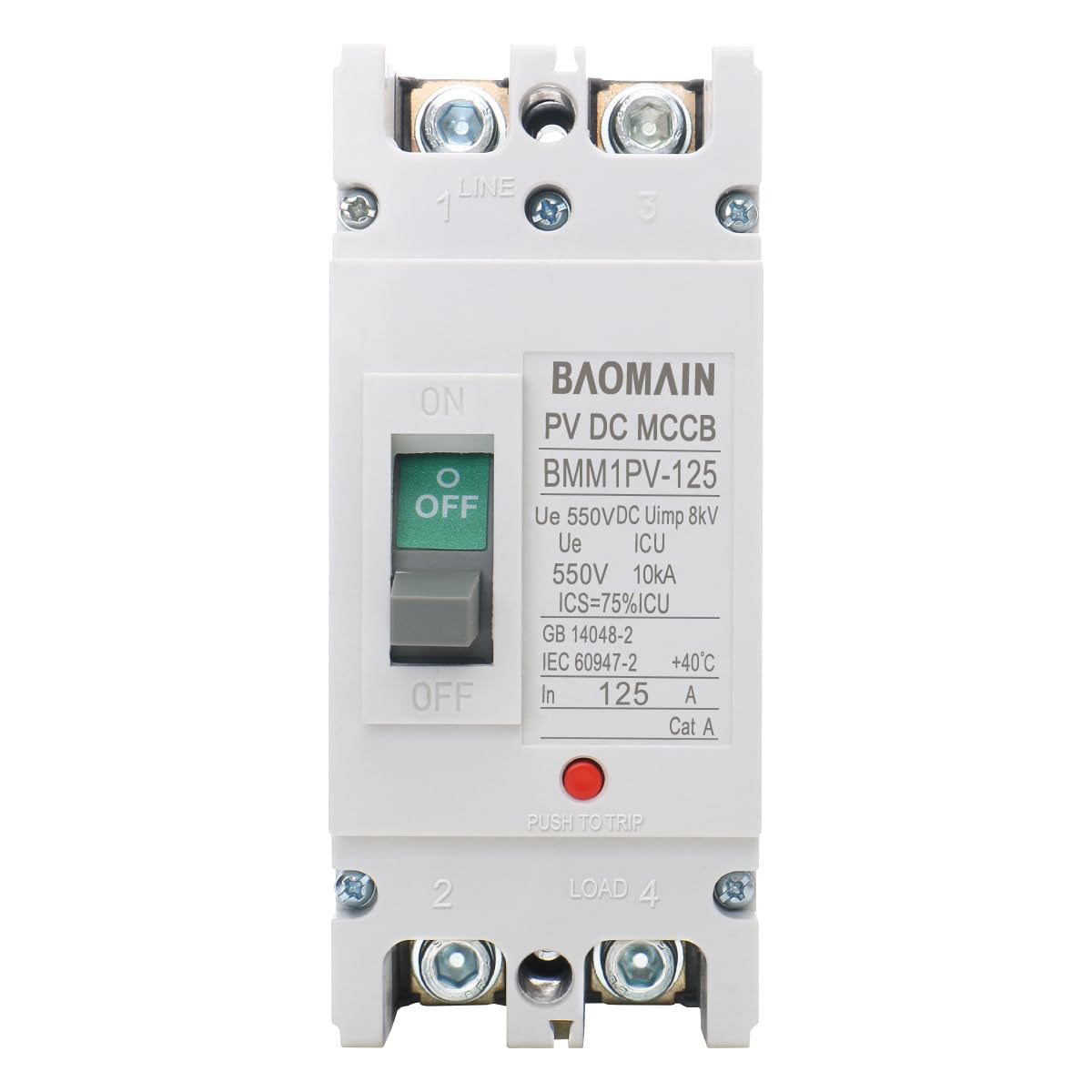

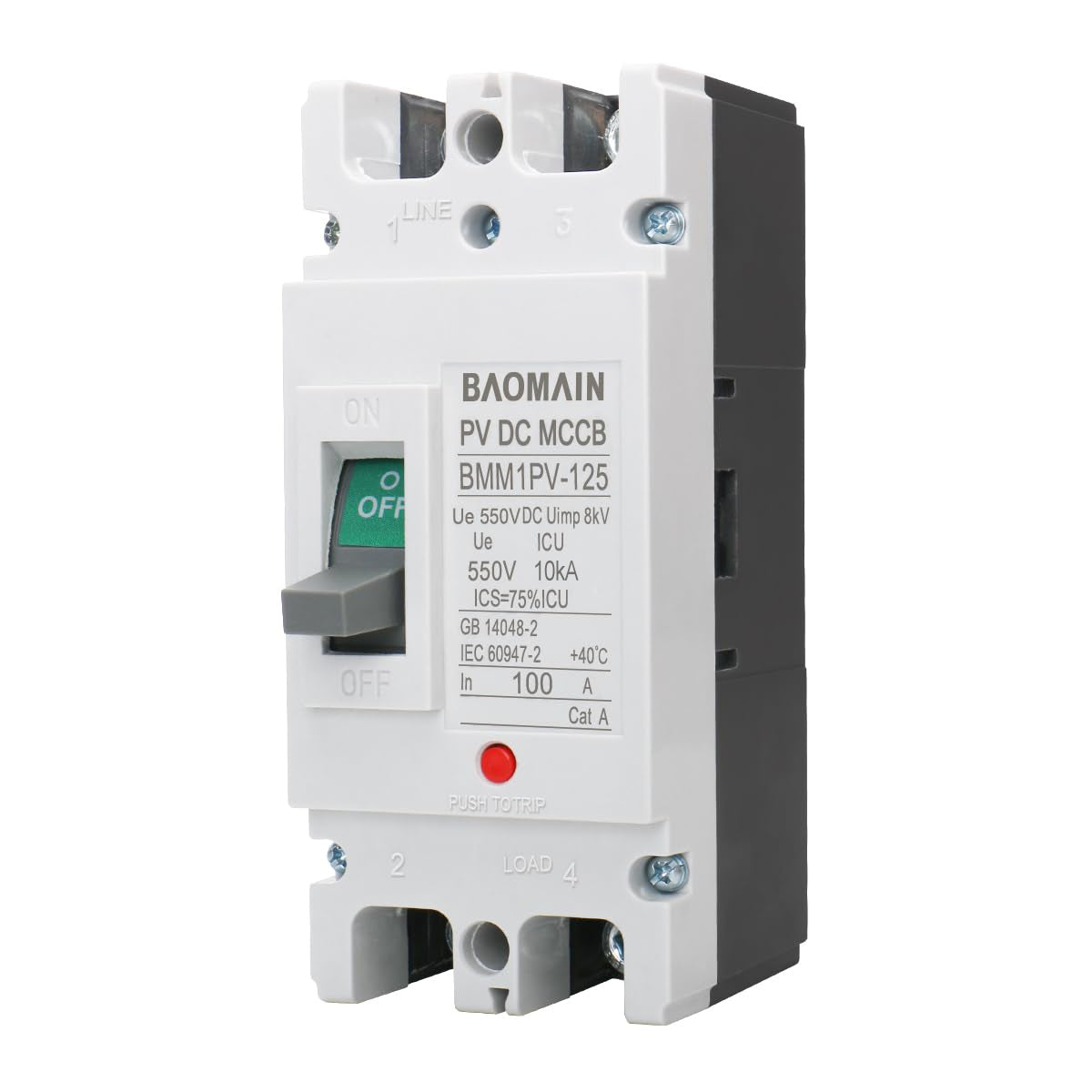

Baomain DC Circuit Breaker for Off-Grid Solar System, 63A/80A/100A/125A 2 Pole DC 550V, Moulded Case IP20 DC MCCB BMM1PV-125

Baomain DC Circuit Breaker for Off-Grid Solar System, 63A/80A/100A/125A 2 Pole DC 550V, Moulded Case IP20 DC MCCB BMM1PV-125

$36.89
Unit price per

Shipping calculated at checkout.

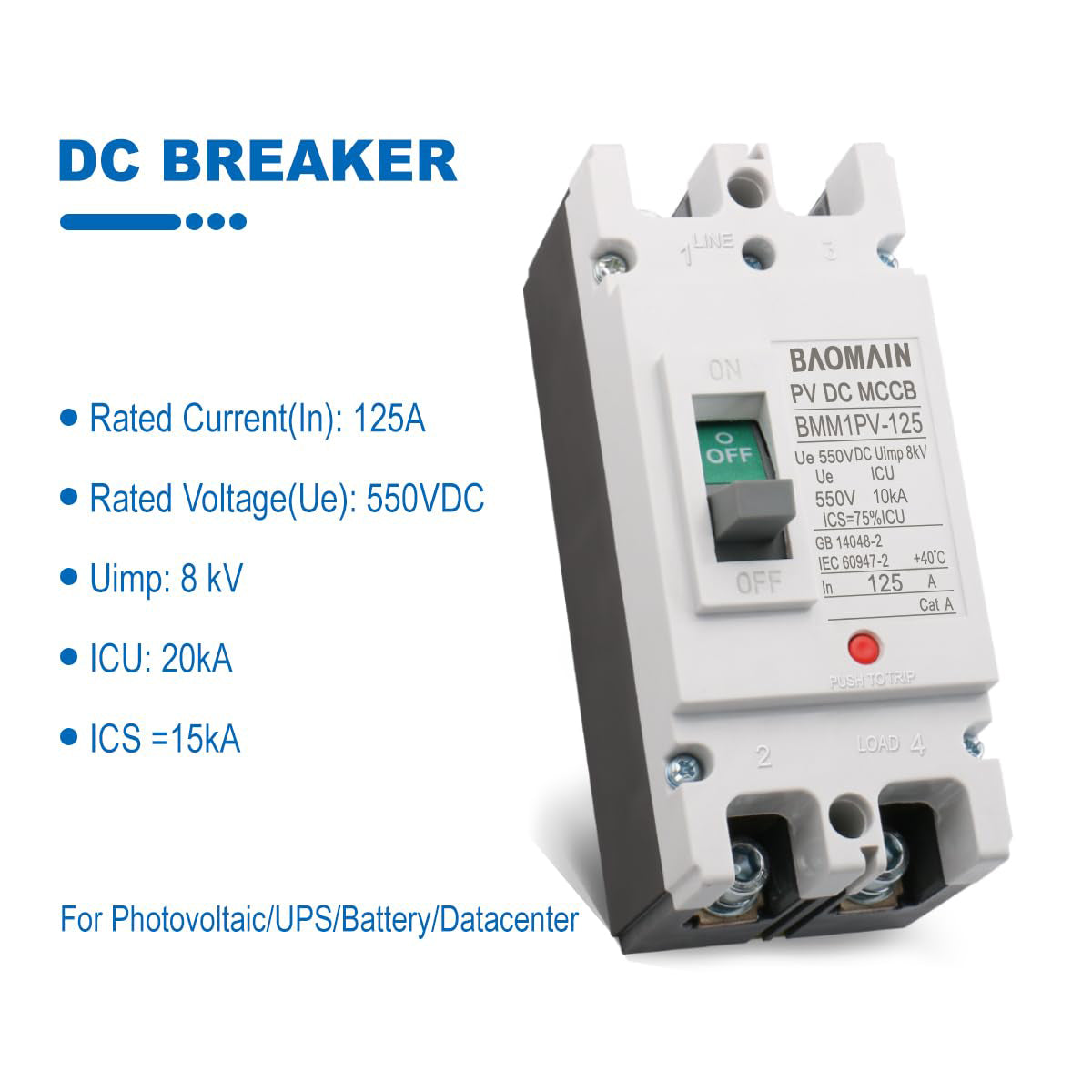

Rated Current: 63A/80A/100A/125A
Rated Voltage(Ue): 550VDC; 50/60Hz
Poles : 2 Poles
Breaking Capacity: 20kA lcu, 15kA lcs
Uimp: 8kV

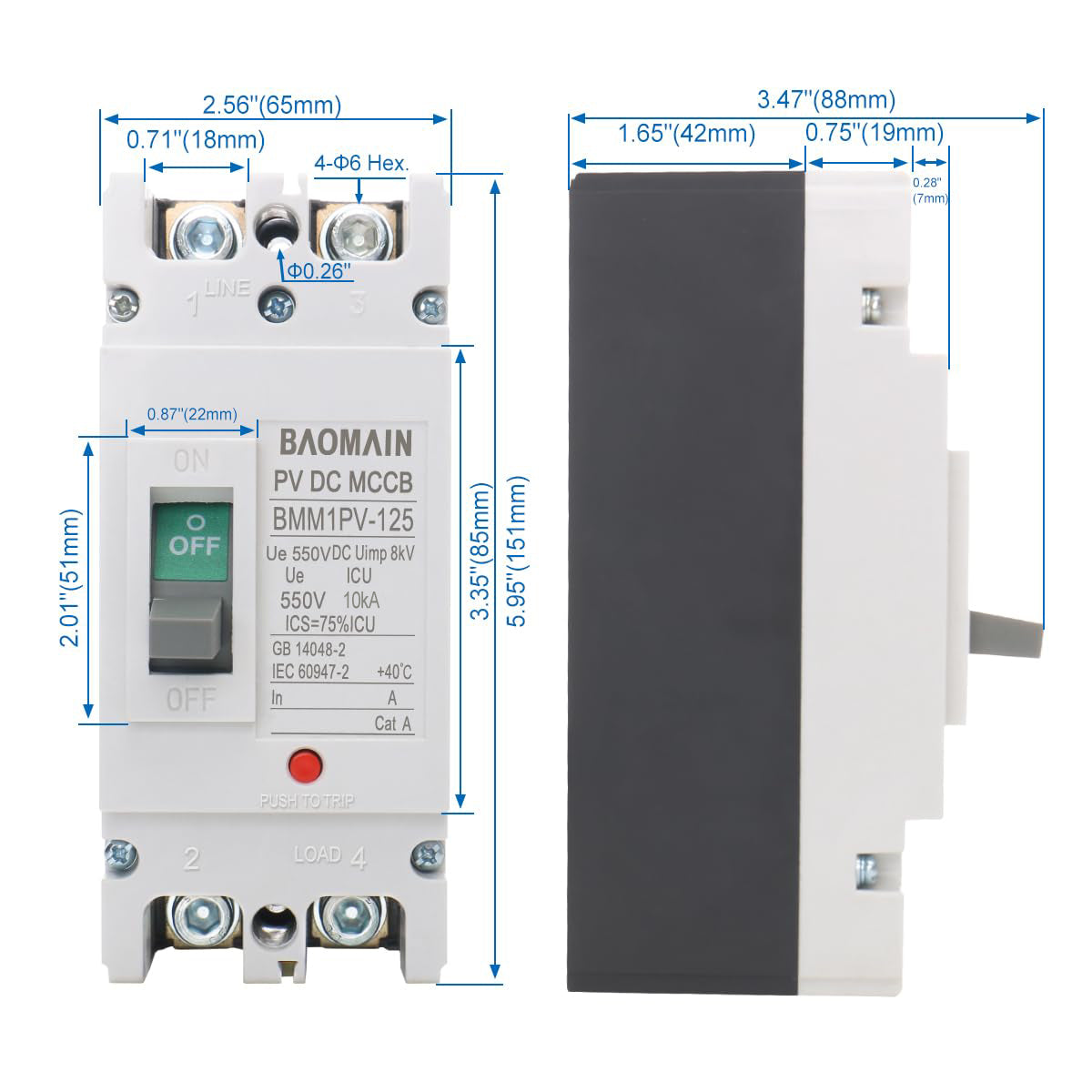

Size (Approx): 151 x 65 x 88mm / 5.95" x 2.56" x 3.47" (L*W*H )
Mounting Hole: 0.26''/ 6mm
Mount Distance: 5'' /129 mm
Weight: 940g

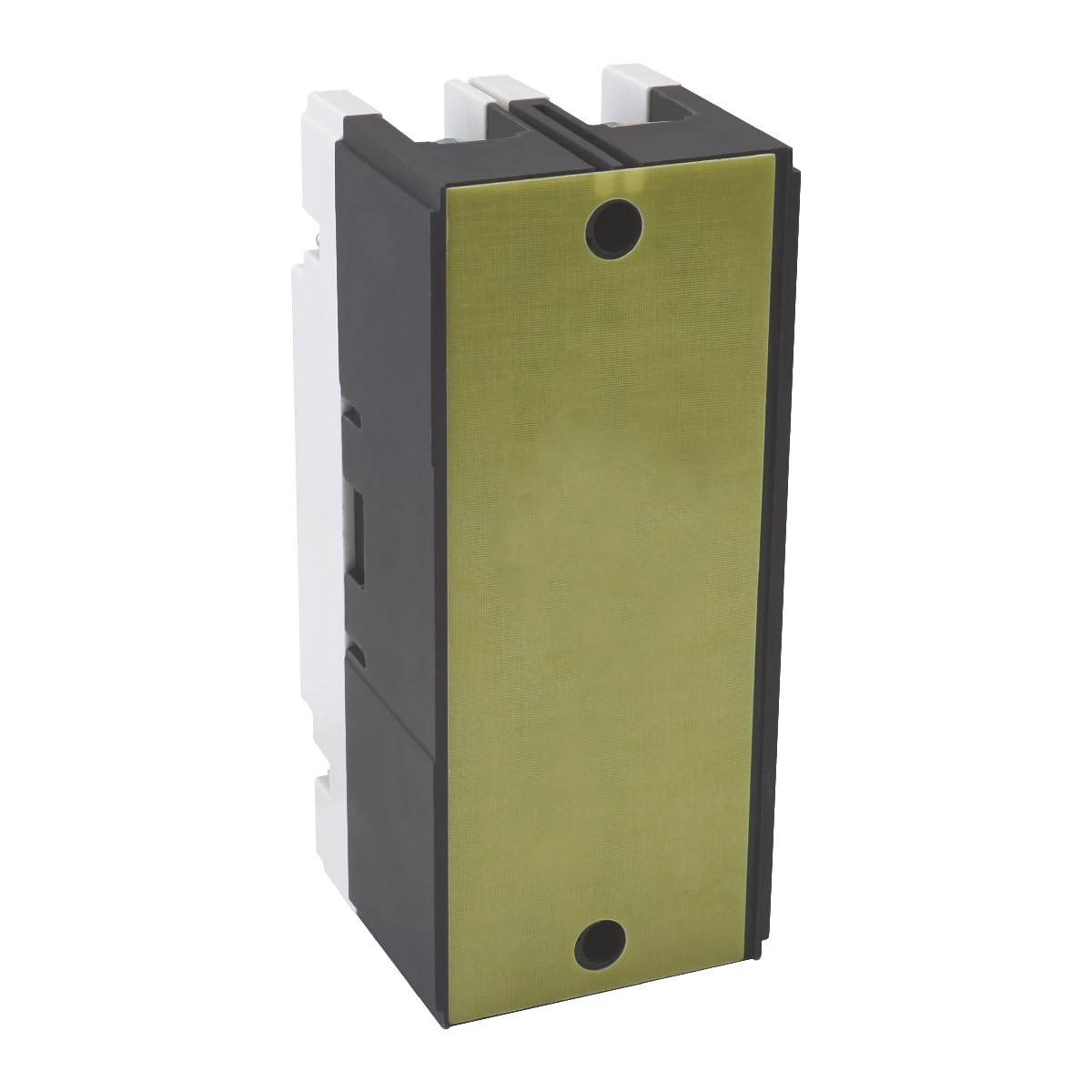

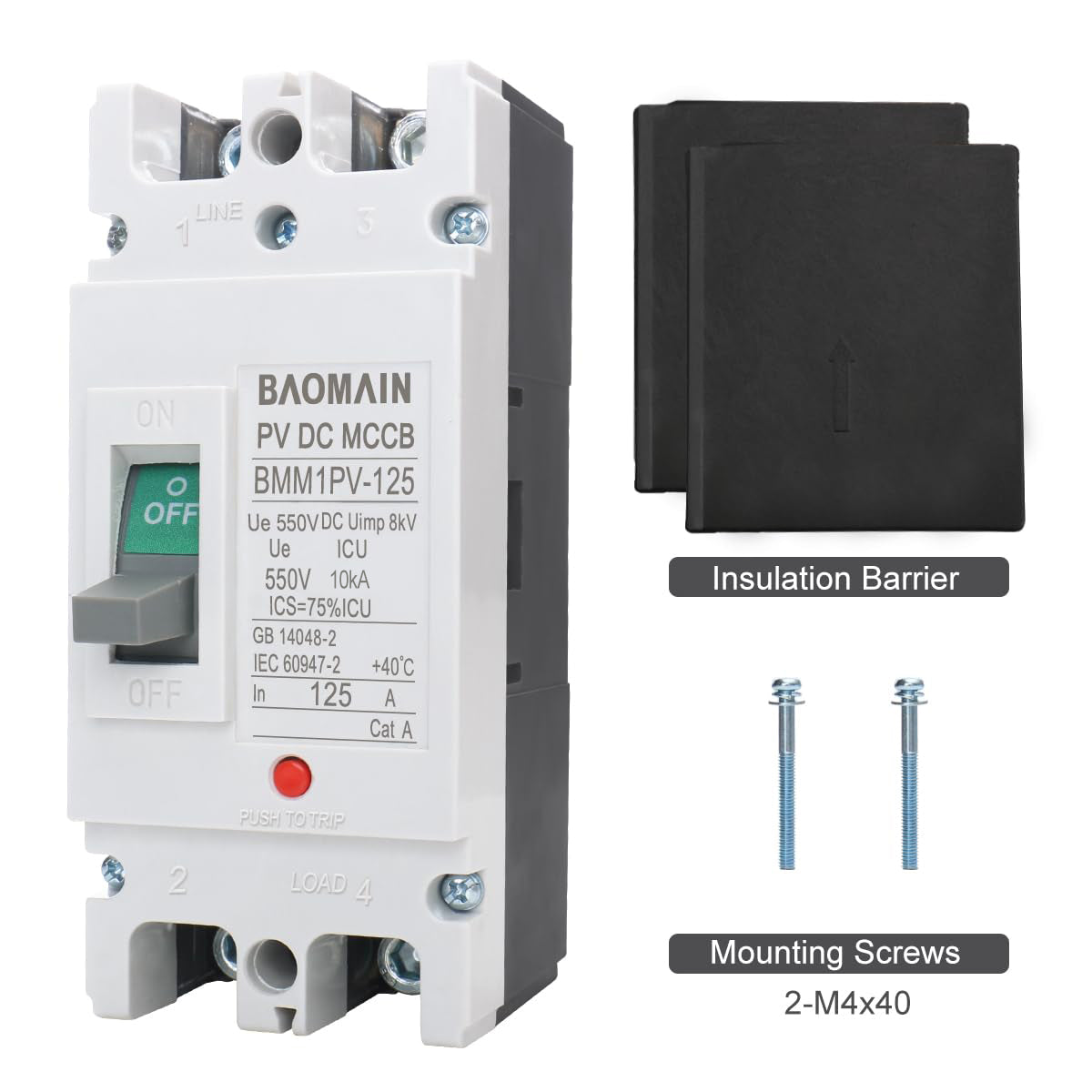

Package Content: 1 x DC Circuit Breaker, 2 x Insulation Barrier, 2 x Screws
