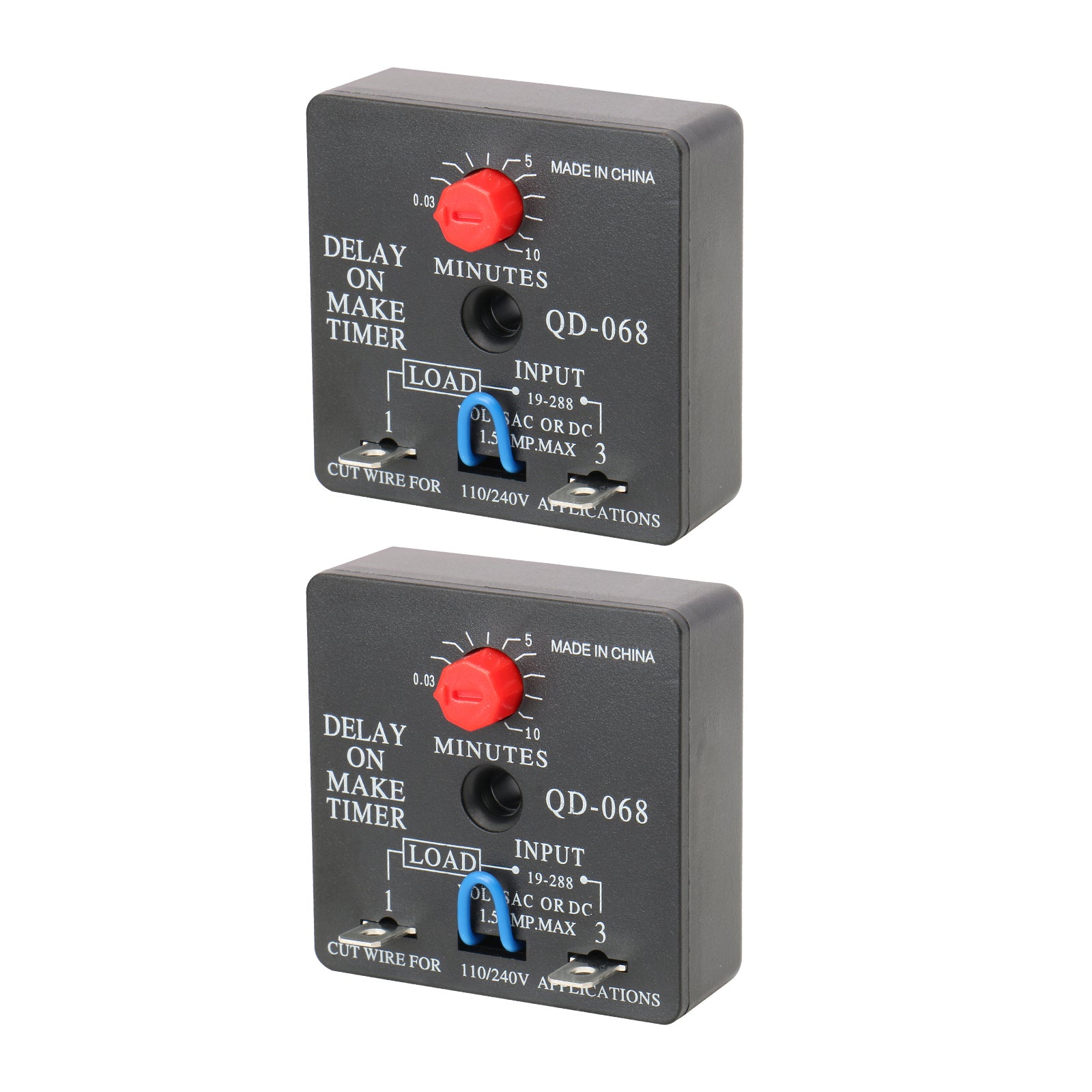

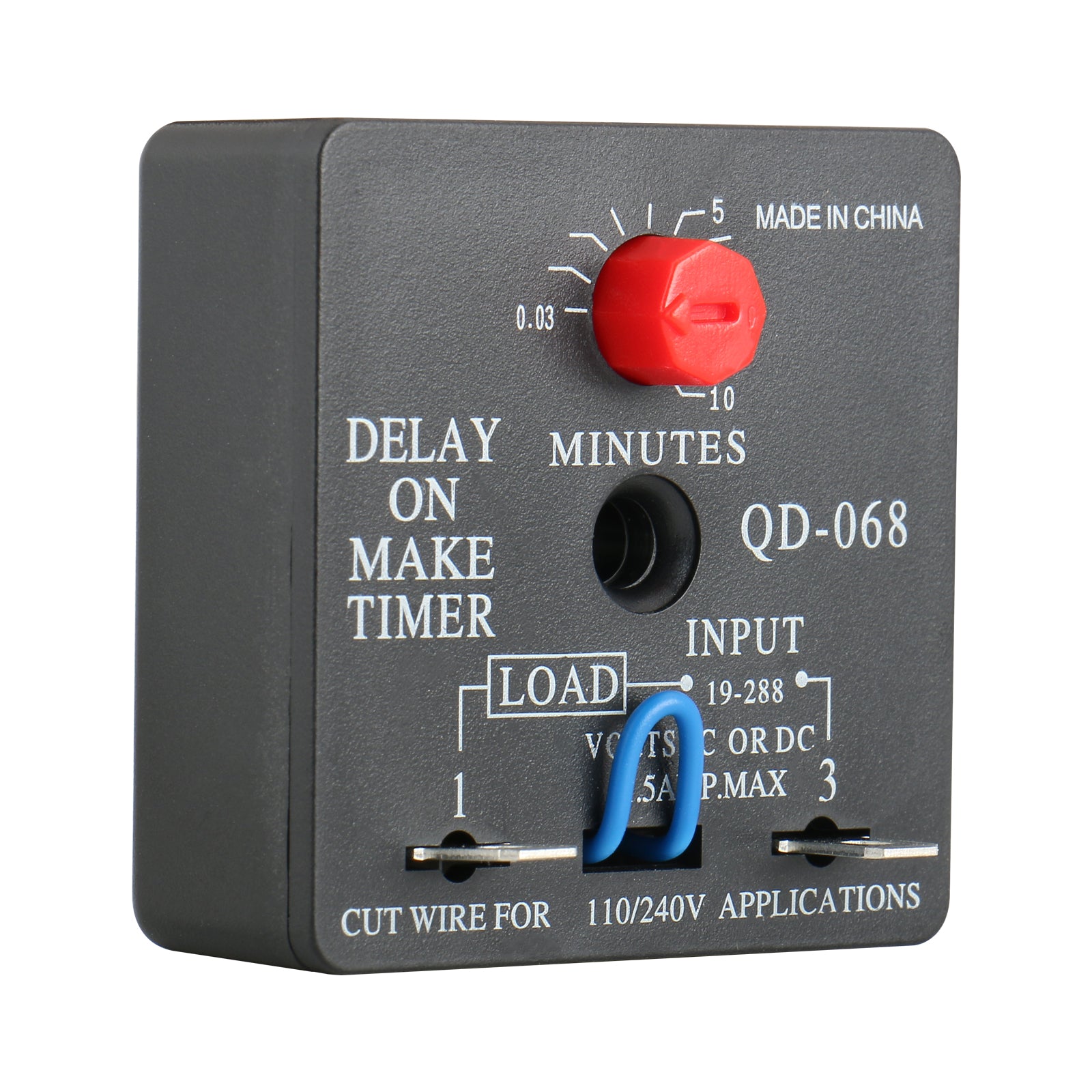

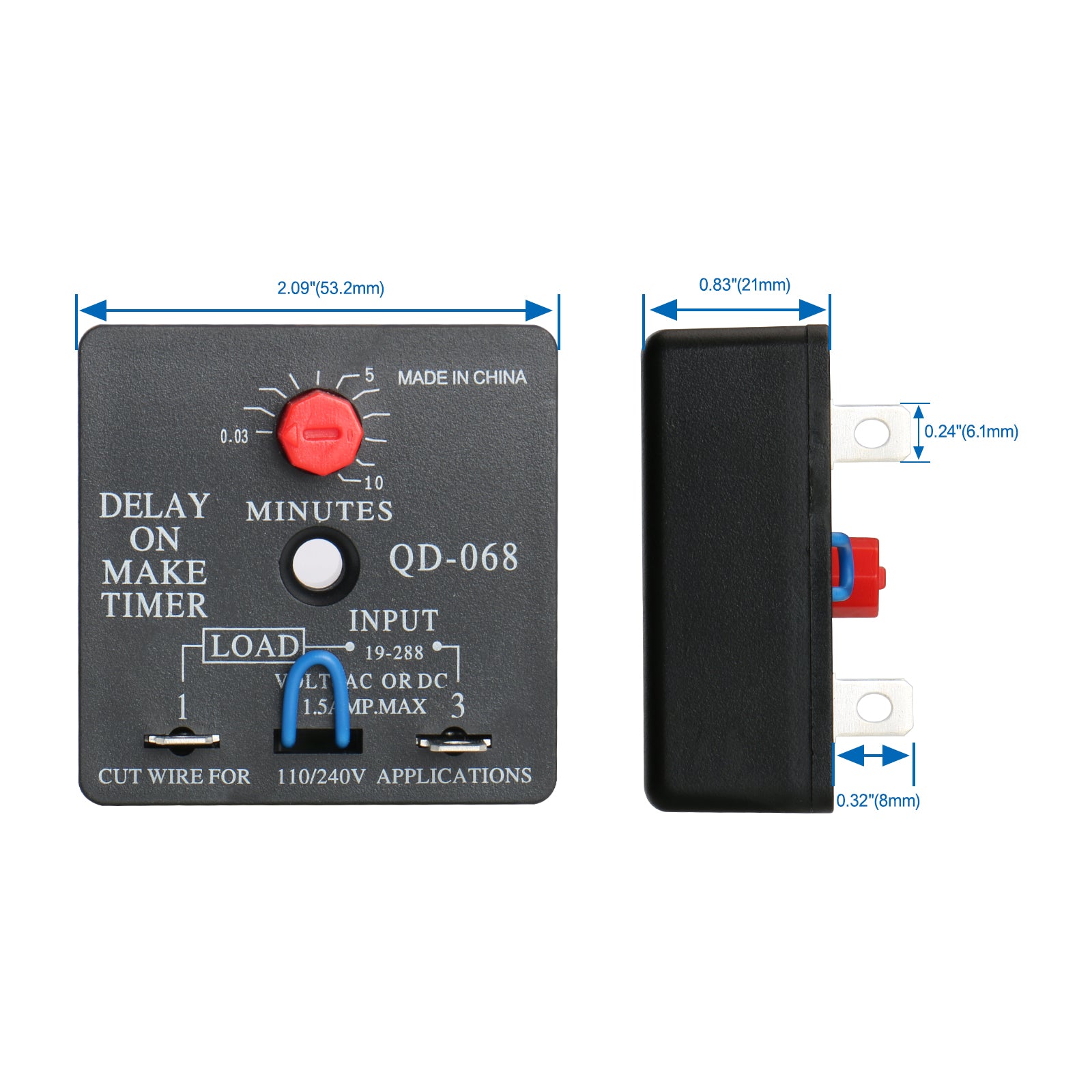

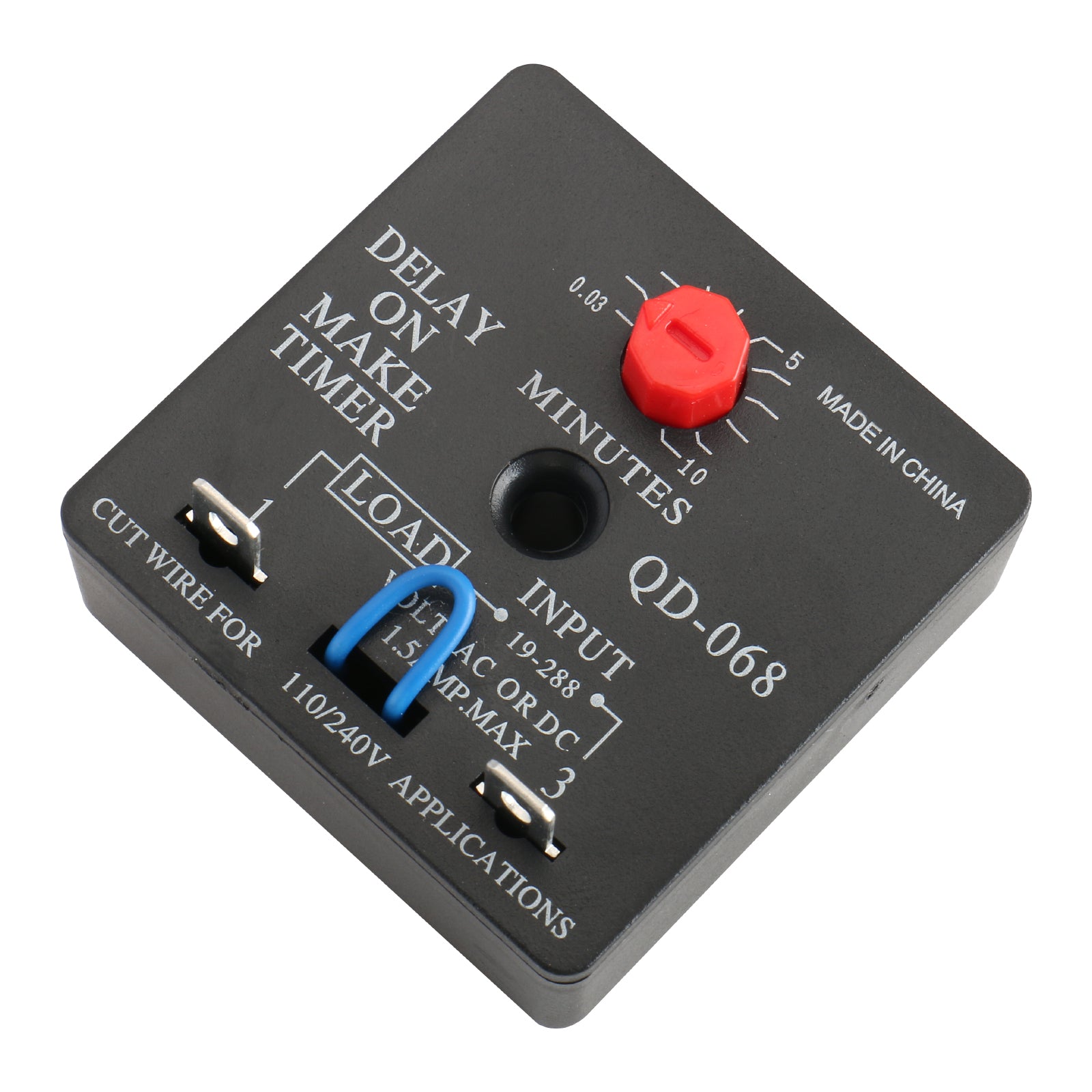

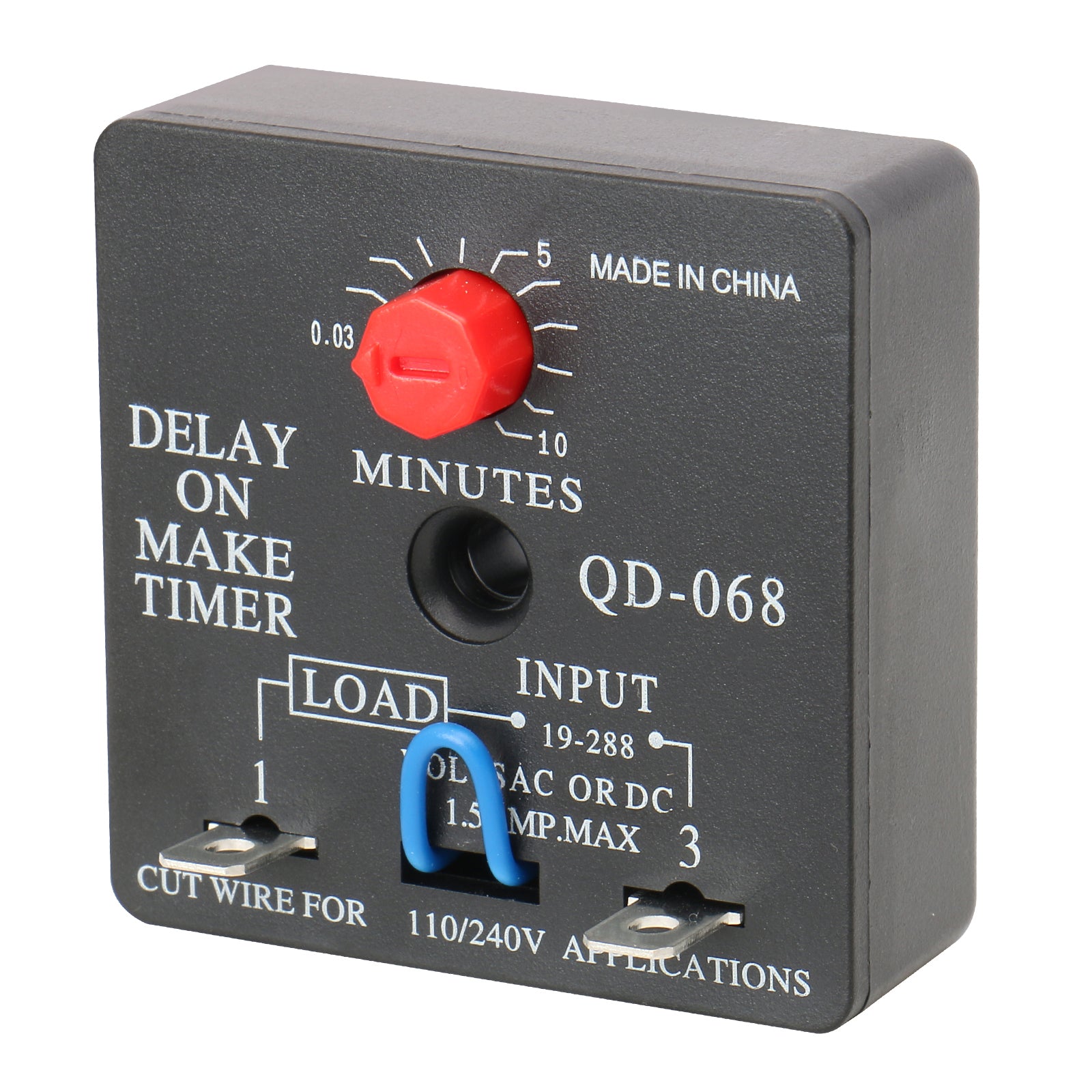

BAOMAIN Delay ON MAKE TIMER QD-068 10 minutes

  • $9.39
    Unit price per
Shipping calculated at checkout.


Diversified:    AC-800             ASC-600,601
Gemline:       1C310,1C213

Mars:            32391,32367

Robertshaw:  3310-068

Supco:          TD-68,TD-69

ICM:             102

Watsco:        EAC-701-ADJ      EAC-700-A


·Knob adjustable from .03-10 minutes

·Works with anticipator thermostats

  Line Voltage: 18-240 VAC/VDC
  Line Frequency: 50/60 HZ
  Output Ratings:
     Maximum: 1.5 amps
     Minimum: 40 mA
     Inrush: 15 amps
Time Delay: .03-10 mins. adjustable

                   3 or 5 minute fixed


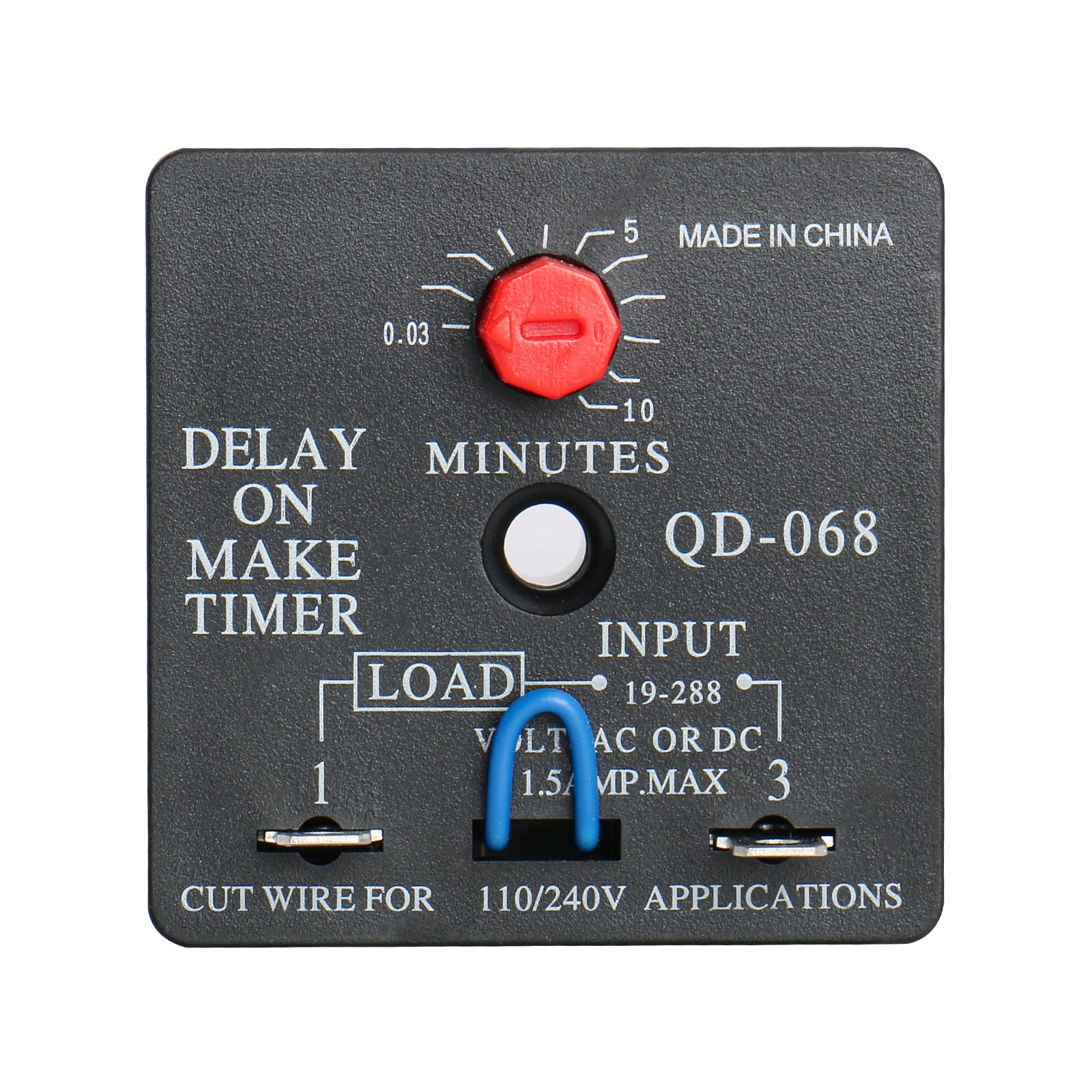

1.Disconnect power.

2.Connect terminals in series with the starting device as shown in the system diagram below.

3.For 24 VAC circuits, apply control as packaged. For 120/240 VAC circuits, cut the jumper wire.

4.Select the desired time delay.

5.Reapply power, check operation.

6.Trickle current bypass resistor T1 to T3 < 1k ohm.

Mode of Operation

When power is applied to the input, the time delay begins. After the time delay is complete,the load energizes and remains energized as long as power is applied. The control is reset by removing power during or after the time delay period.

The QD-068 provides thermostat interruption protection, even in the presence of a trickle current
