Baomain Household AC Contactor HC1-100 4 Pole 50Hz DIN Rail Mount

  • $59.99
    Unit price per
Shipping calculated at checkout.


This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

  • Rating: AC24V/110V/220V, 50Hz
  • Max. Power: 4.2W
  • Rated Current(Ith): 100A; Ui : 500V; Ue: 400V
  • Contact: 4 Pole;
  • Type: 4NO,4NC,2NO 2NC,3NO 1NC

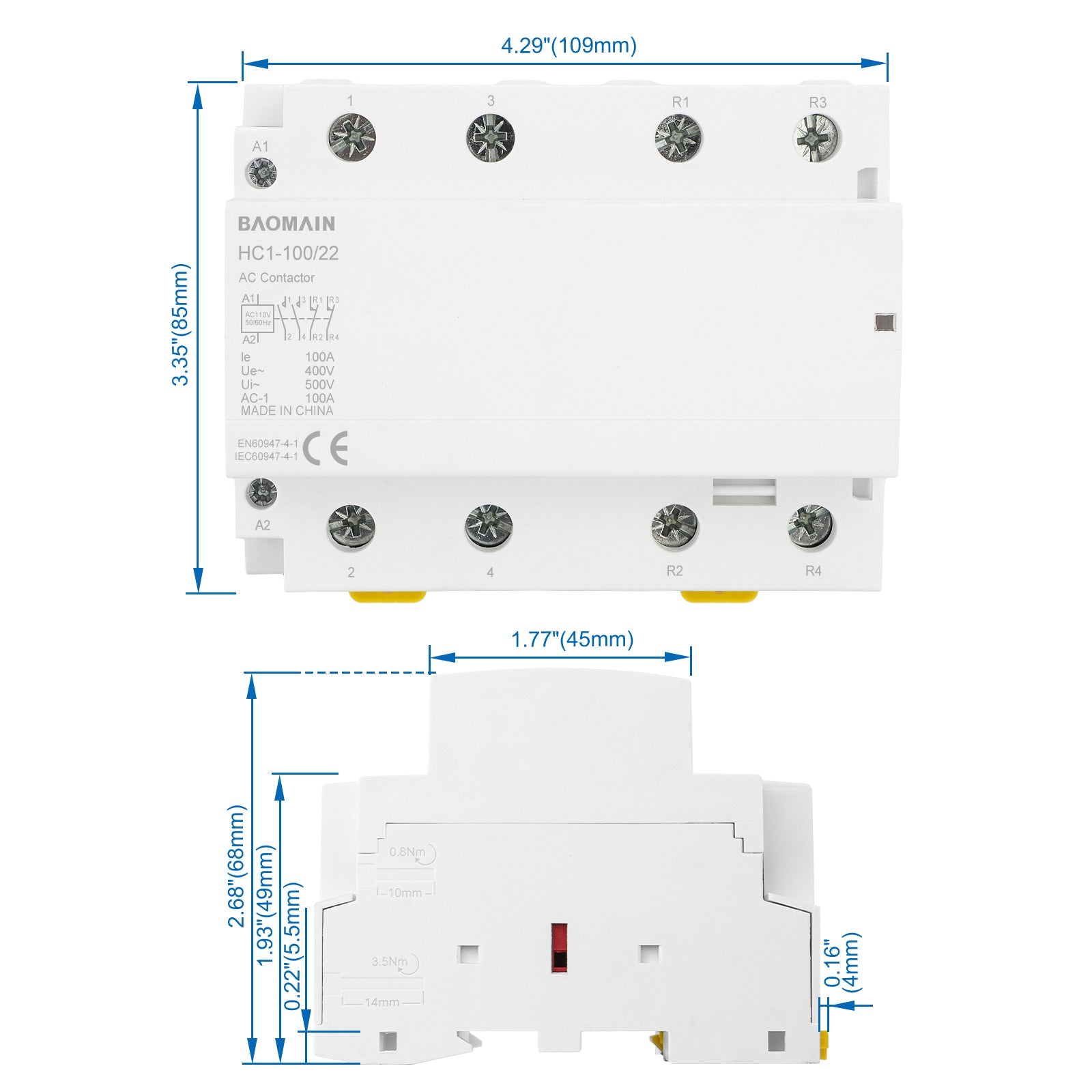

  • Size: 110 x 91 x 69mm / 4.3" x 3.58" x 2.7"(L*W*H)
  • Mounting Type: 35mm DIN Rail Mount
  • Weight: 350g
  • Power Lug Terminal Capacity AWG # 2/0
