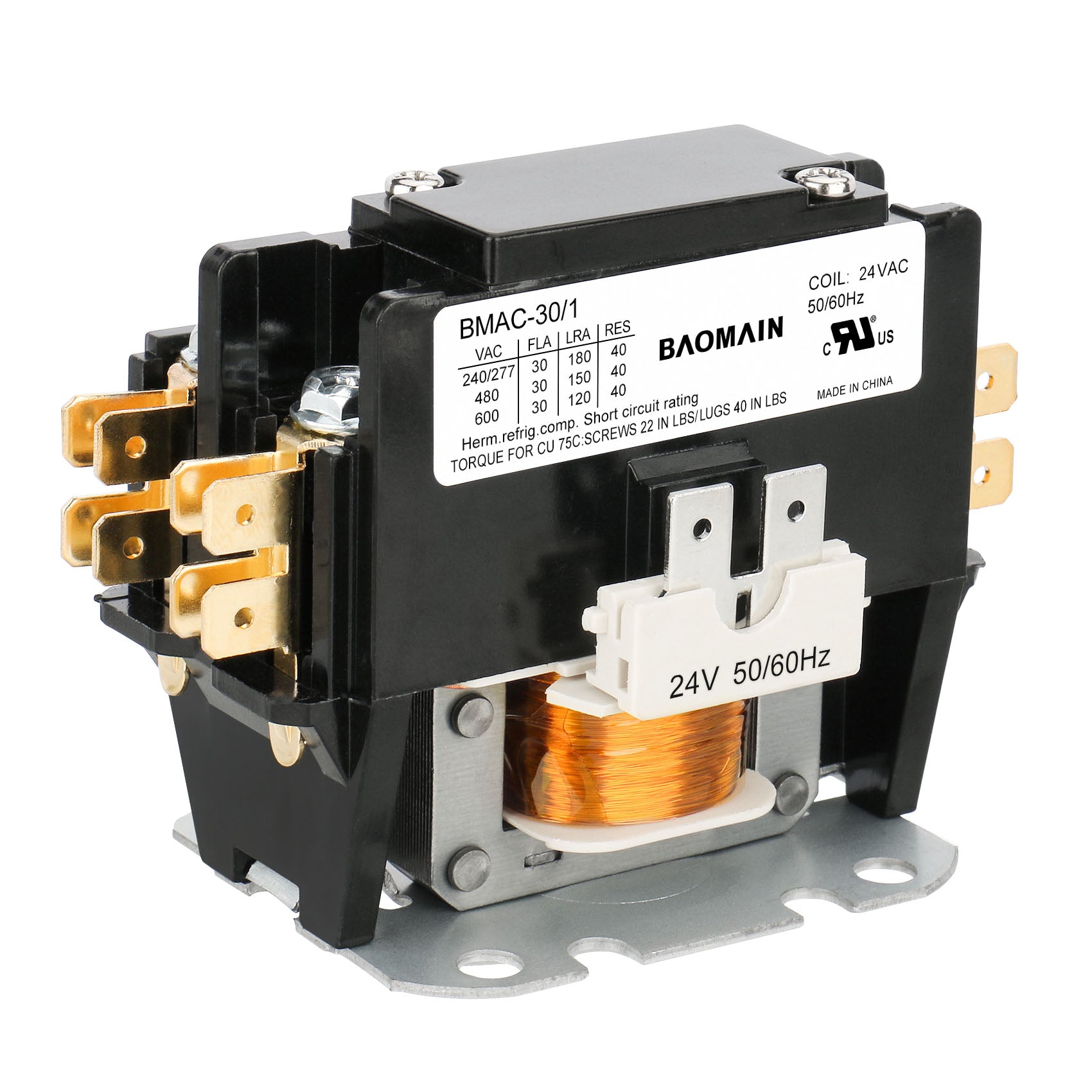

Baomain HVAC AC Contactor, BMAC-30/1 AC 24V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
100 In Stock
- Regular price
- $10.99
- Sale price
- $10.99
- Regular price
-
| Product Type | HVAC AC Contactor |
| Poles | 1P (Single) |
| Rated Current (FLA) | 30 Amp |
| Resistive (RES) | 40 Amps |
| Locked Rotor Amps (LRA) | 180/150/120 |
| Coil Voltage | 24VAC |
| AC Frequency | 50/60 Hz |
| Max.Withstand Voltage | 600 VAC |
| Terminal Size | 1/4 Inch |
| Line & Load Terminals | Screw #10-32 |
| Recommended Wire Size | Screw 16-8*AWG |
| Recommended Tightening Torque | Screw 22 In. lbs |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 250,000 Times |
| Temperature Range | -40°F~150°F |
| Certification |
UL, CE |

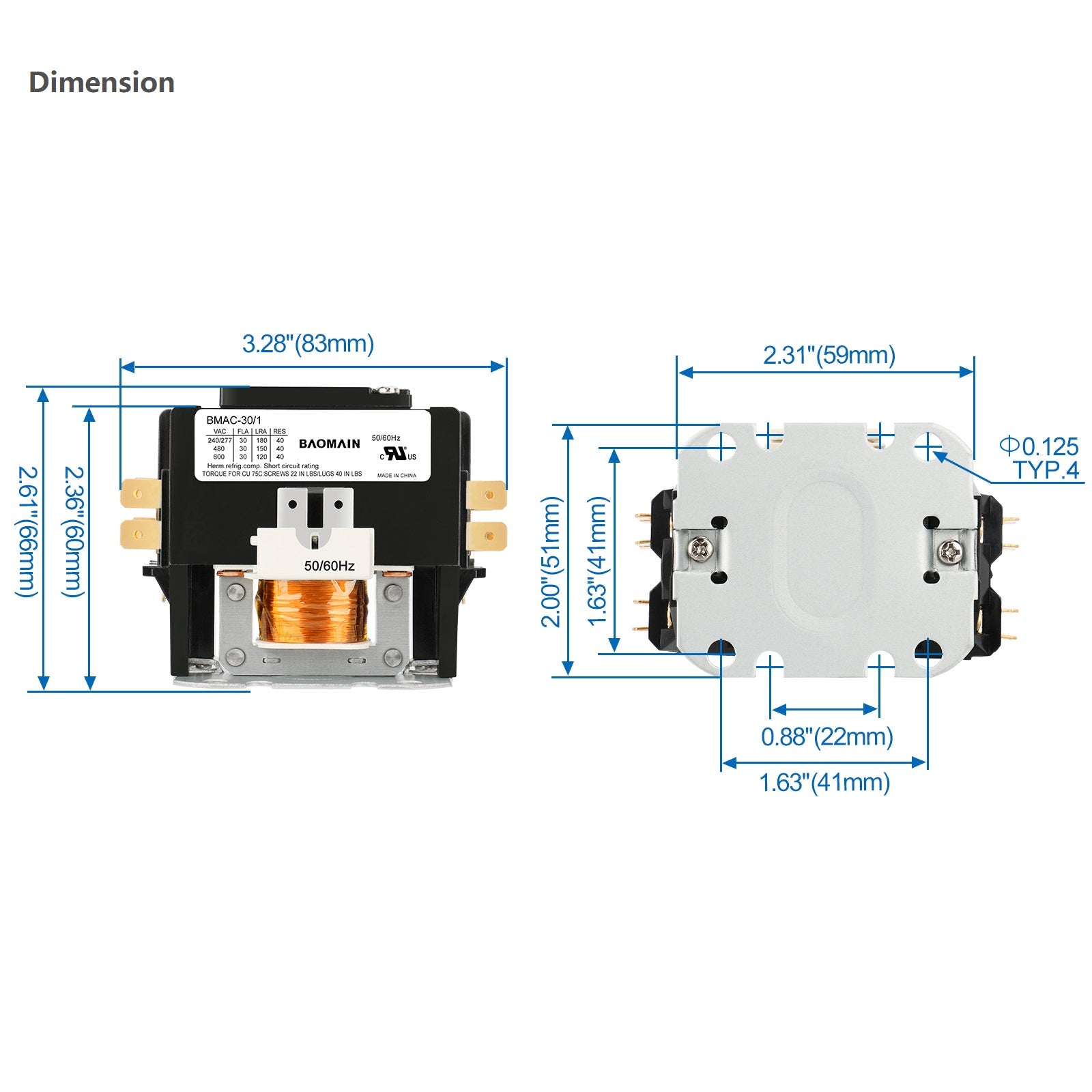

- Size: 84 x 51 x 66 mm / 3.3'' x 2.0'' x 2.6'' (LxWxH)
Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
