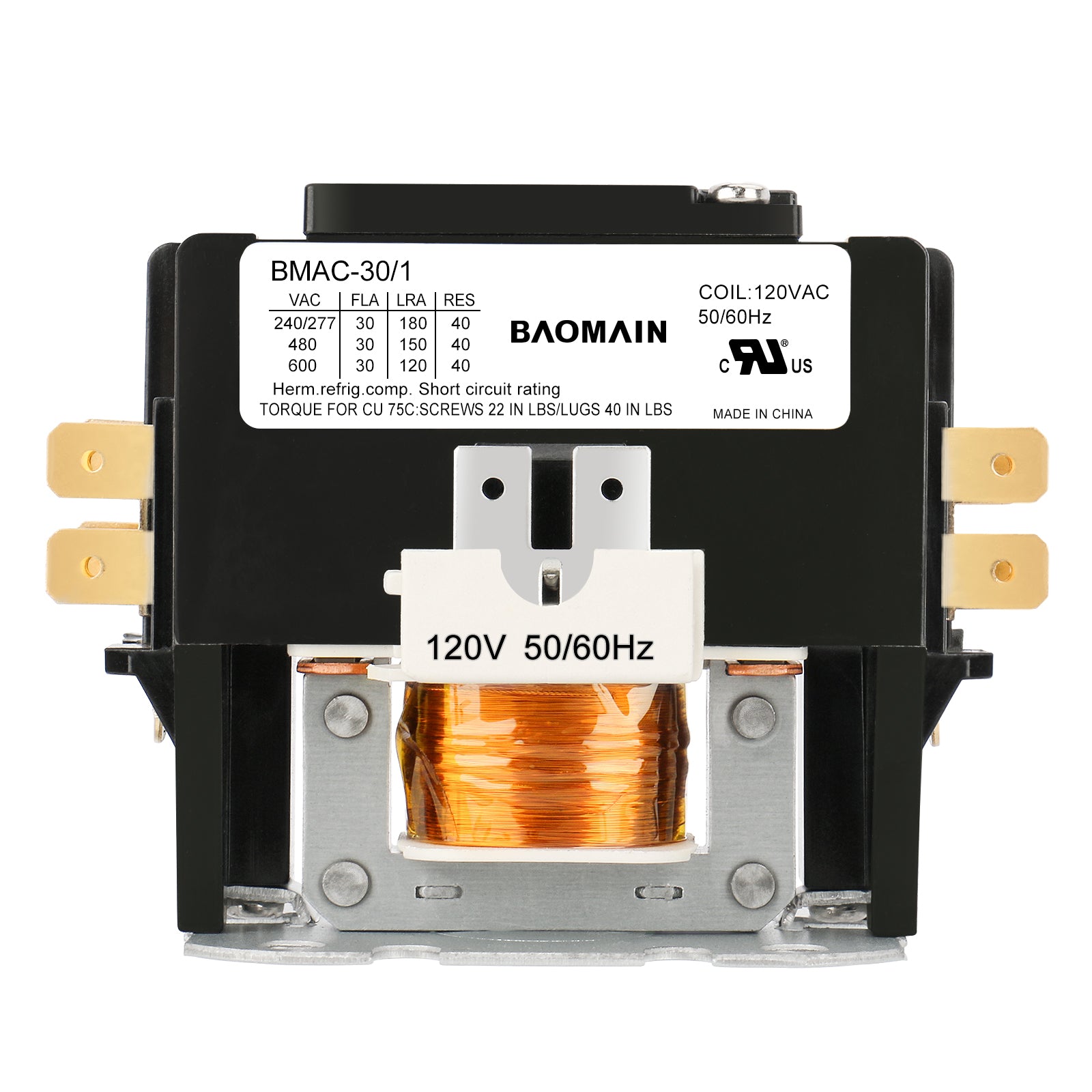

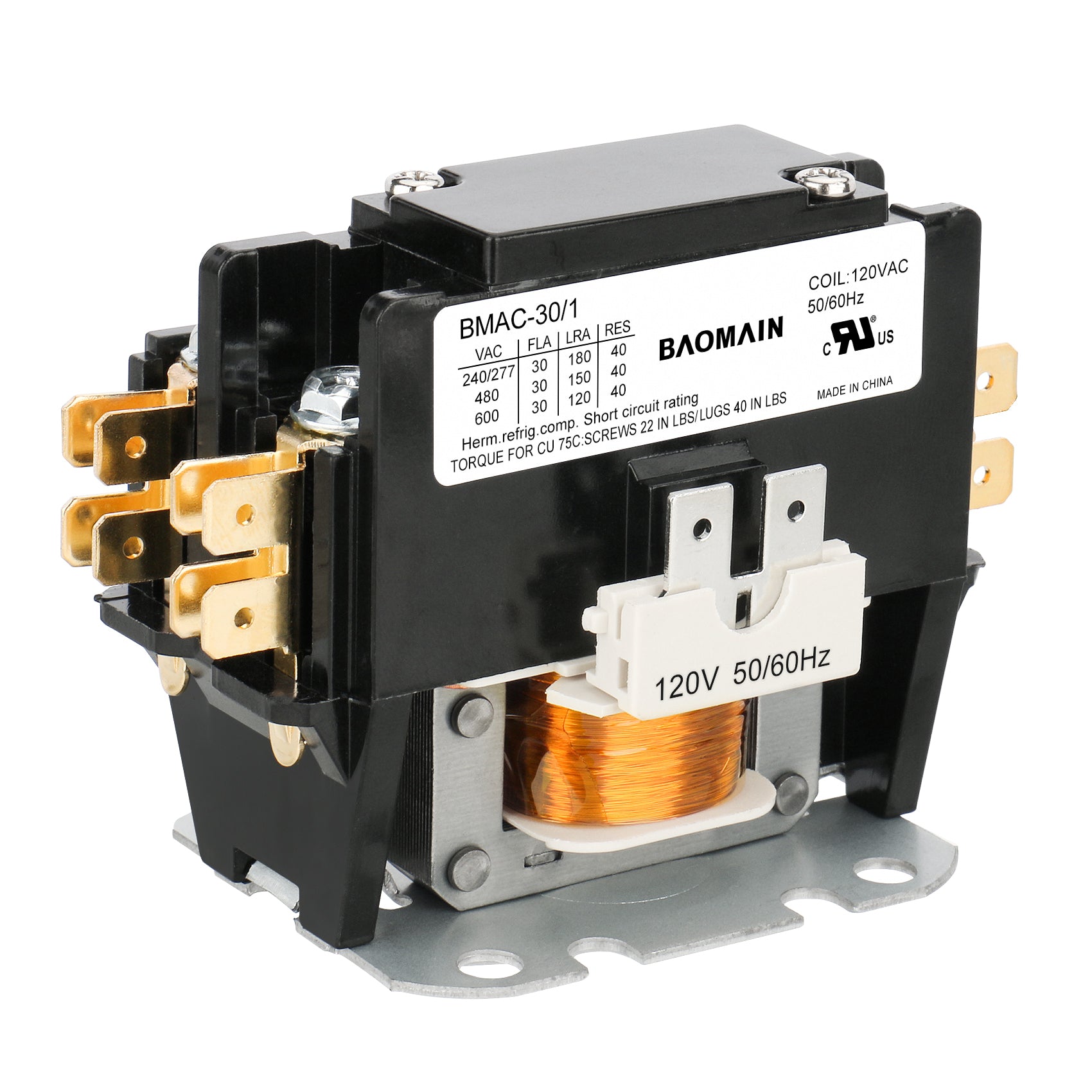

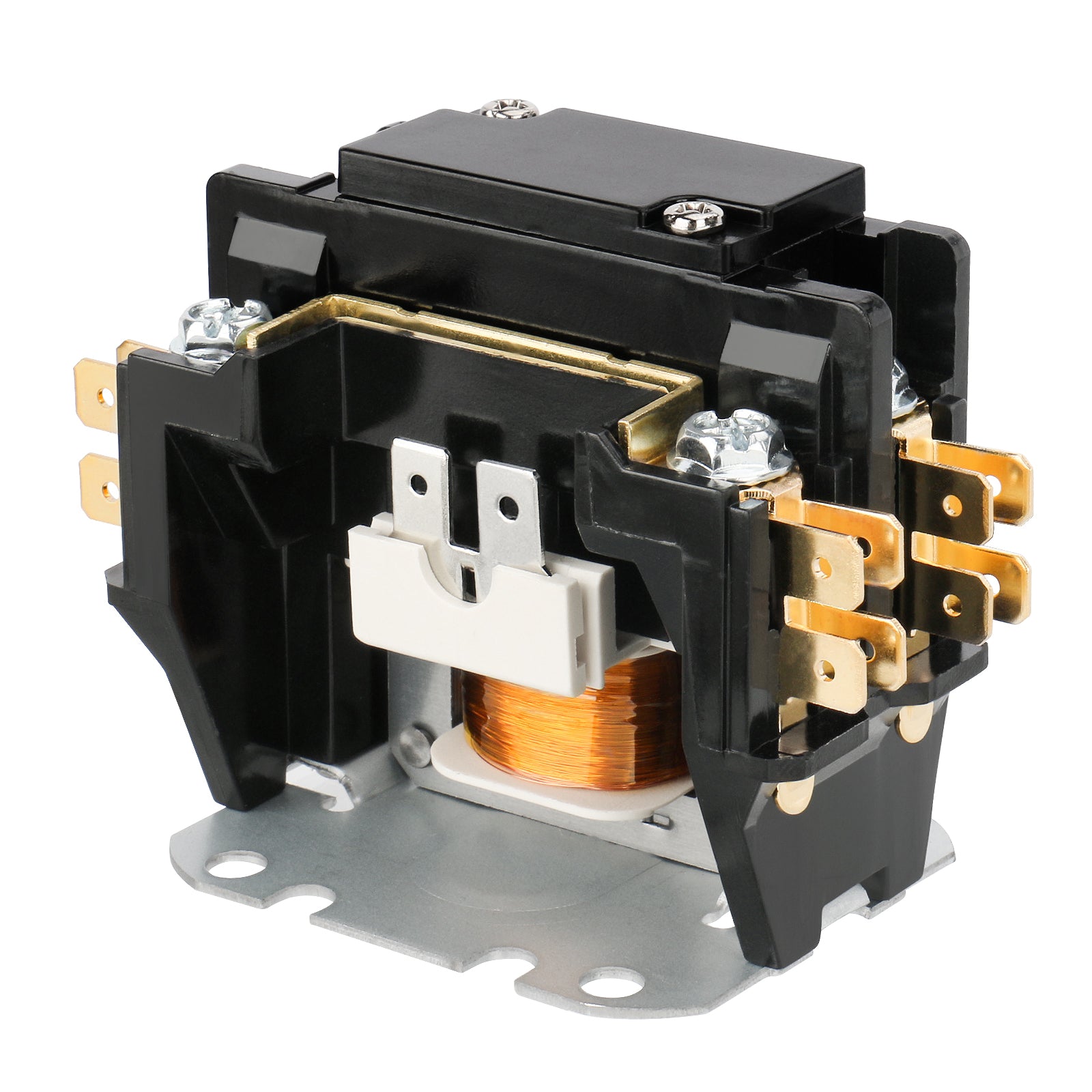

Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

Baomain HVAC AC Contactor, BMAC-30/1 AC 120V Coil 30A 1 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

Shipping calculated at checkout.
Product Type HVAC AC Contactor
Poles 1P (Single)
Rated Current (FLA) 30 Amp
Resistive (RES) 40 Amps
Locked Rotor Amps (LRA) 180/150/120
Coil Voltage 120VAC
AC Frequency  50/60 Hz
Max.Withstand Voltage 600 VAC
Terminal Size 1/4 Inch
Line & Load Terminals  Screw #10-32
Recommended Wire Size  Screw 16-8*AWG
Recommended Tightening Torque  Screw 22 In. lbs
Mechanical Life 1,000,000 Times
Electrical Life 250,000 Times
Temperature Range -40°F~150°F
Certification

 UL, CE

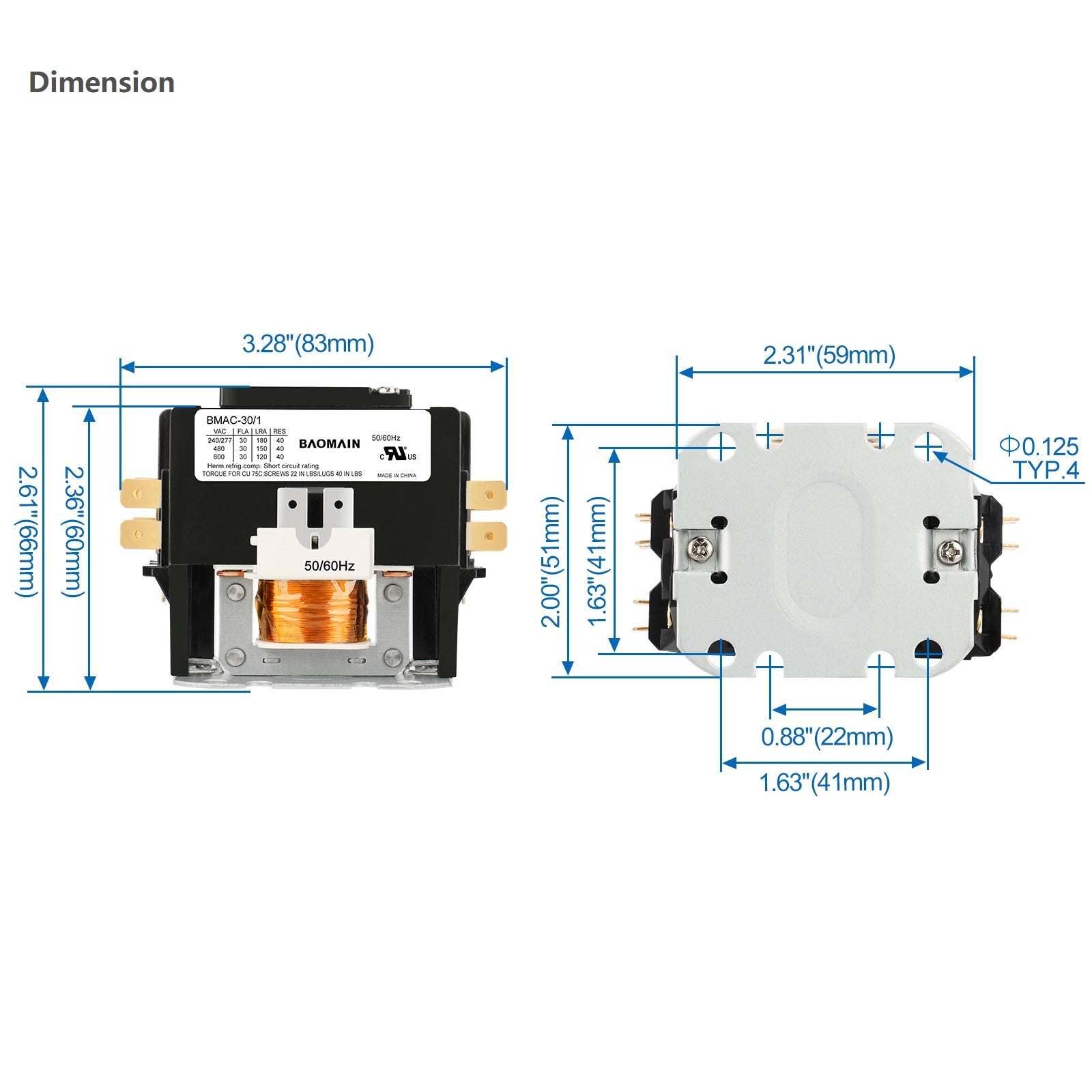

Size: 84 x 51 x 66 mm / 3.3'' x 2.0'' x 2.6'' (LxWxH)

Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
