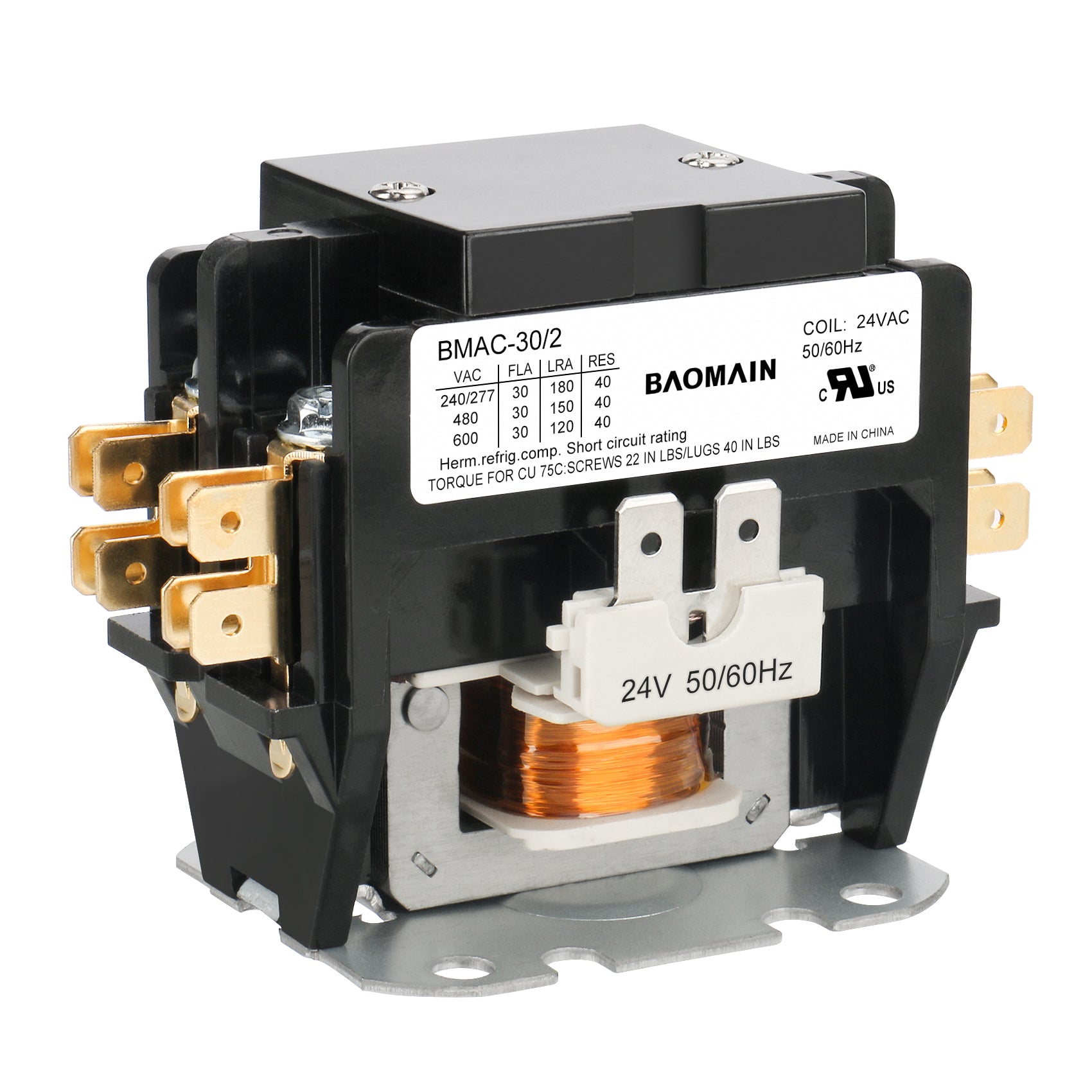

Baomain HVAC AC Contactor, BMAC-30/2 AC 24V Coil 30A 2 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

  • $12.99
    Unit price per
Shipping calculated at checkout.


Product Type HVAC AC Contactor
Poles 2P
Rated Current (FLA) 30 Amp
Resistive (RES) 40 Amps
Locked Rotor Amps (LRA) 180/150/120
Coil Voltage 24VAC
AC Frequency 50/60 Hz
Max.Withstand Voltage 600 VAC
Terminal Size 1/4 Inch
Line & Load Terminals  Screw #10-32
Recommended Wire Size  Screw 16-8*AWG
Recommended Tightening Torque  Screw 22 In. lbs
Mechanical Life 1,000,000 Times
Electrical Life 250,000 Times
Temperature Range -40°F~150°F
Certification

 UL, CE

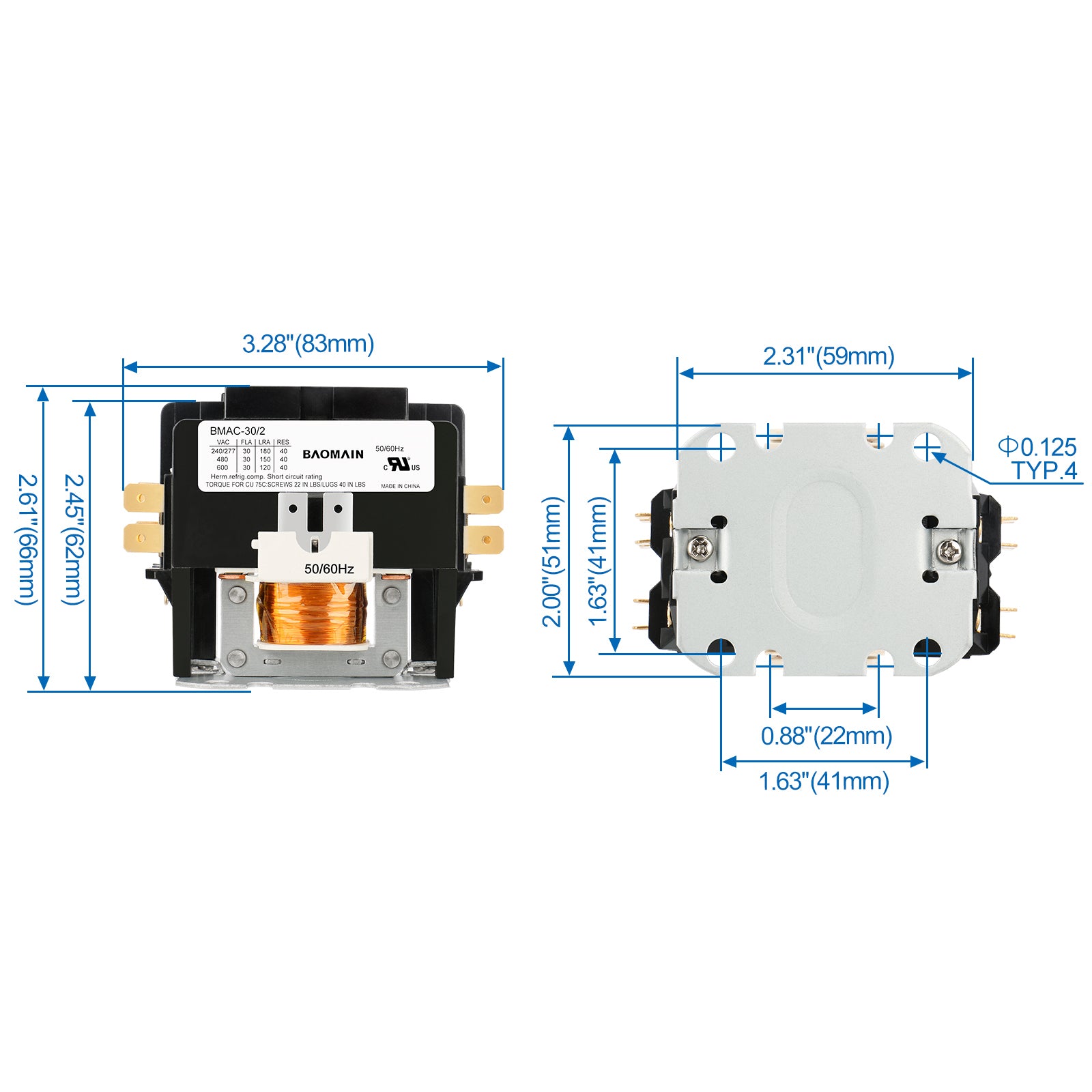

  • Size: 84 x 51 x 66 mm / 3.3'' x 2.0'' x 2.6'' (LxWxH)

Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
