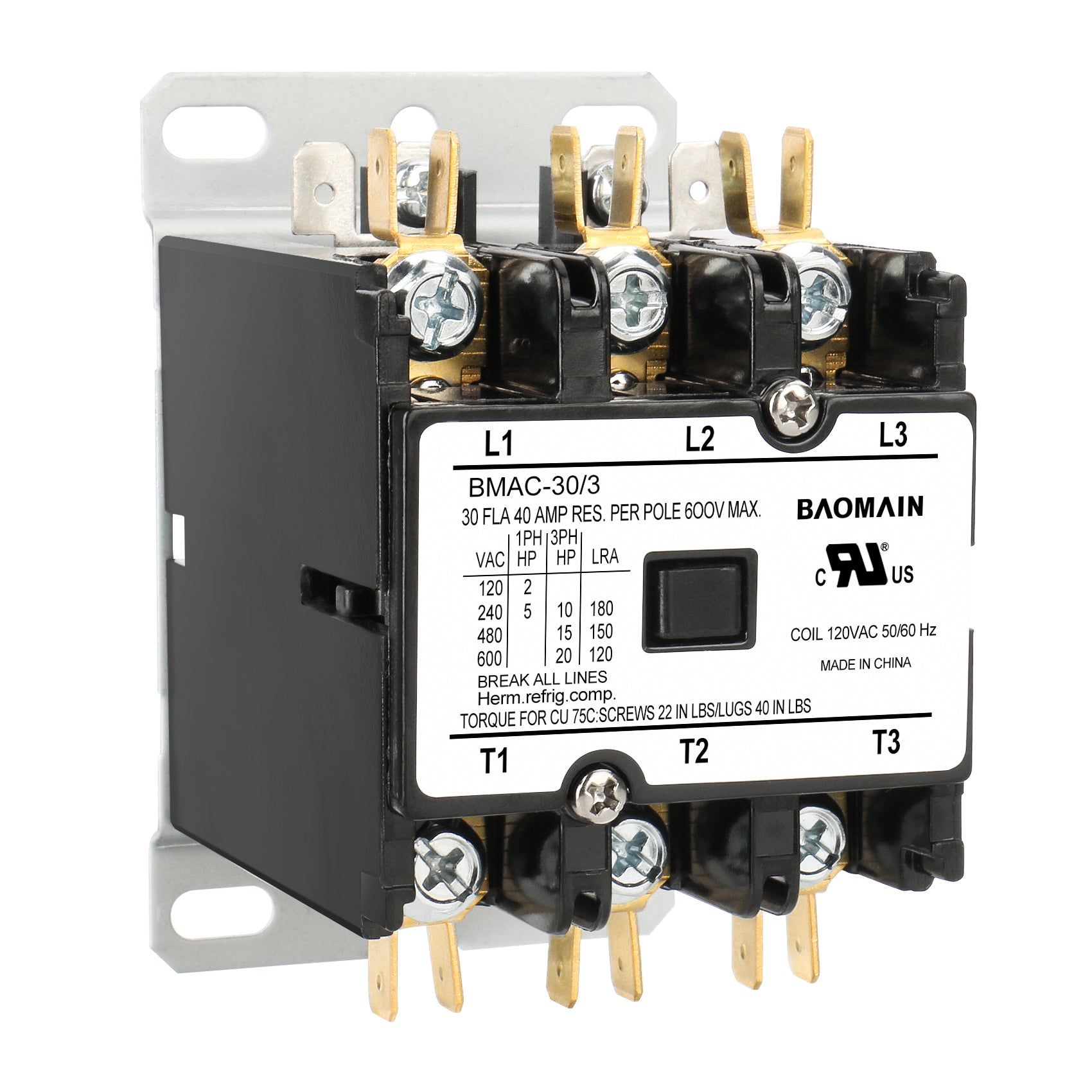

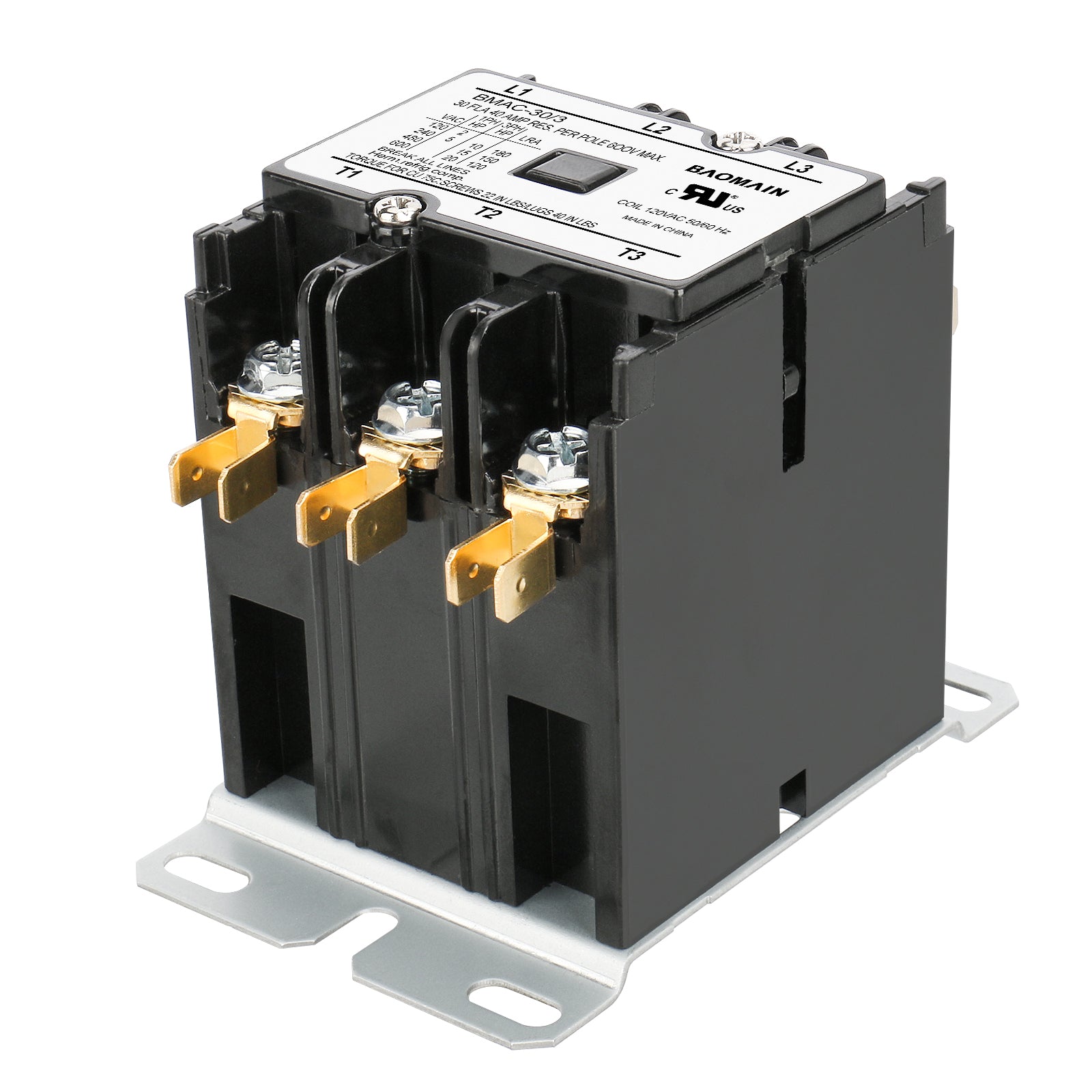

Baomain HVAC AC Contactor, BMAC-30/3 AC 120V Coil 30A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
| Product Type | HVAC AC Contactor |
| Poles | 3P |
| Rated Current (FLA) | 30 Amp |
| Resistive (RES) | 40 Amps |
| Locked Rotor Amps (LRA) | 180/150/120 |

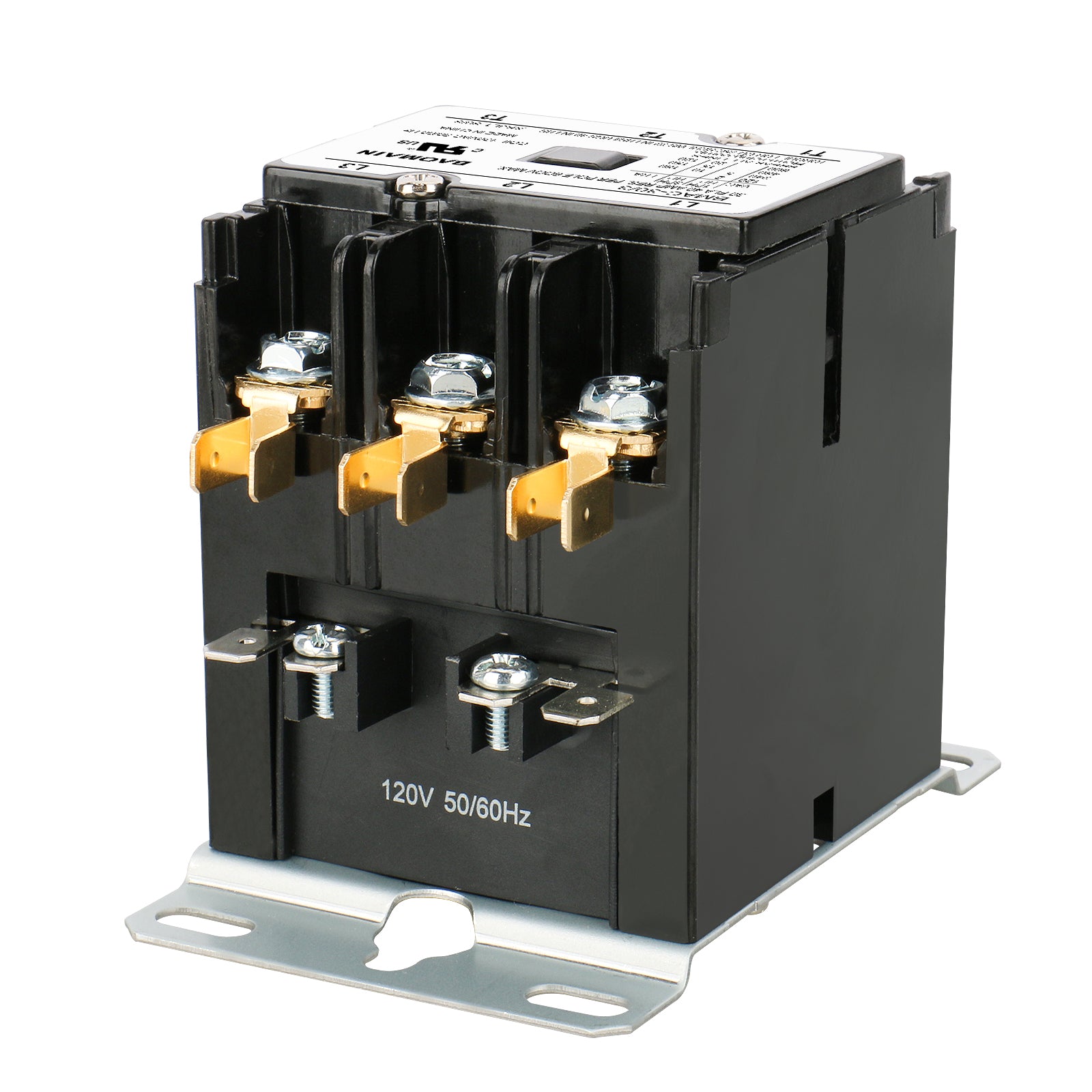

| Coil Voltage | 120VAC |
| AC Frequency | 50/60 Hz |
| Max.Withstand Voltage | 600 VAC |
| Terminal Size | 1/4 Inch |
| Line & Load Terminals | Screw #10-32 |
| Recommended Wire Size | Screw 16-8*AWG |
| Recommended Tightening Torque | Screw 22 In. lbs |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 250,000 Times |
| Temperature Range | -40°F~150°F |

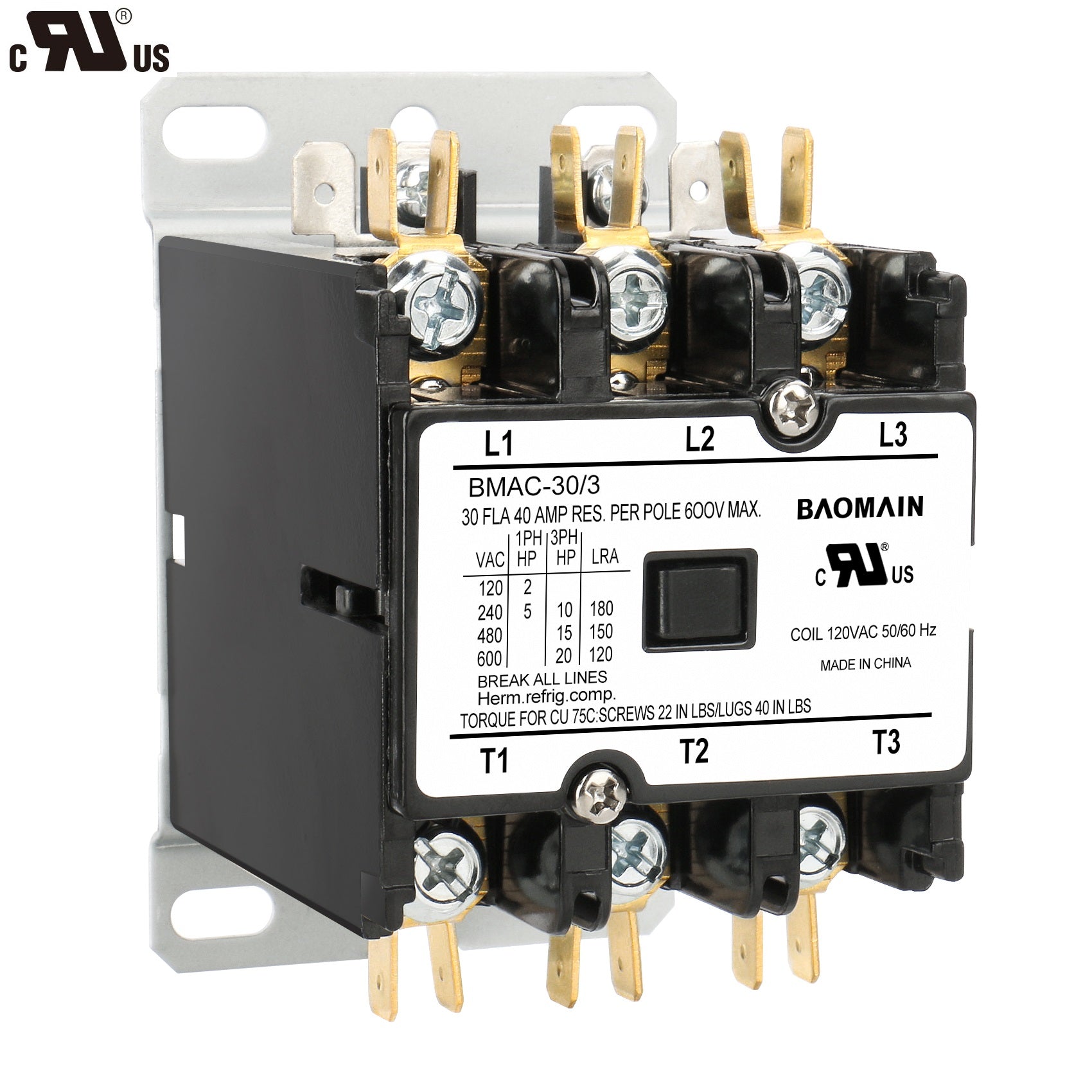

| Certification |
UL, CE |

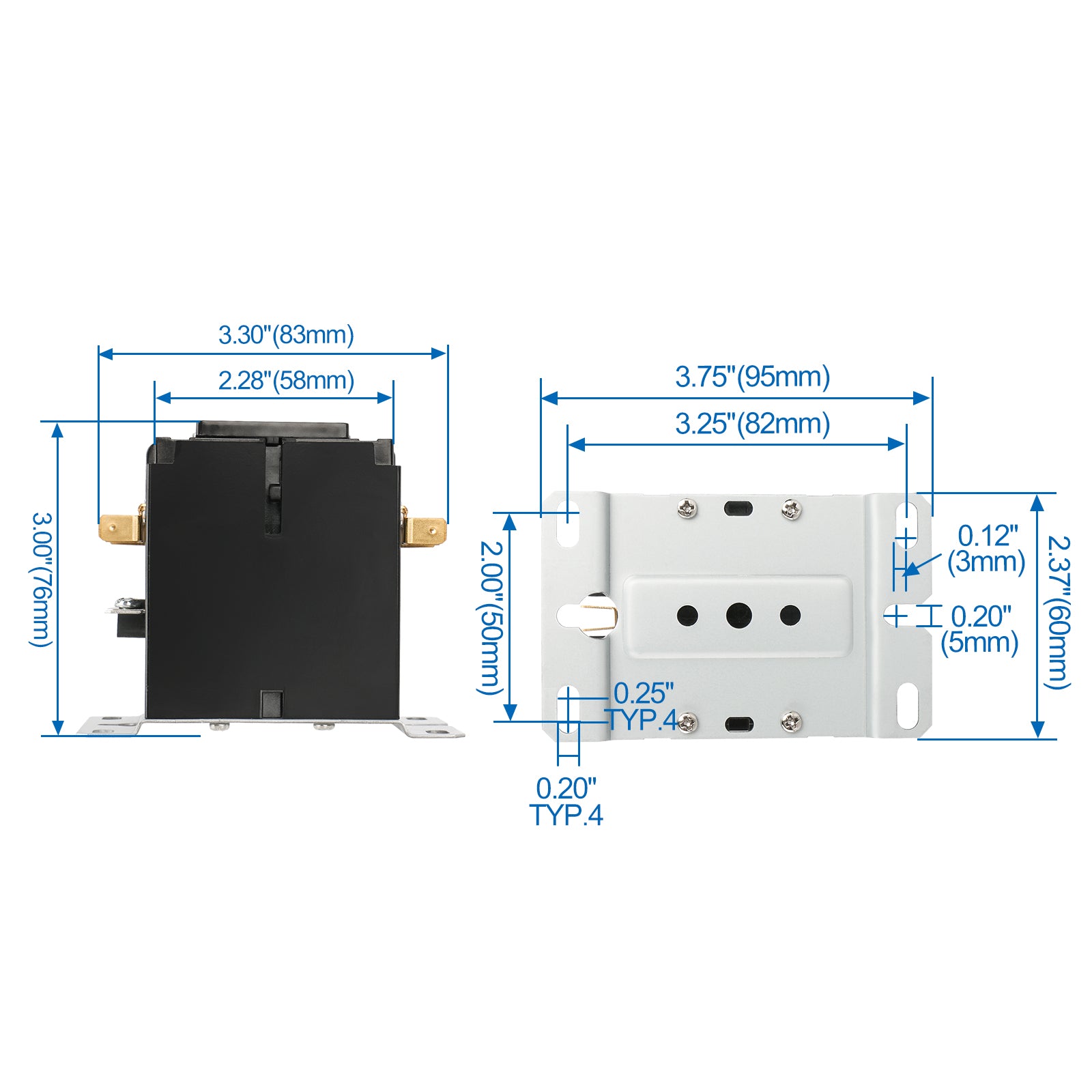

- Size: 95 x 51 x 76 mm / 3.75'' x 2.0'' x 3.0'' (LxWxH)
Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
