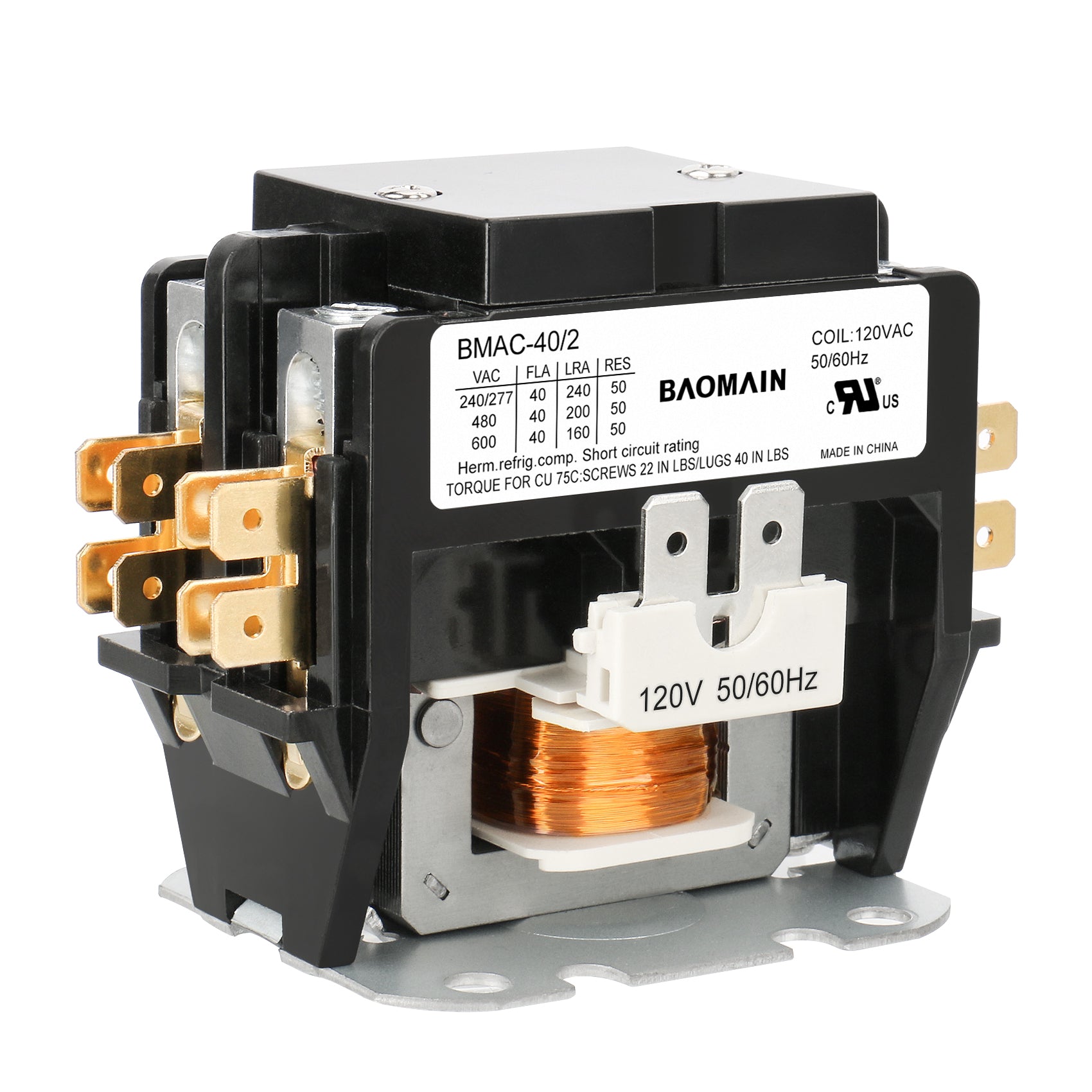

Baomain HVAC AC Contactor, BMAC-40/2 AC 120V Coil 40A 2 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement
| Product Type | HVAC AC Contactor |
| Poles | 2P |
| Rated Current (FLA) | 40Amp |
| Resistive (RES) | 50Amps |
| Locked Rotor Amps (LRA) | 240/200/160 |
| Coil Voltage | 120VAC |
| AC Frequency | 50/60 Hz |
| Max.Withstand Voltage | 600 VAC |
| Terminal Size | 1/4 Inch |
| Line & Load Terminals | Box Lug #10-32 |
| Recommended Wire Size | Box Lug16-8*AWG |
| Recommended Tightening Torque | Box Lug 22 In. lbs |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 250,000 Times |
| Temperature Range | -40°F~150°F |
| Certification |
UL, CE |

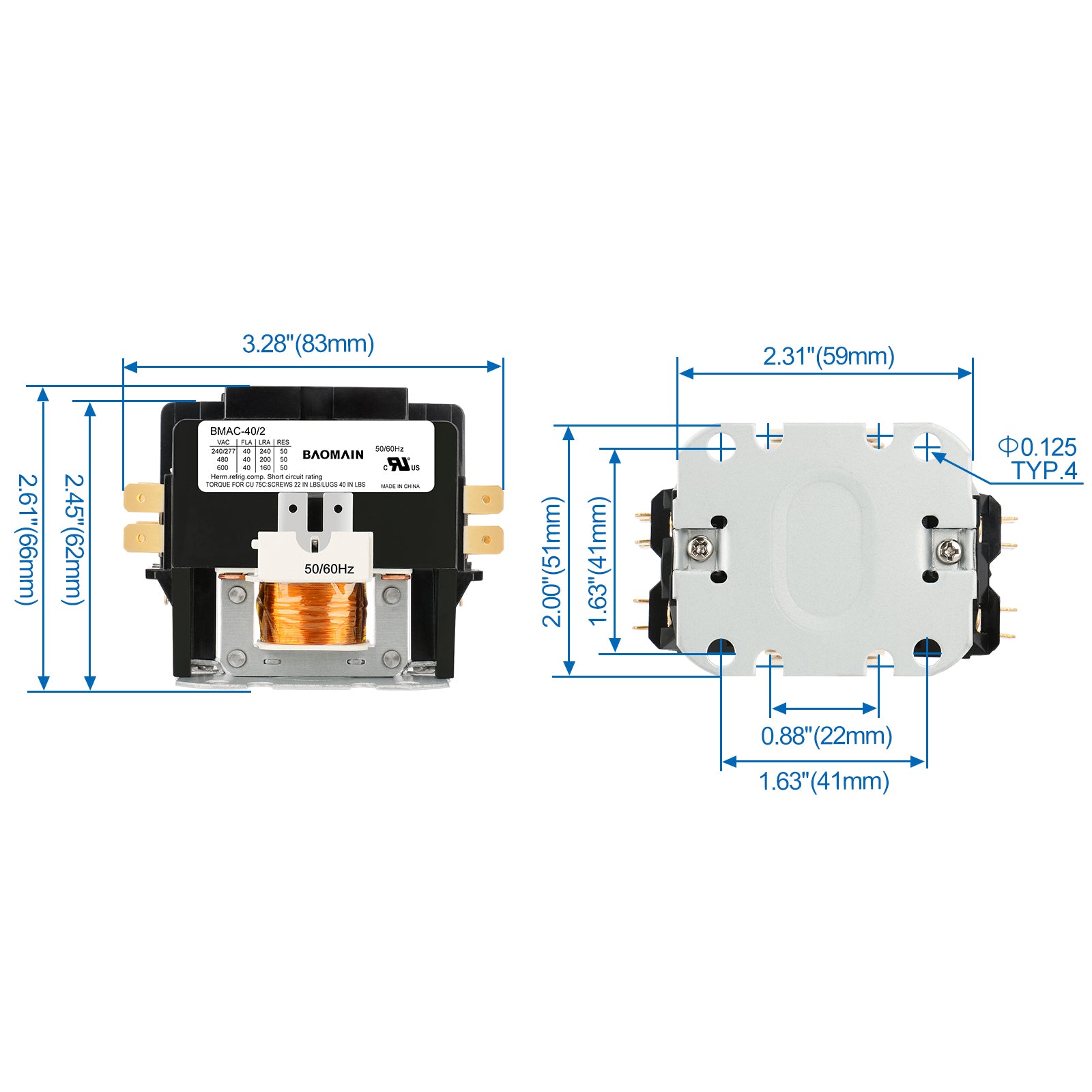

Size: 84 x 51 x 66 mm / 3.3'' x 2.0'' x 2.6'' (LxWxH)
Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
