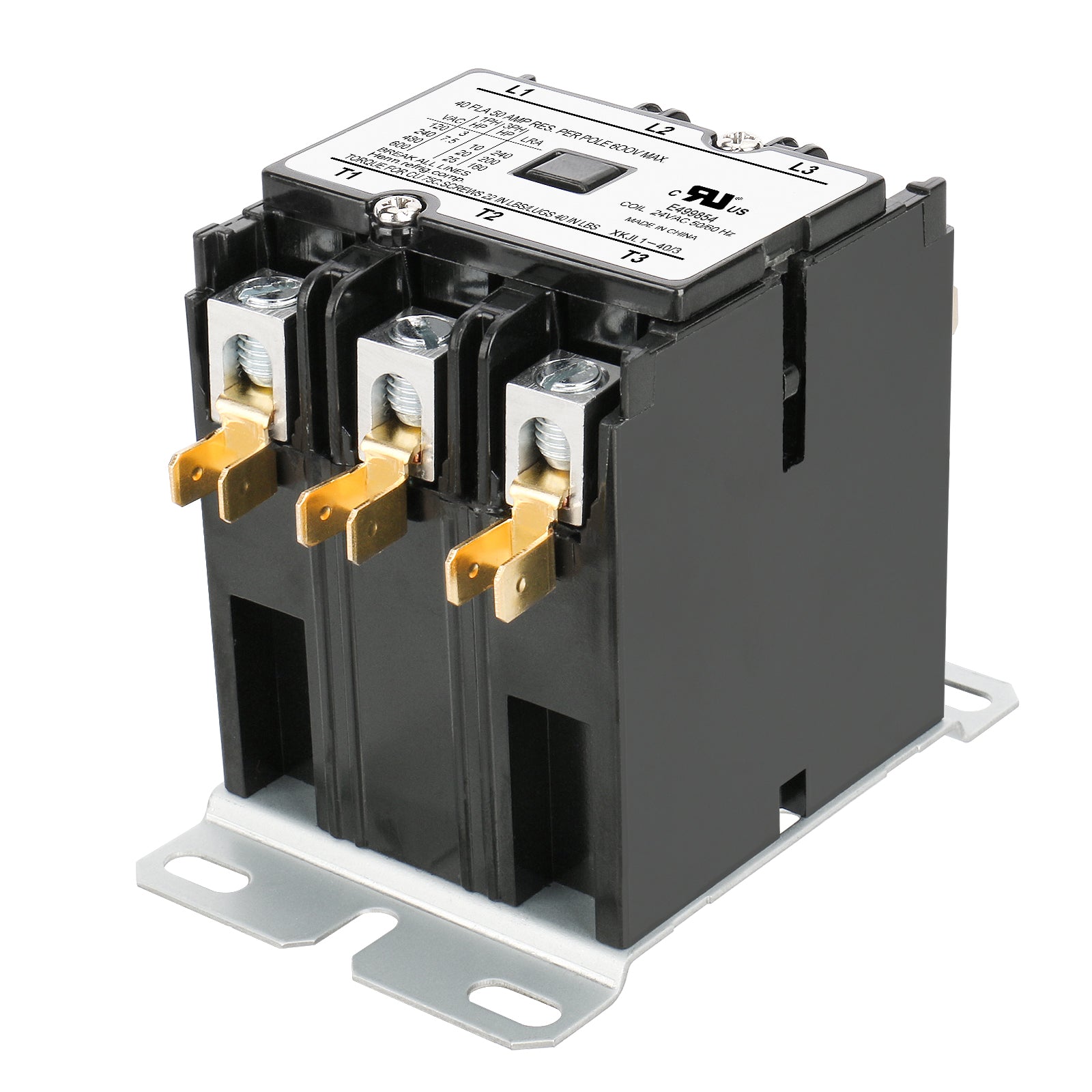

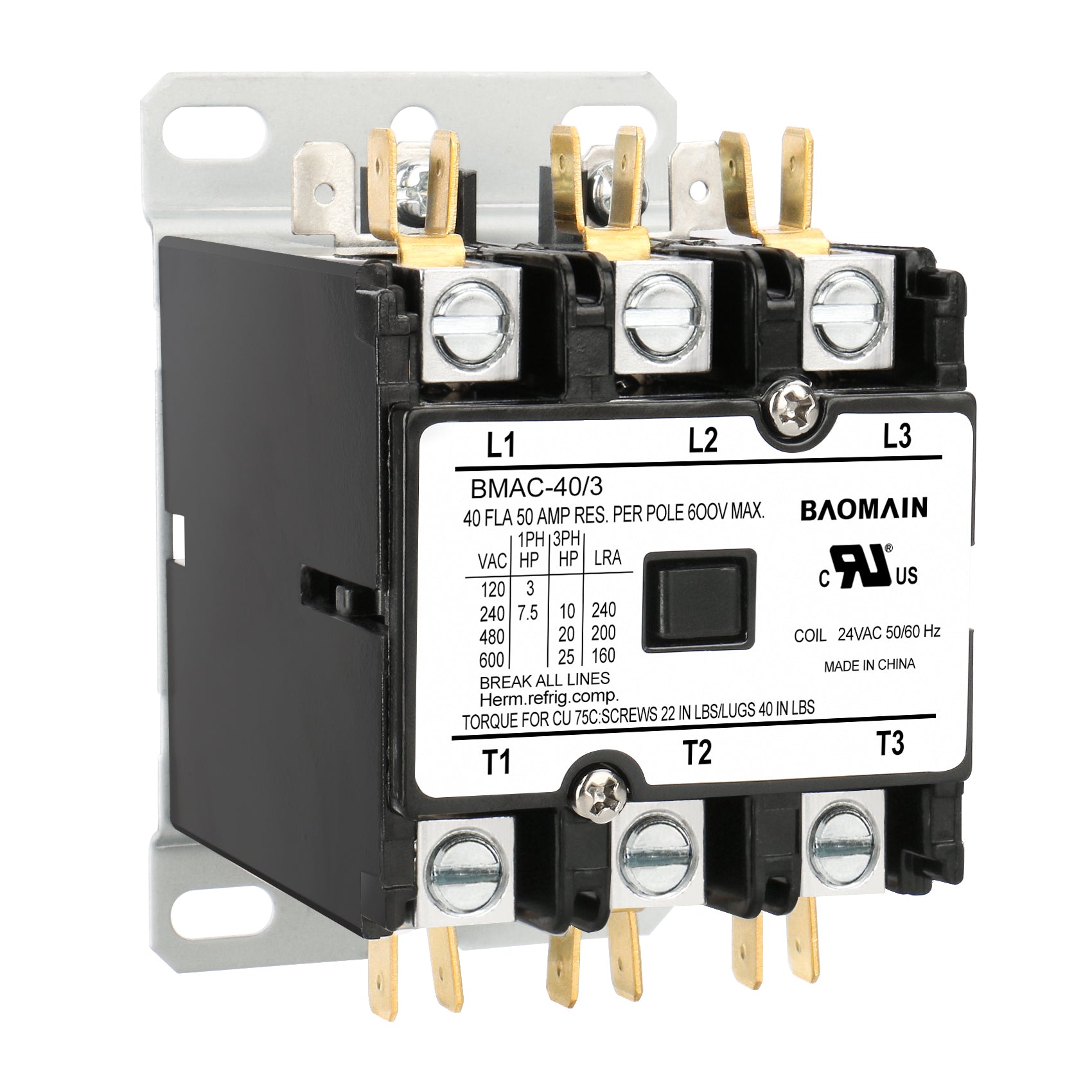

Baomain HVAC AC Contactor, BMAC-40/3 AC 24V Coil 40A 3 Pole Heavy Duty Air Conditioner Condenser Compressor Contactor, HVAC Contactors Replacement

  • $18.39
    Unit price per
Shipping calculated at checkout.


Product Type HVAC AC Contactor
Poles 3P
Rated Current (FLA) 40Amp
Resistive (RES) 50Amps
Locked Rotor Amps (LRA) 240/200/160

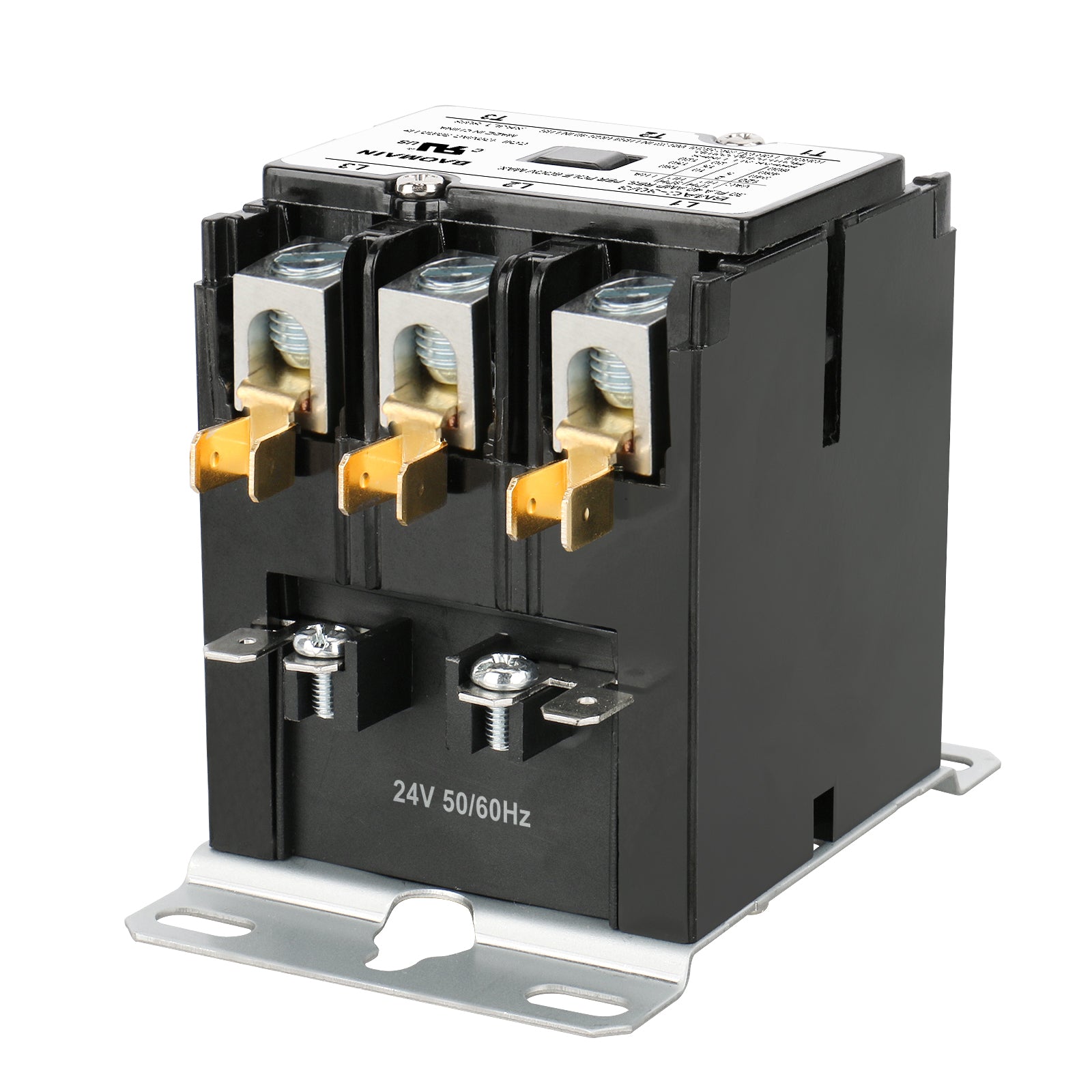

Coil Voltage 24VAC
AC Frequency 50/60 Hz
Max.Withstand Voltage 600 VAC
Terminal Size 1/4 Inch
Line & Load Terminals Box Lug #10-32
Recommended Wire Size Box Lug16-8*AWG
Recommended Tightening Torque Box Lug 22 In. lbs
Mechanical Life 1,000,000 Times
Electrical Life 250,000 Times
Temperature Range -40°F~150°F
Certification

 UL, CE

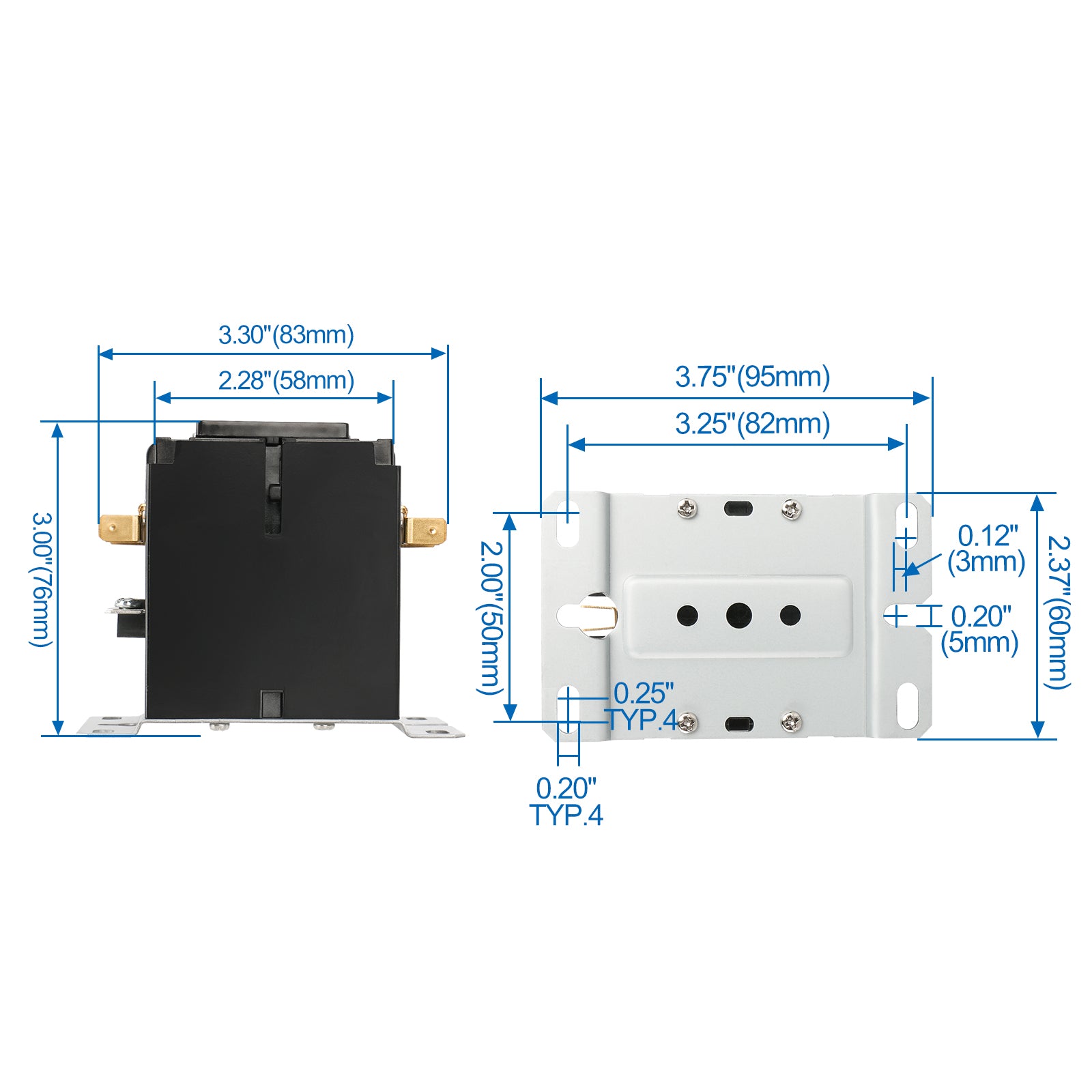

Size: 95 x 51 x 76 mm / 3.75'' x 2.0'' x 3.0'' (LxWxH)

Application for Air Conditions,Refrigeration,Resistive heating,Lighting and many other Installations.
