Baomain Liquid Timer Control Relay, 5A AC/DC24-240V 1 SPDT, DIN Rail Mounting Three Electrode Water Level Controller TBL7-B1

• Function: Liquid Level Controller
• Voltage Range: AC/DC24V-240V, 50~60Hz
• Bueden: max. 2VA; Time Range: -15%;+10%
• Interelectrode Voltage: max. AC10V; Interelectrode Current: AC<0.1mA

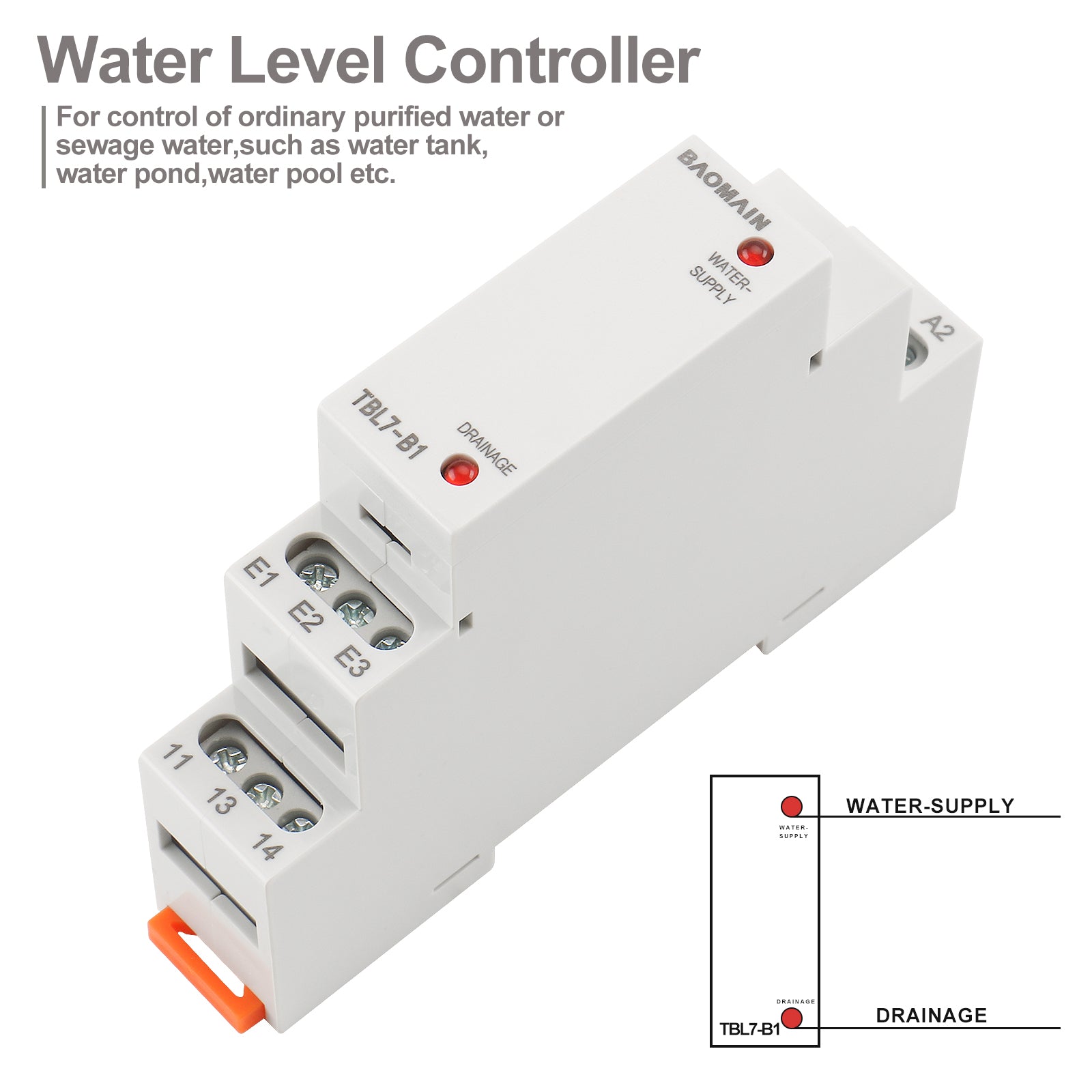

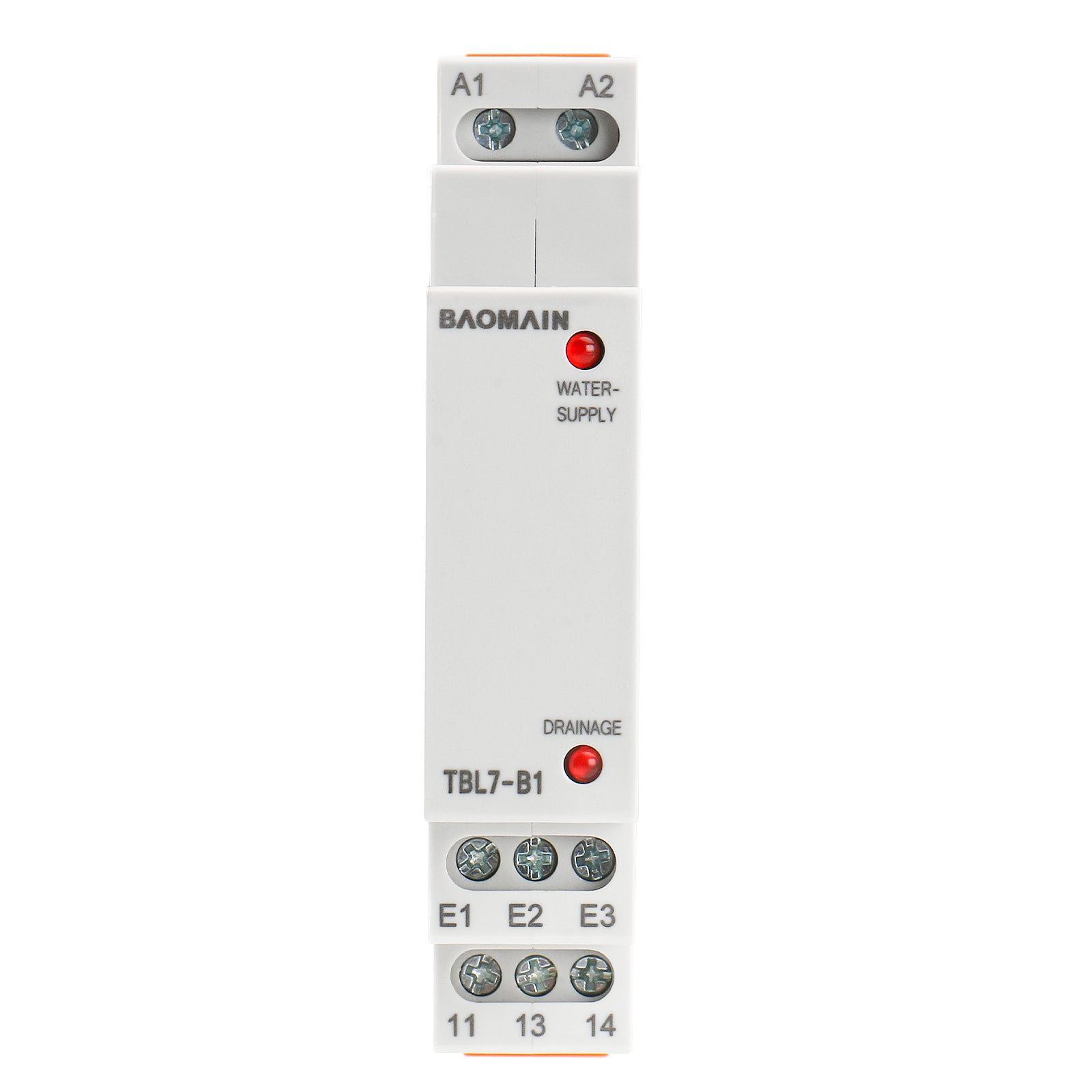

• Relay status is indicated by Red LED: Water-supply and Drainage.

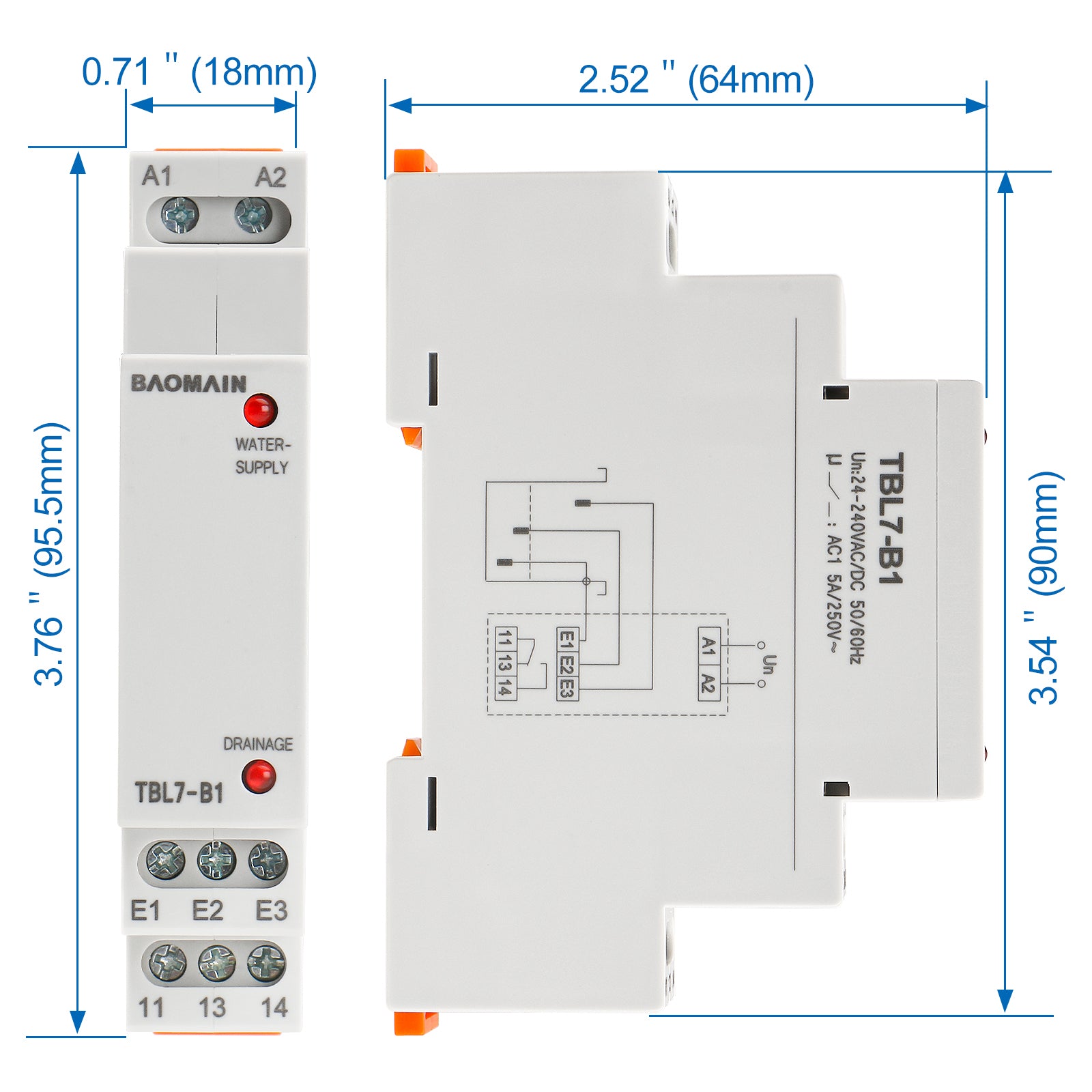

• Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH)
• Weight: 70g;

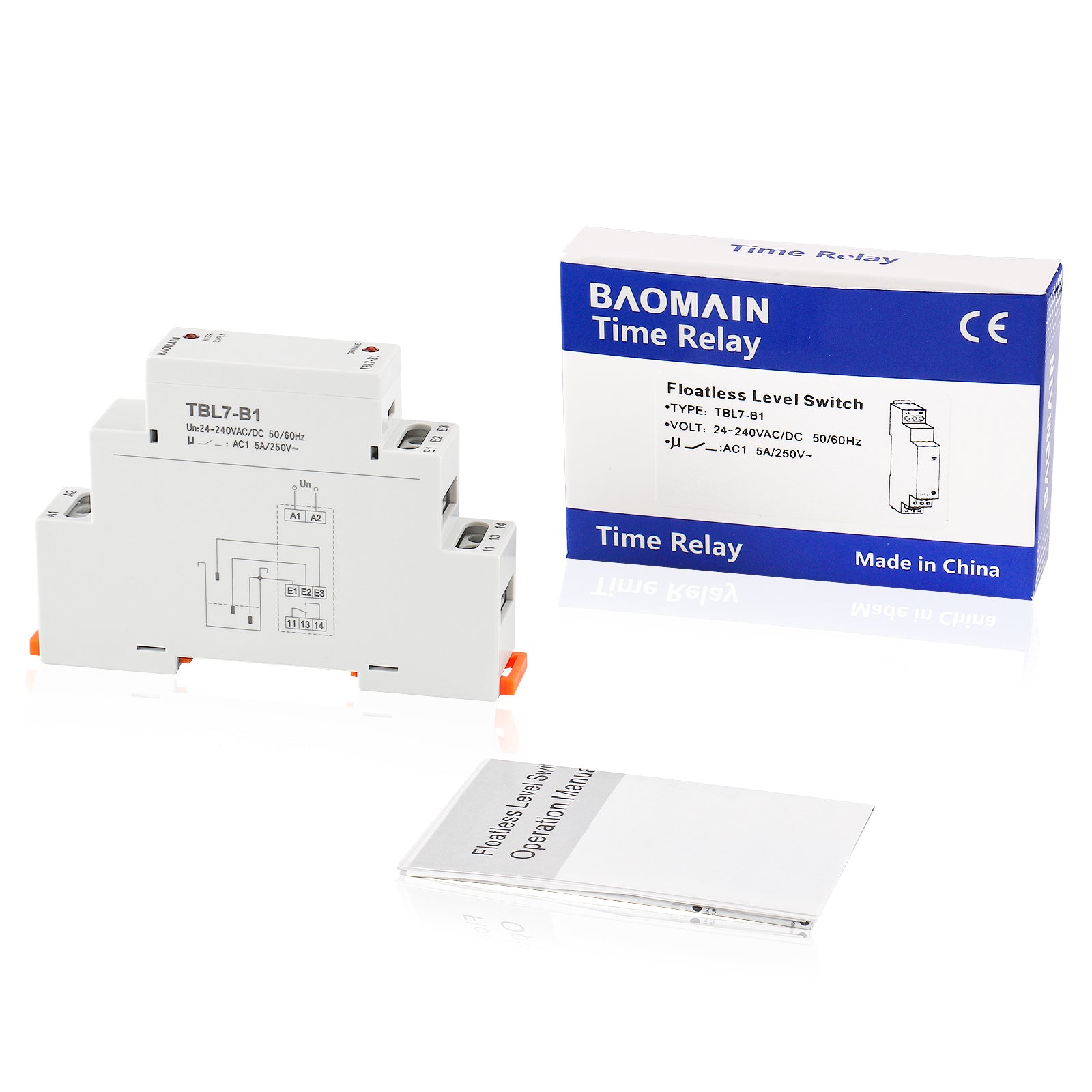

• Package Includes: 1 x Liquid Timer Control Relay, Instruction

TECHNICAL PARAMETERS

• Supply Terminals：A1-A2
• Voltage Range: AC/DC24V-240V,50-60Hz
• Burden: max. 2VA
• Time Range: -15%;+10%
• Interelectrode Voltage: max. AC10V
• Interelectrode Current: AC<0.1mA
• Response Time: max. 400ms
• Cable length: max. 100m
• Output: 1 x SPDT;
• Current Rating: 1x5A(AC1); 250VAC/24VDC
• Min. breaking capacity DC: 500mW
• Mechanical Life: 1x10,000,000 cycles
• Electrical Life(AC1): 1x100,000 cycles
• Reset time: max.200ms
• Operating Temperature: -20°C ~ 55°C / -4°F ~ 131°F
• Storage Temperature: -35°C ~ 75°C / -22°F ~ 167°F
• Protection Degree: IP20
• Operation Degree: Any
• Pollution degree：2

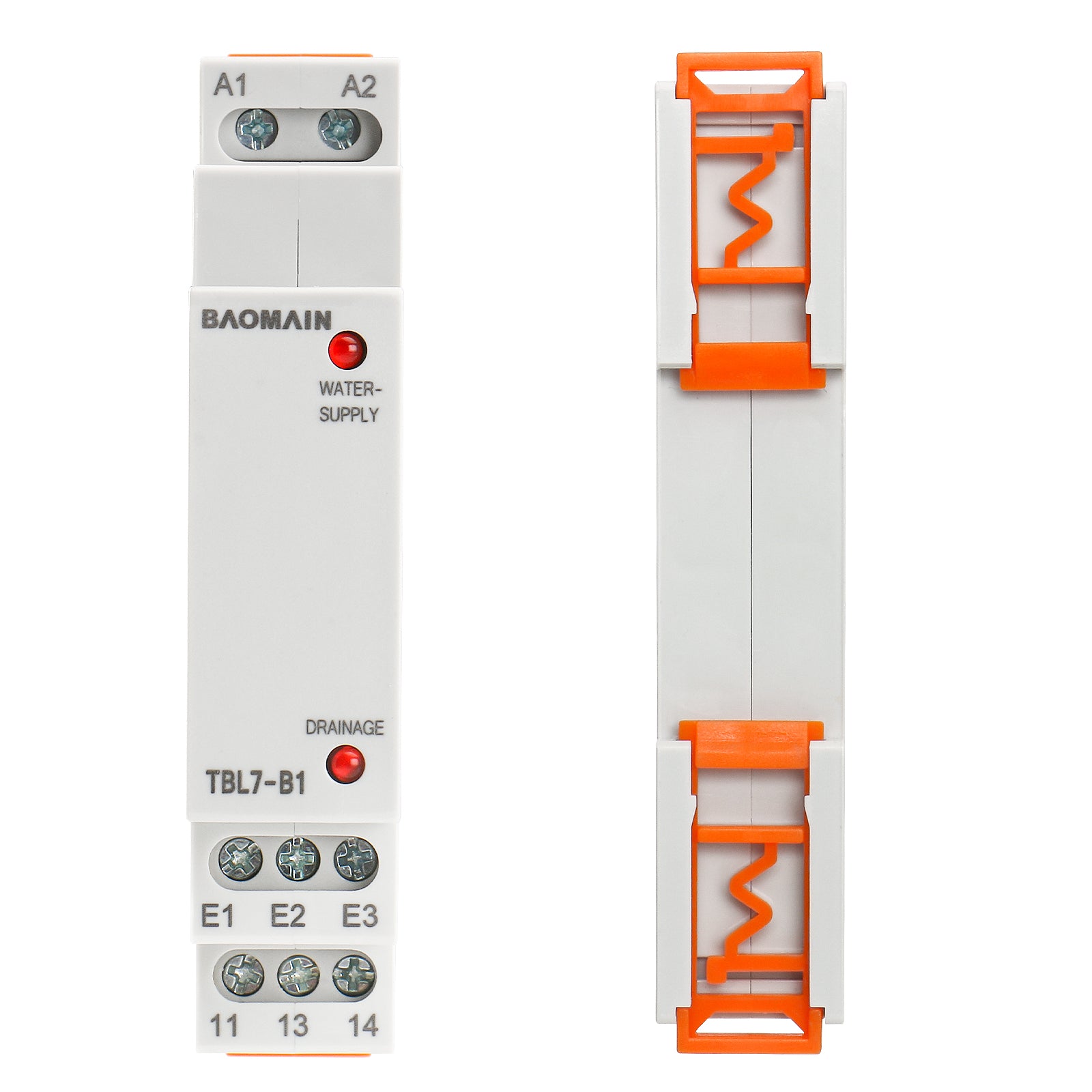

• Installation: DIN rail mounting or Screw mounting
• Max.cable (size): Solid wire max.1x2.5 or 2x1.5/with sleeve max. 1x2.5(AWG12)
