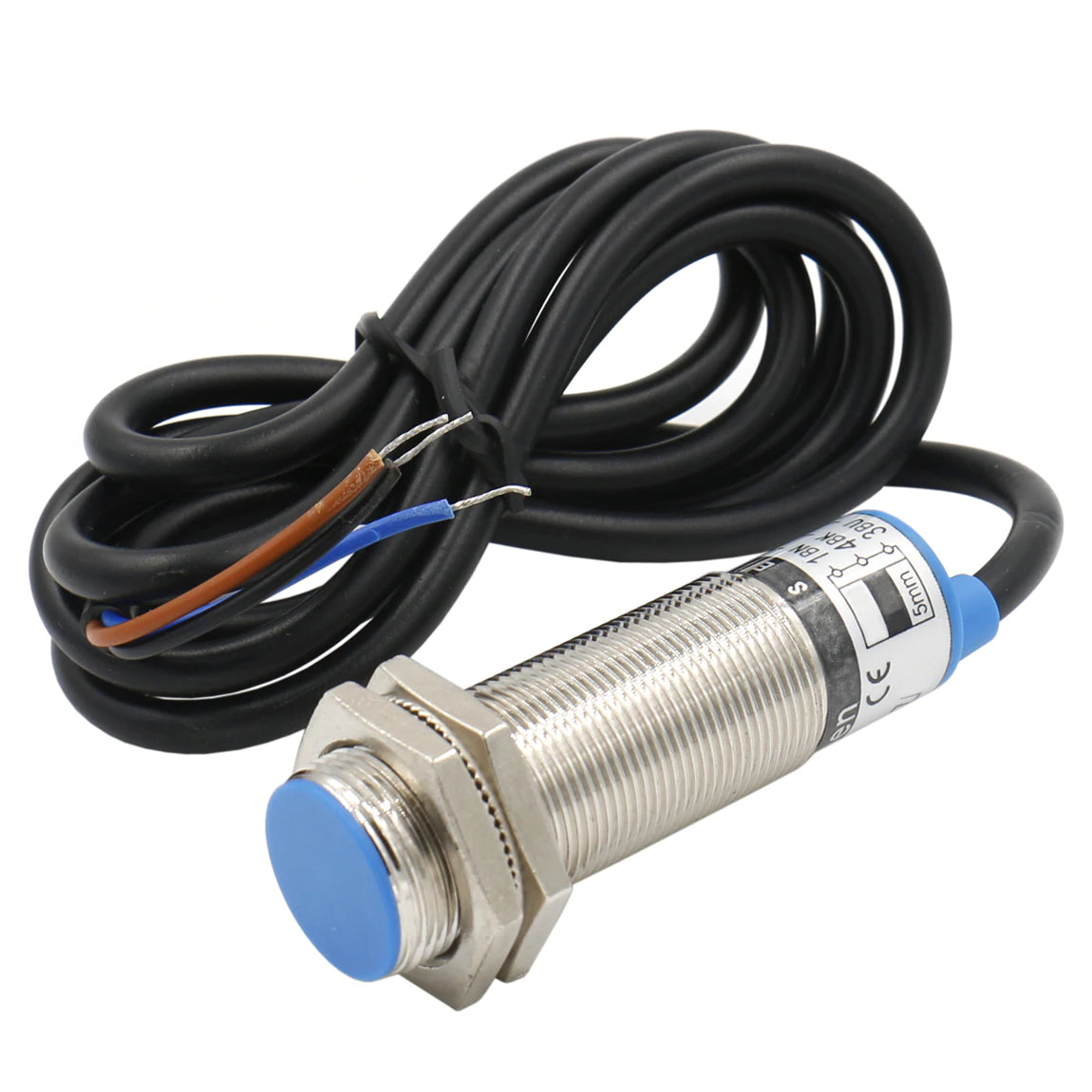

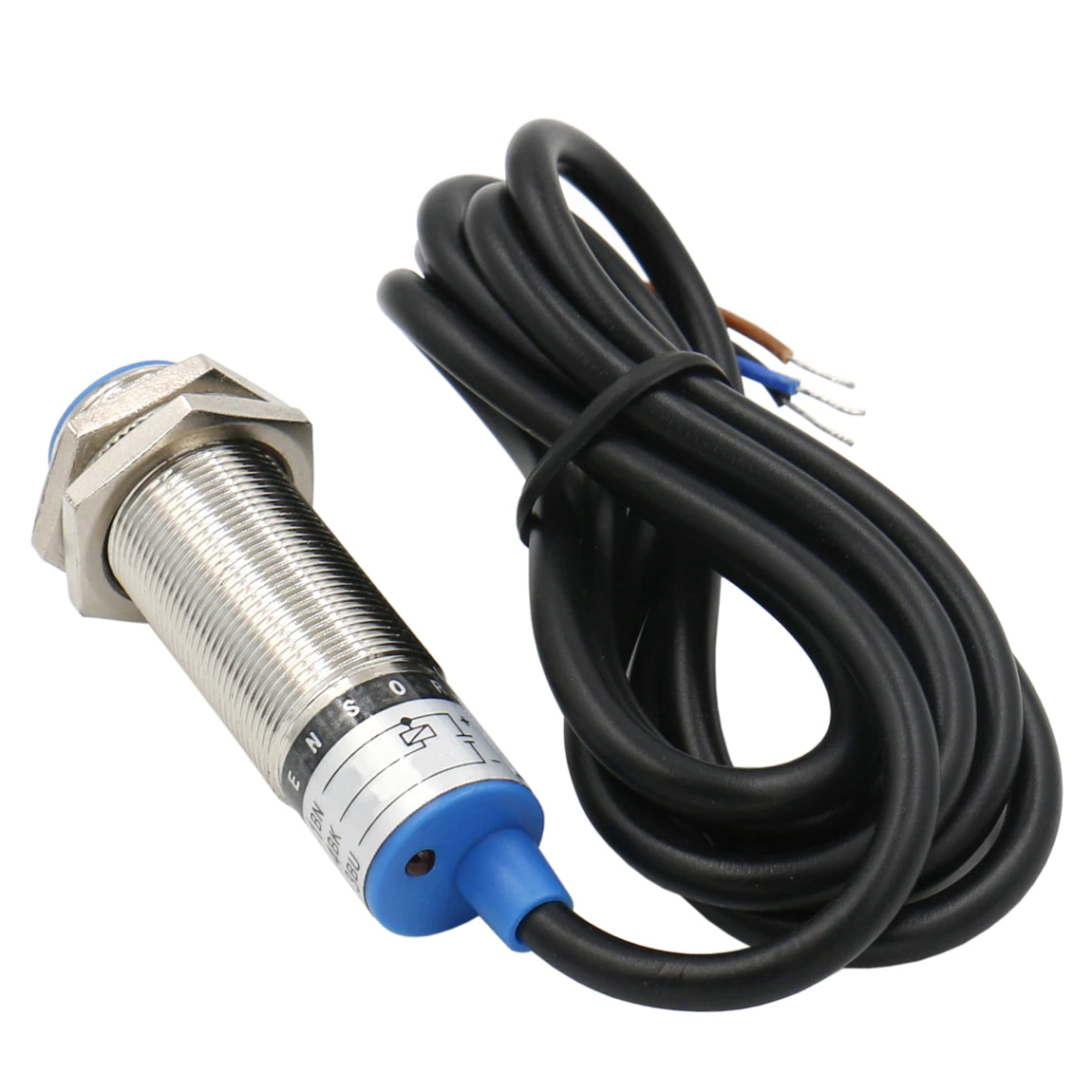

Baomain M18 Embedded Sensor Inductive Proximity Switch LJ18A3-5-J/DZ NC AC 90-250V, 5mm Detecting Distance 2 wire CE
Baomain M18 Embedded Sensor Inductive Proximity Switch LJ18A3-5-J/DZ NC AC 90-250V, 5mm Detecting Distance 2 wire CE

Baomain M18 Embedded Sensor Inductive Proximity Switch LJ18A3-5-J/DZ NC AC 90-250V, 5mm Detecting Distance 2 wire CE

Shipping calculated at checkout.
  • Product Name：Inductive Proximity Switch;
  • Output Type: NC (Normally Closed);
  • Wire Type : AC 2 Wire Type (Brown, Blue);
  • Mounting Way: Screen Shield Type;
  • Switch Appearance Type : Cylinder Type;
  • Supply Voltage : AC 90-250V;
  • Current Output : 200mA;
  • Detect Object : Magnetic Metal;
  • Diameter of Column Sensor: 12mm;
  • Detecting Distance : 5mm;
  • Total Size: 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia);
  • Cable Length: 1.2m/47'';
  • External Material : Plastic, Alloy;
  • For large quantity, please contact us for quotation.
