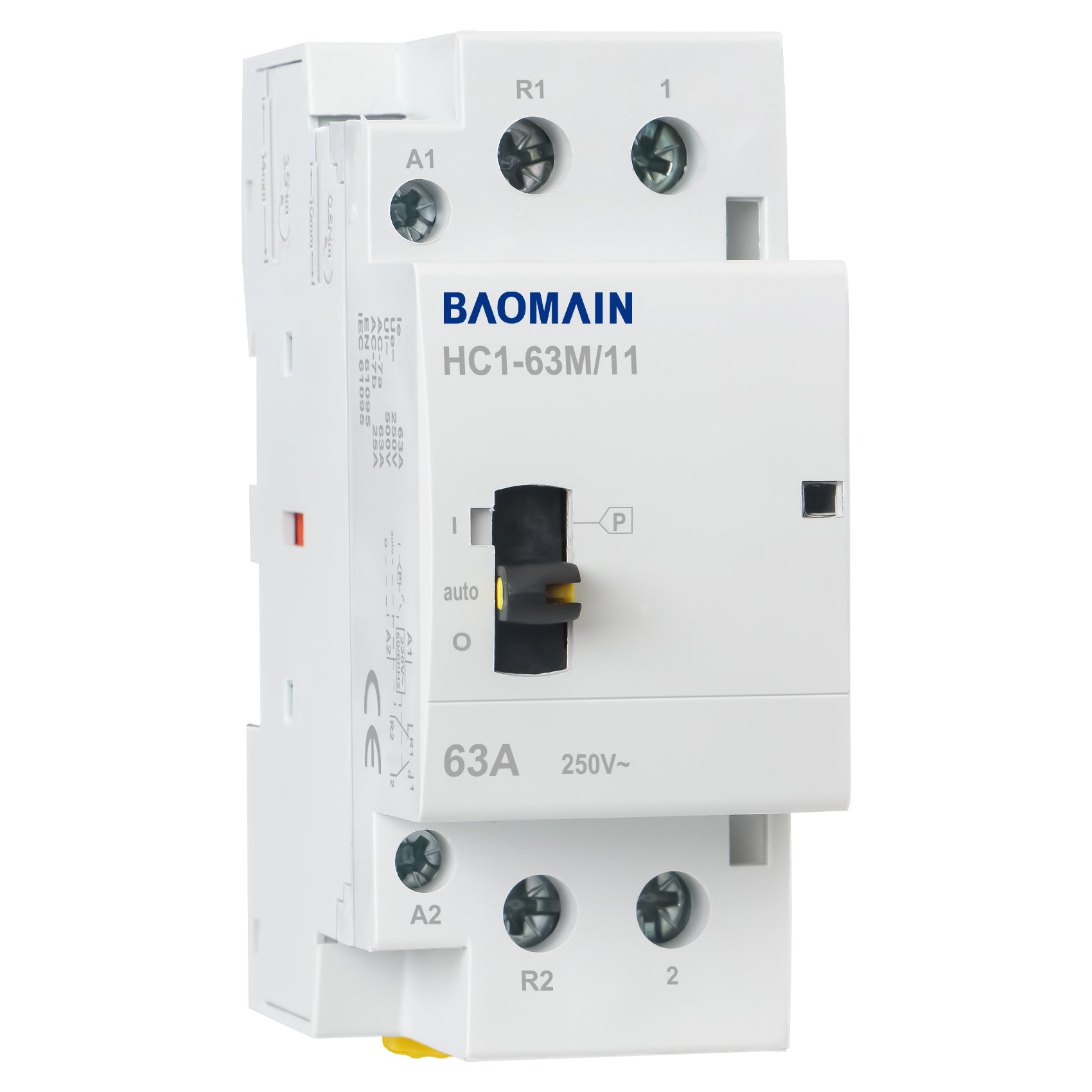

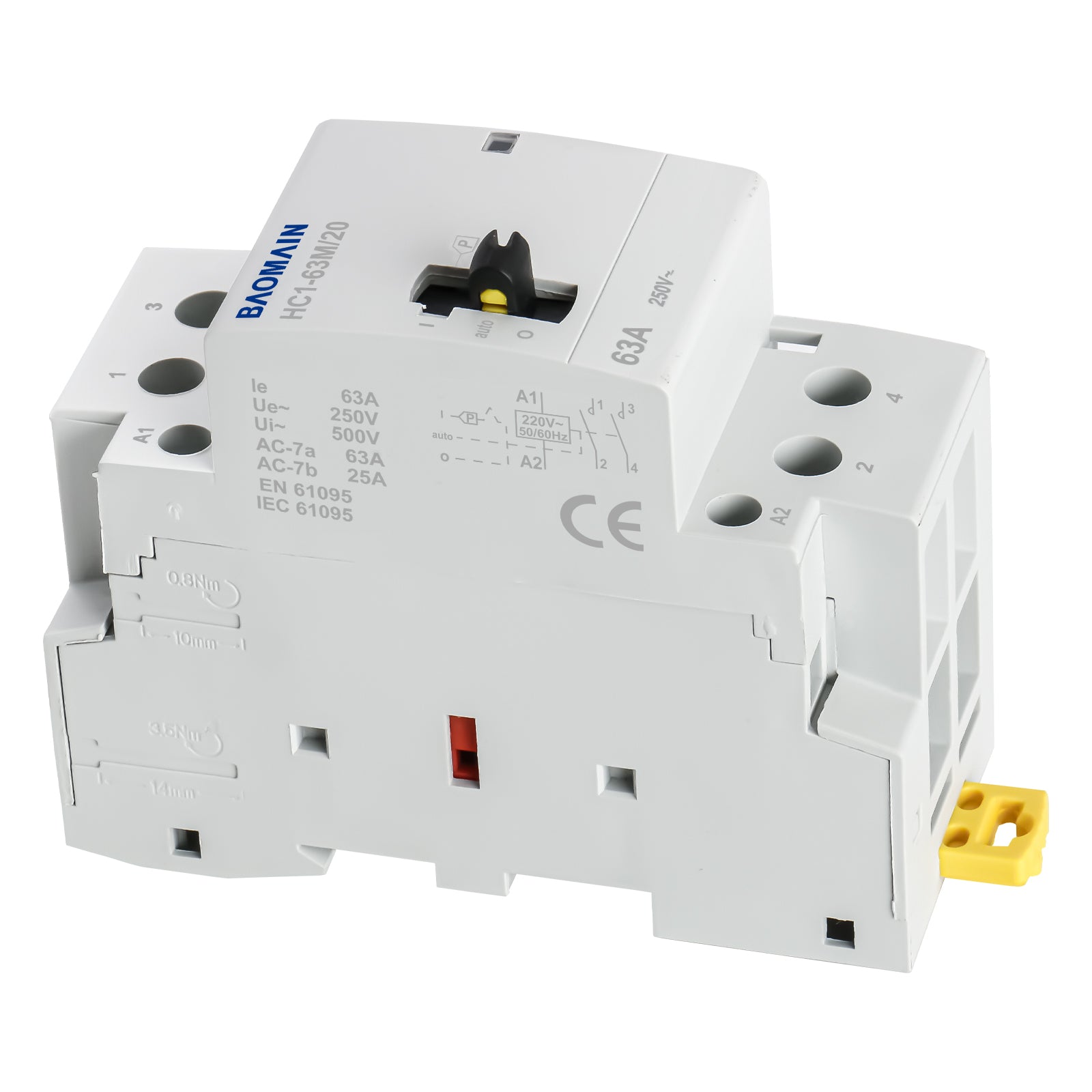

Baomain Manual Household AC Contactor HC1-63M 24V/110V/220VAC 63A 2 Pole 50/60Hz Modular Contactor Circuit Control 35mm DIN Rail

This product is mainly applied to household appliances or low insductance loading and home electromotor loading control used for the similar purpose.

• Rated Coil Voltage : AC 24V/110V/220V

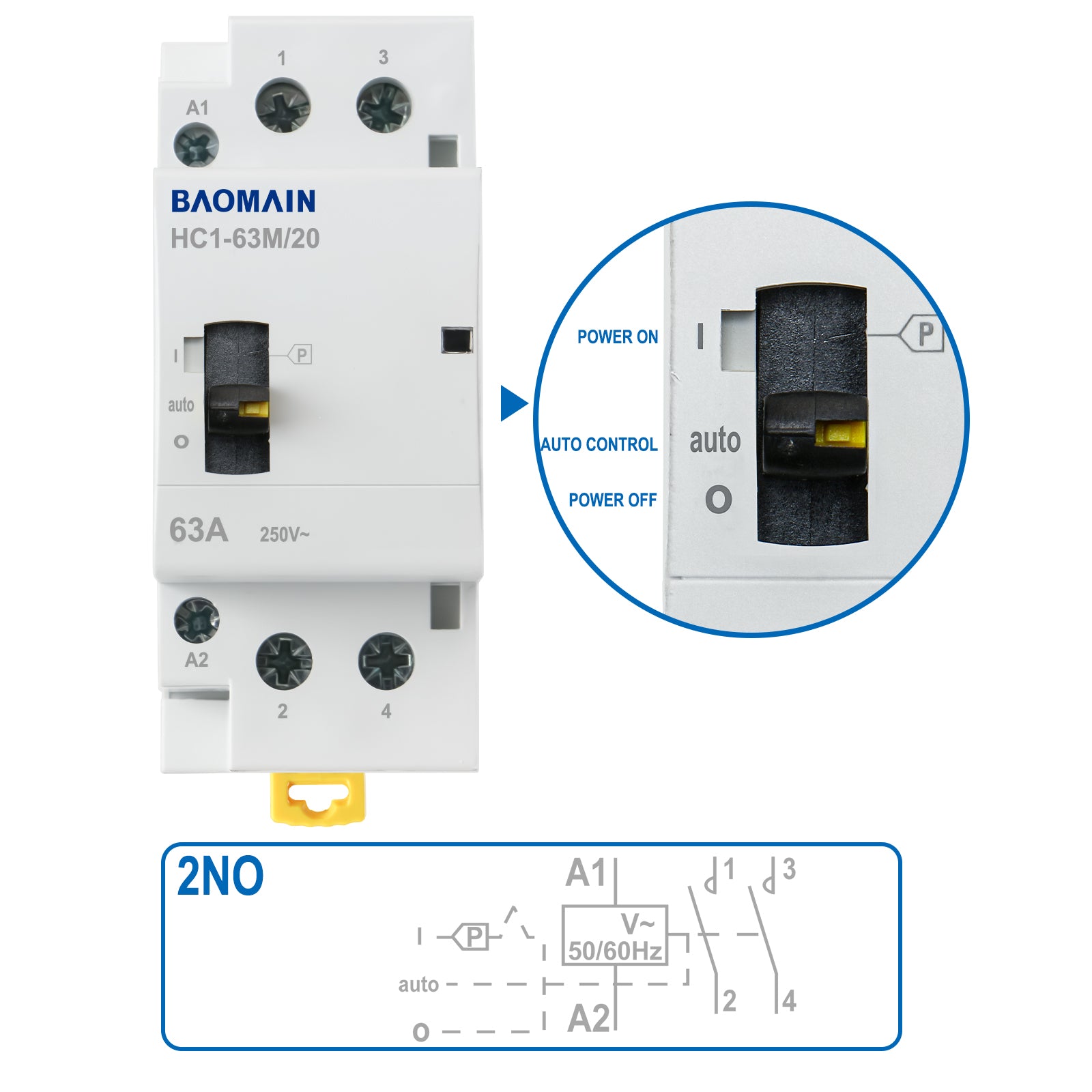

• Operation method：Manual

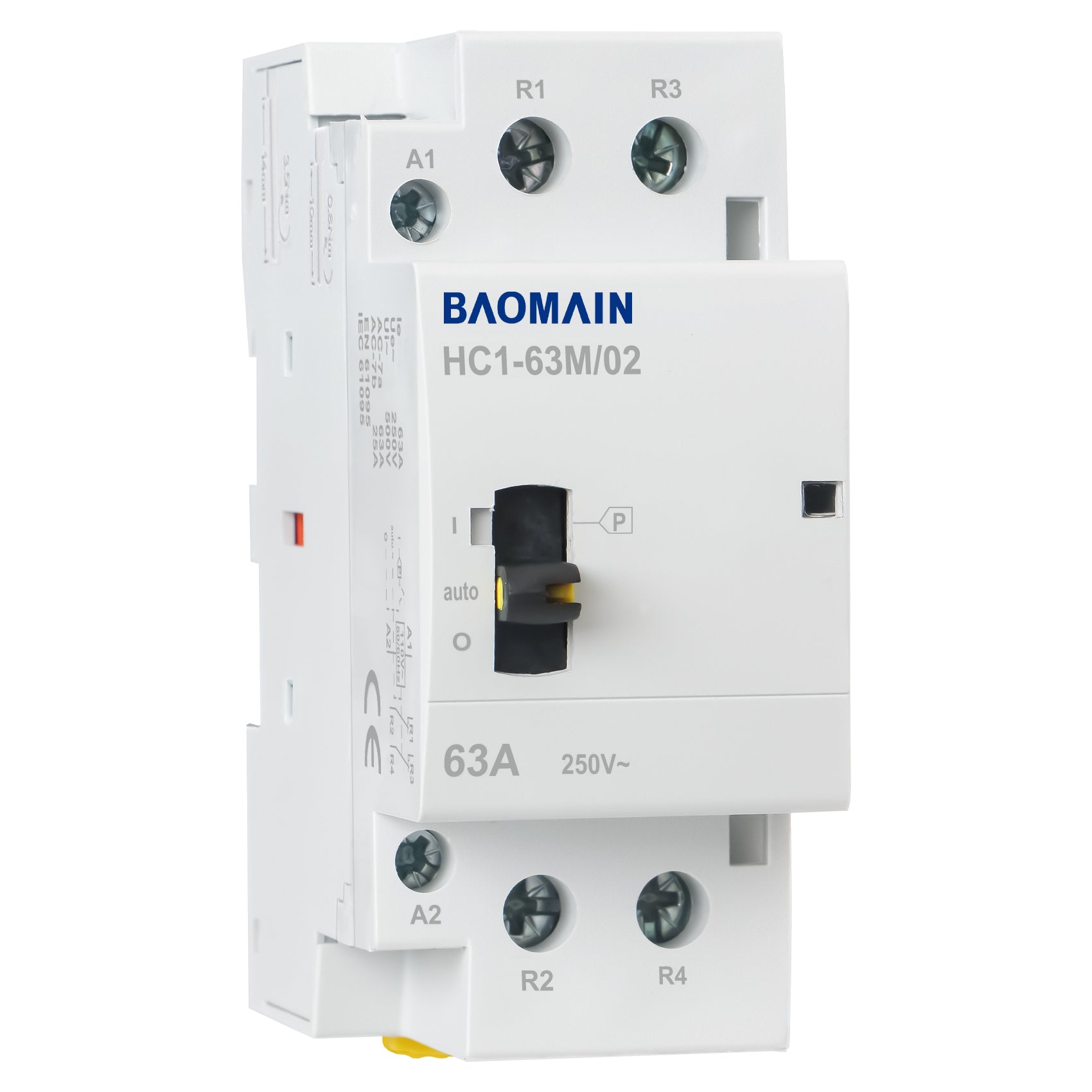

• Type:  2NO, 2NC, 1NO 1NC
• Rated Current(le) : 63A
• Ui : 500V
• Ue：250V

• AC-7a 63A, AC-7b 25A
• Max. Power: 1.6W

• Number of Poles : 2
• Mounting Type : 35mm DIN Rail Mount

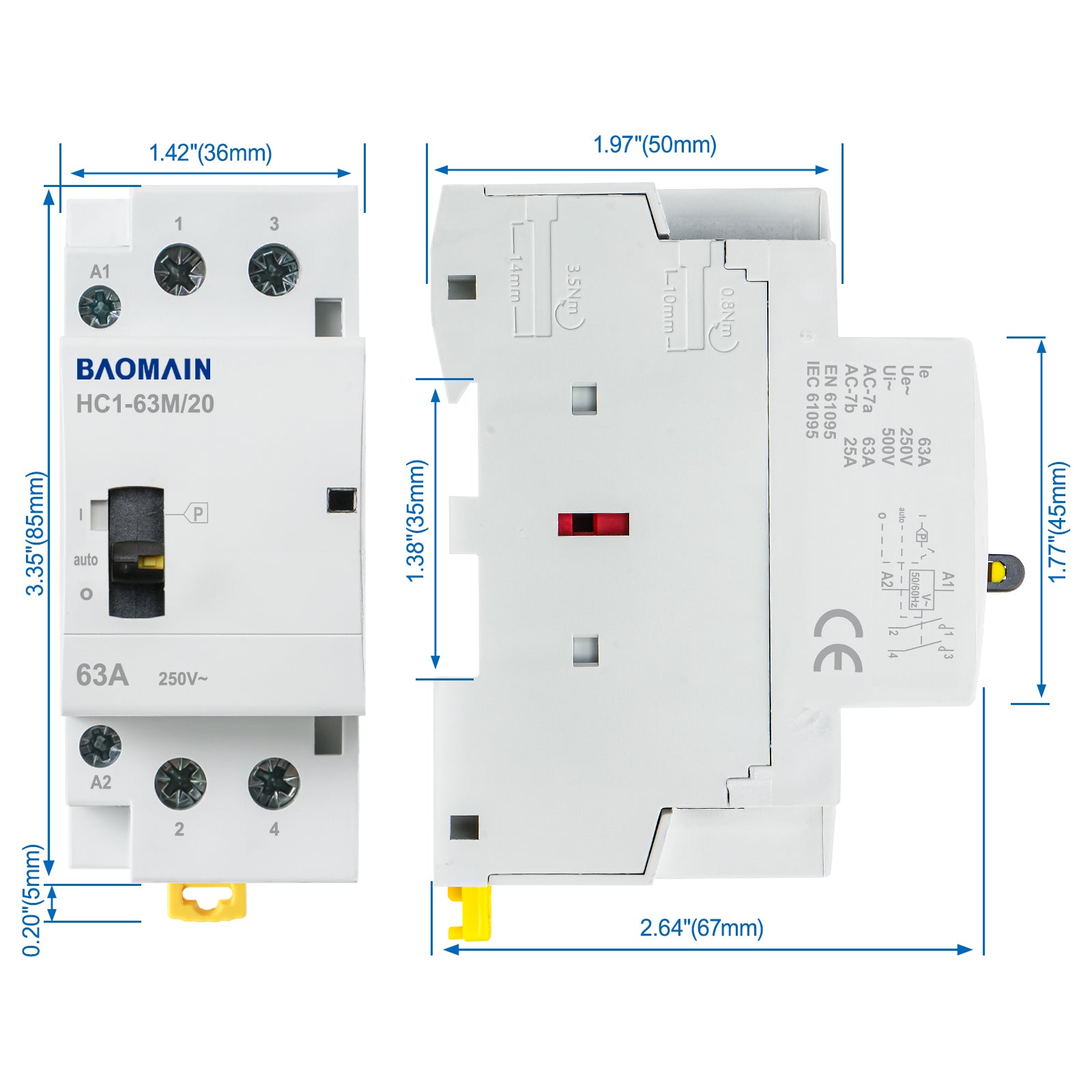

• Overall Size(Approx.) : 85 x 36 x 73mm / 3.3" x 1.4" x 2.87"(L*W*H)

• Weight : 250g;
• Package Content : 1 x Manual AC Contactor
