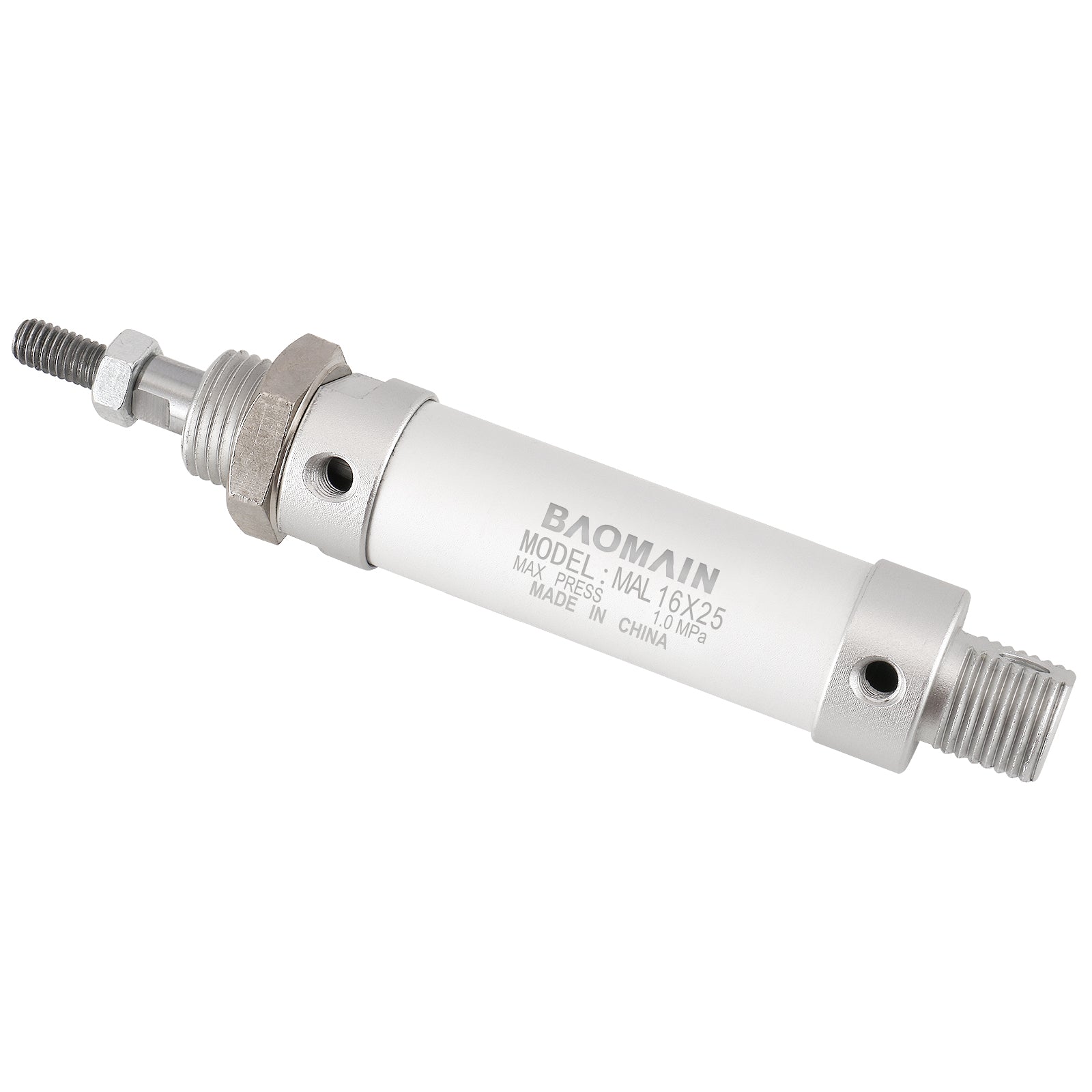

Baomain Mini Pneumatic Air Cylinder MAL 16 (0.63'') , Double-Acting, Single Rod, Aluminum Body for Industrial Automation

In stock
Regular price
$9.79
Sale price
$9.79
Regular price
Stroke

Air Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.

  • Bore Size: 16 mm (0.63 inch)
  • Stroke Length: 25/50/75/100/125/150/175/200/225/250/275/300mm
  • Operating Fluid: Compressed Air
  • Action Type: Double Acting
  • Rod Type: Single Rod
  • Port Thread Size: M5
  • Piston Rod Diameter: 6 mm (M6X1)
  • Max. theoretical force: 14 Kgf
  • Maximum Pressure: 1.0 MPa
  • Body Material: Aluminum Alloy
  • Package Contents: 1 x Pneumatic Cylinder
