Baomain NEMA L14-30R Locking Receptacle - 30A 125/250V Industrial Grade Twist Lock Outlet
100 In Stock
- Regular price
- $9.59
- Sale price
- $9.59
- Regular price
-
Heavy-Duty Power Connection for Generators & Industrial Systems
Upgrade your electrical setup with the Baomain NEMA L14-30R Locking Receptacle. Specifically engineered for high-performance 125/250V 30 Amp systems, this UL Listed outlet is the professional choice for home backup power, transfer switches, and heavy-duty industrial machinery.
Why the Twist-Lock Design Matters
Standard plugs can easily slip out due to gravity or movement, but our Twist-Locking mechanism ensures a rock-solid connection. Once rotated and locked, it prevents accidental power loss—even in high-vibration environments like running generators or large swimming pool pumps.
Key Features
- Dual-Voltage Versatility: Designed for 3-Pole 4-Wire grounding systems, supporting both 125V and 250V applications.
- Industrial-Grade Build: Features a high-impact modified nylon housing and solid brass contacts for maximum heat resistance and electrical conductivity.
- UL Listed Safety: Fully compliant with NEMA L14-30R standards, ensuring peak safety performance and fire resistance for residential and commercial projects.

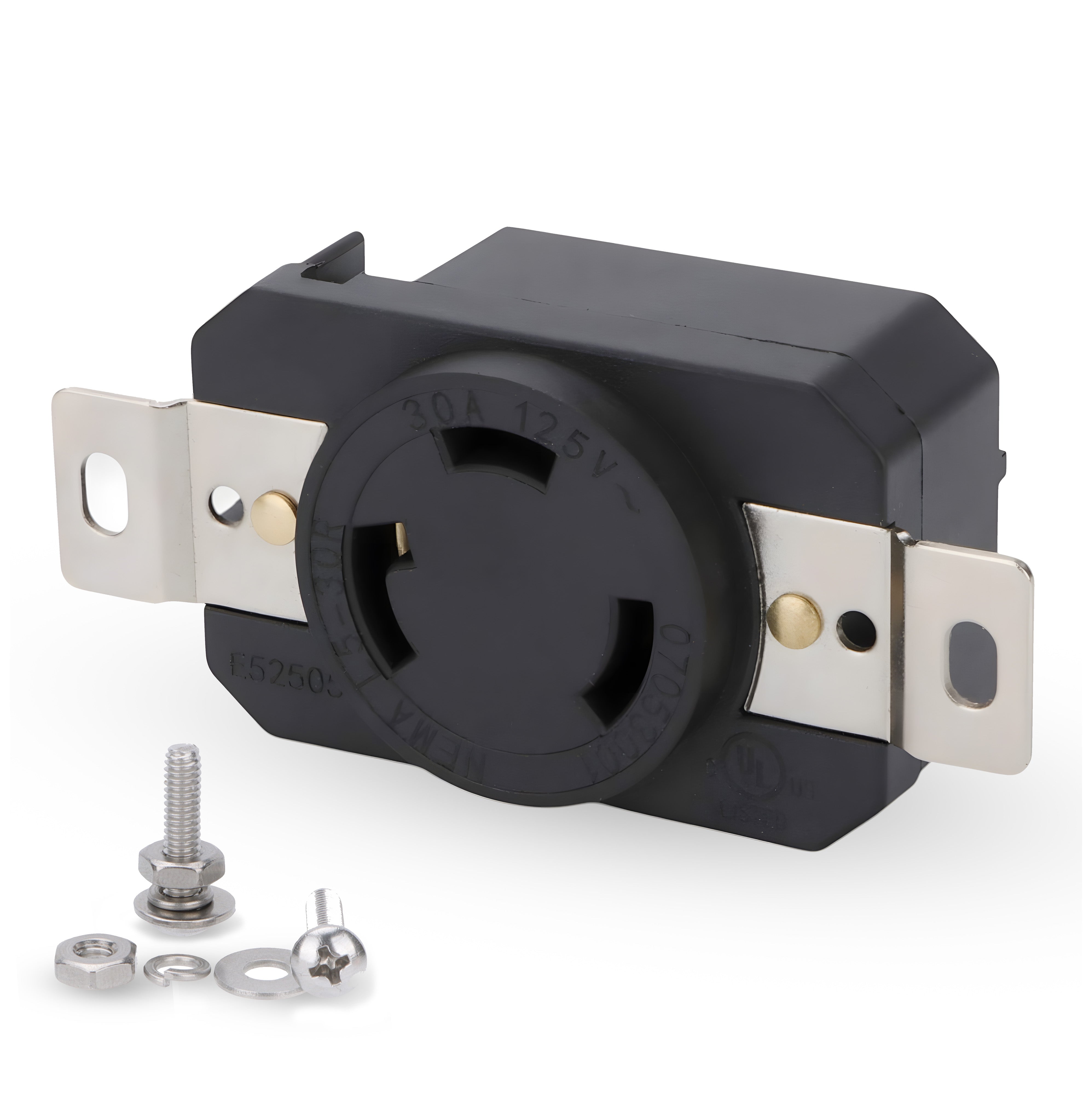

- All-Inclusive Mounting Kit: Includes 2 sets of 304 stainless steel hardware (screws, nuts, and washers). No extra trips to the store—ready for a professional, flush-fit installation.
Technical Specifications
| NEMA Configuration | L14-30R (Locking Type) |
| Electrical Rating | 30 Amp, 125/250 Volt |
| Wiring | 3-Pole, 4-Wire Grounding |
| Certification | UL Listed |
| Common Uses | Backup Generators, Transfer Switches, RV Shore Power |
Note: For outdoor or pool applications, it is recommended to install this unit within a NEMA 3R rated weatherproof enclosure.
What's in the Box?
- 1 x NEMA L14-30R Receptacle
- 2 x Sets of 304 Stainless Steel Hardware
- 1 x Professional Wiring Diagram
