Baomain NEMA L14-30R Weatherproof Locking Receptacle - 30A 125/250V cRUus Certified Outlet

30 In Stock
$11.49
$11.49
Quantity

Heavy-Duty Dual-Voltage Power Solution with All-Weather Shield

The Baomain Pro-Series NEMA L14-30R Receptacle is an industrial-grade electrical interface engineered for high-demand 125/250V 30 Amp systems. Fully cRUus Certified, this versatile outlet provides the ultimate safety and durability for backup generators, RV shore power, and professional-grade industrial tools.

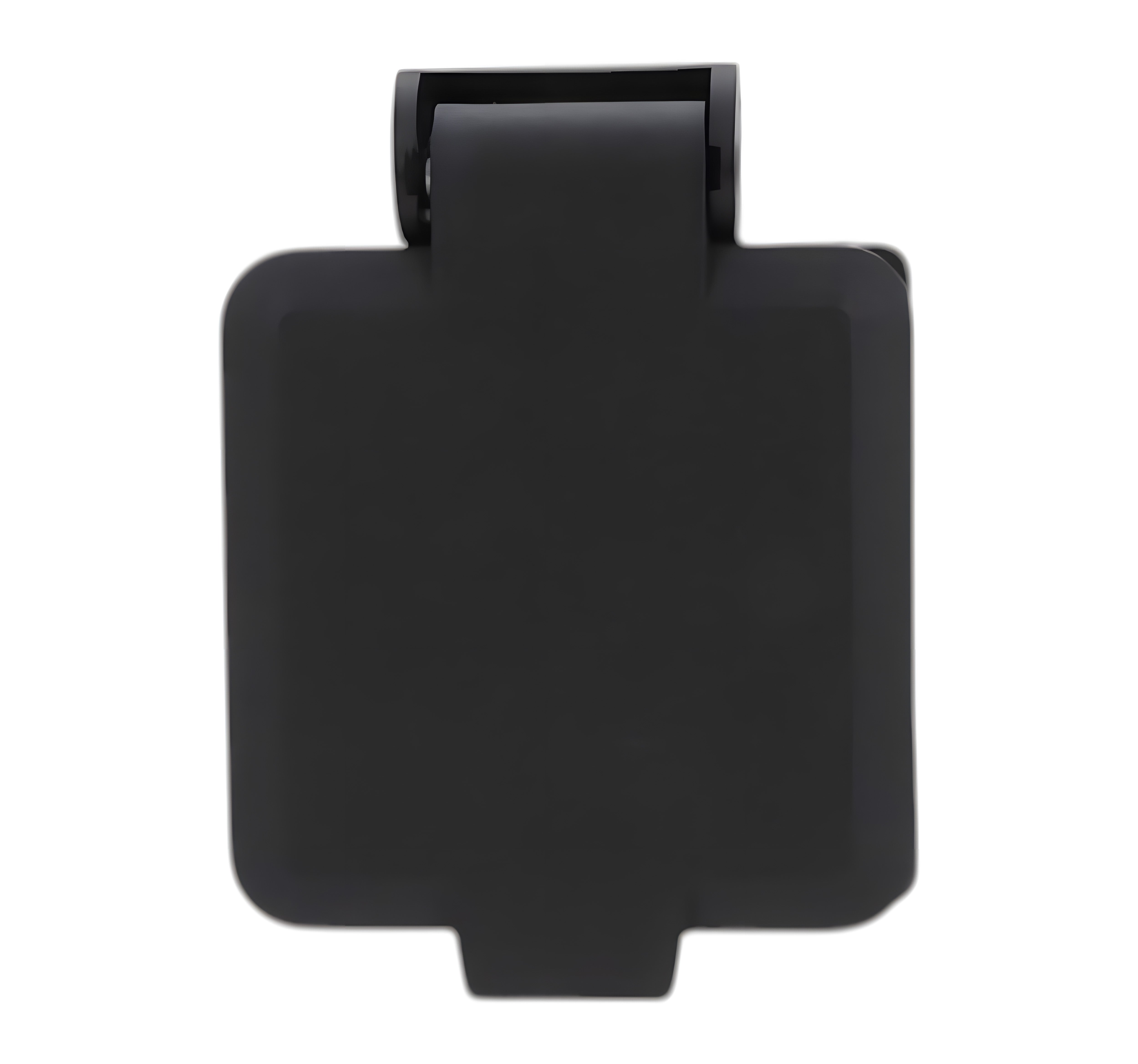

Quick-Flip Weatherproof Protection

Equipped with a spring-loaded Square Flip-Top Cover, this unit offers rapid one-handed access while maintaining a clean, splash-proof seal when not in use. Designed to meet IP44 protection standards, the rugged housing shields internal contacts from splashes, dust, and debris, ensuring reliable performance in any weather condition.

Key Features

  • cRUus Safety Certified: Fully recognized under North American standards for superior electrical safety and fire resistance.
  • Secure Twist-Locking Design: The heavy-duty mechanical locking mechanism ensures a rock-solid connection that prevents accidental unplugging caused by high-vibration machinery like portable generators.
  • Industrial-Grade Construction: Built with high-impact modified nylon housing and solid brass contacts for maximum heat resistance and electrical conductivity.
  • Pro Installation Hardware Included: Every package includes 4 sets of #8-32 stainless steel screws, nuts, and dual washers (flat & spring) to ensure a vibration-proof, flush-mount fit.

Technical Specifications

NEMA Configuration L14-30R (Locking Type)
Electrical Rating 30 Amp, 125/250 Volt
Certification cRUus Listed / UL Recognized
Wiring Type 3-Pole, 4-Wire Grounding
Protection Rating IP44 Equivalent
Compatible Devices Generators, RVs, Transfer Switches, Pool Pumps

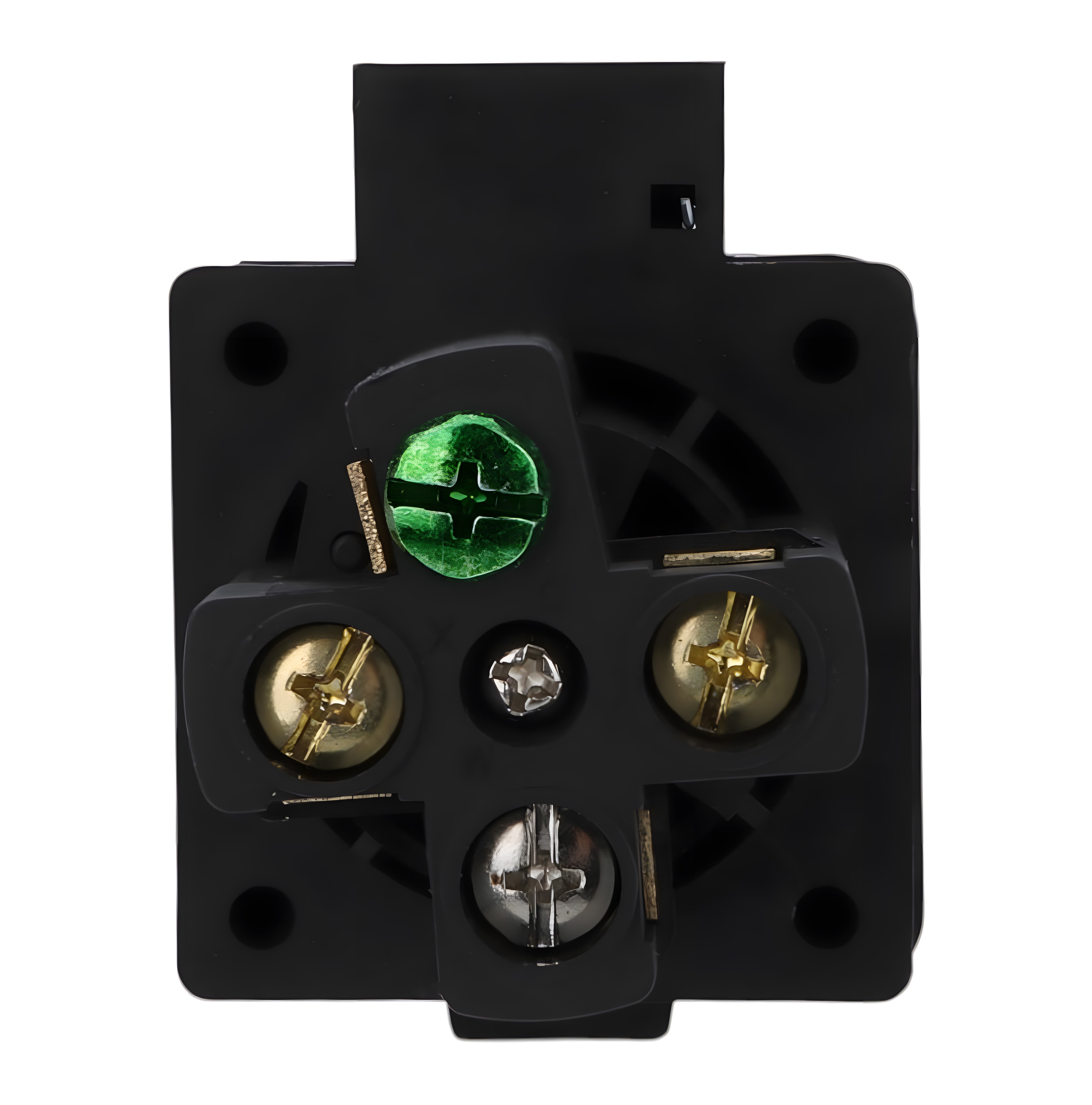

Simple Wiring Guide (L14-30R)

Designed for easy and accurate installation with industry-standard color-coded terminals:

  • Green Screw (G): Safety Ground Wire.
  • Silver Terminal (W): Neutral Wire.
  • X & Y Terminals: Hot Lead Wires.

What's in the Box?

  • 1 x NEMA L14-30R Weatherproof Receptacle.
  • 1 x Pre-installed Rear Sealing Gasket (Foam Pad)
  • 4 x Sets of #8-32 Stainless Steel Mounting Hardware.
  • 1 x Detailed Installation Instructions.
