Baomain NEMA L5-30R Weatherproof Locking Receptacle - 30A 125V cRUus Certified

30 In Stock
$10.99
$10.99
Quantity

All-Weather Professional Power Solution (cRUus Certified)

Upgrade your outdoor power system with the Baomain Pro-Series Weatherproof Locking Receptacle. Carrying the prestigious cRUus Certification, this industrial-grade outlet is engineered for maximum reliability in challenging environments, from RV shore power pedestals to marine docks and outdoor generator hookups.

Instant-Access Weather Protection

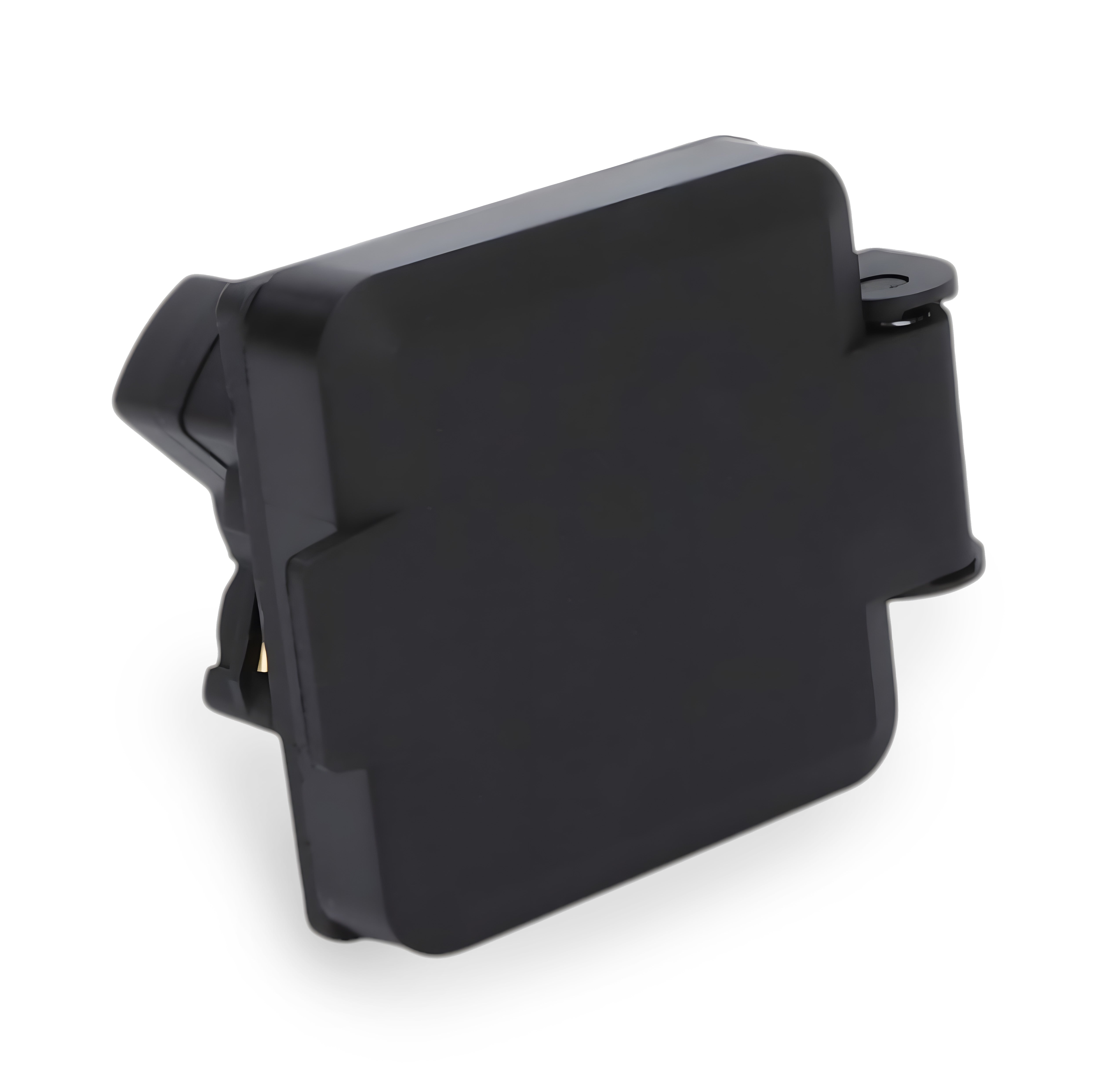

Equipped with a responsive, spring-loaded Square Flip-Cover, this unit offers rapid one-handed access while providing a rugged shield against splashes, dust, and debris. When properly sealed, it achieves IP44-equivalent protection, ensuring your electrical contacts remain clean and functional in any weather.

Key Features

  • cRUus Safety Certified: Fully recognized under North American safety standards, ensuring the highest level of fire resistance and long-term electrical reliability.
  • Secure Twist-Locking mechanism: Once the plug is inserted and rotated, it is mechanically locked in place. This prevents accidental disconnections caused by high vibration from generators or heavy-duty motors.
  • Industrial-Grade Build: Constructed with a high-impact modified nylon shell and solid brass contacts for peak conductivity and superior heat management.
  • Hassle-Free Installation Kit: Includes 4 sets of #8-32 stainless steel screws, nuts, and dual-function washers (flat & spring) for a vibration-proof, secure mount.

Technical Specifications

NEMA Configuration L5-30R (Locking Type)
Electrical Rating 30 Amp, 125 Volt
Certification cRUus (UL Recognized)
Protection Level IP44 Equivalent (Splash-Resistant)
Material Heat-Resistant Nylon & Solid Brass
Dimensions 2.68"L x 1.98"W

Simple Wiring Logic

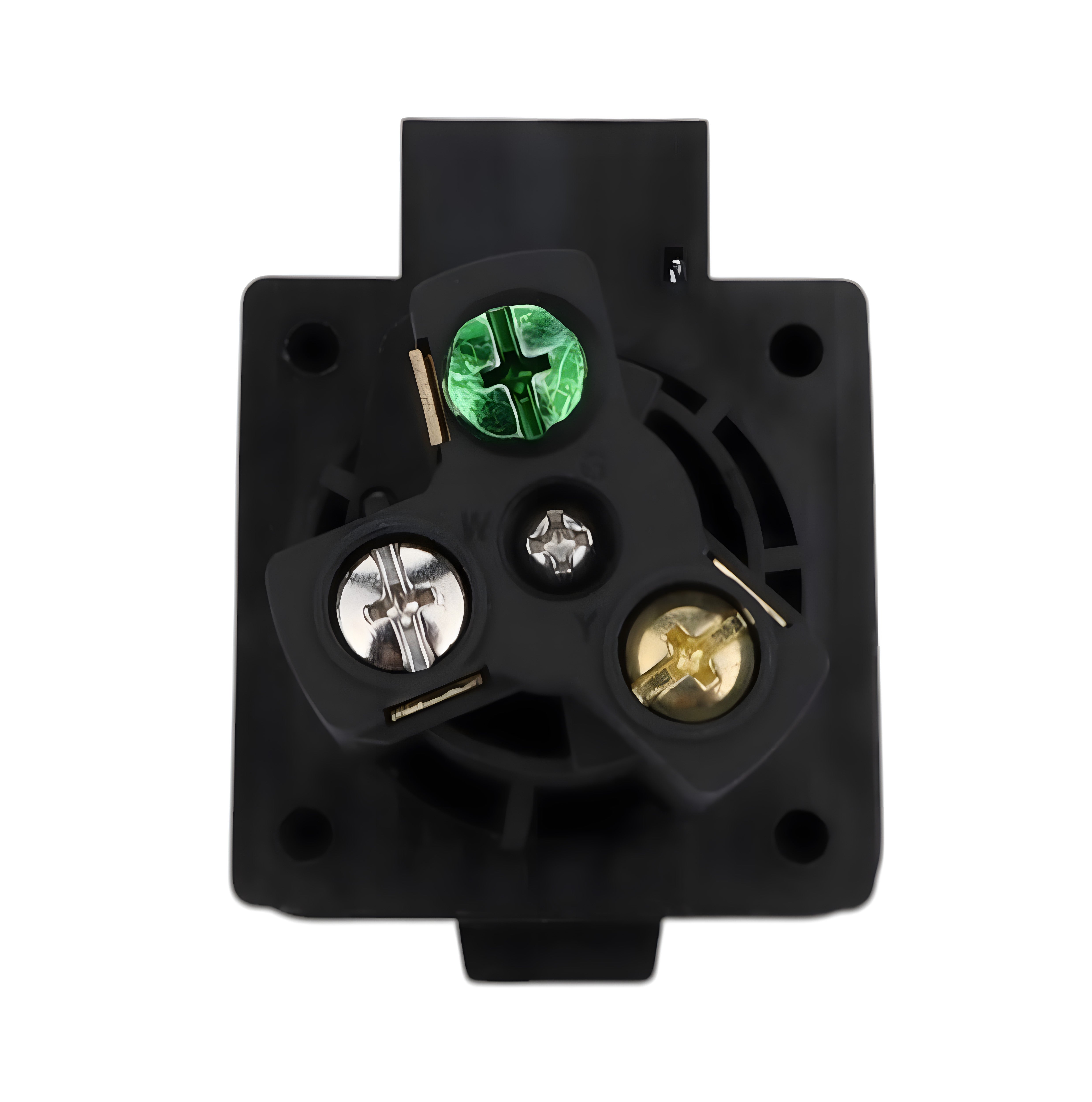

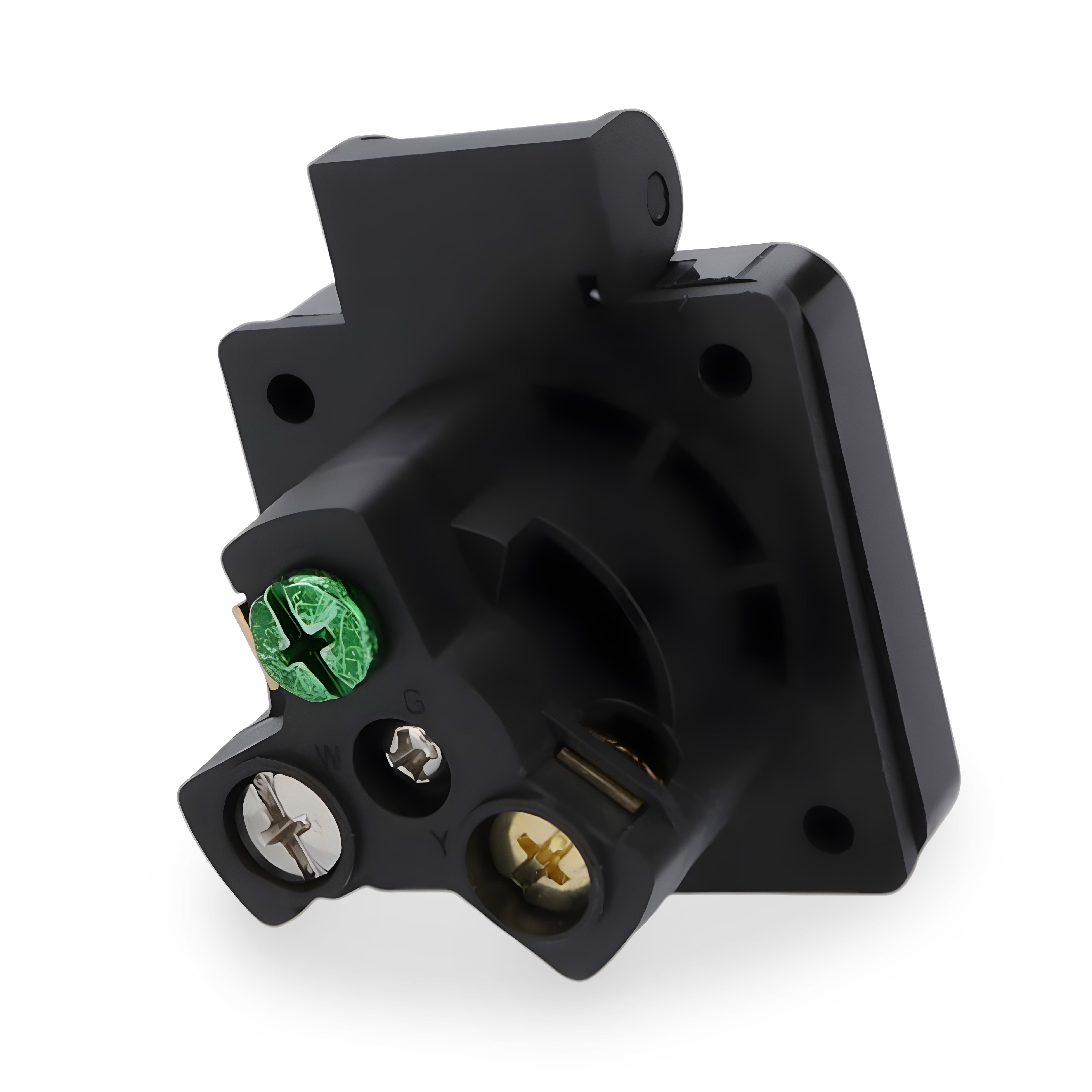

Designed for easy installation with color-coded and embossed terminal markings:

  • Green (G): Safety Ground
  • Brass (Y): Hot Lead
  • Silver (W): Neutral Lead

What's in the Box?

  • 1 x NEMA L5-30R Weatherproof Receptacle
  • 1 x Pre-installed Rear Sealing Gasket (Foam Pad)
  • 4 x Sets of #8-32 Stainless Steel Mounting Hardware
  • 1 x Professional Wiring Diagram

FAQ
